Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2 - 0601912320

SKU: Bosch GSR 18 VE-2 0601912320
€105.42
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2 - 0601912320

Bosch original spare parts for to replace broken parts for to fix Cordless Drill Driver 0601912320 - GSR 18 VE-2/ 8 V/EU.

Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2 - 0601912320
  • Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2 - 0601912320
  • Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2 - 0601912320

Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2 - 0601912320

SKU: Bosch GSR 18 VE-2 0601912320 Condition: New
€105.42
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2 - 0601912320

Bosch original spare parts for to replace broken parts for to fix Cordless Drill Driver 0601912320 - GSR 18 VE-2/ 8 V/EU.

settings 18 spare parts

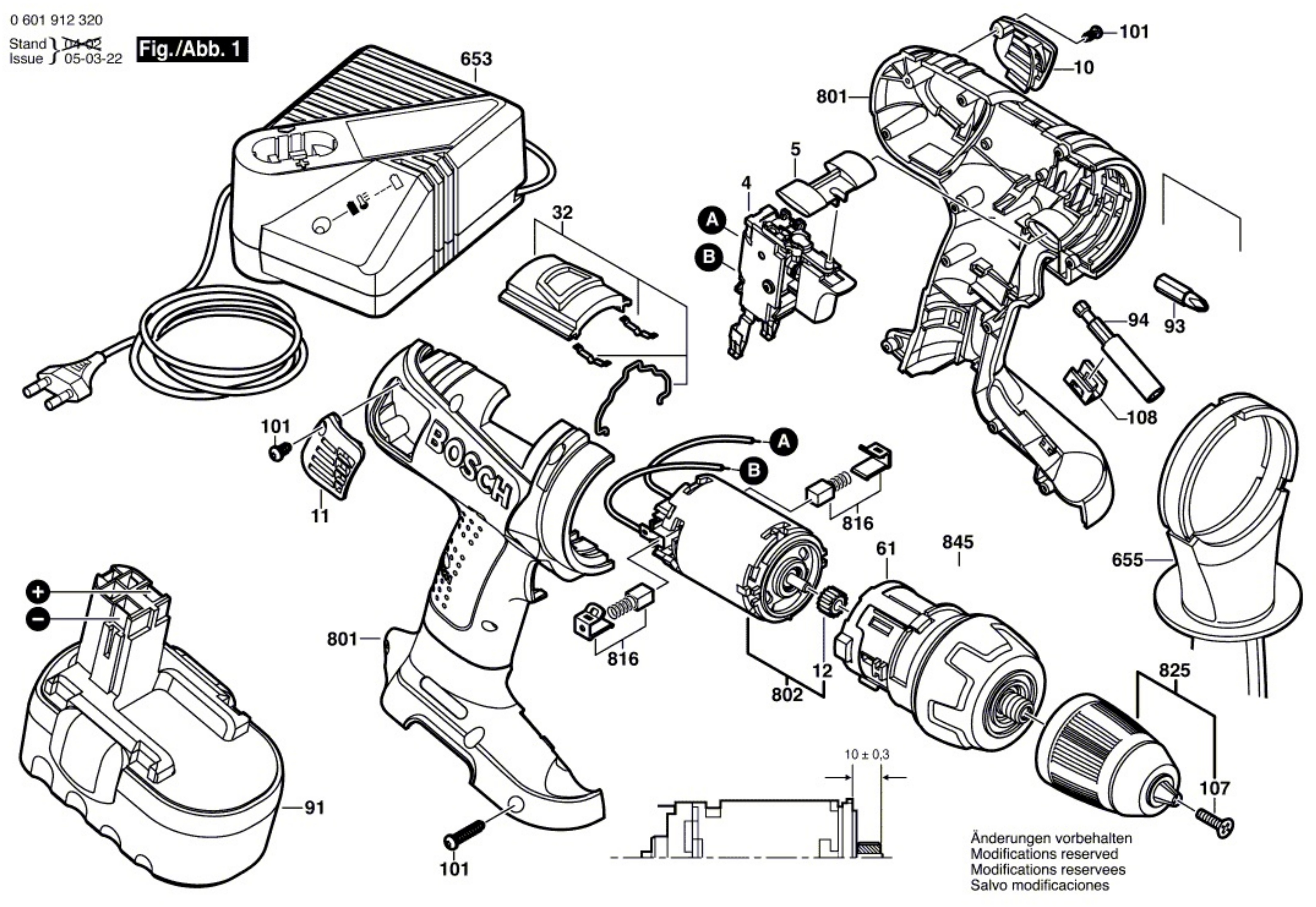

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

17 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 1607000488 Carbon-Brush Set 10 x 2 607 034 904 €86.86
photo_cameraImage coming soon 2607224425 Fast Charger EU 230/7,2-24V, 1h €176.29
photo_cameraImage coming soon 2607224427 Fast Charger GB 230/7,2-24V, 1h €137.58
photo_cameraImage coming soon 2607224429 Fast Charger AUS 240/7,2-24V, 1h €124.32
photo_cameraImage coming soon 2607225029 Fast Charger GB 230/7,2-24V, 30 MIN. €129.88
photo_cameraImage coming soon 2607335687 Slide-In Accu Package 18V, 2,6Ah, NiMH, HD €508.29
5
Switch Adjusting Slide for Cordless Drill GSR 14,4 VE-2 2601099112 Switch Adjusting Slide for Cordless Drill GSR 14,4 VE-2 €3.79
10
photo_cameraImage coming soon 2600508051 Cover BLACK €3.91
11
photo_cameraImage coming soon 2600508052 Cover BLACK €3.91
32
photo_cameraImage coming soon 2601099127 Adjusting Slide €5.72
61
photo_cameraImage coming soon 2608040190 Support €9.26
101
Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch 2603490018 Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch €0.93
107
photo_cameraImage coming soon 2603421229 Countersunk-Head Screw M6x23 €2.13
653
photo_cameraImage coming soon 2607225027 Fast Charger EU 230/7,2-24V, 30 MIN. €306.10
655
photo_cameraImage coming soon 2602025135 Auxiliary Handle €18.60
816
Carbon Brushes for Cordless Drills GSR 12-14-18-24VE2 2607034904 Carbon Brushes for Cordless Drills GSR 12-14-18-24VE2 €24.22
825
photo_cameraImage coming soon 2608572900 Keyless Chuck €75.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2 - 0601912320

Bosch original spare parts for to replace broken parts for to fix Cordless Drill Driver 0601912320 - GSR 18 VE-2/ 8 V/EU.

In the following table, look for the model of the Cordles Drill and the respective parts of the code.


Batt-Oper Screwdriver 0601912320 - GSR 18 VE-2/ 8 V/EU
4 2607200457 On-Off Switch
5 2601099112 Adjusting Slide RED
10 2600508051 Cover BLACK
11 2600508052 Cover BLACK
12 2606316223 Pinion
32 2601099127 Adjusting Slide
61 2608040190 Support
91 2607335265 Slide-In Accu Package 18V,2,0Ah,NiCd
2607335687 Slide-In Accu Package 18V, 2,6Ah, NiMH, HD
2607335735 Slide-In Accu Package 18V, 2,0Ah, NiCd
93 2607000366 Screwdriver Bit
94 2607001438 Toolholder
101 2603490018 Torx Oval-Head Screw 3x18
107 2603421229 Countersunk-Head Screw M6x23
108 2604690027 Spring Element
653 2607225027 Fast Charger EU 230/7,2-24V, 30 MIN.
2607224425 Fast Charger EU 230/7,2-24V, 1h
2607224427 Fast Charger GB 230/7,2-24V, 1h
2607225029 Fast Charger GB 230/7,2-24V, 30 MIN.
2607224429 Fast Charger AUS 240/7,2-24V, 1h
655 2602025135 Auxiliary Handle
801 2605105909 Housing Section BLUE
802 2607022865 DC motor 18V
816 2607034904 Carbon-Brush Set
1607000488 Carbon-Brush Set 10 x 2 607 034 904
825 2608572900 Keyless Chuck
845 2606200930 Planetary Gear Train
