Bosch GWS 22-230 JH 3601H82M01
settings 64 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
64 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

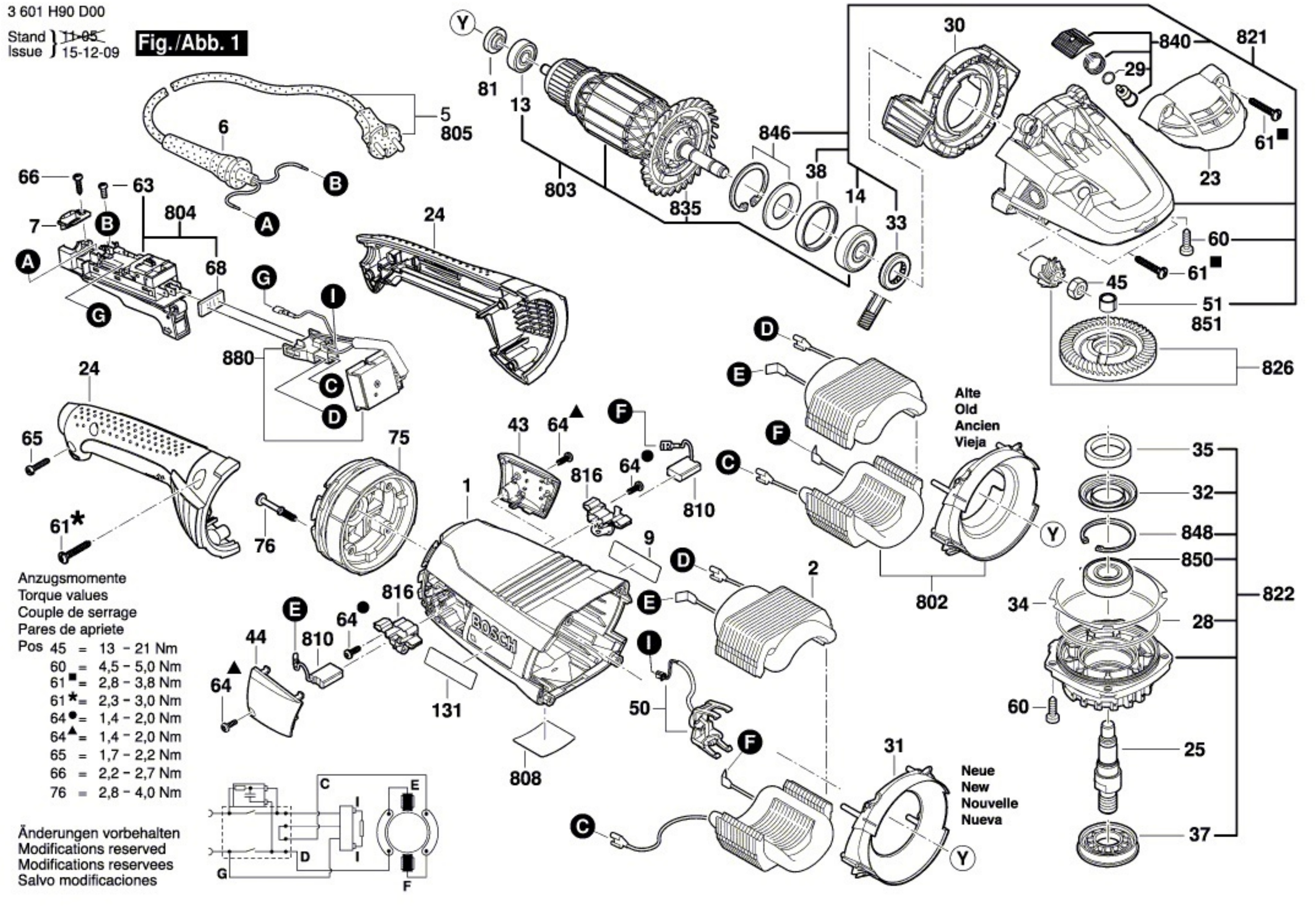

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1605108264 Motor Housing BLUE €19.82
2
 photo_cameraImage coming soon 160422053X Field €51.88
6
 photo_cameraImage coming soon 1600703036 Grommet Ø10,5-Ø11,0x100 MM €2.11
7
 photo_cameraImage coming soon 1601302018 Fastening Clamp €2.25
9
 photo_cameraImage coming soon 160111C281 Manufacturer's nameplate GWS 22-230 LVI €2.20
13
 photo_cameraImage coming soon 1600905034 groove ball bearing 9x26x8 €4.68
14
 photo_cameraImage coming soon 1600905035 groove ball bearing 12x37x12 €8.46
23
 photo_cameraImage coming soon 1605500266 Cover BLACK €1.90
24
 photo_cameraImage coming soon 1605132155 Handle BLUE €10.78
25
 photo_cameraImage coming soon 160312305U Grinding Spindle  €17.81
28
 O-Ring 79,0x1,78 mm for Angle Grinder Bosch GWS 20-230 1600210033 O-Ring 79,0x1,78 mm for Angle Grinder Bosch GWS 20-230 €2.04
29
 photo_cameraImage coming soon 1600210045 O-Ring 8,0x1,0 MM €2.14
30
 photo_cameraImage coming soon 1600591041 Air Distributor €2.20
31
 photo_cameraImage coming soon 160059105U Air-Deflector Ring €2.59
32
 photo_cameraImage coming soon 1600290019 Retaining snap ring €2.14
33
 Radial Seal for Angle Grinder GWS-PWS 1600290064 Radial Seal for Angle Grinder GWS-PWS €2.89
34
 Shim mm 0.15 for Angle Grinders Bosch GWS 20-230 1600190020 Shim mm 0.15 for Angle Grinders Bosch GWS 20-230 €2.04
34
 Shim mm 0.3 for Angle Grinders Bosch GWS 20-230 1600190021 Shim mm 0.3 for Angle Grinders Bosch GWS 20-230 €3.10
34
 Shim mm 0.1 for Angle Grinders Bosch GWS 20-230 1600190022 Shim mm 0.1 for Angle Grinders Bosch GWS 20-230 €2.04
34
 photo_cameraImage coming soon 1600190037 Shim 0,2 MM THICK €1.34
34
 photo_cameraImage coming soon 1600190038 Shim 0,25 MM THICK €1.34
34
 photo_cameraImage coming soon 1600190039 Shim 0,35 MM THICK €1.34
34
 photo_cameraImage coming soon 1600190040 Shim 0,4 MM THICK €1.34
35
 Felt Washer for Angle Grinder Bosch GWS 21-230 1600205034 Felt Washer for Angle Grinder Bosch GWS 21-230 €2.04
37
 photo_cameraImage coming soon 1600290036 Seal ring BLACK €2.77
45
 Hex Nut for Angle Grinder Bosch GWS-PWS 1603300019 Hex Nut for Angle Grinder Bosch GWS-PWS €2.04
50
 photo_cameraImage coming soon 1607001007 Rotational Speed Sensor €7.07
51
 Plain Bearing Ø14 mm for Angle Grinder Bosch GWS 21-230 1600200031 Plain Bearing Ø14 mm for Angle Grinder Bosch GWS 21-230 €3.62
60
 Round head screw for Angle Grinder Bosch GWS-PWS 1603435023 Round head screw for Angle Grinder Bosch GWS-PWS €2.04
61
 photo_cameraImage coming soon 1603490005 Torx Oval-Head Screw €1.43
63
 Flat Head Screw for Angle Grinder Bosch GWS-PWS 1603410014 Flat Head Screw for Angle Grinder Bosch GWS-PWS €2.04
64
 photo_cameraImage coming soon 2603490021 Torx Oval-Head Screw 4x12 €1.39
65
 Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
66
 photo_cameraImage coming soon 2910211019 Tapping Screw DIN 7971-ST3,9x16-F €1.34
68
 Sealing Plate for Angle Grinders Bosch GWS22-230JH/24-230B/PWS1900 1601006011 Sealing Plate for Angle Grinders Bosch GWS22-230JH/24-230B/PWS1900 €2.95
75
 photo_cameraImage coming soon 1600290060 Damper €15.49
81
 photo_cameraImage coming soon 1600190048 Magnet €2.59
131
 photo_cameraImage coming soon 160111C282 Manufacturer's nameplate GWS 22-230 LVI €3.13
651
 photo_cameraImage coming soon 1600A00Z9L Protective Cover €33.11
660
 Auxiliary Handle for Angle Grinder GWS 22-230 JH 1602025051 Auxiliary Handle for Angle Grinder GWS 22-230 JH €29.42
802
 photo_cameraImage coming soon 1607000C4K Assembly €57.21
803
 photo_cameraImage coming soon 1604011297 Armature 230V €100.71
804
 photo_cameraImage coming soon 1607000C15 On-Off Switch €33.11
805
 photo_cameraImage coming soon 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F €36.70
808
 photo_cameraImage coming soon 1601106940 Nameplat €2.20
810
 photo_cameraImage coming soon 1607000480 Carbon-Brush Set 10 x 1 607 014 171 €188.97
810
 Carbon Brushes for Angle Grinders Bosch 20-21-23 230 1607014171 Carbon Brushes for Angle Grinders Bosch 20-21-23 230 €19.11
816
 photo_cameraImage coming soon 1604336053 Brush Holder €4.91
821
 photo_cameraImage coming soon 1607000C17 Gear Housing €57.21
822
 photo_cameraImage coming soon 1607000C24 Bearing Flange Ø230 MM €33.11
826
 photo_cameraImage coming soon 1607000429 Bevel Gear Set €37.28
835
 photo_cameraImage coming soon 1606610150 Fan €2.20
840
 photo_cameraImage coming soon 1607000431 Push-Button €4.62
846
 photo_cameraImage coming soon 1607000432 Retaining Washer €4.68
848
 Spring Retaining Ring for Angle Grinders Bosch GWS 20-21-22-230 1600119010 Spring Retaining Ring for Angle Grinders Bosch GWS 20-21-22-230 €2.04
850
 photo_cameraImage coming soon 1600905026 Deep-Groove Ball Bearing 17x40x12 €10.47
851
 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 2600910001 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 €5.74
880
 photo_cameraImage coming soon 1607233552 Electronics Module €45.55
890
 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 1600210039 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 €1.28
891
 photo_cameraImage coming soon 1602025022 Auxiliary Handle M14 BLACK €17.32
892
 Auxiliary Handle for Angle Grinder GWS 22-230 JH 1607950061 Auxiliary Handle for Angle Grinder GWS 22-230 JH €5.39
893
 Clamping Flange for Angle Grinder Bosch PWS 6-115 2605703014 Clamping Flange for Angle Grinder Bosch PWS 6-115 €7.98
894
 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 1603345043 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 €9.26
896
 photo_cameraImage coming soon 1603340027 Fast Locking Flange M14, SDS-CLIC €75.80
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

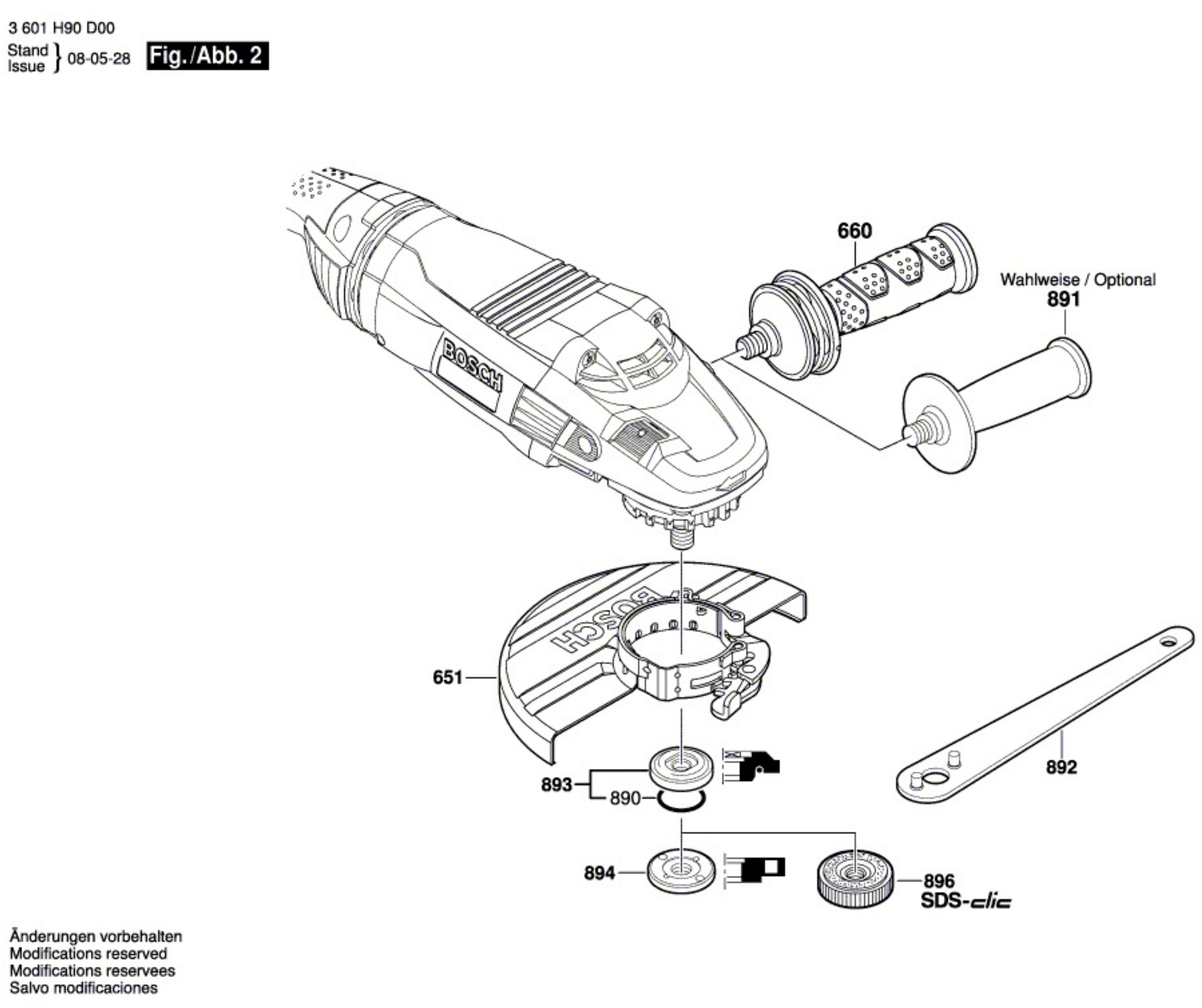

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
651
 photo_cameraImage coming soon 1600A00Z9L Protective Cover €33.11
660
 Auxiliary Handle for Angle Grinder GWS 22-230 JH 1602025051 Auxiliary Handle for Angle Grinder GWS 22-230 JH €29.42
890
 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 1600210039 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 €1.28
891
 photo_cameraImage coming soon 1602025022 Auxiliary Handle M14 BLACK €17.32
892
 Auxiliary Handle for Angle Grinder GWS 22-230 JH 1607950061 Auxiliary Handle for Angle Grinder GWS 22-230 JH €5.39
893
 Clamping Flange for Angle Grinder Bosch PWS 6-115 2605703014 Clamping Flange for Angle Grinder Bosch PWS 6-115 €7.98
894
 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 1603345043 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 €9.26
896
 photo_cameraImage coming soon 1603340027 Fast Locking Flange M14, SDS-CLIC €75.80

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

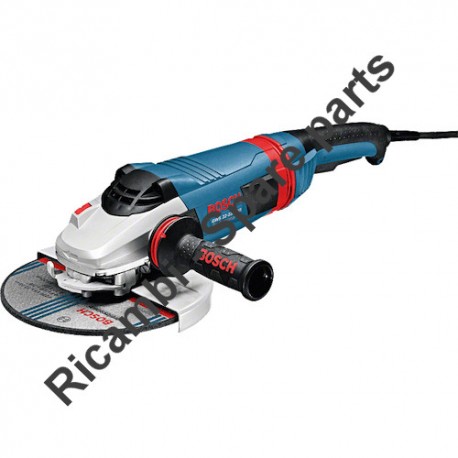

Bosch Spare Parts for Angle Grinder GWS 22-230 LVI

Bosch genuine replacement parts for to replace broken parts for to fix Angle Grinder GWS 22-230 JH - 3601H82M01.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Bosch GWS 22-230 JH 3601H82M01

Angle Grinder GWS 22-230 LVI/3 601 H91 C00
# Part Num. Description
1 1605108264 Motor Housing BLUE
2 160422053X Field
6 1600703036 Grommet Ø10,5-Ø11,0x100 MM
7 1601302018 Fastening Clamp
9 160111C281 Manufacturer's nameplate GWS 22-230 LVI
13 1600905034 groove ball bearing 9x26x8
14 1600905035 groove ball bearing 12x37x12
23 1605500266 Cover BLACK
24 1605132155 Handle BLUE
25 160312305U Grinding Spindle
28 1600210033 O-Ring 79,0x1,78 MM
29 1600210045 O-Ring 8,0x1,0 MM
30 1600591041 Air Distributor
31 160059105U Air-Deflector Ring
32 1600290019 Retaining snap ring
33 1600290064 Rotary shaft lip seal 16 MM BLUE
34 1600190020 Shim 0,15 MM THICK
34 1600190021 Shim 0,3 MM THICK
34 1600190022 Shim 0,1 MM THICK
34 1600190037 Shim 0,2 MM THICK
34 1600190038 Shim 0,25 MM THICK
34 1600190039 Shim 0,35 MM THICK
34 1600190040 Shim 0,4 MM THICK
35 1600205034 Felt Washer
37 1600290036 Seal Ring BLACK
38 1600206037 Rubber Ring
43 1605500264 Sealing cap BLACK
44 1605500265 Sealing cap BLACK
45 1603300019 Hex Nut M10, SW14
50 1607001007 Rotational Speed Sensor
51 1600200031 Plain bearing Ø14 MM
60 1603435023 Thread-forming tap. Screw TT M5x18 MM
61 1603490005 Torx Oval-Head Screw
63 1603410014 Pan head screw M4x10 MM
64 2603490021 Torx Oval-Head Screw 4x12
65 2603490023 Torx Oval-Head Screw 4x20
66 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
68 1601006011 Sealing Plate
75 1600290060 Damper
76 1603414025 Collar Screw
81 1600190048 Magnet
131 160111C282 Manufacturer's nameplate GWS 22-230 LVI
651 1600A00Z9L Protective Cover
660 1602025051 Auxiliary Handle M14 BLACK
802 1607000C4K Assembly
803 1604011297 Armature 230V
804 1607000C15 On-Off Switch
805 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
808 1601106940 Nameplat
810 1607014171 Carbon-Brush Set
810 1607000480 Carbon-Brush Set 10 x 1 607 014 171
816 1604336053 Brush Holder
821 1607000C17 Gear Housing
822 1607000C24 Bearing Flange Ø230 MM
826 1607000429 Bevel Gear Set
835 1606610150 Fan
840 1607000431 Push-Button
846 1607000432 Retaining Washer
848 1600119010 Retaining clip
850 1600905026 groove ball bearing 17x40x12
851 2600910001 Needle-Roller Bearing Ø14 MM
880 1607233552 Electronics Module
890 1600210039 O-Ring 20,35x1,78 MM
891 1602025022 Auxiliary Handle M14 BLACK
892 1607950061 Pin-Type Face-Wrench
893 2605703014 Clamping Flange Ø22,3xØ42 MM
894 1603345043 Round Nut M14
896 1603340027 Fast Locking Flange M14, SDS-CLIC
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GWS 22-230 JH 3601H82M01
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GWS 22-230 LVI

Diagram Bosch GWS 22-230 LVI

Download (390.09KB)

You might also like

Carbon Brushes for Angle Grinders Bosch 20-21-23 230
Bosch SKU: 1607014171
Carbon Brushes for Angle Grinders Bosch 20-21-23 230
Carbon Brushes for Angle Grinders Bosch 20-21-23 230 Genuine part Bosch, Carbon Brushe Set for Angle Grinders GWS 18-180 - GWS 18-230 - GWS 20-180 - GWS 20-230 - GWS 21-180 - GWS 21-230 - GWS 23-230. Part for the following products:...
Last items in stock €19.11
Details
Hex Nut for Angle Grinder Bosch GWS-PWS
Bosch SKU: 1603300019
Hex Nut for Angle Grinder Bosch GWS-PWS
Hex Nut for Angle Grinder Bosch GWS-PWS Original Spare Part Bosch, Hex Nut M10, SW 14 for Angle Grinder Bosch GWS-PWS Part for the following products: - Angle grinder GWS 21-230/0 601 357 103 - Angle grinder GWS 20-230/0 601 357 003 -...
AVAILABLE €2.04
Details
Radial Seal for Angle Grinder GWS-PWS Sale
Bosch SKU: 1600290064
Radial Seal for Angle Grinder GWS-PWS
Radial Seal for Angle Grinder GWS-PWS Bosch original replacement part, Radial Seal 16mm blue for Angle Grinder GWS 20-230 - 21-230 - 24-230 B - PWS 20-230 - PWS 20-230 J. Parts for the following products: - Angle Grinder GWS 20-230/0...
AVAILABLE €2.89
Details
Clamping Flange for Angle Grinder Bosch PWS 6-115
Bosch SKU: 2605703014
Clamping Flange for Angle Grinder Bosch PWS 6-115
Clamping Flange for Angle Grinder Bosch PWS 6-115 Genuine spare parts Bosch, Clamping Flange for Angle Grinder PWS 6-115 - PWS 600 - PWS Universal - PWS 9-125 CE - PWS 1900 - GWS 6-115 - GWS 660 - GWS 22-230 JH - GWS 24-230 B Parts...
AVAILABLE €7.98
Details
O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115
Bosch SKU: 1600210039
O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115
O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 Genuine spare part Bosch, Clamping Flange O-Ring 20,35x1,78 mm for Angle Grinder PWS 6-115 - PWS 600 - PWS Universal - PWS 9-125 CE - PWS 1900 - GWS 6-115 - GWS 660 - GWS 22-230 JH...
AVAILABLE €1.28
Details
Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660
Bosch SKU: 1603345043
Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660
Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 Genuine spare parts Bosch, Upper Flange M14 for Angle Grinder PWS Universal/3 603 CA2 002 - GWS 6-115/0 601 375 003 - GWS 660/0 601 375 065 - GWS 850 CE/0601378703. Parts for...
AVAILABLE €9.26
Details
Auxiliary Handle for Angle Grinder GWS 22-230 JH
Bosch SKU: 1602025051
Auxiliary Handle for Angle Grinder GWS 22-230 JH
Auxiliary Handle for Angle Grinder GWS 22-230 JH Genuine Part Bosch, Auxiliary Handle M14 BLACK for Angle Grinders GWS 22-230 JH/3 601 H82 200 - GWS 22-230 LVI/3601H91C00 - GWS 24-230 B/0 601 854 003. Part for the following products:...
AVAILABLE €29.42
Details
Auxiliary Handle for Angle Grinder GWS 22-230 JH
Bosch SKU: 1607950061
Auxiliary Handle for Angle Grinder GWS 22-230 JH
Auxiliary Handle for Angle Grinder GWS 22-230 JH Genuine Part Bosch, Auxiliary Handle M14 BLACK for Angle Grinders GWS 22-230 JH/3 601 H82 200 - GWS 22-230 JH/3 601 H82 M01 - GWS 24-230 B/0 601 854 003 Part for the following products:...
on 7/10 Business Days Approx €5.39
Details
Felt Washer for Angle Grinder Bosch GWS 21-230
Bosch SKU: 1600205034
Felt Washer for Angle Grinder Bosch GWS 21-230
Felt Washer for Angle Grinder Bosch GWS 21-230 Genuine replacement part Bosch, Felt Washer Angle Grinders GWS 21-230 - PWS 20-230 J - GWS 22-230 JH - GWS 24-230B - PWS 20-230 - PWS 1900. Part for the following products: - Angle...
AVAILABLE €2.04
Details
Plain Bearing Ø14 mm for Angle Grinder Bosch GWS 21-230
Bosch SKU: 1600200031
Plain Bearing Ø14 mm for Angle Grinder Bosch GWS 21-230
Plain Bearing Ø14 mm for Angle Grinder Bosch GWS 21-230 Genuine part Bosch, Plain Bearing Ø14 mm for Angle Grinders GWS 20-230 - GWS 21-230 - PWS 20-230 - PWS 1900 - PWS 20-230 - 22-230 JH. Part for the following products: - Angle...
AVAILABLE €3.62
Details
O-Ring 79,0x1,78 mm for Angle Grinder Bosch GWS 20-230
Bosch SKU: 1600210033
O-Ring 79,0x1,78 mm for Angle Grinder Bosch GWS 20-230
O-Ring 79,0x1,78 mm for Angle Grinder Bosch GWS 20-230 Original part Bosch, O-Ring 79,0x1,78 mm for Angle Grinders GWS 20-230 - GWS 21-230 - GWS 22-230 JH - GWS 24-230 B - PWS 1900 Part for Following products: - Angle Grinder GWS...
AVAILABLE €2.04
Details
Shim mm 0.15 for Angle Grinders Bosch GWS 20-230
Bosch SKU: 1600190020
Shim mm 0.15 for Angle Grinders Bosch GWS 20-230
Shim mm 0.15 for Angle Grinders Bosch GWS 20-230 Bosch original part, Shim mm 0.15 for Angle Grinders GWS 20-230 - GWS 21-230 - GWS 22-230 JH - GWS 24-230B. Part for the following products: - Angle Grinder GWS 20-230/0 601 357 003 -...
AVAILABLE €2.04
Details
Shim mm 0.3 for Angle Grinders Bosch GWS 20-230
Bosch SKU: 1600190021
Shim mm 0.3 for Angle Grinders Bosch GWS 20-230
Shim mm 0.3 for Angle Grinders Bosch GWS 20-230 Bosch original part, Shim mm 0.3 for Angle Grinders GWS 20-230 - GWS 21-230 - GWS 22-230 JH - GWS 24-230B. Part for the following products: - Angle Grinder GWS 20-230/0 601 357 003 -...
AVAILABLE €3.10
Details
Shim mm 0.1 for Angle Grinders Bosch GWS 20-230
Bosch SKU: 1600190022
Shim mm 0.1 for Angle Grinders Bosch GWS 20-230
Shim mm 0.1 for Angle Grinders Bosch GWS 20-230 Bosch original part, Shim mm 0.1 for Angle Grinders GWS 20-230 - GWS 21-230 - GWS 22-230 JH - GWS 24-230B. Part for the following products: - Angle Grinder GWS 20-230/0 601 357 003 -...
AVAILABLE €2.04
Details
Comments (0)
