Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5-40 DE

SKU: Bosch GBH 5-40 DE 0611241703
€57.08
VAT included

Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5-40 DE

Bosch original spare parts for to replace broken parts for to fix Rotary Hammer GBH 5-40 DE/230V/EU - 0611241703.

Bosch GBH 5-40 DE 0611241703
Bosch Spare Parts for Rotary Hammer GBH 5-40 DE
  • Bosch Spare Parts for Rotary Hammer GBH 5-40 DE
  • Bosch Spare Parts for Rotary Hammer GBH 5-40 DE
Bosch

Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5-40 DE

SKU: Bosch GBH 5-40 DE 0611241703 Condition: New
€57.08
VAT included

Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5-40 DE

Bosch original spare parts for to replace broken parts for to fix Rotary Hammer GBH 5-40 DE/230V/EU - 0611241703.

Bosch GBH 5-40 DE 0611241703
settings 104 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
98 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

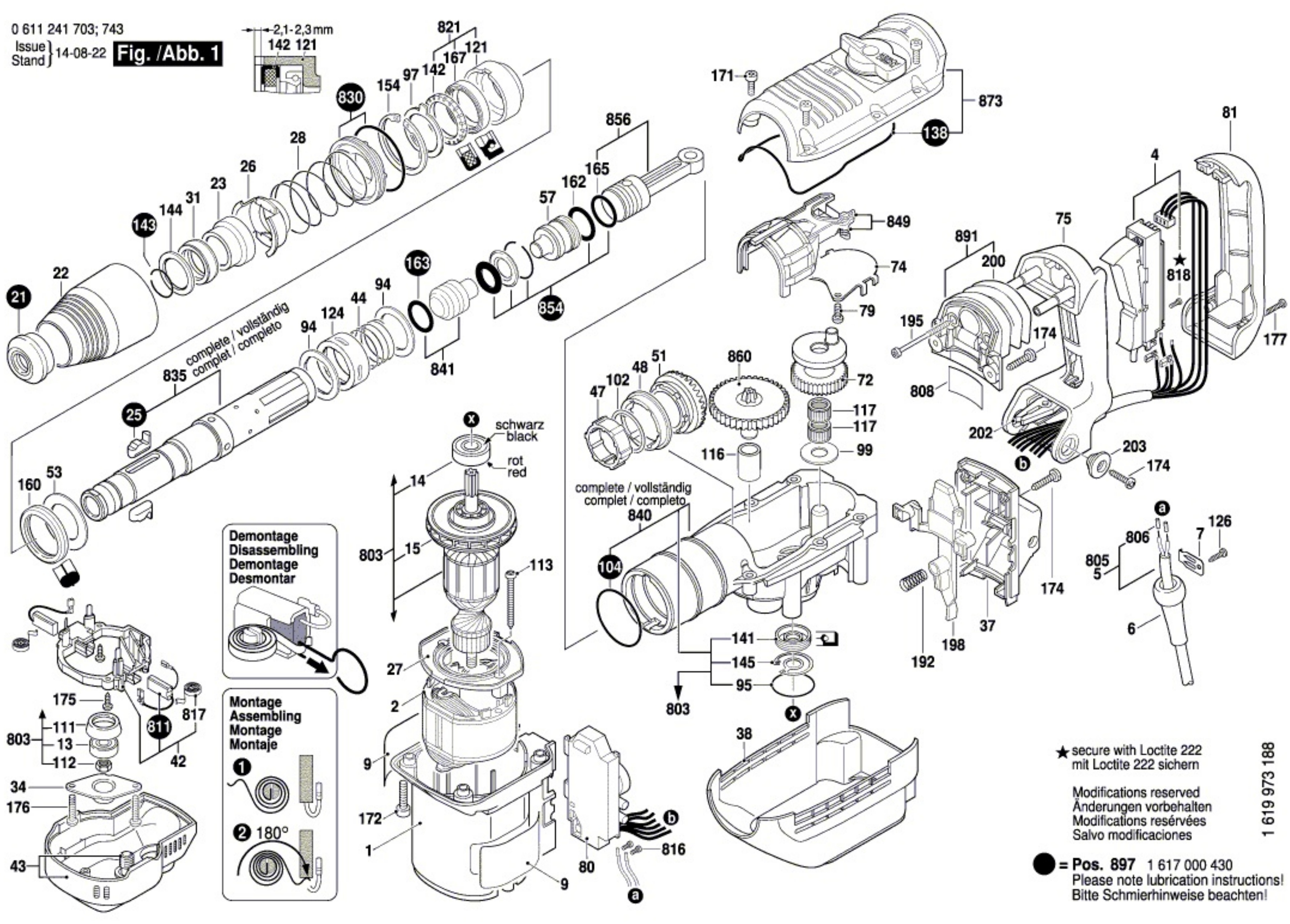

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 1614220123 Field 220-240V  €57.08
4
 photo_cameraImage coming soon 1617200101 Switch  €33.08
6
 photo_cameraImage coming soon 1600703035 Grommet Ø8,7-Ø9,6x66 MM  €3.09
7
 photo_cameraImage coming soon 1601302018 Fastening Clamp €2.25
9
 photo_cameraImage coming soon 1611110C42 Manufacturer's nameplate  €5.06
13
 Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D 1610900026 Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D €17.13
14
 Ball Bearing 12x32x10 for Rotary Hammer Bosch GBH 5-38 D 1610905028 Ball Bearing 12x32x10 for Rotary Hammer Bosch GBH 5-38 D €19.41
15
 photo_cameraImage coming soon 1616610090 Fan  €13.49
21
 photo_cameraImage coming soon 1610508038 Protective Cap €10.27
22
 photo_cameraImage coming soon 1610591027 Protection Sleeve  €6.90
23
 photo_cameraImage coming soon 1610520001 Stop Sleeve €15.74
25
 photo_cameraImage coming soon 1612300036 Stopping Device  €15.24
26
 photo_cameraImage coming soon 1610290076 Indexing Disk  €7.37
27
 photo_cameraImage coming soon 1610591028 Air-Deflector Ring  €2.73
28
 Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E 1614621000 Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E €11.05
31
 photo_cameraImage coming soon 1610290049 Damping Ring €3.72
34
 photo_cameraImage coming soon 1610516013 Flange €2.24
37
 photo_cameraImage coming soon 1615500315 Bearing Pedestal  €6.13
38
 photo_cameraImage coming soon 1615190101 Covering hood  €19.40
42
 photo_cameraImage coming soon 1614336046 Brush Holder  €52.13
43
 photo_cameraImage coming soon 1615500410 Fan Cover BLACK  €16.29
44
 photo_cameraImage coming soon 1614617003 Compression Spring €2.34
47
 photo_cameraImage coming soon 1610300064 Gear Sleeve €7.20
48
 photo_cameraImage coming soon 1616334012 Clutch Sleeve €5.84
51
 photo_cameraImage coming soon 1616333041 Crown Gear €57.08
53
 photo_cameraImage coming soon 1610290068 Support Disc €3.90
57
 photo_cameraImage coming soon 1618710074 Striker €33.88
72
 photo_cameraImage coming soon 1616317064 Eccentric Cog Wheel €87.48
74
 photo_cameraImage coming soon 1611921001 Guide Plate €2.66
75
 photo_cameraImage coming soon 1615132087 Handle BLUE  €71.70
79
 photo_cameraImage coming soon 1613435015 Torx Oval-Head Screw M5x12-TORX,T25 SILVER €2.52
80
 photo_cameraImage coming soon 1617233032 Speed governor 220-240V  €108.13
81
 photo_cameraImage coming soon 1615132088 Handle Cover BLACK  €30.61
84
 photo_cameraImage coming soon 160202507H Auxiliary Handle €15.01
86
 photo_cameraImage coming soon 1613490002 T-Head Bolt M8x40 MM €6.32
87
 photo_cameraImage coming soon 1611316019 Clamping Band Ø62 MM €6.32
94
 photo_cameraImage coming soon 1610102056 Friction Washer €3.44
95
 O-Ring 32,0x1,5 mm for Demolition Hammer Bosch GBH 5-38 D 1610210173 O-Ring 32,0x1,5 mm for Demolition Hammer Bosch GBH 5-38 D €2.90
97
 photo_cameraImage coming soon 1610031005 Locking Washer €3.90
99
 photo_cameraImage coming soon 1610102059 Support Disc €2.73
102
 Shim 0,3 MM for Demolition Hammer Bosch GBH 5-38 D 1610102057 Shim 0,3 MM for Demolition Hammer Bosch GBH 5-38 D €1.67
102
 Shim 0,2 MM for Demolition Hammer Bosch GBH 5-40 DE 1610102058 Shim 0,2 MM for Demolition Hammer Bosch GBH 5-40 DE €1.67
104
 O-Ring 52,0x2,0 mm for Demolition Hammer Bosch GBH 5-38 D 1610210160 O-Ring 52,0x2,0 mm for Demolition Hammer Bosch GBH 5-38 D €2.67
111
 Bushing for Rotary Hammer Bosch GBH 5-38 D 1610290064 Bushing for Rotary Hammer Bosch GBH 5-38 D €1.74
112
 photo_cameraImage coming soon 1613300008 Hex Nut DIN 936-M8x1-8 €3.39
113
 photo_cameraImage coming soon 1613435009 Tapping Screw ST-4,8x57,5-TORX,T20 €2.24
116
 photo_cameraImage coming soon 1610311017 Inner Ring €8.56
117
 photo_cameraImage coming soon 1610913029 Needle-Roller Assembly €5.90
121
 photo_cameraImage coming soon 1610328019 Bushing €5.84
124
 photo_cameraImage coming soon 1610115001 Collar Sleeve €7.59
126
 photo_cameraImage coming soon 2910211019 Tapping Screw DIN 7971-ST3,9x16-F €1.34
138
 Sealing Frame for Rotary for Hammers Bosch GBH 5/40 DE 1611015053 Sealing Frame for Rotary for Hammers Bosch GBH 5/40 DE €12.62
141
 Radial-Lip-Type Oil Seal for Rotary Hammer Bosch 5-38 D 1610290066 Radial-Lip-Type Oil Seal for Rotary Hammer Bosch 5-38 D €11.95
142
 photo_cameraImage coming soon 1610290069 Rotary shaft lip seal €5.08
143
 photo_cameraImage coming soon 1614601021 Retaining ring DIN 7993-28x2 €8.56
144
 photo_cameraImage coming soon 1610251006 Supporting Disc €7.63
145
 Spring Retaining for Rotary Hammer Bosch GBH 5-38 D 1610119012 Spring Retaining for Rotary Hammer Bosch GBH 5-38 D €2.90
154
 photo_cameraImage coming soon 2916660023 Spring retaining ring DIN 472 52x2MM €7.27
160
 photo_cameraImage coming soon 1610210161 Damping Ring €3.22
162
 O-Ring 22,0x3,5mm for Hammer Bosch GBH 5-38 D 1610210163 O-Ring 22,0x3,5mm for Hammer Bosch GBH 5-38 D €6.62
163
 Seal Ring for Demolition Hammer Bosch 5-38 D 1610290065 Seal Ring for Demolition Hammer Bosch 5-38 D €8.27
165
 O-ring 22,0x4,0 MM for Hammer Bosch GBH 5-38 D 1610210079 O-ring 22,0x4,0 MM for Hammer Bosch GBH 5-38 D €6.73
167
 photo_cameraImage coming soon 1610283033 Rotary shaft lip seal €6.90
171
 photo_cameraImage coming soon 1613435016 Torx Oval-Head Screw M5x20-TORX,T25 SILVER €2.24
172
 photo_cameraImage coming soon 1613435013 Torx Oval-Head Screw M6x30-TORX,T30 SILVER €2.90
174
 photo_cameraImage coming soon 1613435012 Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER €2.90
175
 photo_cameraImage coming soon 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z €1.41
176
 photo_cameraImage coming soon 1613435012 Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER €2.90
177
 photo_cameraImage coming soon 1603435051 Tapping Screw ST3,9x32 SILVER €2.90
192
 Compression Spring for Rotary for Hammers Bosch GBH 5/40 DE 1614611019 Compression Spring for Rotary for Hammers Bosch GBH 5/40 DE €3.61
198
 Control Lever for Rotary for Hammers Bosch GBH 5/40 DE 1618900001 Control Lever for Rotary for Hammers Bosch GBH 5/40 DE €8.56
200
 photo_cameraImage coming soon 1610284000 Bellows  €10.58
202
 photo_cameraImage coming soon 1611010006 Switch Hook  €5.84
203
 photo_cameraImage coming soon 1610322009 Support Disc SILVER  €2.73
661
 Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
691
 photo_cameraImage coming soon 1615438461 Carrying Case  €65.01
803
 photo_cameraImage coming soon 1614011098 Armature 220-240V  €183.77
805
 photo_cameraImage coming soon 1617000723 Power supply cord €45.86
806
 End Splice for Demolition Hammer Bosch GBH 5-38 D 3604477009 End Splice for Demolition Hammer Bosch GBH 5-38 D €1.60
808
 photo_cameraImage coming soon 160111A3H5 Nameplate €3.39
811
 photo_cameraImage coming soon 1607000492 Carbon-Brush Set 10 x 1 617 014 144  €183.77
811
 Carbon Brushes for Hammers Bosch GBH5/40DCE - 3 611 B64 000 1617014144 Carbon Brushes for Hammers Bosch GBH5/40DCE - 3 611 B64 000 €27.77
817
 photo_cameraImage coming soon 1614652004 Spiral Spring €9.47
821
 photo_cameraImage coming soon 1617000842 Bushing €27.68
830
 photo_cameraImage coming soon 1617000478 Supporting Disc  €6.51
835
 photo_cameraImage coming soon 1617000433 Hammer Pipe  €272.30
840
 photo_cameraImage coming soon 1617000840 Impact Mechanism Housing €105.41
841
 photo_cameraImage coming soon 1617000460 Striker Pin €33.88
849
 photo_cameraImage coming soon 1617000839 Control Fork €30.49
854
 Stop Disc for Rotary Hammer Bosch GBH 5-40 DE 1617000461 Stop Disc for Rotary Hammer Bosch GBH 5-40 DE €21.90
856
 Piston Ass'y for Rotary Hammer Bosch GBH 5-38 D 1617000843 Piston Ass'y for Rotary Hammer Bosch GBH 5-38 D €35.00
860
 photo_cameraImage coming soon 1617000A37 Spur Wheel Clutch €183.77
884
 photo_cameraImage coming soon 1612025055 Auxiliary Handle Ø62 MM BLACK €71.53
886
 photo_cameraImage coming soon 1617000459 Auxiliary Handle M8 BLACK €18.74
891
 photo_cameraImage coming soon 1617000853 Spring Pack  €28.60
895
 photo_cameraImage coming soon 1615430019 Oil Reservoir 1000 ML €109.62
897
 photo_cameraImage coming soon 1617000430 Wear and Tear Part Set  €48.27
898
 photo_cameraImage coming soon 1615437511 Oil Reservoir 50 ML €18.12

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5-40 DE

Bosch original spare parts for to replace broken parts for to fix Rotary Hammer GBH 5-40 DE/230V/EU - 0611241703.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Bosch GBH 5-40 DE 0611241703

Rotary Hammer 0611241703 - GBH 5-40 DE/230V/EU
# Part Num. Description
1 1615102155 Motor Housing BLUE
2 1614220123 Field 220-240V
4 1617200101 Switch
6 1600703035 Grommet Ø8,7-Ø9,6x66 MM
7 1601302018 Fastening Clamp
9 1611110C42 Manufacturer's nameplate
13 1610900026 groove ball bearing 8x24x8
14 1610905028 groove ball bearing 12x32x10
15 1616610090 Fan
21 1610508038 Protective Cap
22 1610591027 Protection Sleeve
23 1610520001 Stop Sleeve
25 1612300036 Stopping Device
26 1610290076 Indexing Disk
27 1610591028 Air-Deflector Ring
28 1614621000 Compression Spring
31 1610290049 Damping Ring
34 1610516013 Flange
37 1615500315 Bearing Pedestal
38 1615190101 Covering hood
42 1614336046 Brush Holder
43 1615500410 Fan Cover BLACK
44 1614617003 Compression Spring
47 1610300064 Gear Sleeve
48 1616334012 Clutch Sleeve
51 1616333041 Crown Gear
53 1610290068 Support Disc
57 1618710074 Striker
72 1616317064 Eccentric Cog Wheel
74 1611921001 Guide Plate
75 1615132087 Handle BLUE
79 1613435015 Torx Oval-Head Screw M5x12-TORX,T25 SILVER
80 1617233032 Speed governor 220-240V
81 1615132088 Handle Cover BLACK
84 160202507H Auxiliary Handle
85 1618040074 Support clamp
86 1613490002 T-Head Bolt M8x40 MM
87 1611316019 Clamping Band Ø62 MM
94 1610102056 Friction Washer
95 1610210173 O-Ring 32,0x1,5 MM
97 1610031005 Locking Washer
99 1610102059 Support Disc
102 1610102057 Shim 0,3 MM
102 1610102058 Shim 0,2 MM
104 1610210160 O-Ring 52,0x2,0 MM
111 1610290064 Bushing
112 1613300008 Hex Nut DIN 936-M8x1-8
113 1613435009 Tapping Screw ST-4,8x57,5-TORX,T20
116 1610311017 Inner Ring
117 1610913029 Needle-Roller Assembly
121 1610328019 Bushing
124 1610115001 Collar Sleeve
126 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
138 1611015053 Sealing Frame
141 1610290066 Rotary shaft lip seal
142 1610290069 Rotary shaft lip seal
143 1614601021 Retaining ring DIN 7993-28x2
144 1610251006 Supporting Disc
145 1610119012 Spring retaining ring
154 2916660023 Spring retaining ring DIN 472 52x2MM
160 1610210161 Damping Ring
162 1610210163 O-Ring 22,0x3,5 MM
163 1610290065 Seal Ring
165 1610210079 O-Ring 22,0x4,0 MM
167 1610283033 Rotary shaft lip seal
171 1613435016 Torx Oval-Head Screw M5x20-TORX,T25 SILVER
172 1613435013 Torx Oval-Head Screw M6x30-TORX,T30 SILVER
174 1613435012 Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER
175 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z
176 1613435012 Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER
177 1603435051 Tapping Screw ST3,9x32 SILVER
192 1614611019 Compression Spring
195 1613435020 Torx Oval-Head Screw
198 1618900001 Control Lever
200 1610284000 Bellows
202 1611010006 Switch Hook
203 1610322009 Support Disc SILVER
661 1615430010 Grease Tube 30 ML
691 1615438461 Carrying Case
803 1614011098 Armature 220-240V
805 1617000723 Power supply cord
806 3604477009 End Splice
808 160111A3H5 Nameplate
811 1617014144 Carbon-Brush Set
811 1607000492 Carbon-Brush Set 10 x 1 617 014 144
816 1609271281 Socket head cap screw
817 1614652004 Spiral Spring
818 2910011082 Socket head cap screw DIN 84-AM3,5x6-5.8
821 1617000842 Bushing
830 1617000478 Supporting Disc
835 1617000433 Hammer Pipe
840 1617000840 Impact Mechanism Housing
841 1617000460 Striker Pin
849 1617000839 Control Fork
854 1617000461 Stop Disc
856 1617000843 Hammer Piston
860 1617000A37 Spur Wheel Clutch
873 1617000861 Housing Cover
884 1612025055 Auxiliary Handle Ø62 MM BLACK
886 1617000459 Auxiliary Handle M8 BLACK
891 1617000853 Spring Pack
895 1615430019 Oil Reservoir 1000 ML
897 1617000430 Wear and Tear Part Set
898 1615437511 Oil Reservoir 50 ML
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBH 5-40 DE 0611241703
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Drawing Bosch GBH 5-40 DE

Drawing Bosch GBH 5-40 DE

Download (300.86KB)

You might also like

Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1617000271
Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE
Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE Genuine parts Bosch, Cylindrical Steel roller 5x5 mm for locking cylinder for Hammer GBH 5/40 DCE / 0611216703 Parts for the following products: - Hammer GBH 5/40 DCE /...
AVAILABLE €3.12
Details
Speed Governor for Hammers Bosch GBH 5/40 Sale
Bosch SKU: 1617233026
Speed Governor for Hammers Bosch GBH 5/40
Speed Governor for Hammers Bosch GBH 5/40 Bosch Original replacement part, 220-240V Speed Governor for hammers GBH 5/40 DCE/0 611 216 703. Parts for the following products: Hammer GBH 5/40 DCE/0 611 216 703 - Code: 1617233026
Last items in stock €95.95
Details
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46
Bosch SKU: 1610210109
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46 DE Original spare Bosch, O-ring 26,0x4,0 MM for Hammers GBH 7-46 DE/0 611 263 703. Part for the following products: -  Hammer GBH...
AVAILABLE €6.73
Details
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE
Bosch SKU: 1617000873
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE Bosch original replacement part, Piston Assembly for Demolition Hammer GBH 7-46 DE. Part for the following products: -  GBH 7-46 DE / 0611263703 - Code: 1617000873
Last items in stock €58.97
Details
Indexing Disk for Hammers Bosch GBH 5/40
Bosch SKU: 1610290025
Indexing Disk for Hammers Bosch GBH 5/40
Indexing Disk for Hammers Bosch GBH 5/40 Bosch original parts, Steel Indexing Disk for Demolition Hammers GBH 5/40. Parts for the following products: -  Demolition Hammer GBH 5/40 DCE / 0611216703 - Code: 1610290025
Last items in stock €9.44
Details
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E
Bosch SKU: 1614621000
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E Bosch original parts, compression spring for Demolition Hammers GBH 5/40 - GBH 11 DE - GSH 3 E. Parts for the following products: - Demolition Hammer GBH 5/40 DCE / 0611216703...
AVAILABLE €11.05
Details
Stopping Device for Hammers Bosch GBH GBH 5/40 DCE-GBH 7-46 DE
Bosch SKU: 1612300027
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE Bosch Genuine part, Steel Stopping Device for Demolition Hammers 5/40 DCE - GBH 7-46 DE. Part for the following products: - Demolition Hammer GBH 5/40 DCE / 0611216703 -...
Last items in stock €15.95
Details
Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703
Bosch SKU: 1617014122
Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703
Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703 Genuine Parts Bosch, Carbon Brushes, for Demolition Hammers Bosch GBH38 - GBH5/40DCE - 0 611 216 703 - GSH4 - GSH5CE - PBH380 - GBH5DCE Part for the following products: -...
AVAILABLE €22.01
Details
Radial Seal for Rotary Hammer Bosch GBH 5/40
Bosch SKU: 1610283028
Radial Seal for Rotary Hammer Bosch GBH 5/40
Radial Seal for Rotary Hammer Bosch GBH 5/40 Bosch genuine part, Radial Seal DIN 3760-BS, Ø40x55x7 MM for Rotary Demolition Hammer GBH 5/40. Part for the following products: - Rotary Demolition Hammer GBH 5/40 DCE / 0611216703 -...
AVAILABLE €8.99
Details
Grease Tube 30 ML for Bosch Hammer GBH-GSH
Bosch SKU: 1615430010
Grease Tube 30 ML for Bosch Hammer GBH-GSH
Grease Tube 30 ML for Bosch Hammer GBH-GSH Genuine spare parts Bosch, Grease Tube 30 ML for Bosch Hammer GBH 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GBH 5/40 DCE/0 611 216 703 - GBH 5-38 D - 0 611 240 003 - GBH...
on 7/10 Business Days Approx €9.33
Details
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH Sale
Bosch SKU: 1613435010
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH Genuine spare parts Bosch, Torx Oval-Head Screw 5,5x25 for Hammer 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GSH 11 E/0 611 316 703. Parts for the following products: - HAMMER GBH...
AVAILABLE €2.48
Details
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E
Bosch SKU: 1610009007
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E Genuine spare parts Bosch, Spacer for Hammer Bosch GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703. Parts for the following products: -  DEMOLITION HAMMER GBH 11 DE/0 611 245 703 - HAMMER...
AVAILABLE €2.28
Details
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E
Bosch SKU: 3610501500
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E Original parts Bosch, Bushing for Hammer Bosch GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703. Parts for the following products: - HAMMER GBH 11 DE/0 611 245 703 - HAMMER GSH 11 E/0 611...
AVAILABLE €25.78
Details
Grease Tube 30 ML for Bosch Hammer GBH-GSH Sale
Bosch SKU: 1615430020
Grease Tube 225 ML for Bosch Hammers GBH-GSH
Grease Tube 225 ML for Bosch Hammers GBH-GSH Genuine spare part Bosch, Grease Tube 225 ML for Bosch Hammers GBH 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GBH 5/40 DCE/0 611 216 703 - GBH 5-38 D - 0 611 240 003 - GBH 8-45 D - 3...
AVAILABLE €27.30
Details
O-ring 22,0x4,0 MM for Hammer Bosch GBH 5-38 D
Bosch SKU: 1610210079
O-ring 22,0x4,0 MM for Hammer Bosch GBH 5-38 D
O-ring 22,0x4,0 MM for Hammer Bosch GBH 5-38 D Bosch Genuine Part, O-ring 22,0x4,0 MM for Hammer Bosch GBH 5-38 D. Part for the following products: -  Hammer Bosch GBH 5-38 D/0 611 240 003 -  Hammer Bosch GBH 5-40...
Usually Ships in: 7/10 Business Days Approx. €6.73
Details
Carbon Brushes for Hammers Bosch GBH7/46DE
Bosch SKU: 1617014135
Carbon Brushes for Hammers Bosch GBH7/46DE
Carbon Brushes for Hammers Bosch GBH7/46DE Carbon Brushes for Hammers Bosch GBH7/46DE Genuine spare part Bosch, Carbon Brushes for Drilling Hammers GBH 7-46. Part for the following products: - GBH 7-46 DE/0 611 263 703 - Code :...
AVAILABLE €27.18
Details
O-Ring 22,0x3,5mm for Hammer Bosch GBH 5-38 D
Bosch SKU: 1610210163
O-Ring 22,0x3,5mm for Hammer Bosch GBH 5-38 D
O-Ring 22,0x3,5mm for Hammer Bosch GBH 5-38 D Original spare part Bosch, O-Ring 22,0x3,5mm for Hammer GBH 5-38 D. Part for the following products: -  Hammer Bosch GBH 5-38 D/0 611 240 003 - Hammer Bosch GBH 5-40...
Available in 7/10 days €6.62
Details
Switch for Demolition Hammer Bosch GSH 11 E
Bosch SKU: 1617200048
Switch for Demolition Hammer Bosch GSH 11 E
Switch for Demolition Hammer Bosch GSH 11 E Bosch original replacement part, Switch for Demolition Hammer GSH 11 E/0 611 316 703 - GBH 5/40 DCE/0 611 216 703. Part for the following products: -...
Last items in stock €24.90
Details
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30
Bosch SKU: 1610910089
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 Bosch original parts, Needle-Roller Bearing for Rotary Hammer GBH 7-46 DE - GBH 11 DE - GSH 11 E - GBH 8-45 D. Parts for the following products: - Rotary Hammer GBH 7-46 DE/0...
AVAILABLE €31.79
Details
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46
Bosch SKU: 1610290028
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 Bosch original parts, Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 DE/0 611 263 703 - GBH 11 DE/0 611 245 703 - Demolition Hammer Bosch GSH 11 E/0...
AVAILABLE €5.32
Details
Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1613001008
Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE
Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE Bosch original parts, Depth Adjustment Rod SW 6x330 MM for Rotary Hammer GBH 5/40 DCE - GBH 7/45 - GBH 11 DE - Impact Drill Bosch GBM 13 Parts for the following products: - Rotary...
AVAILABLE €9.54
Details
O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1610210096
O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE
O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE Original part Bosch, O-Ring 21,0x3,5 mm for Rotary Hammer GBH 5/40 DCE/0 611 216 703 - GBH 11 DE/0 611 245 703 Part for the following products: - Rotary Hammer Bosch GBH 5/40...
AVAILABLE €3.06
Details
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1610210095
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE Original part Bosch, O-Ring 55,0x2,0 mm for Rotary Hammer GBH 5/40 DCE/0 611 216 703 - GBH 11 DE/0 611 245 703 Part for Following products: - Rotary Hammer Bosch GBH 5/40 DCE/0...
AVAILABLE €3.06
Details
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE
Bosch SKU: 1903230013
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE Bosch genuine parts, Ball DIN 5401-Ø7MM-III-ST, for Rotary Hammer PBH 220 RE - PBH 2000 RE - PBH 2000 SRE - GBH 36 V-LI - GBH 2-20 D Parts for the following products: - Rotary...
AVAILABLE €2.83
Details
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE
Bosch SKU: 1610210144
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE Original spare Bosch, O-Ring 22,0x3,0 mm for Hammers GBH 7-46 DE/0 611 263 703 - GSH 388 - GBH 5/40 DCE - GBH 11 DE - GBH 7 DE. Part for the following products: - Demolition Hammer GBH...
Last items in stock €6.73
Details
Shim 0,3 MM for Demolition Hammer Bosch GBH 5-38 D
Bosch SKU: 1610102057
Shim 0,3 MM for Demolition Hammer Bosch GBH 5-38 D
Shim 0,3 MM for Demolition Hammer Bosch GBH 5-38 D Original parts Bosch, Shim 0,3 MM for Demolition Hammer GBH 5-38 D - 0 611 240 003. Parts for the following products: - Demolition Hammer Bosch GBH 5-38 D - 0611240003 - Rotary Hammer...
AVAILABLE €1.67
Details
Piston Ass'y for Rotary Hammer Bosch GBH 5-38 D
Bosch SKU: 1617000843
Piston Ass'y for Rotary Hammer Bosch GBH 5-38 D
Piston Ass'y for Rotary Hammer Bosch GBH 5-38 D Genuine Part Bosch, Piston Ass'y for Rotary Hammer BoschGBH 5-38 D - 0611240003 -GBH 5-40 DE/230V/EU - 0611241703. Part for the following products: -...
Last items in stock €35.00
Details
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D
Bosch SKU: 1610900026
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D Genuine Part Bosch, Groove Ball Bearing 8x24x8 for Rotary Hammer Bosch GBH 5-38 D - 0611240003. Part for the following products: -  Hammer Bosch GBH...
on 7/10 Business Days Approx €17.13
Details
Ball Bearing 12x32x10 for Rotary Hammer Bosch GBH 5-38 D
Bosch SKU: 1610905028
Ball Bearing 12x32x10 for Rotary Hammer Bosch GBH 5-38 D
Ball Bearing 12x32x10 for Rotary Hammer Bosch GBH 5-38 D Genuine Part Bosch, Groove Ball Bearing 12x32x10 6201LUAI, for Rotary Hammer Bosch GBH 5-38 D - GSH 388. Part for the following products: -  Hammer Bosch GBH 5-38 D -...
on 7/10 Business Days Approx €19.41
Details
Comments (0)
