Bosch Spare Parts for Hammer GBH 7 DE - 0611235703

SKU: Bosch GBH 7 DE - 0611235703
€2.24
VAT included

Bosch Spare Parts for Hammer GBH 7 DE - 0611235703

Bosch original spare parts for to replace broken parts for to fix Rotary Hammer GBH 7 DE /230 V/EU - 0611235703.

Bosch GBH 7 DE - 0611235703
Bosch Spare Parts for Hammer GBH 7 DE - 0611235703
  • Bosch Spare Parts for Hammer GBH 7 DE - 0611235703
  • Bosch Spare Parts for Hammer GBH 7 DE - 0611235703
  • Bosch Spare Parts for Hammer GBH 7 DE - 0611235703

Bosch Spare Parts for Hammer GBH 7 DE - 0611235703

SKU: Bosch GBH 7 DE - 0611235703 Condition: New
€2.24
VAT included

Bosch Spare Parts for Hammer GBH 7 DE - 0611235703

Bosch original spare parts for to replace broken parts for to fix Rotary Hammer GBH 7 DE /230 V/EU - 0611235703.

Bosch GBH 7 DE - 0611235703
settings 111 spare parts

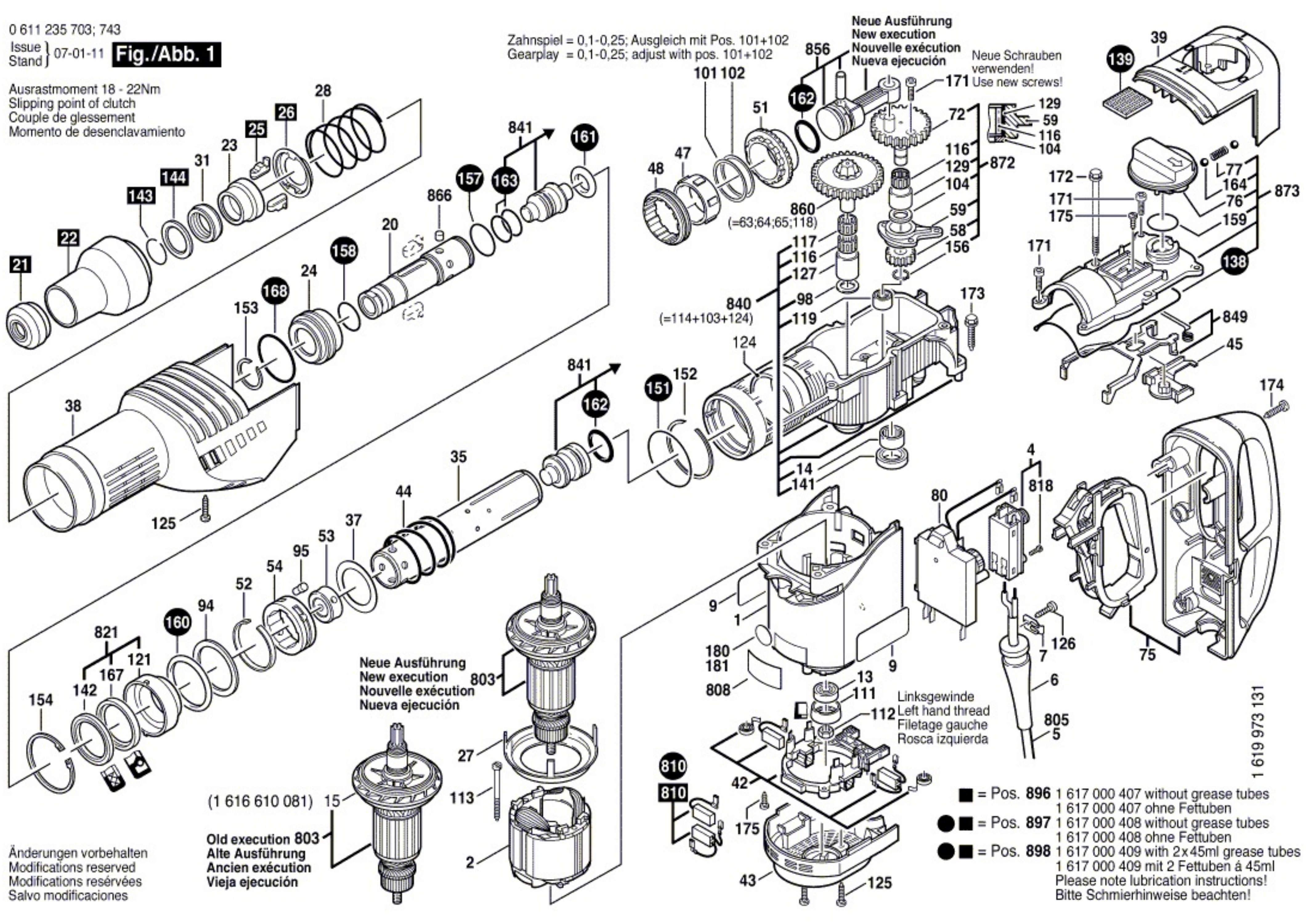

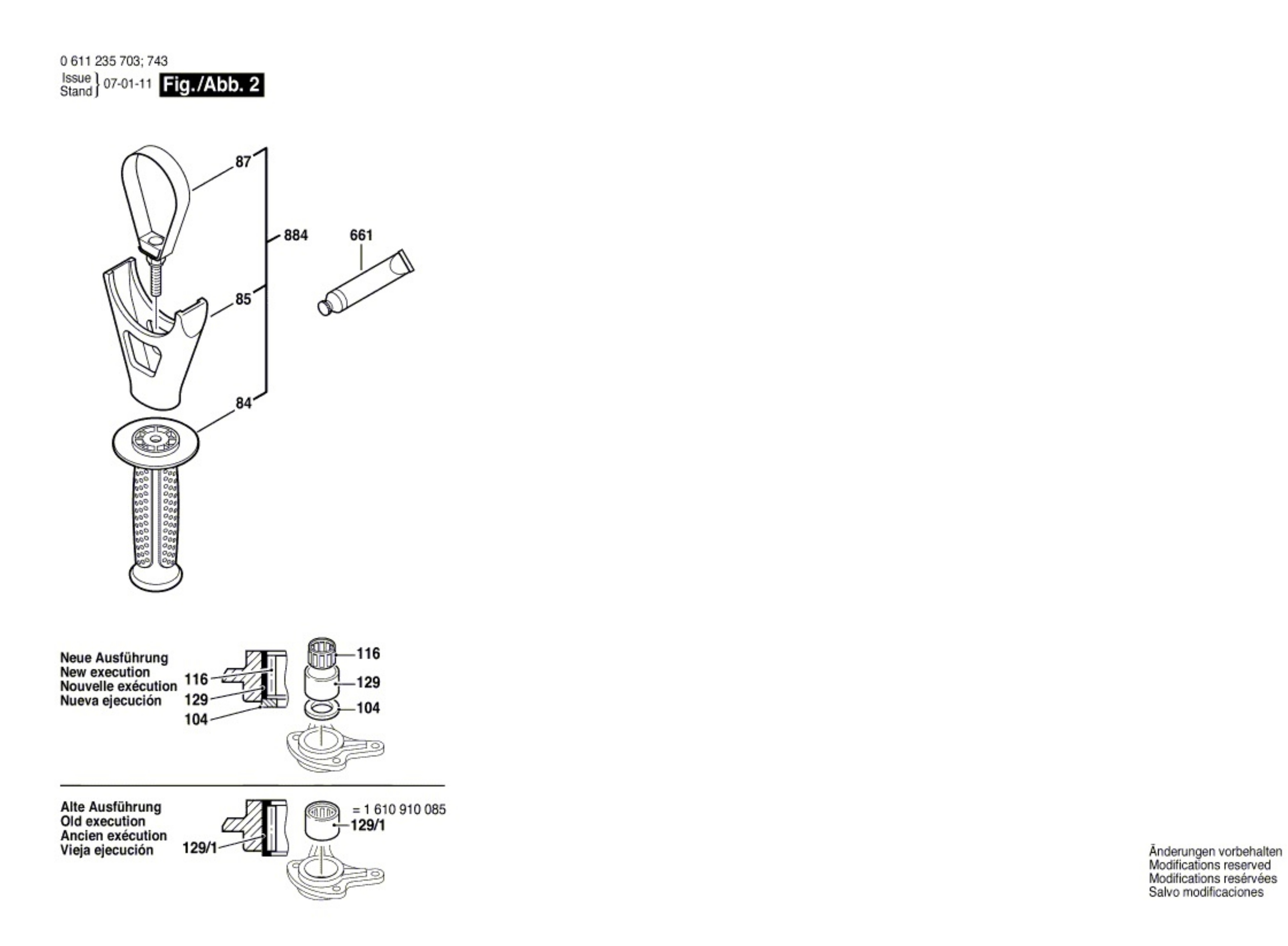

description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

103 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 1614220124 Field 220-240V €48.38
4
Switch for Demolition Hammer Bosch GSH 11 E 1617200048 Switch for Demolition Hammer Bosch GSH 11 E €24.90
6
photo_cameraImage coming soon 1610703053 Grommet Ø9,7-Ø12x89 MM €3.20
7
photo_cameraImage coming soon 1601302018 Fastening Clamp €2.25
9
photo_cameraImage coming soon 1611110850 Manufacturer's nameplate  €2.91
13
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D 1610900026 Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D €17.13
14
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 1610910089 Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 €31.79
20
photo_cameraImage coming soon 1618597072 Toolholder €164.13
21
photo_cameraImage coming soon 1610508035 Protective Cap €6.78
22
photo_cameraImage coming soon 1610591021 Protection Sleeve €7.19
23
photo_cameraImage coming soon 1610520001 Stop Sleeve €15.74
24
photo_cameraImage coming soon 1610500021 Headed Bush €8.72
25
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE 1612300027 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE €15.95
26
Indexing Disk for Hammers Bosch GBH 5/40 1610290025 Indexing Disk for Hammers Bosch GBH 5/40 €9.44
27
Air-Deflector Ring for Demolition Hammer Bosch GBH 7-46 DE 1610591023 Air-Deflector Ring for Demolition Hammer Bosch GBH 7-46 DE €2.36
28
photo_cameraImage coming soon 1614621004 Compression Spring €3.17
31
photo_cameraImage coming soon 1610290049 Damping Ring €3.72
35
photo_cameraImage coming soon 1615806156 Hammer Pipe €133.22
37
photo_cameraImage coming soon 1610102047 Support Disc €3.72
38
photo_cameraImage coming soon 1615190079 Covering hood  €19.67
42
photo_cameraImage coming soon 1614336026 Brush Holder €38.40
43
photo_cameraImage coming soon 1615500305 Fan Cover €14.92
44
photo_cameraImage coming soon 1614621005 Compression Spring €3.17
47
photo_cameraImage coming soon 1619990149 Spacer Ring €39.07
48
photo_cameraImage coming soon 1619990151 Clutch Sleeve €42.73
51
photo_cameraImage coming soon 1616333035 Crown Gear Z=45 €83.69
52
photo_cameraImage coming soon 1614601056 Retaining ring €1.32
53
photo_cameraImage coming soon 1610231000 Guide Bushing €13.99
54
photo_cameraImage coming soon 1610190033 Spacer Tube €7.99
58
photo_cameraImage coming soon 1616317056 Cylindrical Gear Z=17 €9.92
59
photo_cameraImage coming soon 1615805067 Bearing Pedestal €8.72
72
photo_cameraImage coming soon 1616317067 Eccentric Cog Wheel €123.00
75
photo_cameraImage coming soon 1615132102 Handle BLACK €63.79
77
photo_cameraImage coming soon 1614610010 Compression Spring €2.09
80
Speed Governor for Rotary Hammer GBH 7-46 DE 1617233042 Speed Governor for Rotary Hammer GBH 7-46 DE €100.33
84
photo_cameraImage coming soon 160202507H Auxiliary Handle €15.01
85
photo_cameraImage coming soon 1618040071 index turning toolholder €7.11
87
photo_cameraImage coming soon 1617000834 Clamping Band Ø77 MM, M8 €22.62
94
photo_cameraImage coming soon 1610290052 Support Disc €3.17
95
photo_cameraImage coming soon 1613120018 Driving Pin €3.17
98
photo_cameraImage coming soon 1610101015 Shim ring 1,0 MM THICK €2.09
101
photo_cameraImage coming soon 1610102049 Shim 0,45 MM THICK €2.62
102
photo_cameraImage coming soon 1610102048 Shim 0,3 MM THICK €2.62
104
photo_cameraImage coming soon 1610190027 Stop Disc €7.11
111
Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D 1610290046 Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D €3.54
112
Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D 1613300007 Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D €2.48
113
photo_cameraImage coming soon 1613412001 Tapping Screw B 4,8x68 MM €2.09
116
photo_cameraImage coming soon 1610913029 Needle-Roller Assembly €5.90
117
photo_cameraImage coming soon 1610913011 Needle-Roller Assembly Ø10 MM €7.99
119
photo_cameraImage coming soon 1610910081 Needle-Roller Bearing €19.67
121
photo_cameraImage coming soon 1610328016 Bushing €2.91
125
photo_cameraImage coming soon 1613435011 Torx Oval-Head Screw 4,8x19 €2.09
126
photo_cameraImage coming soon 2910211019 Tapping Screw DIN 7971-ST3,9x16-F €1.34
127
photo_cameraImage coming soon 1610300060 Bushing €8.84
129
photo_cameraImage coming soon 1610300067 Bushing €15.74
129/1
photo_cameraImage coming soon 1610910085 Needle-Roller Bearing €19.67
138
photo_cameraImage coming soon 1611015047 Sealing Frame €6.92
141
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 1610290028 Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 €5.32
142
photo_cameraImage coming soon 1610290050 Rotary shaft lip seal €6.78
143
photo_cameraImage coming soon 1614601021 Retaining ring DIN 7993-28x2 €8.56
144
photo_cameraImage coming soon 1610103021 Supporting Disc €3.72
151
photo_cameraImage coming soon 1610210148 O-Ring 60,0x2,0 MM €3.17
152
photo_cameraImage coming soon 1614601029 Retaining ring €2.09
153
photo_cameraImage coming soon 1614601028 Retaining ring €1.62
154
Spring Retaining Ring for Demolition Hammer Bosch GBH 7-46 DE 1610119011 Spring Retaining Ring for Demolition Hammer Bosch GBH 7-46 DE €4.25
156
photo_cameraImage coming soon 2916650003 Spring retaining ring DIN 471-12x1-FSt €2.09
157
O-Ring 31,0x1,5 mm for Rotary Hammer Bosch GBH7-46DE 1610210142 O-Ring 31,0x1,5 mm for Rotary Hammer Bosch GBH7-46DE €3.19
158
O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE 1610210139 O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE €3.19
159
photo_cameraImage coming soon 1610210141 O-Ring 27,0x2,5 MM €2.09
160
photo_cameraImage coming soon 1610210140 O-Ring 46,0x7,0 MM €2.71
161
photo_cameraImage coming soon 1610210145 O-Ring 18,0x8,0 MM €8.84
162
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46 1610210109 O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46 €6.73
163
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE 1610210144 O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE €6.73
164
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE 1903230013 Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE €2.83
167
photo_cameraImage coming soon 1610290051 Rotary shaft lip seal €5.90
168
O-Ring 46,0x5,0 mm for Rotary Hammer Bosch GBH 7-46 DE 1610210149 O-Ring 46,0x5,0 mm for Rotary Hammer Bosch GBH 7-46 DE €3.42
171
photo_cameraImage coming soon 1613414021 Microencapsulated Screw €1.32
172
photo_cameraImage coming soon 1613435008 Screw and washer assembly  €1.23
173
photo_cameraImage coming soon 1613433001 Screw and washer assembly 6,3x32 €1.32
174
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH 1613435010 Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH €2.48
175
photo_cameraImage coming soon 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z €1.41
661
Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
803
photo_cameraImage coming soon 1614010213 Armature 220-240V €274.78
805
photo_cameraImage coming soon 1617000723 Power supply cord €45.86
808
photo_cameraImage coming soon 160111A3H3 Nameplate  €3.22
810
Carbon Brushes for Hammers Bosch GBH7/46DE 1617014135 Carbon Brushes for Hammers Bosch GBH7/46DE €27.18
818
photo_cameraImage coming soon 2910011088 Socket head cap screw DIN 84-AM3,5x12-5.8 €1.34
821
photo_cameraImage coming soon 1617000824 Bushing €34.02
840
photo_cameraImage coming soon 1617000825 Impact Mechanism Housing  €225.33
841
photo_cameraImage coming soon 1617000474 Striker Pin  €39.91
849
photo_cameraImage coming soon 1617000826 Control Fork €83.69
856
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE 1617000873 Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE €58.97
860
photo_cameraImage coming soon 1617000828 Spur Wheel Clutch Z=13/47 €317.70
866
photo_cameraImage coming soon 1617000406 Roller Set €6.78
872
photo_cameraImage coming soon 1617000874 Eccentric Cog Wheel €133.22
873
photo_cameraImage coming soon 1617000830 Housing Cover  €96.69
884
photo_cameraImage coming soon 1612025051 Auxiliary Handle Ø77 MM, M8 €66.63
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
84
photo_cameraImage coming soon 160202507H Auxiliary Handle €15.01
85
photo_cameraImage coming soon 1618040071 index turning toolholder €7.11
87
photo_cameraImage coming soon 1617000834 Clamping Band Ø77 MM, M8 €22.62
129/1
photo_cameraImage coming soon 1610910085 Needle-Roller Bearing €19.67
661
Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
884
photo_cameraImage coming soon 1612025051 Auxiliary Handle Ø77 MM, M8 €66.63

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Hammer GBH 7 DE - 0611235703

Bosch original spare parts for to replace broken parts for to fix Rotary Hammer GBH 7 DE /230 V/EU - 0611235703.

In the following table, look for the model of the Hammer and the respective parts of the code.
Bosch GBH 7 DE - 0611235703

Rotary Hammer GBH 7 DE /230 V/EU - 0611235703
# Part Num. Description
1 1615108078 Moto rHousing BLUE
2 1614220124 Field 220-240V
4 1617200048 Switch
6 1610703053 Grommet Ø9,7-Ø12x89 MM
7 1601302018 Fastening Clamp
9 1611110850 Manufacturer's nameplate
13 1610900026 groove ball bearing 8x24x8
14 1610910089 Needle-Roller Bearing
20 1618597072 Toolholder
21 1610508035 Protective Cap
22 1610591021 Protection Sleeve
23 1610520001 Stop Sleeve
24 1610500021 Headed Bush
25 1612300027 Stopping Device
26 1610290025 Indexing Disk
27 1610591023 Air-Deflector Ring
28 1614621004 Compression Spring
31 1610290049 Damping Ring
35 1615806156 Hammer Pipe
37 1610102047 Support Disc
38 1615190079 Covering hood
39 1615190108 Covering hood
42 1614336026 Brush Holder
43 1615500305 Fan Cover
44 1614621005 Compression Spring
45 1610591022 Sealing plate
47 1619990149 Spacer Ring
48 1619990151 Clutch Sleeve
51 1616333035 Crown Gear Z=45
52 1614601056 Retaining ring
53 1610231000 Guide Bushing
54 1610190033 Spacer Tube
58 1616317056 Cylindrical Gear Z=17
59 1615805067 Bearing Pedestal
72 1616317067 Eccentric Cog Wheel
75 1615132102 Handle BLACK
76 1612026083 Shift-Lever Knob BLACK
77 1614610010 Compression Spring
80 1617233042 Speed governor 220-240V
84 160202507H Auxiliary Handle
85 1618040071 Support clamp
87 1617000834 Clamping Band Ø77 MM, M8
94 1610290052 Support Disc
95 1613120018 Driving Pin
98 1610101015 Shim ring 1,0 MM THICK
101 1610102049 Shim 0,45 MM THICK
102 1610102048 Shim 0,3 MM THICK
104 1610190027 Stop Disc
111 1610290046 Bushing
112 1613300007 Hex Nut
113 1613412001 Tapping Screw B 4,8x68 MM
116 1610913029 Needle-Roller Assembly
117 1610913011 Needle-Roller Assembly Ø10 MM
119 1610910081 Needle-Roller Bearing
121 1610328016 Bushing
125 1613435011 Torx Oval-Head Screw 4,8x19
126 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
127 1610300060 Bushing
129 1610300067 Bushing
129/1 1610910085 Needle-Roller Bearing
138 1611015047 Sealing Frame
139 1612380010 Sealing Plate
141 1610290028 Rotary shaft lip seal
142 1610290050 Rotary shaft lip seal
143 1614601021 Retaining ring DIN 7993-28x2
144 1610103021 Supporting Disc
151 1610210148 O-Ring 60,0x2,0 MM
152 1614601029 Retaining ring
153 1614601028 Retaining ring
154 1610119011 Spring retaining ring
156 2916650003 Spring retaining ring DIN 471-12x1-FSt
157 1610210142 O-Ring 31,0x1,5 MM
158 1610210139 O-Ring 30,0x2,5 MM
159 1610210141 O-Ring 27,0x2,5 MM
160 1610210140 O-Ring 46,0x7,0 MM
161 1610210145 O-Ring 18,0x8,0 MM
162 1610210109 O-Ring 26,0x4,0 MM
163 1610210144 O-Ring 22,0x3,0 MM
164 1903230013 Ball DIN 5401-Ø7MM-III-ST
167 1610290051 Rotary shaft lip seal
168 1610210149 O-Ring 46,0x5,0 MM
171 1613414021 Microencapsulated Screw
172 1613435008 Screw and washer assembly
173 1613433001 Screw and washer assembly 6,3x32
174 1613435010 Torx Oval-Head Screw 5,5x25
175 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z
661 1615430010 Grease Tube 30 ML
803 1614010213 Armature 220-240V
805 1617000723 Power supply cord
808 160111A3H3 Nameplate
810 1617014135 Carbon-Brush Set
818 2910011088 Socket head cap screw DIN 84-AM3,5x12-5.8
821 1617000824 Bushing
840 1617000825 Impact Mechanism Housing
841 1617000474 Striker Pin
849 1617000826 Control Fork
856 1617000873 Hammer Piston
860 1617000828 Spur Wheel Clutch Z=13/47
866 1617000406 Roller Set
872 1617000874 Eccentric Cog Wheel
873 1617000830 Housing Cover
884 1612025051 Auxiliary Handle Ø77 MM, M8
896 1617000407 Wear and Tear Part Set
897 1617000408 Wear and Tear Part Set
898 1617000409 Wear and Tear Part Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

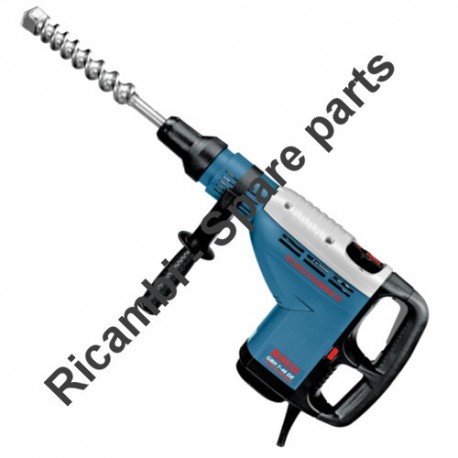

Bosch GBH 7 DE - 0611235703
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Drawing Bosch GBH 7 DE

Drawing Bosch GBH 7 DE

Download (423.34KB)

You might also like

Bosch SKU: 1610210142
O-Ring 31,0x1,5 mm for Rotary Hammer Bosch GBH7-46DE Genuine spare part Bosch, O-Ring 20,35x1,78 mm Rotary Hammer GBH7-46DE. Part for the following products: - Rotary Hammer GBH7-46DE 0611263703 SDS-Max -...
AVAILABLE €3.19
Bosch SKU: 1610210144
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE Original spare Bosch, O-Ring 22,0x3,0 mm for Hammers GBH 7-46 DE/0 611 263 703 - GSH 388 - GBH 5/40 DCE - GBH 11 DE - GBH 7 DE. Part for the following products: - Demolition Hammer GBH...
Last items in stock €6.73
Bosch SKU: 1610210149
O-Ring 46,0x5,0 mm for Rotary Hammer Bosch GBH 7-46 DE Original spare part Bosch, O-Ring 46,0x5,0 mm for Rotary Hammers GBH 7-46 DE/0611263703 - GBH 7 DE 0611235703. Part for the following products: - Rotary Hammer GBH 7-46 DE -...
AVAILABLE €3.42
Bosch SKU: 1610900026
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D Genuine Part Bosch, Groove Ball Bearing 8x24x8 for Rotary Hammer Bosch GBH 5-38 D - 0611240003. Part for the following products: -  Hammer Bosch GBH...
on 7/10 Business Days Approx €17.13
Bosch SKU: 1617233042
Speed Governor for Rotary Hammer GBH 7-46 DE Bosch original parts, Speed Governor 220-240V for Rotary Hammers GBH 7-46 DE - GBH 7 DE /230 V/EU. Parts for the following products: -  Rotary...
Last items in stock €100.33
Comments (0)
