Bosch Parts for Cordless Impact Drill GSB 36 VE-2-LI - 3601JC1100

SKU: Bosch GSB 36 VE-2-LI 3601JC1100
€179.74
VAT included

Bosch Parts for Cordless Impact Drill GSB 36 VE-2-LI - 3601JC1100

Bosch original spare parts for to replace broken parts for to fix Cordless Impact Drill 3601JC1100 - GSB 36 VE-2-LI/ 36V/EU.

Bosch Parts for Cordless Impact Drill GSB 36 VE-2-LI - 3601JC1100
  • Bosch Parts for Cordless Impact Drill GSB 36 VE-2-LI - 3601JC1100
  • Bosch Parts for Cordless Impact Drill GSB 36 VE-2-LI - 3601JC1100

Bosch Parts for Cordless Impact Drill GSB 36 VE-2-LI - 3601JC1100

SKU: Bosch GSB 36 VE-2-LI 3601JC1100 Condition: New
€179.74
VAT included

Bosch Parts for Cordless Impact Drill GSB 36 VE-2-LI - 3601JC1100

Bosch original spare parts for to replace broken parts for to fix Cordless Impact Drill 3601JC1100 - GSB 36 VE-2-LI/ 36V/EU.

settings 9 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Parts for Cordless Impact Drill GSB 36 VE-2-LI - 3601JC1100

Bosch original spare parts for to replace broken parts for to fix Cordless Impact Drill 3601JC1100 - GSB 36 VE-2-LI/ 36V/EU.

In the following table, look for the model of the Hammer Drill and the respective parts of the code.
Items will be shipped within 7/10 working days approx.

Cordless Impact Drill 3601JC1100 - GSB 36 VE-2-LI/ 36V/EU
2 1607022647 DC motor
4 1607233511 Electronics Module
5 2609100877 Adjusting lever
9 2609133914 Manufacturer's nameplate GSB 36 VE-2-LI
12 2609111024 Front Cap
25 2609111104 Keyless Chuck
32 2609100878 Adjusting lever
38 2609111021 Switch Spring
45 2609199459 Gear Box
47 2609101350 Lens
70 2609101166 Push Button RED
71 2609111696 Compression Spring
72 2609110537 Clip
74 2609170226 O-Ring
91 2607336915 Slide-In Accu Package 36V, 4,0Ah, LI
2607336913 Slide-In Accu Package 36V 2,0 Ah Li
101 2609110353 Torx Oval-Head Screw
107 2603421229 Countersunk-Head Screw M6x23
650 2609199583 Auxiliary Handle
653 2607225099 Fast Charger EU 230/18-36V, 1h
2607225101 Fast Charger GB 230/18-36V, 1h
2607225103 Fast Charger AUS 240/18-36V, 1h
801 2609199709 Housing Section BLUE
804 1609280425 Contact retainer
808 2609135976 Nameplate

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Bosch GSB 36 VE-2-LI 3601JC1100
6 Items

Specific References

New

Download

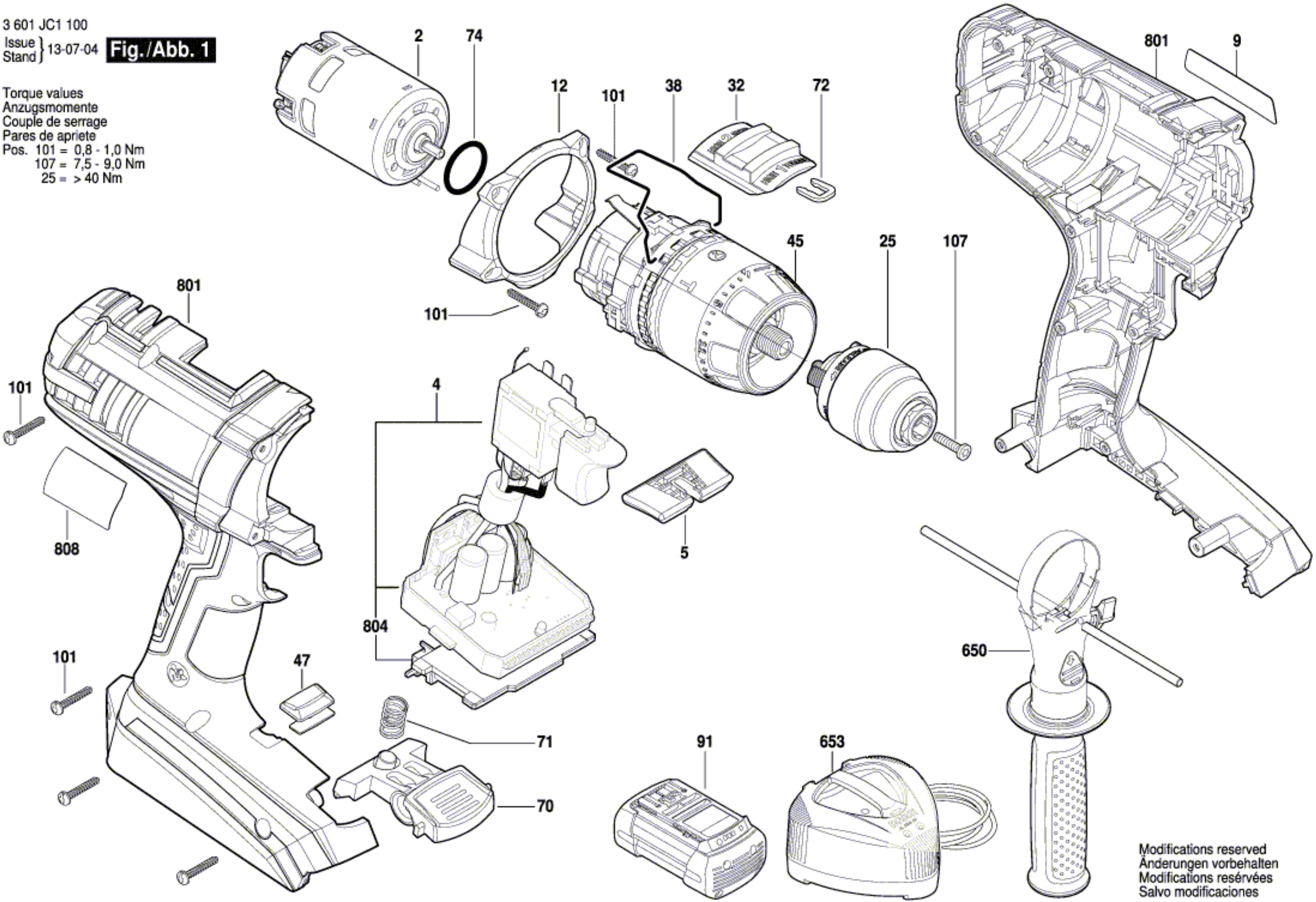

Drawing GSB 36 VE-2-LI - JC1100
