Bosch Spare Parts for Rotary Hammer Bosch GBH 8 DCE

SKU: Bosch GBH 8 DCE - 0611231703
€2.23
VAT included

Bosch Spare Parts for Rotary Hammer Bosch GBH 8 DCE

Bosch original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Rotary Hammer Bosch GBH 8 DCE /230 V/EU - 0611231703.

Rotary Hammer Bosch GBH 8 DCE /230 V/EU - 0611231703
Bosch Spare Parts for Rotary Hammer Bosch GBH 8 DCE
  • Bosch Spare Parts for Rotary Hammer Bosch GBH 8 DCE
  • Bosch Spare Parts for Rotary Hammer Bosch GBH 8 DCE

Bosch Spare Parts for Rotary Hammer Bosch GBH 8 DCE

SKU: Bosch GBH 8 DCE - 0611231703 Condition: New
€2.23
VAT included

Bosch Spare Parts for Rotary Hammer Bosch GBH 8 DCE

Bosch original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Rotary Hammer Bosch GBH 8 DCE /230 V/EU - 0611231703.

Rotary Hammer Bosch GBH 8 DCE /230 V/EU - 0611231703
settings 113 spare parts

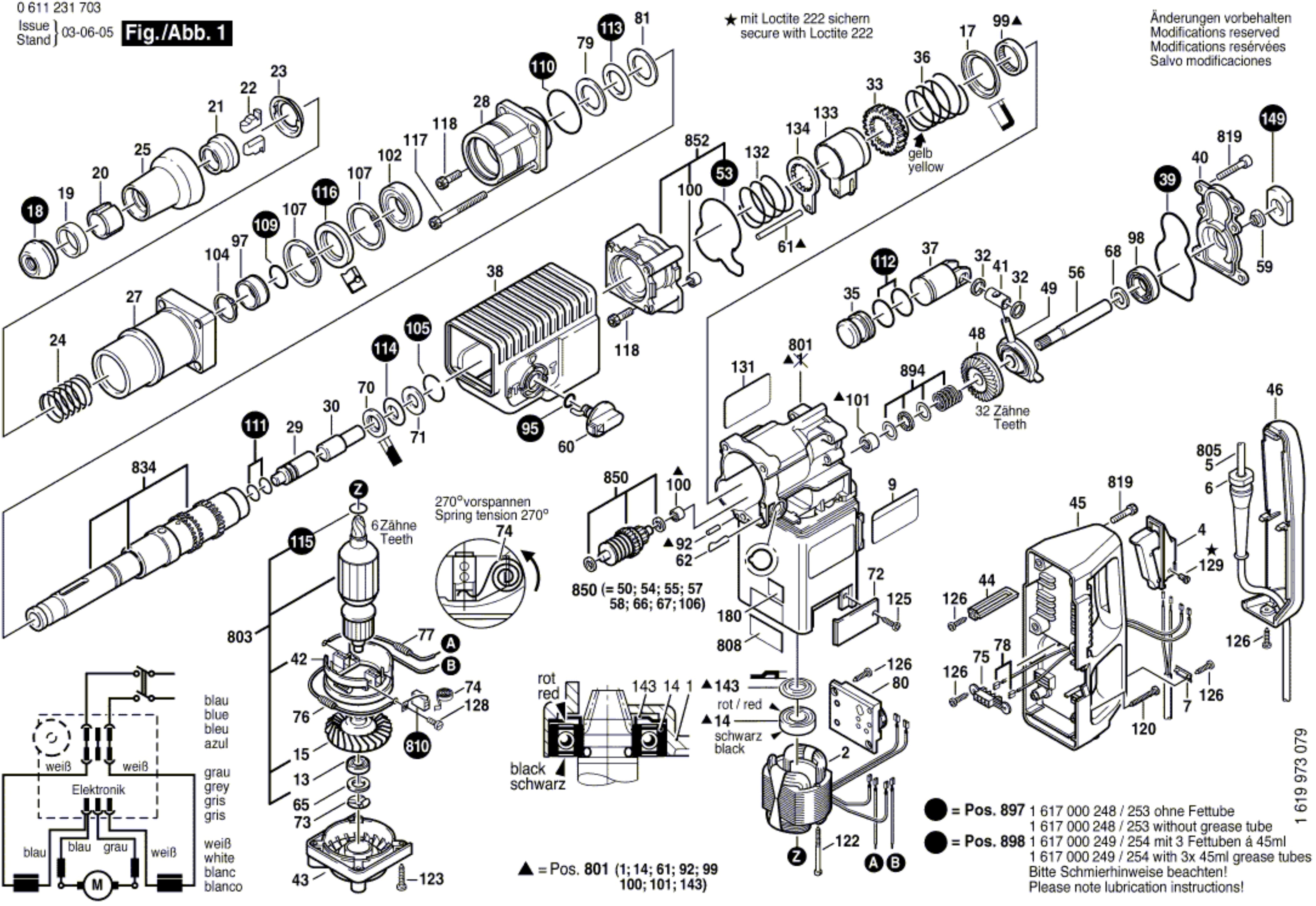

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

77 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 1614220101 Field 230-240V  €73.44
6
photo_cameraImage coming soon 3600703011 Grommet Ø9,2-Ø12x120 MM €2.38
7
photo_cameraImage coming soon 1611034020 Fastening Clamp €1.26
9
photo_cameraImage coming soon 1611110733 Manufacturer's nameplate  €1.91
14
photo_cameraImage coming soon 1610905024 groove ball bearing 15x35x11  €11.81
17
photo_cameraImage coming soon 1610500013 Friction Washer €2.09
18
Protective Cap for Rotary Hammer Bosch GBH 5/40 DCE 1610508017 Protective Cap for Rotary Hammer Bosch GBH 5/40 DCE €3.79 Not available for order
20
photo_cameraImage coming soon 1610390015 Spacer Tube  €3.23
21
photo_cameraImage coming soon 1610520001 Stop Sleeve €15.74
22
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE 1612300027 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE €15.95
23
Indexing Disk for Hammers Bosch GBH 5/40 1610290025 Indexing Disk for Hammers Bosch GBH 5/40 €9.44
28
photo_cameraImage coming soon 1615805062 Bearing Flange  €25.58
32
photo_cameraImage coming soon 1610101616 Supporting Disc 1,5 MM THICK €1.26
35
photo_cameraImage coming soon 1618710055 Striker  €22.25
36
photo_cameraImage coming soon 1614621001 Compression Spring  €3.58
37
photo_cameraImage coming soon 1618700060 Hammer Piston  €19.97
40
photo_cameraImage coming soon 1615808059 Bearing cover €23.45
41
photo_cameraImage coming soon 1613219001 Piston Pin €7.15
42
photo_cameraImage coming soon 1614336005 Brush Holder €13.79
44
photo_cameraImage coming soon 1611015032 Frame €1.76
48
photo_cameraImage coming soon 1616333032 Crown Gear Z=32  €66.52
59
photo_cameraImage coming soon 1610591010 Plug €1.26
60
photo_cameraImage coming soon 1612026033 Clamp Handle BLACK/RED  €7.38
61
photo_cameraImage coming soon 2917550138 Straight Pin 5M6x70 RIKO DIN 6325 €3.07
62
photo_cameraImage coming soon 1614680003 Holding Spring €1.26
68
photo_cameraImage coming soon 1610101618 Shim 0,3 MM THICK €1.26
68
photo_cameraImage coming soon 1610101621 Shim 0,1 MM THICK €1.26
70
photo_cameraImage coming soon 1610103019 Stop Disc  €5.30
72
photo_cameraImage coming soon 1615500284 Sealing cap BLUE €2.09
75
photo_cameraImage coming soon 1615190011 Socket Housing €1.76
76
photo_cameraImage coming soon 1617328016 Suppression Filter BLUE €4.04
77
photo_cameraImage coming soon 1617328017 Suppression Filter GRAY €4.70
78
photo_cameraImage coming soon 1614431022 Connecting Cable L=35 MM WHITE €1.64
79
photo_cameraImage coming soon 1610102623 Supporting Disc 3,0 MM THICK  €2.27
81
photo_cameraImage coming soon 1610102630 Supporting Disc 3,0 MM THICK  €2.74
84
photo_cameraImage coming soon 160202507H Auxiliary Handle €15.01
85
photo_cameraImage coming soon 1618040055 index turning toolholder Ø70 MM €12.38
86
photo_cameraImage coming soon 1613490001 T-Head Bolt M8x80 MM €20.80
87
photo_cameraImage coming soon 1611316008 Clamping Band Ø70 MM €8.72
92
photo_cameraImage coming soon 2917550118 Straight Pin 5M6x12 RIKO DIN 6325 €1.26
95
photo_cameraImage coming soon 1900210114 O-Ring 15x3 MM  €1.91
97
photo_cameraImage coming soon 1610202014 Inner Ring  €10.50
98
photo_cameraImage coming soon 1610900023 groove ball bearing €13.79
99
photo_cameraImage coming soon 1610910068 Needle bearing €9.78
100
Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 2600910001 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 €5.74
101
photo_cameraImage coming soon 2600910000 Needle bearing €4.27
102
photo_cameraImage coming soon 1900900276 groove ball bearing 30x55x13  €11.81
104
photo_cameraImage coming soon 2916650017 Spring retaining ring DIN 471 30x1,5 MM  €1.23
105
photo_cameraImage coming soon 1610116004 Spring retaining ring €1.48
107
photo_cameraImage coming soon 2916660024 Spring retaining ring 55x2MM, DIN 472 €6.17
110
O-Ring 54,0x3,0 mm for Demolition Hammer Bosch GBH 7/45 DE 1600210004 O-Ring 54,0x3,0 mm for Demolition Hammer Bosch GBH 7/45 DE €2.17
112
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46 1610210109 O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46 €6.73
114
O-Ring 17,0x8,0 mm for Hammer Bosch GBH 5/40 DCE 1610210093 O-Ring 17,0x8,0 mm for Hammer Bosch GBH 5/40 DCE €1.67
115
photo_cameraImage coming soon 1610210135 O-Ring 12,0x2,0 MM  €2.27
116
photo_cameraImage coming soon 1610283020 Rotary shaft lip seal  €5.52
118
photo_cameraImage coming soon 2910141244 Hex Socket Head Cap Screw DIN 912-M8x25-8.8 €1.26
120
photo_cameraImage coming soon 2910211038 Tapping Screw DIN 7971-ST4,8x38-F €1.26
122
photo_cameraImage coming soon 1603435008 Tapping Screw BZ4,8x63 MM €1.26
123
Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE 2910211236 Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE €1.05
129
photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
131
photo_cameraImage coming soon 1611110735 Manufacturer's nameplate  €2.74
132
photo_cameraImage coming soon 1614619009 Compression Spring  €2.74
133
photo_cameraImage coming soon 1610390028 Guide Bushing  €8.41
134
photo_cameraImage coming soon 1610200018 Retaining snap ring  €4.83
143
photo_cameraImage coming soon 1610109017 Sealing disk  €1.91
149
photo_cameraImage coming soon 1610108014 Felt Disc €2.49
661
Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
801
photo_cameraImage coming soon 1617000996 Motor Housing  €204.87
805
photo_cameraImage coming soon 1607000228 Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F €37.86
808
photo_cameraImage coming soon 160111A3H3 Nameplate  €3.22
810
photo_cameraImage coming soon 1617014110 Carbon-Brush Set €27.12
819
photo_cameraImage coming soon 1617000123 Hex Socket Head Cap Screw DIN 912-M6x25-10.9 €4.70
826
photo_cameraImage coming soon 1617000957 Toolholder  €204.87
834
photo_cameraImage coming soon 1617000960 Hammer Pipe  €233.93
850
photo_cameraImage coming soon 1617000934 Spur Wheel Clutch  €110.80
852
photo_cameraImage coming soon 1617000803 Bearing Flange  €73.44
894
photo_cameraImage coming soon 1617000169 Needle-Roller Assembly €5.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Rotary Hammer Bosch GBH 8 DCE

Bosch original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Rotary Hammer Bosch GBH 8 DCE /230 V/EU - 0611231703.

In the following table, look for the model of the Hammer and the respective parts of the code.
Rotary Hammer Bosch GBH 8 DCE /230 V/EU - 0611231703<

Rotary Hammer Bosch GBH 8 DCE /230 V/EU - 0611231703
# Part Num. Description
2 1614220101 Field 230-240V
4 1617200040 On-Off Switch
6 3600703011 Grommet Ø9,2-Ø12x120 MM
7 1611034020 Fastening Clamp
9 1611110733 Manufacturer's nameplate
13 1610905009 groove ball bearing 9x26x8
14 1610905024 groove ball bearing 15x35x11
15 1616610067 Fan
17 1610500013 Friction Washer
18 1610508017 Protective Cap
19 1610202016 Cylinder Sleeve
20 1610390015 Spacer Tube
21 1610520001 Stop Sleeve
22 1612300027 Stopping Device
23 1610290025 Indexing Disk
24 1614616009 Compression Spring
25 1610591009 Protection Sleeve
27 1615190028 Protective Cap
28 1615805062 Bearing Flange
29 1613124037 Striker Pin
30 1613124038 Striker Pin - DISCONTINUED
32 1610101616 Supporting Disc 1,5 MM THICK
33 1616317041 Cylindrical Gear Z=32/57
35 1618710055 Striker
36 1614621001 Compression Spring
37 1618700060 Hammer Piston
38 1615190027 Covering hood BLACK
39 1611015030 Sealing Frame
40 1615808059 Bearing cover
41 1613219001 Piston Pin
42 1614336005 Brush Holder
43 1615808068 Bearing cover BLUE
44 1611015032 Frame
45 1615133027 Handle BLACK
46 1615500269 Handle Cover BLACK
48 1616333032 Crown Gear Z=32
49 1615819011 Drive bearing
53 1611015031 Sealing Frame
56 1613060012 Toothed Shaft Z=10
59 1610591010 Plug
60 1612026033 Clamp Handle BLACK/RED
61 2917550138 Straight Pin 5M6x70 RIKO DIN 6325
62 1614680003 Holding Spring
65 1610101617 Supporting Disc 2,5 MM THICK
68 1610101618 Shim 0,3 MM THICK
68 1610101621 Shim 0,1 MM THICK
70 1610103019 Stop Disc
71 1610101014 Stop Disc
72 1615500284 Sealing cap BLUE
73 1610210082 Clamping Ring
74 1614652000 Spiral Spring
75 1615190011 Socket Housing
76 1617328016 Suppression Filter BLUE
77 1617328017 Suppression Filter GRAY
78 1614431022 Connecting Cable L=35 MM WHITE
79 1610102623 Supporting Disc 3,0 MM THICK
80 1617233016 Control device 230-240V
81 1610102630 Supporting Disc 3,0 MM THICK
84 160202507H Auxiliary Handle
85 1618040055 Support clamp Ø70 MM
86 1613490001 T-Head Bolt M8x80 MM
87 1611316008 Clamping Band Ø70 MM
92 2917550118 Straight Pin 5M6x12 RIKO DIN 6325
95 1900210114 O-Ring 15x3 MM
97 1610202014 Inner Ring
98 1610900023 groove ball bearing
99 1610910068 Needle bearing
100 2600910001 Needle-Roller Bearing Ø14 MM
101 2600910000 Needle bearing
102 1900900276 groove ball bearing 30x55x13
104 2916650017 Spring retaining ring DIN 471 30x1,5 MM
105 1610116004 Spring retaining ring
107 2916660024 Spring retaining ring 55x2MM, DIN 472
109 1610210100 O-Ring 27,0x1,5 MM
110 1600210004 O-Ring 54,0x3,0 MM
111 1610210098 O-Ring 16,0x2,5 MM
112 1610210109 O-Ring 26,0x4,0 MM
113 1610210099 O-Ring 30,0x8,0 MM
114 1610210093 O-Ring 17,0x8,0 MM
115 1610210135 O-Ring 12,0x2,0 MM
116 1610283020 Rotary shaft lip seal
117 2910141262 Hex Socket Head Cap Screw DIN 912-M8x80-8.8
118 2910141244 Hex Socket Head Cap Screw DIN 912-M8x25-8.8
120 2910211038 Tapping Screw DIN 7971-ST4,8x38-F
122 1603435008 Tapping Screw BZ4,8x63 MM
123 2910211236 Tapping Screw DIN 7971-ST4,8x25-C
125 2910601118 Tapping Screw DIN 7972-B3,9x13
126 2910211011 Tapping Screw DIN 7971-BZ3,5x13
128 2910021118 Socket head cap screw DIN 84-AM4x8-8.8
129 2603410001 Socket head cap screw M3x6,5-4.8
131 1611110735 Manufacturer's nameplate
132 1614619009 Compression Spring
133 1610390028 Guide Bushing
134 1610200018 Retaining snap ring
143 1610109017 Sealing disk
149 1610108014 Felt Disc
661 1615430010 Grease Tube 30 ML
750 2605438262 Carrying Case
751 1613001003 Depth-Gauge SW 6x330 MM
784 2602025062 Auxiliary Handle Ø 70 MM, M8
801 1617000996 Motor Housing
803 1614011061 Armature 220-240V
805 1607000228 Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F
808 160111A3H3 Nameplate
810 1617014110 Carbon-Brush Set
819 1617000123 Hex Socket Head Cap Screw DIN 912-M6x25-10.9
826 1617000957 Toolholder
834 1617000960 Hammer Pipe
850 1617000934 Spur Wheel Clutch
852 1617000803 Bearing Flange
894 1617000169 Needle-Roller Assembly
897 1617000248 Wear and Tear Part Set
898 1617000249 Wear and Tear Part Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBH 8 DCE - 0611231703
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Drawing Bosch GBH 8 DCE

Drawing Bosch GBH 8 DCE

Download (208.53KB)

You might also like

Bosch SKU: 1615430010
Grease Tube 30 ML for Bosch Hammer GBH-GSH Genuine spare parts Bosch, Grease Tube 30 ML for Bosch Hammer GBH 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GBH 5/40 DCE/0 611 216 703 - GBH 5-38 D - 0 611 240 003 - GBH...
on 7/10 Business Days Approx €9.33
Bosch SKU: 1610910089
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 Bosch original parts, Needle-Roller Bearing for Rotary Hammer GBH 7-46 DE - GBH 11 DE - GSH 11 E - GBH 8-45 D. Parts for the following products: - Rotary Hammer GBH 7-46 DE/0...
AVAILABLE €31.79
Bosch SKU: 1610290046
Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D Genuine replacement part Bosch, Rubber Bushing for Demolition Hammers GBH 8-45 D - 3 611 B65 100 - GBH 7-46 DE/0 611 263 703. Part for the following products: - Demolition Hammer...
Last items in stock €3.54
Bosch SKU: 1613300007
Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D Original Spare Part Bosch, Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D - 3 611 B65 100 - GBH 7-46 DE/0 611 263 703. Part for the following...
AVAILABLE €2.48
Bosch SKU: 1610508017
Protective Cap for Rotary Hammer Bosch GBH 5/40 DCE Bosch original part, Protective Cap for Rotary Hammer GBH 5/40 DCE - Demolition Hammer GSH 5 CE - Rotary Hammer GBH 8 DCE. Part for the following products: - Rotary Hammer GBH 5/40...
AVAILABLE €3.79
Bosch SKU: 2910211236
Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE Genuine spare part Bosch, Tapping Screw DIN 7971-ST 4,8x25-C for Rotary Hammer GBH 5/40 DCE - GBH 7/45 DE - GBH 8 DCE - Demolition Hammer GSH 27. Part for the following...
AVAILABLE €1.05
Bosch SKU: 1600210004
O-Ring 54,0x3,0 mm for Demolition Hammer Bosch GBH 7/45 DE Bosch original replacement part, O-Ring 54,0x3,0 mm for Demolition Hammer GBH 7/45 DE/0611214703 - GBH 8 DCE /230 V/EU - 0611231703. Part for the following products: - Rotary...
AVAILABLE €2.17
Bosch SKU: 1610210093
O-Ring 17,0x8,0 mm for Hammer Bosch GBH 5/40 DCE Genuine replacement part Bosch, O-Ring 17,0x8,0 mm for Rotary Hammer GBH 5/40 DCE / 0611216703. Part for the following products: - Rotary Hammer GBH 5/40 DCE - 0611216703 - Demolition...
AVAILABLE €1.67
Comments (0)
