Bosch Spare Parts for Impact Wrench GDR 18 V-LI - 3601JA1381

Bosch originalspare parts for to replace broken parts for to fix Impact Wrench 3601JA1381 - GDR 18 V-LI / 18 V /CN.

Bosch GDR 18 V-LI - 3601JA1381

Bosch Spare Parts for Impact Wrench GDR 18 V-LI - 3601JA1381
  • Bosch Spare Parts for Impact Wrench GDR 18 V-LI - 3601JA1381
  • Bosch Spare Parts for Impact Wrench GDR 18 V-LI - 3601JA1381
Bosch

Bosch Spare Parts for Impact Wrench GDR 18 V-LI - 3601JA1381

SKU: Bosch GDR 18 V-LI - 3601JA1381 Condition: New
€40.42
VAT included

Bosch Spare Parts for Impact Wrench GDR 18 V-LI - 3601JA1381

Bosch originalspare parts for to replace broken parts for to fix Impact Wrench 3601JA1381 - GDR 18 V-LI / 18 V /CN.

Bosch GDR 18 V-LI - 3601JA1381

settings 21 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
21 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

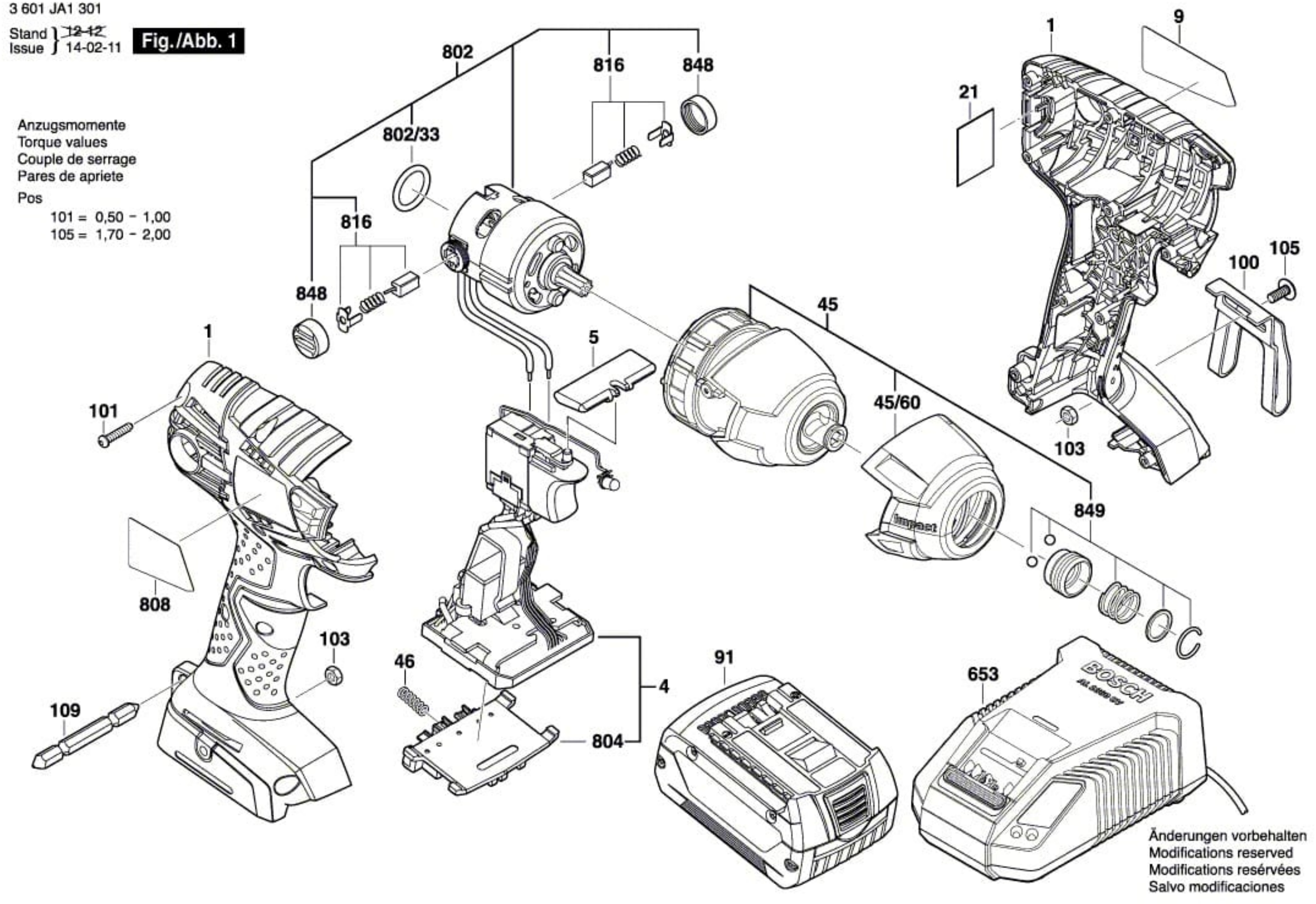

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2609101136 Housing  €29.24
4
 photo_cameraImage coming soon 1607233480 Electronics Module  €67.32
5
 photo_cameraImage coming soon 2609100698 Button  €1.75
9
 photo_cameraImage coming soon 2609132048 Manufacturer's nameplate GDR 18V-LI  €1.94
21
 photo_cameraImage coming soon 2609111485 Wire Mesh  €1.24
45/60
 photo_cameraImage coming soon 2609170128 Cap  €5.36
45
 photo_cameraImage coming soon 2609199693 Gear Box  €112.11
46
 photo_cameraImage coming soon 1609280477 Compression Spring €2.44
91
 photo_cameraImage coming soon 2607336091 Slide-In Accu Package 18V, 2,6Ah, LI, MS €375.73
100
 photo_cameraImage coming soon 2609110833 Clip  €7.46
101
 photo_cameraImage coming soon 2609110201 Torx Flat-Head Screw 3x16 €2.77
103
 photo_cameraImage coming soon 2609110835 Nut  €1.92
105
 photo_cameraImage coming soon 2609110834 Screw  €1.92
109
 photo_cameraImage coming soon 2609110342 Screwdriver Blade  €2.12
653
 photo_cameraImage coming soon 2607225337 Fast Charger CN 220/10,8-18V, 30 MIN  €129.61
802
 photo_cameraImage coming soon 2609199276 DC motor 18V  €83.92
804
 photo_cameraImage coming soon 1609280478 Contact retainer €17.09
808
 photo_cameraImage coming soon 2609132571 Nameplate  €1.94
816
 photo_cameraImage coming soon 2609199169 Carbon-Brush Set  €9.92
848
 photo_cameraImage coming soon 2609199190 Brush-Cover  €2.78
849
 photo_cameraImage coming soon 2609199223 Bit holder  €8.52

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Impact Wrench GDR 18 V-LI - 3601JA1381

Bosch originalspare parts for to replace broken parts for to fix Impact Wrench 3601JA1381 - GDR 18 V-LI / 18 V /CN.

In the following table, look for the model of the Impact Wrench and the respective parts of the code.
Bosch GDR 18 V-LI - 3601JA1381
Impact Wrench 3601JA1381 - GDR 18 V-LI / 18# V /CN
# Part Num. Description
1 2609101136 Housing
4 1607233480 Electronics Module
5 2609100698 Button
9 2609132048 Manufacturer's nameplate GDR 18V-LI
21 2609111485 Wire Mesh
45 2609199693 Gear Box
45/60 2609170128 Cap
46 1609280477 Compression Spring
91 2607336091 Slide-In Accu Package 18V, 2,6Ah, LI, MS
100 2609110833 Clip
101 2609110201 Torx Flat-Head Screw 3x16
103 2609110835 Nut
105 2609110834 Screw
109 2609110342 Screwdriver Blade
653 2607225337 Fast Charger CN 220/10,8-18V, 30 MIN
802 2609199276 DC motor 18V
802/33 2609170104 O-Ring
804 1609280478 Contact retainer
808 2609132571 Nameplate
816 2609199169 Carbon-Brush Set
848 2609199190 Brush-Cover
849 2609199223 Bit holder
