Bosch

Bosch Spare Parts for Impact Wrench GDR 18 V

SKU: Bosch GDR 18 V - 3601J09300
€27.92
VAT included

Bosch Spare Parts for Impact Wrench GDR 18 V

We have the original Bosch Spare Parts for Impact Wrench GDR 18 V, the diagram, parts list and tool repair that help you need to get your tools running like new again

Fix Your Impact Wrench GDR 18 V /18 V/EU - 3601J09300. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee

Bosch Spare Parts for Impact Wrench GDR 18 V
  • Bosch Spare Parts for Impact Wrench GDR 18 V
  • Bosch Spare Parts for Impact Wrench GDR 18 V
Bosch

Bosch Spare Parts for Impact Wrench GDR 18 V

SKU: Bosch GDR 18 V - 3601J09300 Condition: New
€27.92
VAT included

Bosch Spare Parts for Impact Wrench GDR 18 V

We have the original Bosch Spare Parts for Impact Wrench GDR 18 V, the diagram, parts list and tool repair that help you need to get your tools running like new again

Fix Your Impact Wrench GDR 18 V /18 V/EU - 3601J09300. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee

settings 22 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
22 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

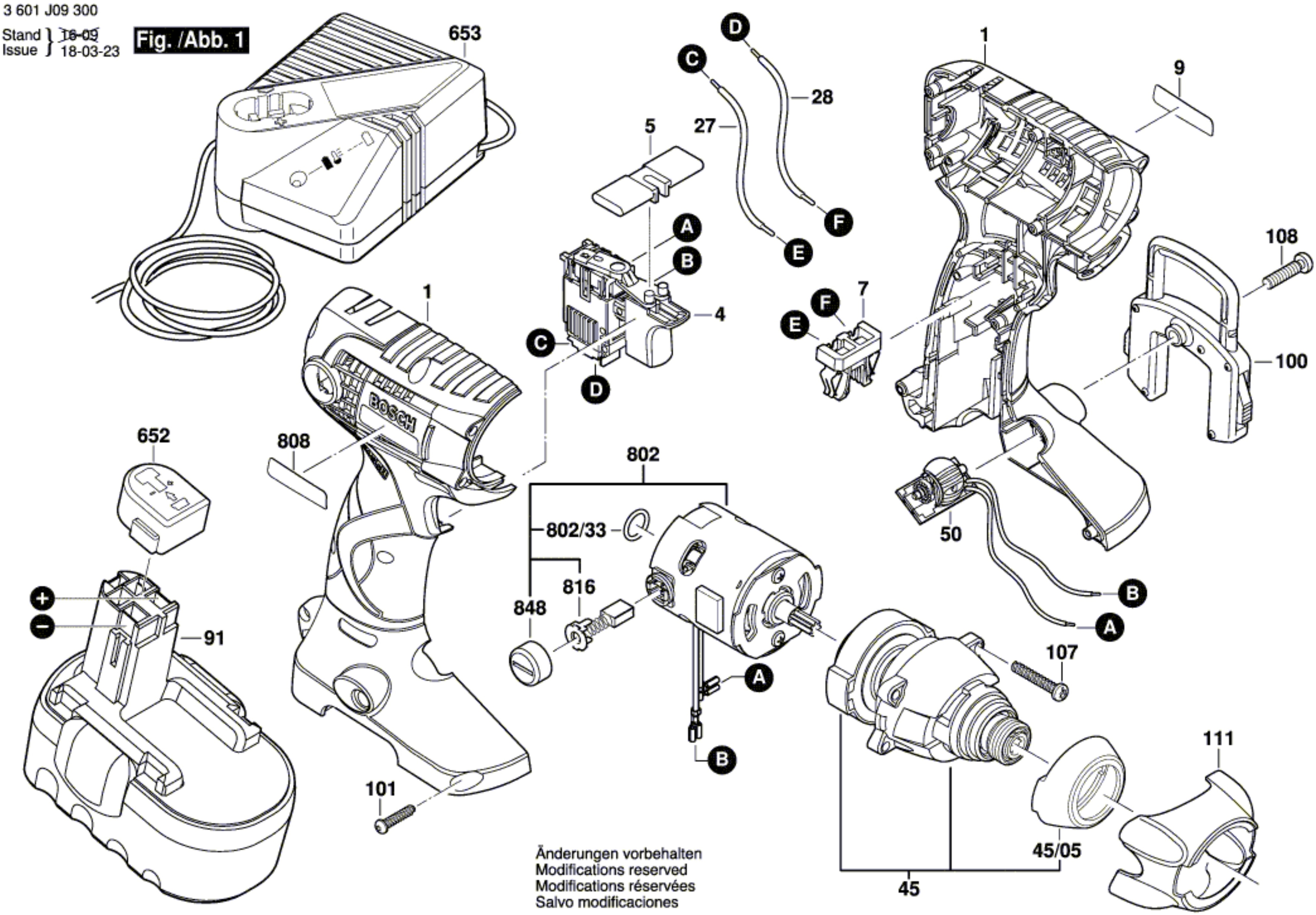

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2609100488 Housing Cover BLUE €26.28
5
 photo_cameraImage coming soon 2609100273 Button  €2.18
9
 photo_cameraImage coming soon 2609131095 Manufacturer's nameplate  €2.78
27
 photo_cameraImage coming soon 2609120146 Connecting Cable 50 MM LONG,BLACK €1.25
28
 photo_cameraImage coming soon 2609120147 Connecting Cable 60 MM,LONG,RED €1.25
45/05
 photo_cameraImage coming soon 2609170025 Protective Ring  €6.04
50
 photo_cameraImage coming soon 2609199091 Light-Emitting-Diode  €15.71
91
 photo_cameraImage coming soon 2607335687 Slide-In Accu Package 18V, 2,6Ah, NiMH, HD €508.29
100
 photo_cameraImage coming soon 2609199027 Holder  €6.53
101
 photo_cameraImage coming soon 2609110201 Torx Flat-Head Screw 3x16 €2.77
107
 photo_cameraImage coming soon 2609110327 Screw  €1.25
108
 photo_cameraImage coming soon 2609110309 Screw  €1.25
111
 photo_cameraImage coming soon 2609100298 Cover Flap BLACK €5.48
652
 photo_cameraImage coming soon 2609100101 Protective Cap €4.01
653
 photo_cameraImage coming soon 2607225027 Fast Charger EU 230/7,2-24V, 30 MIN. €306.10
653
 photo_cameraImage coming soon 2607225029 Fast Charger GB 230/7,2-24V, 30 MIN. €129.88
653
 photo_cameraImage coming soon 2607225031 Fast Charger AUS 240/7,2-24V, 30 MIN. €129.88
802/33
 photo_cameraImage coming soon 2609170030 O-Ring  €1.25
802
 photo_cameraImage coming soon 2609199089 Motor 18V €77.91
808
 photo_cameraImage coming soon 2609135962 Nameplate  €1.94
816
 Carbon Brushes for Impact Wrenches Bosch GDS 14,4 V - GDS 18 V 2609199048 Carbon Brushes for Impact Wrenches Bosch GDS 14,4 V - GDS 18 V €12.04
848
 photo_cameraImage coming soon 2609199049 Sealing cap €4.01

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Impact Wrench GDR 18 V

Fix Your Impact Wrench GDR 18 V /18 V/EU - 3601J09300. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Impact Wrench and the respective parts of the code.

Impact Wrench 3601J09300 - GDR 18 V /18 V/EU
# Part Num. Description
1 2609100488 Housing Cover BLUE
4 2607200489 On-Off Switch
5 2609100273 Button
7 2609100297 Contact retainer
9 2609131095 Manufacturer's nameplate
27 2609120146 Connecting Cable 50 MM LONG,BLACK
28 2609120147 Connecting Cable 60 MM,LONG,RED
45 2609199195 Gear Box
45/05 2609170025 Protective Ring
50 2609199091 Light-Emitting-Diode
91 2607335687 Slide-In Accu Package 18V, 2,6Ah, NiMH, HD
100 2609199027 Holder
101 2609110201 Torx Flat-Head Screw 3x16
107 2609110327 Screw
108 2609110309 Screw
111 2609100298 Cover Flap BLACK
652 2609100101 Protective Cap
653 2607225027 Fast Charger EU 230/7,2-24V, 30 MIN.
653 2607225029 FastChargerGB230/7,2-24V,30MIN.
653 2607225031 FastChargerAUS240/7,2-24V,30MIN.
802 2609199089 Motor 18V
802/33 2609170030 O-Ring
808 2609135962 Nameplate
816 2609199048 Carbon-Brush Set
848 2609199049 Sealing cap
