Bosch Spare Parts for Jig Saw GST 90 E

SKU: Bosch GST 90 E - 3601E8G000
€16.49
VAT included

Bosch Spare Parts for Jig Saw GST 90 E

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Jig Saw GST 90 E - 3601E8G000.
Bosch GST 90 E - 3601E8G000
Bosch Spare Parts for Jig Saw GST 90 E
  • Bosch Spare Parts for Jig Saw GST 90 E
  • Bosch Spare Parts for Jig Saw GST 90 E

Bosch Spare Parts for Jig Saw GST 90 E

SKU: Bosch GST 90 E - 3601E8G000 Condition: New
€16.49
VAT included

Bosch Spare Parts for Jig Saw GST 90 E

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Jig Saw GST 90 E - 3601E8G000.
Bosch GST 90 E - 3601E8G000
settings 57 spare parts

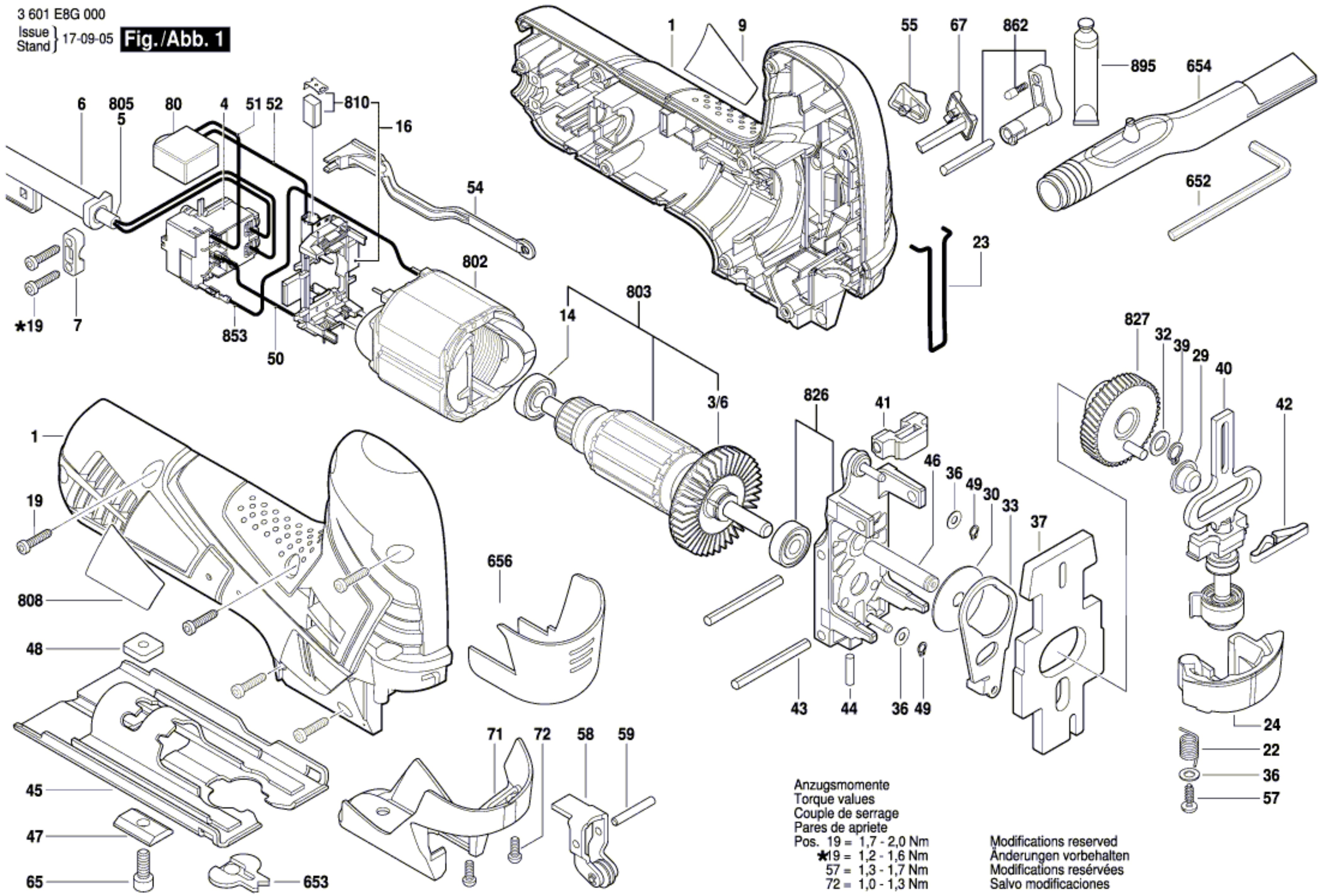

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

46 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 1619P07135 Housing Section €19.92
3/6
photo_cameraImage coming soon 2606610123 Fan €2.02
4
photo_cameraImage coming soon 1619P08797 On-Off Switch €7.47
6
photo_cameraImage coming soon 2600703028 Grommet Ø7,6-Ø8,2x95 MM €1.24
7
Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
9
photo_cameraImage coming soon 1619P08795 Manufacturer's nameplate GST 90 E €1.94
14
photo_cameraImage coming soon 2600905110 groove ball bearing 8x22x7 €5.26
16
photo_cameraImage coming soon 2605807108 Brush Plate €17.39
19
photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
23
photo_cameraImage coming soon 1619P07128 Protecting Cover €1.24
24
photo_cameraImage coming soon 1619P07151 Lever Switch €2.29
29
photo_cameraImage coming soon 2600914022 Needle roller bearings €5.41
30
photo_cameraImage coming soon 1619P07576 Shim €1.66
32
Shim mm 0.5 for Jig Saw Bosch GST 75 BE 2600101077 Shim mm 0.5 for Jig Saw Bosch GST 75 BE €1.54
33
photo_cameraImage coming soon 1619P07137 Fork Lever €3.62
36
photo_cameraImage coming soon 2600100588 Washer Compensation 0.5 MM €1.23
37
photo_cameraImage coming soon 1619P07133 Counterweight €9.50
39
photo_cameraImage coming soon 2916640905 Spring retaining ring 8x0,8 N31A MR7 €1.24
40
photo_cameraImage coming soon 1619P07147 Lifting Rod €56.40
41
photo_cameraImage coming soon 1619P08903 Plain bearing €1.66
43
photo_cameraImage coming soon 1619P07139 Needle Roller €1.66
45
photo_cameraImage coming soon 1619P07162 Base Plate €8.52
46
photo_cameraImage coming soon 1619P07138 Bearing bolt €1.94
47
photo_cameraImage coming soon 2601030019 Profile Beading €2.46
51
photo_cameraImage coming soon 1619P09403 Connecting Cable €1.24
52
photo_cameraImage coming soon 1619P09553 Connecting Cable €1.24
54
photo_cameraImage coming soon 1619P07657 Adjusting Slide €1.24
57
photo_cameraImage coming soon 1619P02848 Torx Oval-Head Screw 4x12 €1.31
58
photo_cameraImage coming soon 1619P07129 Roller Lever €9.50
67
photo_cameraImage coming soon 1619P07158 Switch Slide €2.29
71
photo_cameraImage coming soon 1619P07127 Cover €6.28
72
photo_cameraImage coming soon 2603435015 Recessed-Head Screw DIN 7981-ST3,5x9,5-F €2.02
80
photo_cameraImage coming soon 1619P09014 Speed governor €20.21
652
photo_cameraImage coming soon 1907950006 Offset Screwdriver DIN 911-SW5 BLACK €5.40
653
photo_cameraImage coming soon 2601016065 Splintering Protector €4.79
654
photo_cameraImage coming soon 1619P07167 Suction Nozzle €4.88
656
photo_cameraImage coming soon 1619P07166 Covering hood €1.24
803
photo_cameraImage coming soon 1619P09140 Armature €40.23
805
photo_cameraImage coming soon 1607000385 Power supply cord EU 2,6m 2 x 1,0 mm  €16.29
808
photo_cameraImage coming soon 1619P07966 Nameplate €1.94
810
photo_cameraImage coming soon 1607000494 Carbon-Brush Set 10 x 2 604 321 94 €74.29
810
photo_cameraImage coming soon 2604321941 Carbon-Brush Set €10.12
826
photo_cameraImage coming soon 1619P08888 Bearing Bracket €17.55
827
photo_cameraImage coming soon 1619P08889 Eccentric Cog Wheel €17.55
862
photo_cameraImage coming soon 1619P08890 Change-Over Switch €2.78
895
photo_cameraImage coming soon 3605430003 Grease Tube Albida  €43.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Jig Saw GST 90 E

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Jig Saw GST 90 E - 3601E8G000.

In the following table, look for the model of the jig Saw and the respective parts of the code.
Bosch GST 90 E - 3601E8G000

Jig Saw GST 90 E/3 601 E8G 000
# Part Num. Description
1 1619P07135 Housing Section
3/6 2606610123 Fan
4 1619P08797 On-Off Switch
6 2600703028 Grommet Ø7,6-Ø8,2x95 MM
7 2601035001 Cable Clip
9 1619P08795 Manufacturer's nameplate GST 90 E
14 2600905110 groove ball bearing 8x22x
16 2605807108 Brush Plate
19 2603490022 Screw 4x16
22 1619P07152 Torsion Spring
23 1619P07128 Protecting Cover
24 1619P07151 Lever Switch
29 2600914022 Needle bearing
30 1619P07576 Shim
32 2600101077 Shim 0,5 MM
33 1619P07137 Fork Lever
36 2600100588 Shim 0,5 MM
37 1619P07133 Counterweight
39 2916640905 Spring retaining ring 8x0,8 N31A MR7
40 1619P07147 Lifting Rod
41 1619P08903 Plain bearing
42 1619P11327 Coiled Spring
43 1619P07139 Needle Roller
44 1619P07143 Bearing bolt
45 1619P07162 Base Plate
46 1619P07138 Bearing bolt
47 2601030019 Profile Beading
48 1619P07163 fixing plate
49 2916640001 Spring retaining ring DIN 471-4x0,4-FSt
50 1619P09552 Connecting Cable
51 1619P09403 Connecting Cable
52 1619P09553 Connecting Cable
54 1619P07657 Adjusting Slide
55 1619P07658 Switch Button
57 1619P02848 Torx Oval-Head Screw 4x12
58 1619P07129 Roller Lever
59 1619P07159 Bearing bolt
65 2910141197 Hex Socket Head Cap Screw DIN 912-M6x16-8.8
67 1619P07158 Switch Slide
71 1619P07127 Cover
72 2603435015 Recessed-Head Screw DIN 7981-ST3,5x9,5-F
80 1619P09014 Speed governor
652 1907950006 Offset Screwdriver DIN 911-SW5 BLACK
653 2601016065 Splintering Protector
654 1619P07167 Suction Nozzle
656 1619P07166 Covering hood
802 1619P09154 Field
803 1619P09140 Armature
805 1607000385 Power supply cord EU 2,6m 2 x 1,0 mm
808 1619P07966 Nameplate
810 2604321941 Carbon-Brush Set
810 1607000494 Carbon-Brush Set 10 x 2 604 321 94
826 1619P08888 Bearing Bracket
827 1619P08889 Eccentric Cog Wheel
853 1619P09141 Earth Conductor
862 1619P08890 Change-Over Switch
895 3605430003 Grease Tube Albida
