Bosch Spare Parts for Jig Saw GST 150 CE

SKU: Bosch GST 150 CE - 3601E12000
€1.56
VAT included

Bosch Spare Parts for Jig Saw GST 150 CE

We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Jig Saw GST 150 CE - 3601E12000.

Bosch GST 150 CE - 3601E12000
Bosch Spare Parts for Jig Saw GST 150 CE
  • Bosch Spare Parts for Jig Saw GST 150 CE
  • Bosch Spare Parts for Jig Saw GST 150 CE

Bosch Spare Parts for Jig Saw GST 150 CE

SKU: Bosch GST 150 CE - 3601E12000 Condition: New
€1.56
VAT included

Bosch Spare Parts for Jig Saw GST 150 CE

We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Jig Saw GST 150 CE - 3601E12000.

Bosch GST 150 CE - 3601E12000
settings 59 spare parts

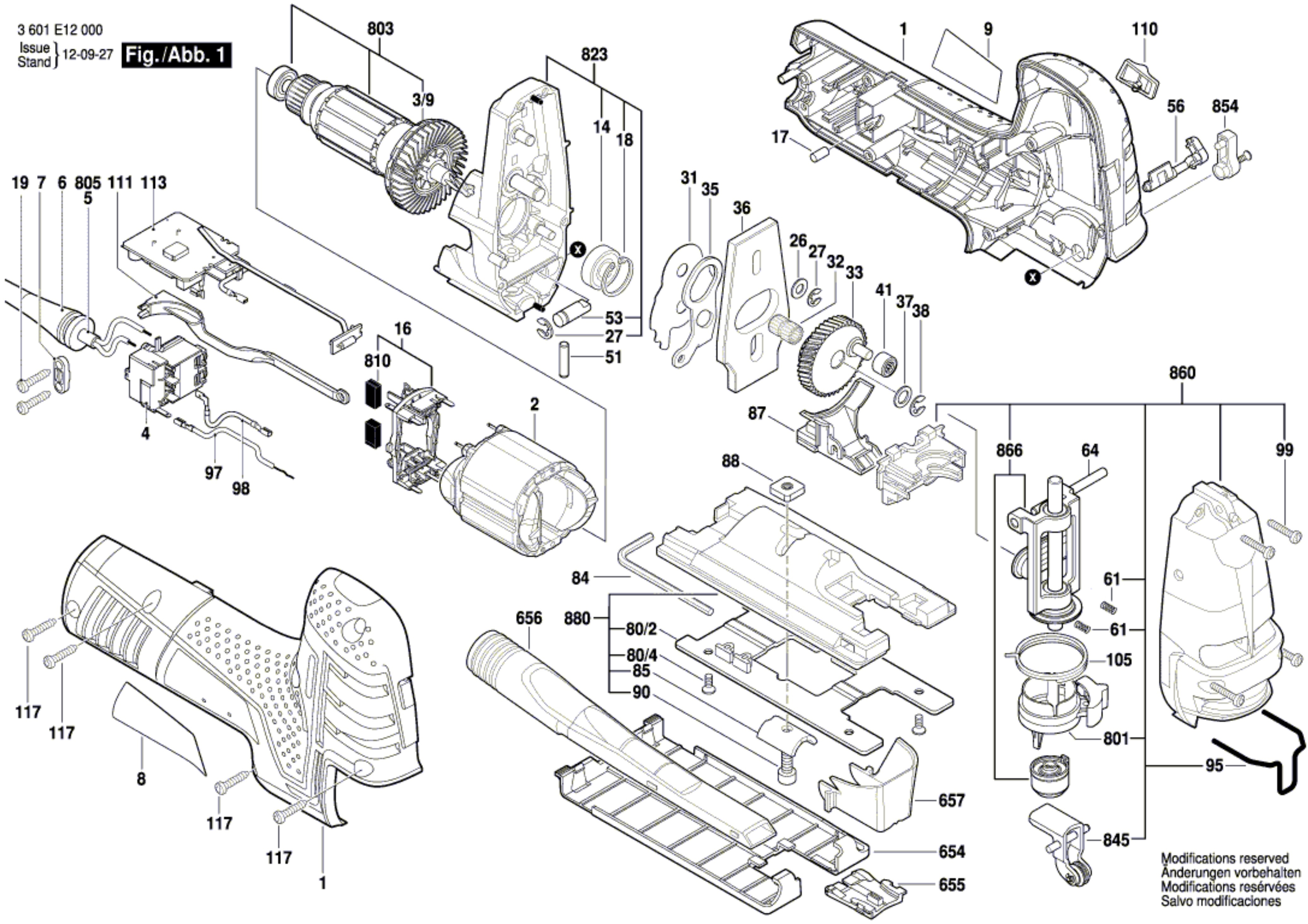

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

55 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 2605105129 Housing Section BLUE €32.26
2
photo_cameraImage coming soon 2604220584 Field 230-240V €22.25
3/9
photo_cameraImage coming soon 2606610089 Fan €4.76
4
photo_cameraImage coming soon 2607200662 Switch €13.17
6
photo_cameraImage coming soon 2600703017 Grommet Ø6,4-Ø7,2x76 MM €2.58
7
photo_cameraImage coming soon 2601035004 Cable Clip €2.25
8
photo_cameraImage coming soon 2601111171 Nameplate €2.13
9
photo_cameraImage coming soon 2601113553 Manufacturer's nameplate GST 150 CE €2.13
14
photo_cameraImage coming soon 2600905112 groove ball bearing 9x24x7 €10.47
16
photo_cameraImage coming soon 2605807108 Brush Plate €17.39
17
Rubber Buffer for Random Orbital Sanders BOSCH PEX 400-420 AE 1603100036 Rubber Buffer for Random Orbital Sanders BOSCH PEX 400-420 AE €1.52
18
photo_cameraImage coming soon 2916660008 Spring retaining ring DIN 472-24x1,2 MM €2.74
19
photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
26
photo_cameraImage coming soon 2600100040 Shim €1.35
31
photo_cameraImage coming soon 2600101119 Shim €2.13
32
photo_cameraImage coming soon 2600913040 Needle-Roller Assembly €5.06
33
photo_cameraImage coming soon 2606320099 Eccentric Cog Wheel €23.84
35
photo_cameraImage coming soon 2601923015 Fork Lever €2.51
36
photo_cameraImage coming soon 2601098117 Counterweight €9.39
37
Shim mm 0.3 for Percussion Drill Bosch GSB 13 RE 2600101047 Shim mm 0.3 for Percussion Drill Bosch GSB 13 RE €1.52
41
Needle Bearing for Jig Saw Bosch GST 85 PE 2600917900 Needle Bearing for Jig Saw Bosch GST 85 PE €8.80
51
photo_cameraImage coming soon 2603105131 Bearing bolt €1.82
53
photo_cameraImage coming soon 2603124156 Control Shaft €3.05
56
photo_cameraImage coming soon 2602026158 Rotary Knob BLACK €1.35
64
photo_cameraImage coming soon 2601322035 Straight Pin €2.13
80/4
photo_cameraImage coming soon 1613435023 Thread-forming tap. Screw €15.53
80/2
photo_cameraImage coming soon 2601099198 Work Board €5.91
84
photo_cameraImage coming soon 1907950006 Offset Screwdriver DIN 911-SW5 BLACK €5.40
85
photo_cameraImage coming soon 2601030022 Profile Beading €1.27
87
photo_cameraImage coming soon 2605500203 Air Eliminator BLACK €2.51
88
photo_cameraImage coming soon 2600040004 fixing plate €2.51
90
photo_cameraImage coming soon 2910141201 Hex Socket Head Cap Screw DIN 912-M6x20-8.8 €2.89
95
photo_cameraImage coming soon 2603101065 Protecting Cover €1.35
97
photo_cameraImage coming soon 2604448339 Earth Conductor €1.82
98
photo_cameraImage coming soon 2604448337 Connecting Cable €2.13
105
photo_cameraImage coming soon 2604690056 Torsion Spring €1.82
110
photo_cameraImage coming soon 2602026161 Switch Handle €2.26
111
photo_cameraImage coming soon 2601099192 Adjusting Slide €2.26
113
photo_cameraImage coming soon 1607233560 Speed governor 220-240V €54.12
117
Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
654
photo_cameraImage coming soon 2601099183 Pad €5.90
655
photo_cameraImage coming soon 2601016093 Splintering Protector €3.98
656
photo_cameraImage coming soon 2605730055 Suction Nozzle €4.60
657
photo_cameraImage coming soon 2605510293 Covering hood €2.13
801
photo_cameraImage coming soon 2602026908 Cap-Handle BLACK €4.60
803
photo_cameraImage coming soon 2604011394 Armature 230-240V €52.92
805
photo_cameraImage coming soon 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F €30.17
810
photo_cameraImage coming soon 1607000494 Carbon-Brush Set 10 x 2 604 321 94 €74.29
810
photo_cameraImage coming soon 2604321941 Carbon-Brush Set €10.12
823
photo_cameraImage coming soon 2605806881 Gear Housing €82.02
845
photo_cameraImage coming soon 2601321908 Roller Lever €10.47
854
photo_cameraImage coming soon 2602026909 Rotary Knob BLACK €2.13
860
photo_cameraImage coming soon 2605808934 Gear Cover €143.05
866
photo_cameraImage coming soon 1600A00HG2 Lifting Rod €82.02
880
photo_cameraImage coming soon 2601016905 Base Plat €28.55

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Jig Saw GST 150 CE

We are BOSCH original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Jig Saw GST 150 CE - 3601E12000.

In the following table, look for the model of the jig Saw and the respective parts of the code.
Bosch GST 150 CE - 3601E12000

Jig Saw GST 150 CE/3 601 E12 000
# Part Num. Description
1 2605105129 Housing Section BLUE
2 2604220584 Field 230-240V
3/9 2606610089 Fan
4 2607200662 Switch
6 2600703017 Grommet Ø6,4-Ø7,2x76 MM
7 2601035004 Cable Clip
8 2601111171 Nameplate
9 2601113553 Manufacturer's nameplate GST 150 CE
14 2600905112 groove ball bearing 9x24x7
16 2605807108 Brush Plate
17 1603100036 Rubber Buffer
18 2916660008 Spring retaining ring DIN 472-24x1,2 MM
19 2603490022 Screw 4x16
26 2600100040 Shim
27 2916080908 Locking Washer 5 DIN 6799
31 2600101119 Shim
32 2600913040 Needle-Roller Assembly
33 2606320099 Eccentric Cog Wheel
35 2601923015 Fork Lever
36 2601098117 Counterweight
37 2600101047 Shim 0,3 MM
38 2916080909 Locking Washer DIN 6799-6-FST
41 2600917900 Needle bearing
51 2603105131 Bearing bolt
53 2603124156 Control Shaft
56 2602026158 Rotary Knob BLACK
61 2604610140 Compression Spring
64 2601322035 Straight Pin
80/2 2601099198 Work Board
80/4 1613435023 Thread-forming tap. Screw
84 1907950006 Offset Screwdriver DIN 911-SW5 BLACK
85 2601030022 Profile Beading
87 2605500203 Air Eliminator BLACK
88 2600040004 fixing plate
90 2910141201 Hex Socket Head Cap Screw DIN 912-M6x20-8.8
95 2603101065 Protecting Cover
97 2604448339 Earth Conductor
98 2604448337 Connecting Cable
99 2603410051 Thread-forming tap. Screw
105 2604690056 Torsion Spring
110 2602026161 Switch Handle
111 2601099192 Adjusting Slide
113 1607233560 Speed governor 220-240V
117 2603490023 Torx Oval-Head Screw 4x20
654 2601099183 Pad
655 2601016093 Splintering Protector
656 2605730055 Suction Nozzle
657 2605510293 Covering hood
801 2602026908 Cap-Handle BLACK
803 2604011394 Armature 230-240V
805 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F
810 2604321941 Carbon-Brush Set
810 1607000494 Carbon-Brush Set 10 x 2 604 321 94
823 2605806881 Gear Housing
845 2601321908 Roller Lever
854 2602026909 Rotary Knob BLACK
860 2605808934 Gear Cover
866 1600A00HG2 Lifting Rod
880 2601016905 Base Plat
