Bosch Spare Parts for Cordless Rotary Hammer GBH 36 VF-LI/3611J03R00

SKU: GBH 36 VF-LI - 3611J03R00
€199.79
VAT included

Bosch Spare Parts for Cordless Rotary Hammer GBH 36 VF-LI

We are Dealers of BOSCH original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Rotary Hammer Bosch 3611J03R00 - GBH 36 V-LI /36 V/EU.

GBH 36 VF-LI - 3611J03R00
Bosch Spare Parts for Cordless Rotary Hammer GBH 36 VF-LI/3611J03R00
  • Bosch Spare Parts for Cordless Rotary Hammer GBH 36 VF-LI/3611J03R00
  • Bosch Spare Parts for Cordless Rotary Hammer GBH 36 VF-LI/3611J03R00

Bosch Spare Parts for Cordless Rotary Hammer GBH 36 VF-LI/3611J03R00

SKU: GBH 36 VF-LI - 3611J03R00 Condition: New
€199.79
VAT included

Bosch Spare Parts for Cordless Rotary Hammer GBH 36 VF-LI

We are Dealers of BOSCH original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Rotary Hammer Bosch 3611J03R00 - GBH 36 V-LI /36 V/EU.

GBH 36 VF-LI - 3611J03R00
settings 69 spare parts

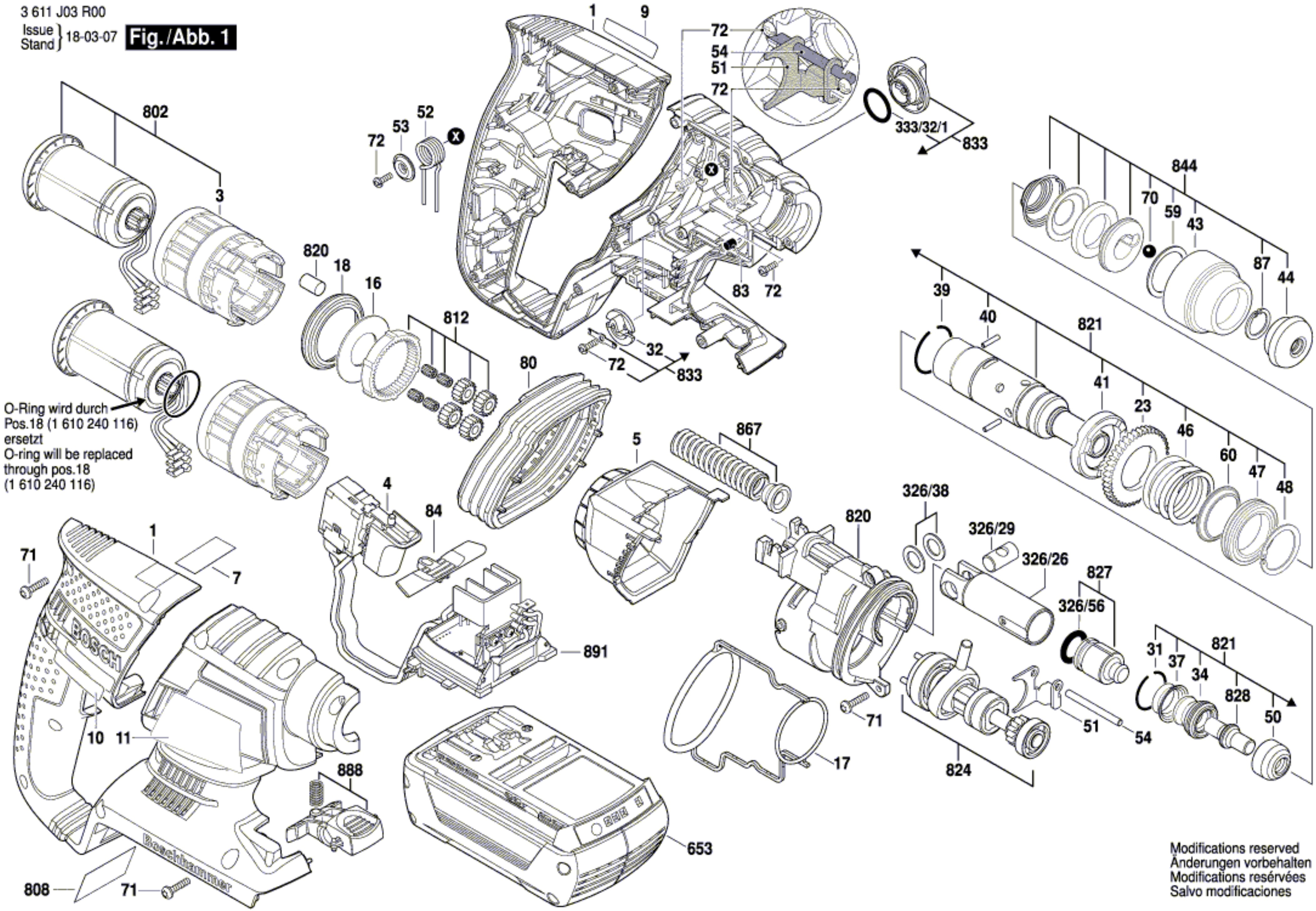

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

63 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 161510817B Housing Section €29.36
3
photo_cameraImage coming soon 1610499067 Centering Sleeve €10.00
4
photo_cameraImage coming soon 1607233316 Electronics Module €144.44
5
photo_cameraImage coming soon 1610591044 Air Path BLACK €2.42
7
photo_cameraImage coming soon 1611110Z32 Sticker €2.07
9
photo_cameraImage coming soon 160111C0UL Manufacturer's nameplate €2.07
9
photo_cameraImage coming soon 1611110Z40 Manufacturer's nameplate J €2.42
10
photo_cameraImage coming soon 160111C0UM Manufacturer's nameplate €2.07
11
photo_cameraImage coming soon 1611110Z23 Reference Plate EU, GB, AUS, KOREA, CN €2.07
11
photo_cameraImage coming soon 1611110Z39 Reference Plate J €2.07
16
photo_cameraImage coming soon 1610102637 Supporting Disc 12x38x0,5 €1.36
17
photo_cameraImage coming soon 1611015060 Sealing Frame €6.04
18
photo_cameraImage coming soon 1610290116 Seal ring €4.77
23
photo_cameraImage coming soon 1616317084 Cylindrical Gear €25.15
34
photo_cameraImage coming soon 1610508051 Rubber Bushing €5.86
37
photo_cameraImage coming soon 1610551008 Holding Plate €3.15
40
photo_cameraImage coming soon 1613100032 Straight Pin €1.36
41
photo_cameraImage coming soon 1610102072 Ratchet Disc €7.05
43
photo_cameraImage coming soon 1610499080 Protection Sleeve €3.25
44
photo_cameraImage coming soon 1610508052 Protective Cap €2.07
46
photo_cameraImage coming soon 1614630003 Compression Spring €2.70
47
photo_cameraImage coming soon 1610905039 groove ball bearing €6.20
48
photo_cameraImage coming soon 1614601054 Retaining ring €1.47
50
photo_cameraImage coming soon 1600A00FL3 Thrust Ring €2.42
51
photo_cameraImage coming soon 1613231014 Shift Plate €4.65
52
photo_cameraImage coming soon 1614690005 Coiled Spring €1.36
54
Bosch Guide Rod for PBH 2000 SRE 1613100033 Bosch Guide Rod for PBH 2000 SRE €1.75
60
Support Disc for Rotary Hammer Bosh PBH 2000 RE 1610190054 Support Disc for Rotary Hammer Bosh PBH 2000 RE €1.72
70
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE 1903230013 Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE €2.83
71
Bosch Cordless Hammer Drill GBH 18 V-EC Torx Screw 3,5x16 1613435036 Bosch Cordless Hammer Drill GBH 18 V-EC Torx Screw 3,5x16 €1.21
72
photo_cameraImage coming soon 2603490017 Torx Oval-Head Screw 3x10 €2.82
80
photo_cameraImage coming soon 1610415002 Bellows €9.62
83
photo_cameraImage coming soon 2603100056 Rubber Buffer €1.54
84
photo_cameraImage coming soon 1613231023 Switch Slide €1.36
87
photo_cameraImage coming soon 1614601077 Spring retaining ring €2.07
120
photo_cameraImage coming soon 1612025078 Auxiliary Handle €20.33
326/38
photo_cameraImage coming soon 1610100016 Guide Disc €4.16
326/56
O-Ring 13,0x3,0 mm for Rotary Hammer Bosch GBH 2-20 D 1610210244 O-Ring 13,0x3,0 mm for Rotary Hammer Bosch GBH 2-20 D €2.75
326/29
photo_cameraImage coming soon 1613100034 Piston Pin €3.71
326/26
Piston for Rotary Hammer Bosch PBH 2000 RE 1618700083 Piston for Rotary Hammer Bosch PBH 2000 RE €13.71
651
photo_cameraImage coming soon 2609005615 Depth-Gauge €4.55
653
photo_cameraImage coming soon 2607336709 Slide-In Accu Package 36V 1,3 Ah Li J €264.14
653
photo_cameraImage coming soon 2607336913 Slide-In Accu Package 36V 2,0 Ah Li €225.43
654
photo_cameraImage coming soon 2607225099 Fast Charger EU 230/18-36V, 1h €180.44
654
photo_cameraImage coming soon 2607225101 Fast Charger GB 230/18-36V, 1h €188.52
654
photo_cameraImage coming soon 2607225103 Fast Charger AUS 240/18-36V, 1h €140.92
654
photo_cameraImage coming soon 2607225109 Fast Charger J 100/18-36V, 1h €163.93
654
photo_cameraImage coming soon 2607225111 Fast Charger ROK 220/18-36V, 1h €147.53
654
photo_cameraImage coming soon 2607225409 Fast Charger CN 220/36V €0.24
802
photo_cameraImage coming soon 1617000664 DC motor 36V €166.07
808
photo_cameraImage coming soon 160111A3H9 Nameplate €2.07
812
photo_cameraImage coming soon 1617000665 Planetary Gear Train €18.73
820
photo_cameraImage coming soon 1617000666 Intermediate Flange €38.64
821
photo_cameraImage coming soon 1617000667 Hammer Pipe €92.98
824
photo_cameraImage coming soon 1607000D10 Jack Shaft €78.04
827
photo_cameraImage coming soon 1617000669 Striker €20.77
828
photo_cameraImage coming soon 1613124084 Striker Pin €5.86
833
photo_cameraImage coming soon 1617000670 Clamp Handle €8.64
844
photo_cameraImage coming soon 16170006D3 Protection Sleeve €13.88
867
photo_cameraImage coming soon 1617000671 Compression Spring €5.01
888
photo_cameraImage coming soon 1617000672 Push-Button €2.42
890
photo_cameraImage coming soon 1615430001 Grease Tube 225 ML €44.95
891
photo_cameraImage coming soon 1609280425 Contact retainer €15.04

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Cordless Rotary Hammer GBH 36 VF-LI

We are Dealers of BOSCH original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Rotary Hammer Bosch 3611J03R00 - GBH 36 V-LI /36 V/EU.

In the following table, look for the model of the Hammer Drill and the respective parts of the code.
GBH 36 VF-LI - 3611J03R00

Cordless Rotary Hammer Bosch 3611J03R00 - GBH 36 V-LI /36 V/EU
# Part Num. Description
1 161510817B Housing Section
3 1610499067 Centering Sleeve
4 1607233316 Electronics Module
5 1610591044 Air Path BLACK
7 1611110Z32 Sticker
9 160111C0UL Manufacturer's nameplate
9 1611110Z40 Manufacturer's nameplate J
10 160111C0UM Manufacturer's nameplate
11 1611110Z23 Reference Plate EU, GB, AUS, KOREA, CN
11 1611110Z39 Reference Plate J
16 1610102637 Supporting Disc 12x38x0,5
17 1611015060 Sealing Frame
18 1610290116 Seal ring
23 1616317084 Cylindrical Gear
31 1614601053 Retaining ring
32 1612026114 Switch Button
34 1610508051 Rubber Bushing
37 1610551008 Holding Plate
39 160460102U Retaining ring
40 1613100032 Straight Pin
41 1610102072 Ratchet Disc
43 1610499080 Protection Sleeve
44 1610508052 Protective Cap
46 1614630003 Compression Spring
47 1610905039 groove ball bearing
48 1614601054 Retaining ring
50 1600A00FL3 Thrust Ring
51 1613231014 Shift Plate
52 1614690005 Coiled Spring
53 1619P00828 Pressure Disc
54 1613100033 Guide Rod
59 1610102045 Friction Washer 1,0 MM THICK
60 1610190054 Support Disc
70 1903230013 Ball DIN 5401-Ø7MM-III-ST
71 1613435036 Torx Oval-Head Screw 3,5x16
72 2603490017 Torx Oval-Head Screw 3x10
80 1610415002 Bellows
83 2603100056 Damping rubber
84 1613231023 Switch Slide
87 1614601077 Spring retaining ring
120 1612025078 Auxiliary Handle
326/26 1618700083 Hammer Piston
326/29 1613100034 Piston Pin
326/38 1610100016 Guide Disc
326/56 1610210244 O-Ring 13,0x3,0 MM
333/32/1 1610210185 O-Ring 16,5x2,0 MM
651 2609005615 Depth-Gauge
653 2607336913 Slide-In Accu Package 36V 2,0 Ah Li
653 2607336709 Slide-In Accu Package 36V 1,3 Ah Li J
653 2607336913 Slide-In Accu Package 36V 2,0 Ah Li
654 2607225099 Fast Charger EU 230/18-36V, 1h
654 2607225101 Fast Charger GB 230/18-36V, 1h
654 2607225103 Fast Charger AUS 240/18-36V, 1h
654 2607225109 Fast Charger J 100/18-36V, 1h
654 2607225111 Fast Charger ROK 220/18-36V, 1h
654 2607225409 Fast Charger CN 220/36V
802 1617000664 DC motor 36V
808 160111A3H9 Nameplate
812 1617000665 Planetary Gear Train
820 1617000666 Intermediate Flange
821 1617000667 Hammer Pipe
824 1607000D10 Jack Shaft
827 1617000669 Striker
828 1613124084 Striker Pin
833 1617000670 Clamp Handle
844 16170006D3 Protection Sleeve
867 1617000671 Compression Spring
888 1617000672 Push-Button
890 1615430001 Grease Tube 225 ML
891 1609280425 Contact retainer
