Bosch

Bosch Spare Parts for High Pressure Cleaner GHP 5-55

SKU: Bosch GHP 5-55 - 3600J10400
€21.23
VAT included

Bosch Spare Parts for High Pressure Cleaner GHP 5-55

Bosch Genuine spare parts or replacement parts for to repair High Pressure Cleaner GHP 5-55 - 3600J10400.

Bosch GHP 5-55 - 3600J10400
Bosch Spare Parts for High Pressure Cleaner GHP 5-55
  • Online only
  • Bosch Spare Parts for High Pressure Cleaner GHP 5-55
  • Bosch Spare Parts for High Pressure Cleaner GHP 5-55
  • Bosch Spare Parts for High Pressure Cleaner GHP 5-55
  • Bosch Spare Parts for High Pressure Cleaner GHP 5-55
  • Bosch Spare Parts for High Pressure Cleaner GHP 5-55
  • Bosch Spare Parts for High Pressure Cleaner GHP 5-55
Bosch

Bosch Spare Parts for High Pressure Cleaner GHP 5-55

SKU: Bosch GHP 5-55 - 3600J10400 Condition: New
€21.23
VAT included

Bosch Spare Parts for High Pressure Cleaner GHP 5-55

Bosch Genuine spare parts or replacement parts for to repair High Pressure Cleaner GHP 5-55 - 3600J10400.

Bosch GHP 5-55 - 3600J10400
settings 90 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
90 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

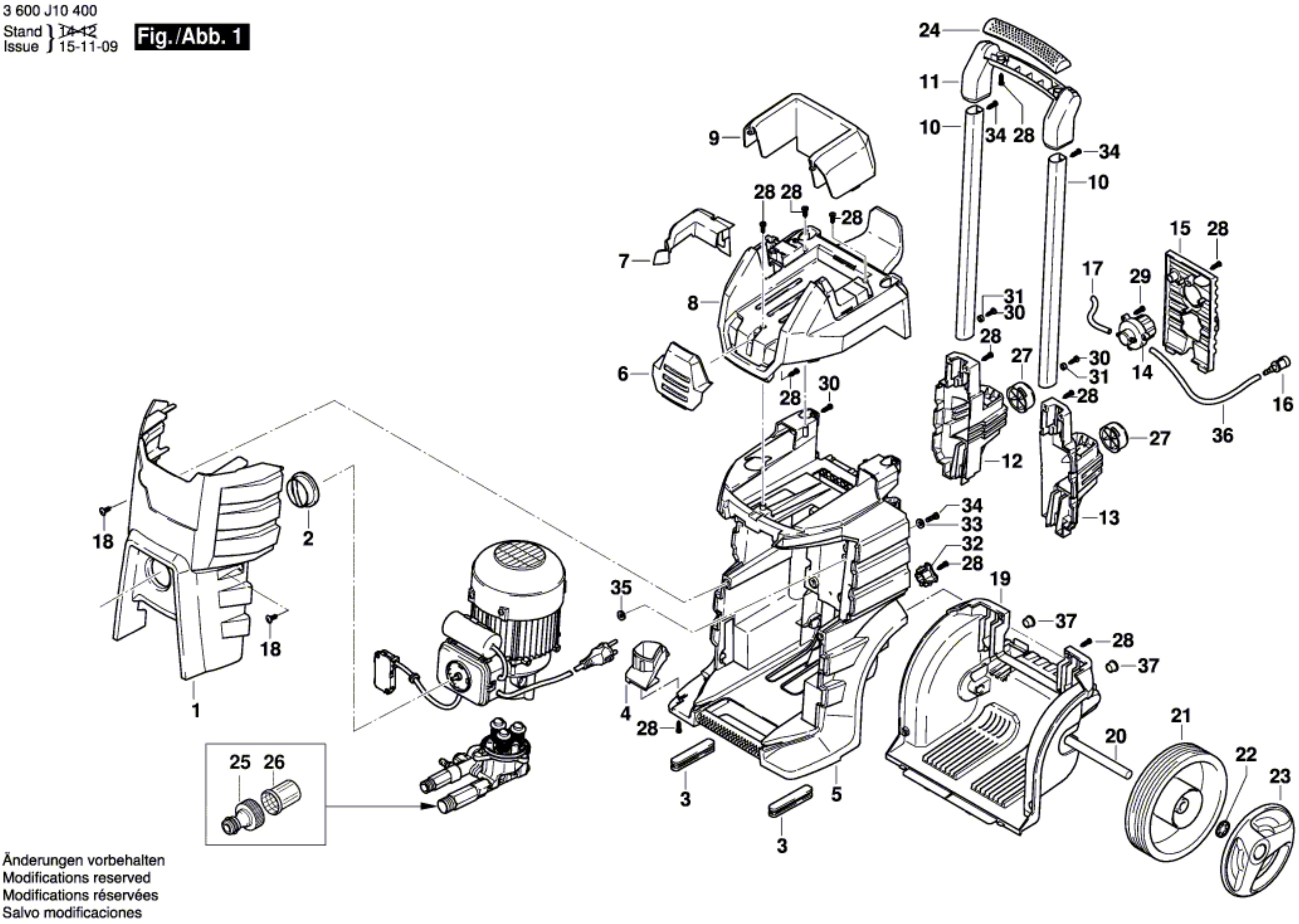

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon F016L73027 Housing €22.52
2
 photo_cameraImage coming soon F016L72008 Knob €5.41
3
 photo_cameraImage coming soon F016L73028 Rubber Base €8.15
4
 photo_cameraImage coming soon F016L73029 Accessory Deposit €6.97
5
 photo_cameraImage coming soon F016L73030 Housing €65.95
6
 photo_cameraImage coming soon F016L73031 Cover €6.97
7
 photo_cameraImage coming soon F016L73032 Accessory Deposit €5.41
8
 photo_cameraImage coming soon F016L73033 Housing part €26.32
9
 photo_cameraImage coming soon F016L73034 Housing part €13.70
10
 photo_cameraImage coming soon F016L73336 Rod €11.95
11
 photo_cameraImage coming soon F016L73036 Handle €15.55
12
 photo_cameraImage coming soon F016L73037 Accessory Deposit €13.81
13
 photo_cameraImage coming soon F016L73038 Accessory Deposit €12.35
14
 photo_cameraImage coming soon F016L73039 Adjustment Knob €16.60
15
 photo_cameraImage coming soon F016L73040 Cover Plate €12.35
16
 photo_cameraImage coming soon F016L73041 Water filter €8.15
17
 photo_cameraImage coming soon F016L73239 Suction Pipe €3.59
18
 photo_cameraImage coming soon F016L73053 Screw €1.58
19
 photo_cameraImage coming soon F016L73044 Housing €26.32
20
 photo_cameraImage coming soon F016L73045 Wheel Shaft €12.35
21
 photo_cameraImage coming soon F016L73046 Wheel €22.85
22
 photo_cameraImage coming soon F016L73047 Plain Washer €2.95
23
 photo_cameraImage coming soon F016L73048 Cover €12.35
24
 photo_cameraImage coming soon F016L72122 Safety Cover €11.07
25
 photo_cameraImage coming soon F016L72010 Adapter €2.49
26
 photo_cameraImage coming soon F016L73591 Filter €2.13
27
 photo_cameraImage coming soon F016L72119 Rubber Base €6.97
31
 photo_cameraImage coming soon F016L73051 Plain Washer €3.59
32
 photo_cameraImage coming soon F016L72109 Grommet €1.58
33
 photo_cameraImage coming soon F016L72120 Plain Washer €2.49
35
 photo_cameraImage coming soon F016L73100 Vibration Damper €2.49
36
 photo_cameraImage coming soon F016L73338 Suction Pipe €5.41
37
 photo_cameraImage coming soon F016L73278 Plug €1.58
101
 photo_cameraImage coming soon F016L72124 Plug €6.33
102
 photo_cameraImage coming soon F016L73054 Pump head €42.94
103
 photo_cameraImage coming soon F016L72126 Screw €2.13
105
 photo_cameraImage coming soon F016F04381 Adapter €20.02
107
 photo_cameraImage coming soon F016F04382 Adapter €13.70
109
 photo_cameraImage coming soon F016L72129 Valve €8.15
110
 photo_cameraImage coming soon F016L72130 Seal €4.68
112
 photo_cameraImage coming soon F016L72132 Bushing €12.35
113
 photo_cameraImage coming soon F016L72133 Bushing €6.33
115
 photo_cameraImage coming soon F016L72134 Screw €2.95
116
 photo_cameraImage coming soon F016L73057 Piston Guide €17.83
117
 photo_cameraImage coming soon F016L72136 Spring €3.59
118
 photo_cameraImage coming soon F016F04323 Piston 3 Stück €17.83
119
 photo_cameraImage coming soon F016L72137 Wobble Plate €1.58
120
 photo_cameraImage coming soon F016L72138 Plug €6.97
121
 photo_cameraImage coming soon F016L73058 Screw €8.15
122
 photo_cameraImage coming soon F016L72140 Spring €29.34
124
 photo_cameraImage coming soon F016L72141 O-Ring €1.58
125
 photo_cameraImage coming soon F016L72142 Adapter €12.35
129
 photo_cameraImage coming soon F016L72143 Nipple €6.33
130
 photo_cameraImage coming soon F016L73059 O-Ring €2.49
131
 photo_cameraImage coming soon F016L72018 Valve Insert €9.70
132
 photo_cameraImage coming soon F016L72017 Spring €2.13
134
 photo_cameraImage coming soon F016L72015 Injector €9.91
162
 photo_cameraImage coming soon F016L73060 Pump head €129.61
401
 photo_cameraImage coming soon F016L72144 Ball Bearing €20.51
402
 photo_cameraImage coming soon F016L73062 Wobble Plate €9.50
403
 photo_cameraImage coming soon F016L72146 Ball Bearing €20.51
404
 photo_cameraImage coming soon F016L73063 Rotary shaft lip seal €5.60
405
 photo_cameraImage coming soon F016L72148 Screw €2.95
406
 photo_cameraImage coming soon F016L73064 Pump Housing €22.85
407
 photo_cameraImage coming soon F016L72150 Ball Bearing €12.35
408
 photo_cameraImage coming soon F016L72151 Cover €20.02
409
 photo_cameraImage coming soon F016L72152 Seal €2.13
411
 photo_cameraImage coming soon F016L72154 Fan €9.70
412
 photo_cameraImage coming soon F016L73065 Air Duct €12.35
416
 photo_cameraImage coming soon F016L72159 Housing €8.15
419
 photo_cameraImage coming soon F016L73339 Cover €6.97
420
 photo_cameraImage coming soon F016L72087 Switch €17.83
421
 photo_cameraImage coming soon F016L72092 Grommet €5.41
422
 photo_cameraImage coming soon F016L73340 Power supply cord €33.72
423
 photo_cameraImage coming soon F016L72163 O-Ring €1.58
424
 photo_cameraImage coming soon F016L72164 Condenser €22.85
425
 photo_cameraImage coming soon F016L73066 Motor €322.11
426
 photo_cameraImage coming soon F016L72094 Clamp €8.15
427
 photo_cameraImage coming soon F016L73067 Switch €12.35
429
 photo_cameraImage coming soon F016L72092 Grommet €5.41
430
 photo_cameraImage coming soon F016L72260 O-Ring €5.60
501/1
 photo_cameraImage coming soon 1619PA9742 Trigger €20.02
501/2
 photo_cameraImage coming soon 1619PA9743 Spring €8.15
501/3
 photo_cameraImage coming soon 1619PA9744 Lock €11.07
501
 photo_cameraImage coming soon F016L73068 Handle €47.96
502
 photo_cameraImage coming soon F016L73069 Jet Pipe €36.80
504
 photo_cameraImage coming soon F016F04523 Hose €103.01
511
 photo_cameraImage coming soon F016L73351 Filter €26.32
512
 photo_cameraImage coming soon F016L73352 Filter €26.32
814
 photo_cameraImage coming soon F016F04324 Seal €15.55
880
 Wear and Tear Part Set for Pressure Cleaner Bosch GHP 5-55 F016L73387 Wear and Tear Part Set for Pressure Cleaner Bosch GHP 5-55 €21.24
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

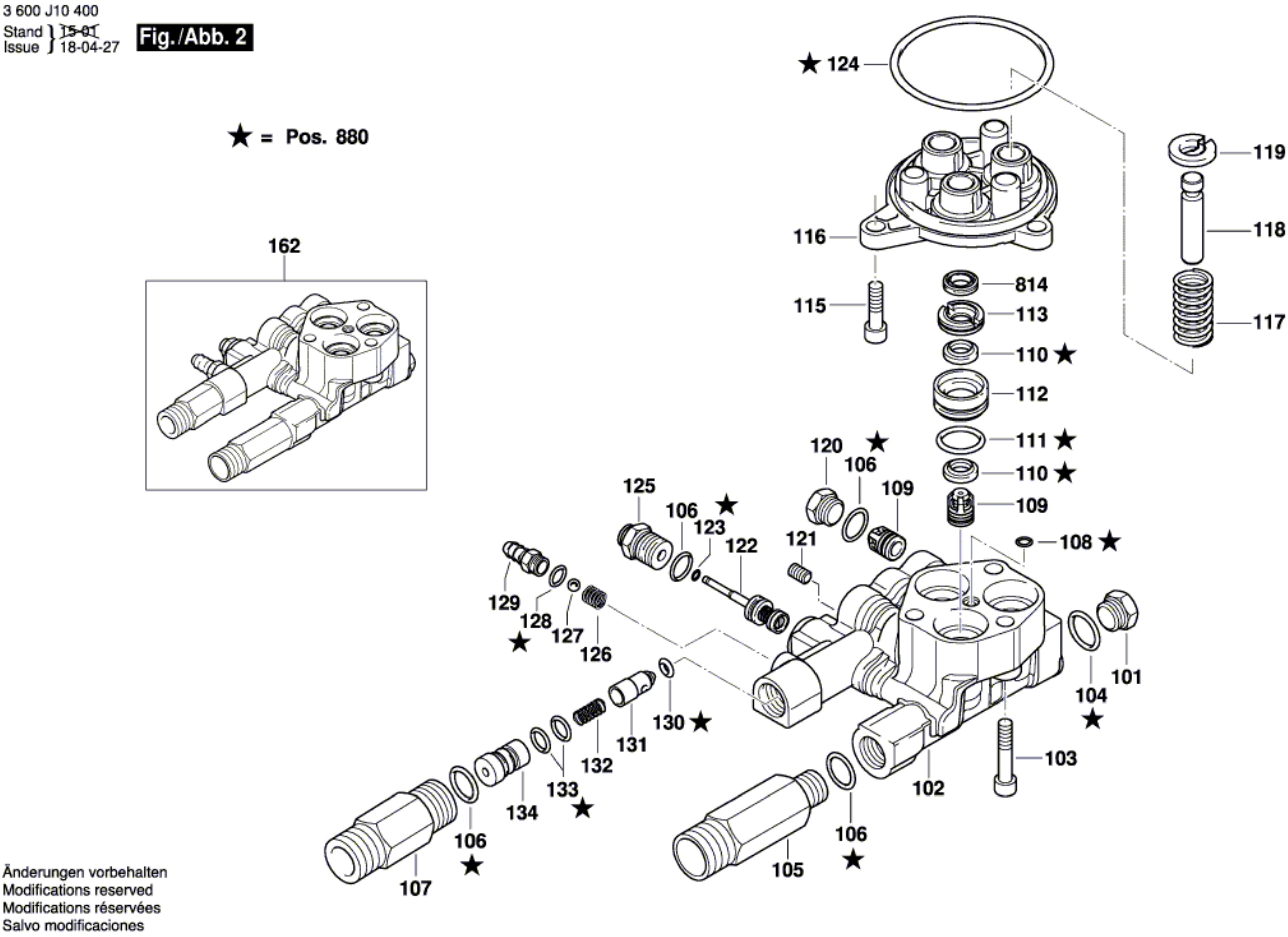

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 photo_cameraImage coming soon F016L72124 Plug €6.33
102
 photo_cameraImage coming soon F016L73054 Pump head €42.94
103
 photo_cameraImage coming soon F016L72126 Screw €2.13
105
 photo_cameraImage coming soon F016F04381 Adapter €20.02
107
 photo_cameraImage coming soon F016F04382 Adapter €13.70
109
 photo_cameraImage coming soon F016L72129 Valve €8.15
110
 photo_cameraImage coming soon F016L72130 Seal €4.68
112
 photo_cameraImage coming soon F016L72132 Bushing €12.35
113
 photo_cameraImage coming soon F016L72133 Bushing €6.33
115
 photo_cameraImage coming soon F016L72134 Screw €2.95
116
 photo_cameraImage coming soon F016L73057 Piston Guide €17.83
117
 photo_cameraImage coming soon F016L72136 Spring €3.59
118
 photo_cameraImage coming soon F016F04323 Piston 3 Stück €17.83
119
 photo_cameraImage coming soon F016L72137 Wobble Plate €1.58
120
 photo_cameraImage coming soon F016L72138 Plug €6.97
121
 photo_cameraImage coming soon F016L73058 Screw €8.15
122
 photo_cameraImage coming soon F016L72140 Spring €29.34
124
 photo_cameraImage coming soon F016L72141 O-Ring €1.58
125
 photo_cameraImage coming soon F016L72142 Adapter €12.35
129
 photo_cameraImage coming soon F016L72143 Nipple €6.33
130
 photo_cameraImage coming soon F016L73059 O-Ring €2.49
131
 photo_cameraImage coming soon F016L72018 Valve Insert €9.70
132
 photo_cameraImage coming soon F016L72017 Spring €2.13
134
 photo_cameraImage coming soon F016L72015 Injector €9.91
162
 photo_cameraImage coming soon F016L73060 Pump head €129.61
814
 photo_cameraImage coming soon F016F04324 Seal €15.55
880
 Wear and Tear Part Set for Pressure Cleaner Bosch GHP 5-55 F016L73387 Wear and Tear Part Set for Pressure Cleaner Bosch GHP 5-55 €21.24
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY

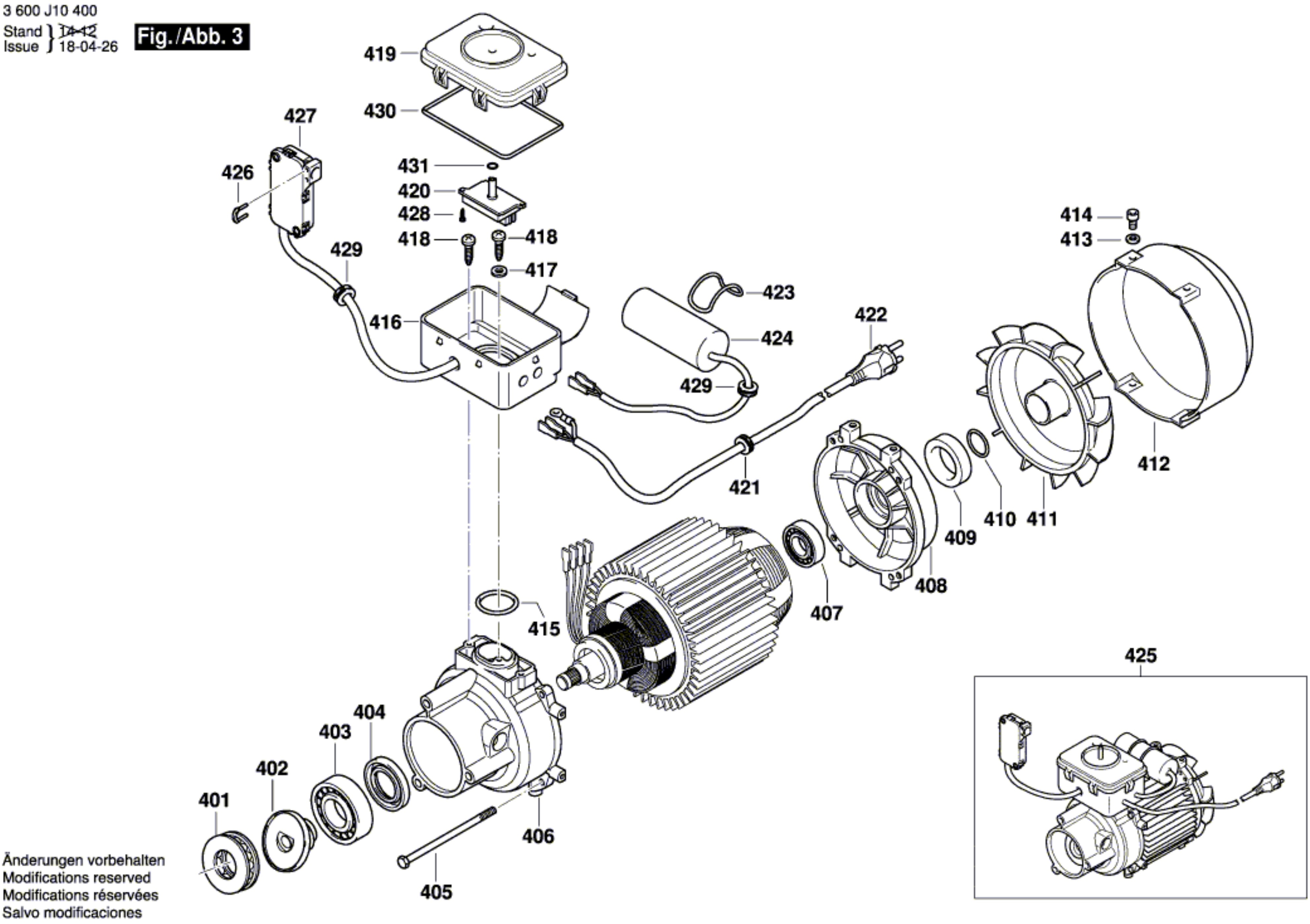

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
401
 photo_cameraImage coming soon F016L72144 Ball Bearing €20.51
402
 photo_cameraImage coming soon F016L73062 Wobble Plate €9.50
403
 photo_cameraImage coming soon F016L72146 Ball Bearing €20.51
404
 photo_cameraImage coming soon F016L73063 Rotary shaft lip seal €5.60
405
 photo_cameraImage coming soon F016L72148 Screw €2.95
406
 photo_cameraImage coming soon F016L73064 Pump Housing €22.85
407
 photo_cameraImage coming soon F016L72150 Ball Bearing €12.35
408
 photo_cameraImage coming soon F016L72151 Cover €20.02
409
 photo_cameraImage coming soon F016L72152 Seal €2.13
411
 photo_cameraImage coming soon F016L72154 Fan €9.70
412
 photo_cameraImage coming soon F016L73065 Air Duct €12.35
416
 photo_cameraImage coming soon F016L72159 Housing €8.15
419
 photo_cameraImage coming soon F016L73339 Cover €6.97
420
 photo_cameraImage coming soon F016L72087 Switch €17.83
421
 photo_cameraImage coming soon F016L72092 Grommet €5.41
422
 photo_cameraImage coming soon F016L73340 Power supply cord €33.72
423
 photo_cameraImage coming soon F016L72163 O-Ring €1.58
424
 photo_cameraImage coming soon F016L72164 Condenser €22.85
425
 photo_cameraImage coming soon F016L73066 Motor €322.11
426
 photo_cameraImage coming soon F016L72094 Clamp €8.15
427
 photo_cameraImage coming soon F016L73067 Switch €12.35
430
 photo_cameraImage coming soon F016L72260 O-Ring €5.60
Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY

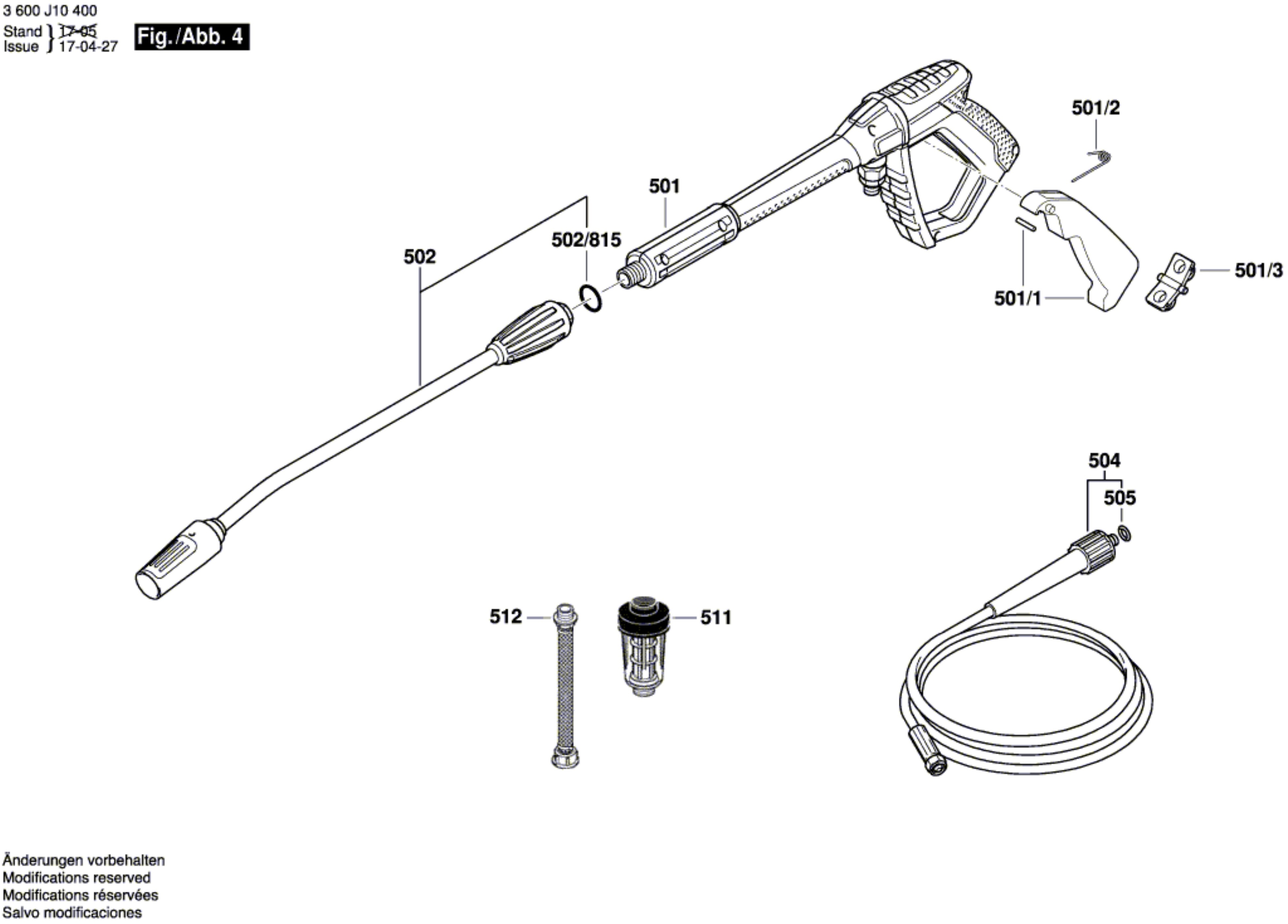

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
501/1
 photo_cameraImage coming soon 1619PA9742 Trigger €20.02
501/2
 photo_cameraImage coming soon 1619PA9743 Spring €8.15
501/3
 photo_cameraImage coming soon 1619PA9744 Lock €11.07
501
 photo_cameraImage coming soon F016L73068 Handle €47.96
502
 photo_cameraImage coming soon F016L73069 Jet Pipe €36.80
504
 photo_cameraImage coming soon F016F04523 Hose €103.01
511
 photo_cameraImage coming soon F016L73351 Filter €26.32
512
 photo_cameraImage coming soon F016L73352 Filter €26.32

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for High Pressure Cleaner GHP 5-55

Special Offers Bosch Genuine spare parts or replacement parts for to repair High Pressure Cleaner GHP 5-55 - 3600J10400.

In the following table, look for the model of the Hight Pressure Wascher Bosch and the respective parts of the code.
Bosch GHP 5-55 - 3600J10400
High Pressure Cleaner GHP 5-55/3 600 J10 400
# Part Num. Description
1 F016L73027 Housing
2 F016L72008 Knob
3 F016L73028 Rubber Base
4 F016L73029 Accessory Deposit
5 F016L73030 Housing
6 F016L73031 Cover
7 F016L73032 Accessory Deposit
8 F016L73033 Housing part
9 F016L73034 Housing part
10 F016L73336 Rod
11 F016L73036 Handle
12 F016L73037 Accessory Deposit
13 F016L73038 Accessory Deposit
14 F016L73039 Adjustment Knob
15 F016L73040 Cover Plate
16 F016L73041 Water filter
17 F016L73239 Suction Pipe
18 F016L73053 Screw
19 F016L73044 Housing
20 F016L73045 Wheel Shaft
21 F016L73046 Wheel
22 F016L73047 Plain Washer
23 F016L73048 Cover
24 F016L72122 Safety Cover
25 F016L72010 Adapter
26 F016L73591 Filter
27 F016L72119 Rubber Base
28 F016L72012 Screw
29 F016L72187 Screw
30 F016L73337 Plastic-Cutting Screw
31 F016L73051 Plain Washer
32 F016L72109 Grommet
33 F016L72120 Plain Washer
34 F016L73711 Screw
35 F016L73100 Vibration Damper
36 F016L73338 Suction Pipe
37 F016L73278 Plug
101 F016L72124 Plug
102 F016L73054 Pump head
103 F016L72126 Screw
104 F016L72035 O-Ring
105 F016F04381 Adapter
106 F016L72014 O-Ring
107 F016F04382 Adapter
108 F016L73055 O-Ring
109 F016L72129 Valve
110 F016L72130 Seal
111 F016L72131 O-Ring
112 F016L72132 Bushing
113 F016L72133 Bushing
115 F016L72134 Screw
116 F016L73057 Piston Guide
117 F016L72136 Spring
118 F016F04323 Piston 3 Stück
119 F016L72137 Wobble Plate
120 F016L72138 Plug
121 F016L73058 Screw
122 F016L72140 Spring
123 F016L72065 O-Ring
124 F016L72141 O-Ring
125 F016L72142 Adapter
126 F016L72072 Spring
127 F016L72073 Ball
128 F016L72074 O-Ring
129 F016L72143 Nipple
130 F016L73059 O-Ring
131 F016L72018 Valve Insert
132 F016L72017 Spring
133 F016L72016 O-Ring
134 F016L72015 Injector
162 F016L73060 Pump head
401 F016L72144 Ball Bearing
402 F016L73062 Wobble Plate
403 F016L72146 Ball Bearing
404 F016L73063 Rotary shaft lip seal
405 F016L72148 Screw
406 F016L73064 Pump Housing
407 F016L72150 Ball Bearing
408 F016L72151 Cover
409 F016L72152 Seal
410 F016L72153 O-Ring
411 F016L72154 Fan
412 F016L73065 Air Duct
413 F016L72156 Plain Washer
414 F016L72157 Screw
415 F016L72158 O-Ring
416 F016L72159 Housing
417 F016L72160 Plain Washer
418 F016L72161 Screw
419 F016L73339 Cover
420 F016L72087 Switch
421 F016L72092 Grommet
422 F016L73340 Power supply cord
423 F016L72163 O-Ring
424 F016L72164 Condenser
425 F016L73066 Motor
426 F016L72094 Clamp
427 F016L73067 Switch
428 F016L72086 Screw
429 F016L72092 Grommet
430 F016L72260 O-Ring
431 F016L73343 O-Ring
501 F016L73068 Handle
501/1 1619PA9742 Trigger
501/2 1619PA9743 Spring
501/3 1619PA9744 Lock
502 F016L73069 Jet Pipe
502/815 1619PB2119 O-Ring 9,5x1,5
504 F016F04523 Hose
505 F016L72099 O-Ring
511 F016L73351 Filter
512 F016L73352 Filter
814 F016F04324 Seal
880 F016L73387 Wear and Tear Part Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GHP 5-55 - 3600J10400
12 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GHP 5-55

Diagram Bosch GHP 5-55

Download (411.96KB)

You might also like

Wear and Tear Part Set for Pressure Cleaner Bosch GHP 5-55
Bosch SKU: F016L73387
Wear and Tear Part Set for Pressure Cleaner Bosch GHP 5-55
Wear and Tear Part Set for Pressure Cleaner Bosch GHP 5-55 Genuine part Bosch, Wear and Tear Part Set for Pressure Cleaners GHP 5-55 - GHP 5-65 - GHP 5-65 X Part for the following products: -  Pressure Cleaner GHP 5-55 - 3600J10400 -...
on 7/10 Business Days Approx €21.24
Details
Comments (0)
