Bosch Spare Parts for Demolition Hammer GSH 7 VC

SKU: Bosch GSH7VC - 3611C22000
€3.12
VAT included

Bosch Spare Parts for Demolition Hammer GSH 7 VC

Bosch genuine spare parts or replacement parts for to repair Demolition Hammer GSH 7 VC - 3611C22000.

Demolition Hammer GSH 7 VC - 3611C22000
Bosch Spare Parts for Demolition Hammer GSH 7 VC
  • Bosch Spare Parts for Demolition Hammer GSH 7 VC
  • Bosch Spare Parts for Demolition Hammer GSH 7 VC
  • Bosch Spare Parts for Demolition Hammer GSH 7 VC

Bosch Spare Parts for Demolition Hammer GSH 7 VC

SKU: Bosch GSH7VC - 3611C22000 Condition: New
€3.12
VAT included

Bosch Spare Parts for Demolition Hammer GSH 7 VC

Bosch genuine spare parts or replacement parts for to repair Demolition Hammer GSH 7 VC - 3611C22000.

Demolition Hammer GSH 7 VC - 3611C22000
settings 119 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

117 spare parts

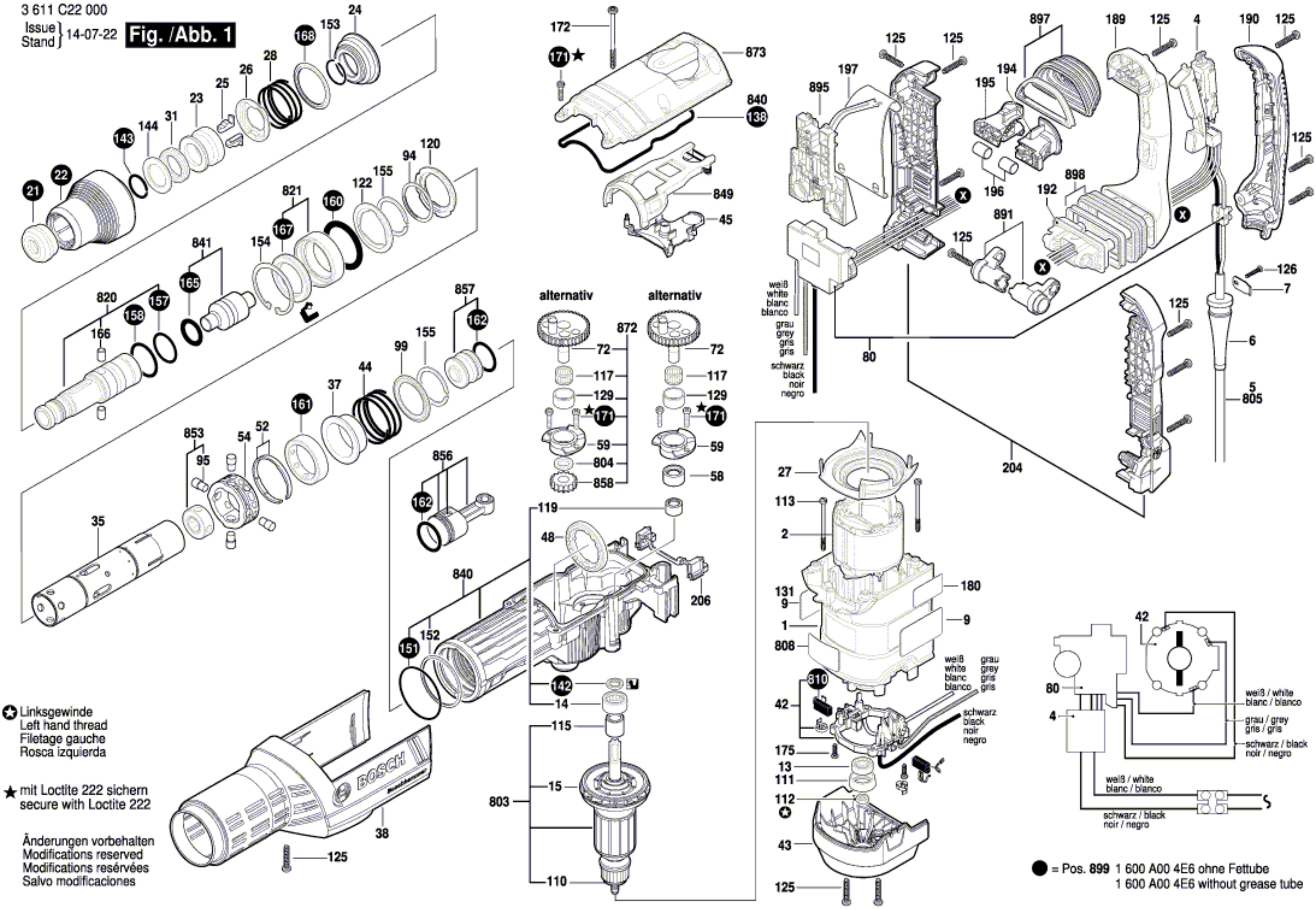

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 1615108165 Motor Housing €29.24
2
photo_cameraImage coming soon 1614220124 Field 220-240V €48.38
4
photo_cameraImage coming soon 1617200130 Switch €32.95
6
photo_cameraImage coming soon 1610703053 Grommet Ø9,7-Ø12x89 MM €3.20
7
photo_cameraImage coming soon 1601302018 Fastening Clamp €2.25
9
photo_cameraImage coming soon 160111A48C Manufacturer's nameplate €2.78
13
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D 1610900026 Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D €17.13
14
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 1610910089 Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 €31.79
15
photo_cameraImage coming soon 1616610109 Fan €18.62
21
photo_cameraImage coming soon 1610508038 Protective Cap €10.27
22
photo_cameraImage coming soon 1610591051 Protection Sleeve €15.75
23
photo_cameraImage coming soon 1610520006 Stop Sleeve €25.35
24
photo_cameraImage coming soon 1610500025 Headed Bush €12.35
25
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE 1612300027 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE €15.95
26
Bosch Rotary Hammer GBH 8-45 D Indexing Disk 1610290109 Bosch Rotary Hammer GBH 8-45 D Indexing Disk €6.04
27
photo_cameraImage coming soon 160059105C Air-Deflector Ring €2.52
28
photo_cameraImage coming soon 1614621010 Compression Spring €5.90
31
photo_cameraImage coming soon 1610290129 Damping Ring €7.99
35
photo_cameraImage coming soon 1615806249 Hammer Pipe €147.35
37
photo_cameraImage coming soon 1610322018 Control Bushing €8.84
38
photo_cameraImage coming soon 1615190177 Covering hood €48.38
42
photo_cameraImage coming soon 1614336090 Brush Holder €48.50
43
photo_cameraImage coming soon 1615500435 Brush-Cover €8.85
44
photo_cameraImage coming soon 1614621020 Compression Spring €3.17
45
photo_cameraImage coming soon 1610591052 Holding-Down-Appliance €2.70
48
photo_cameraImage coming soon 1619990186 Clutch Sleeve €5.37
52
photo_cameraImage coming soon 1610224015 Retaining snap ring €1.33
54
photo_cameraImage coming soon 1610190071 Spacer Tube €5.02
58
photo_cameraImage coming soon 1600A0014J Locking Bush €4.32
59
photo_cameraImage coming soon 1615805074 Bearing Pedestal €12.35
72
photo_cameraImage coming soon 1616317090 Eccentric Cog Wheel €123.00
80
photo_cameraImage coming soon 1607233458 Speed governor €67.32
84
photo_cameraImage coming soon 1602025081 Auxiliary Handle €22.19
85
photo_cameraImage coming soon 1600A008BL Clamping Piece €2.07
86
photo_cameraImage coming soon 2911021267 Hex Screw €3.23
88
photo_cameraImage coming soon 1613349017 Star Knob M8 BLACK €6.15
94
photo_cameraImage coming soon 1610290111 Supporting Disc €2.70
95
photo_cameraImage coming soon 1613120023 Driving Pin €5.90
99
photo_cameraImage coming soon 1600220029 Backup ring €3.73
111
Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D 1610290046 Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D €3.54
112
Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D 1613300007 Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D €2.48
113
photo_cameraImage coming soon 1613412001 Tapping Screw B 4,8x68 MM €2.09
115
photo_cameraImage coming soon 1610300086 Bushing €4.32
117
photo_cameraImage coming soon 1610913023 Needle-Roller Assembly €25.35
119
photo_cameraImage coming soon 1610910081 Needle-Roller Bearing €19.67
120
photo_cameraImage coming soon 1610190080 Spacer Tube €15.75
122
photo_cameraImage coming soon 1610290128 Spacer Ring €8.84
125
photo_cameraImage coming soon 1613435040 Torx Oval-Head Screw €2.70
126
Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
129
photo_cameraImage coming soon 1610300080 Bushing €5.90
131
photo_cameraImage coming soon 161111A082 Reference Plate €1.94
138
photo_cameraImage coming soon 1611015064 Sealing Frame €7.99
142
photo_cameraImage coming soon 1610290112 Rotary shaft lip seal €5.90
143
photo_cameraImage coming soon 1614601072 Retaining ring €3.17
144
photo_cameraImage coming soon 1610103025 Supporting Disc €4.47
151
photo_cameraImage coming soon 1610210222 O-Ring €1.33
152
photo_cameraImage coming soon 1614601073 Retaining ring €2.09
153
Retaining Ring for Demolition Hammer Bosch GSH 11 E 2916540017 Retaining Ring for Demolition Hammer Bosch GSH 11 E €1.59
154
photo_cameraImage coming soon 2916660027 Spring retaining ring DIN 472 62x2 MM €5.90
155
photo_cameraImage coming soon 1614601074 Retaining ring €3.20
157
photo_cameraImage coming soon 1610210103 O-Ring 33,0x2,0 MM €3.17
158
photo_cameraImage coming soon 1610210224 O-Ring €1.33
160
photo_cameraImage coming soon 1610210246 O-Ring €2.09
161
photo_cameraImage coming soon 1610210227 Damping Ring €10.27
162
photo_cameraImage coming soon 1610210228 O-Ring €2.79
165
photo_cameraImage coming soon 1610290125 Seal ring €13.99
166
photo_cameraImage coming soon 1613200020 Cylindrical Roller €3.73
167
photo_cameraImage coming soon 161029012A Rotary shaft lip seal €5.90
168
photo_cameraImage coming soon 1610206027 Packing Washer €3.17
171
photo_cameraImage coming soon 1613414026 Torx socket button screw €3.17
172
photo_cameraImage coming soon 1613435041 Torx Oval-Head Screw €2.09
175
photo_cameraImage coming soon 2603490021 Torx Oval-Head Screw 4x12 €1.39
189
photo_cameraImage coming soon 1615133038 Handle €11.95
190
photo_cameraImage coming soon 1615500438 Handle Cover €14.36
192
photo_cameraImage coming soon 1614611028 Rocker Foot €4.32
194
photo_cameraImage coming soon 1610099018 Screw Plate €1.66
195
photo_cameraImage coming soon 1610099019 Screw Plate €1.66
197
photo_cameraImage coming soon 1616232000 Leaf Spring €8.52
204
photo_cameraImage coming soon 1615102162 Rear Housing Section €17.55
206
photo_cameraImage coming soon 1612386006 Holding strip €1.33
661
Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
691
photo_cameraImage coming soon 161543851A Carrying Case €45.83
803
photo_cameraImage coming soon 1614010267 Armature 230V €203.56
804
photo_cameraImage coming soon 1610190027 Stop Disc €7.11
805
photo_cameraImage coming soon 1617000723 Power supply cord €45.86
808
photo_cameraImage coming soon 160111A3H5 Nameplate €3.39
810
photo_cameraImage coming soon 1617000A50 Carbon-Brush Set €31.92
820
photo_cameraImage coming soon 1618597102 Toolholder €214.37
821
photo_cameraImage coming soon 1610508058 Plain bearing €42.72
840
photo_cameraImage coming soon 1607000C38 Impact Mechanism Housing €191.91
841
photo_cameraImage coming soon 1617000A4R Striker Pin €93.03
849
photo_cameraImage coming soon 1617000A31 Control Fork €8.84
853
photo_cameraImage coming soon 1610231004 Guide Bushing €42.72
856
photo_cameraImage coming soon 1617000A32 Hammer Piston €83.69
857
photo_cameraImage coming soon 1617000A33 Striker €42.72
858
photo_cameraImage coming soon 1616317620 Cylindrical Gear €17.47
872
photo_cameraImage coming soon 1617000A35 Eccentric €147.35
873
photo_cameraImage coming soon 1617000A4S Housing Cover €77.12
883
photo_cameraImage coming soon 1613490019 Hex Screw €2.42
884
photo_cameraImage coming soon 160202508T Auxiliary Handle €50.02
885
photo_cameraImage coming soon 160202508J Auxiliary Handle €71.39
887
photo_cameraImage coming soon 1611316029 Clamping Band €9.43
891
photo_cameraImage coming soon 1612099005 Rocker Arm €8.52
895
photo_cameraImage coming soon 1613120024 Diaphragm €29.24
897
photo_cameraImage coming soon 1610415005 Bellows €8.52
898
photo_cameraImage coming soon 1610415004 Bellows €7.47
899
photo_cameraImage coming soon 1600A004E6 Service package €65.33

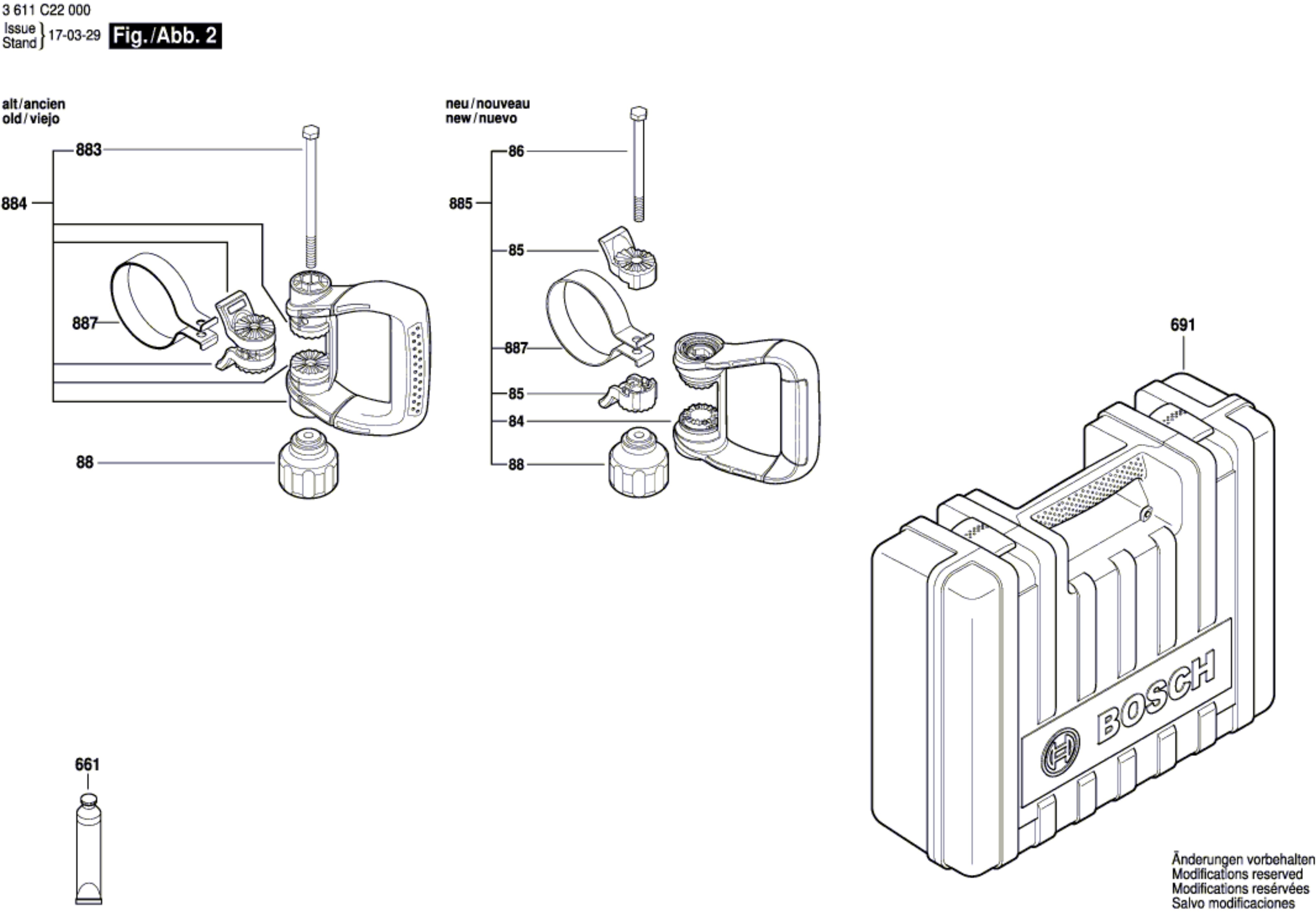

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
84
photo_cameraImage coming soon 1602025081 Auxiliary Handle €22.19
85
photo_cameraImage coming soon 1600A008BL Clamping Piece €2.07
86
photo_cameraImage coming soon 2911021267 Hex Screw €3.23
88
photo_cameraImage coming soon 1613349017 Star Knob M8 BLACK €6.15
661
Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
691
photo_cameraImage coming soon 161543851A Carrying Case €45.83
883
photo_cameraImage coming soon 1613490019 Hex Screw €2.42
884
photo_cameraImage coming soon 160202508T Auxiliary Handle €50.02
885
photo_cameraImage coming soon 160202508J Auxiliary Handle €71.39
887
photo_cameraImage coming soon 1611316029 Clamping Band €9.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Demolition Hammer GSH 7 VC

Bosch genuine spare parts or replacement parts for to repair Demolition Hammer GSH 7 VC - 3611C22000.

In the following table, look for the model of the Demolition Hammer and the respective parts of the code.
Demolition Hammer GSH 7 VC - 3611C22000

Demolition Hammer GSH 7 VC/3 611 C22 000
# Part Num. Description
1 1615108165 Motor Housing
2 1614220124 Field 220-240V
4 1617200130 Switch
6 1610703053 Grommet Ø9,7-Ø12x89 MM
7 1601302018 Fastening Clamp
9 160111A48C Manufacturer's nameplate
13 1610900026 groove ball bearing 8x24x8
14 1610910089 Needle-Roller Bearing
15 1616610109 Fan
21 1610508038 Protective Cap
22 1610591051 Protection Sleeve
23 1610520006 Stop Sleeve
24 1610500025 Headed Bush
25 1612300027 Stopping Device
26 1610290109 Indexing Disk
27 160059105C Air-Deflector Ring
28 1614621010 Compression Spring
31 1610290129 Damping Ring
35 1615806249 Hammer Pipe
37 1610322018 Control Bushing
38 1615190177 Covering hood
42 1614336090 Brush Holder
43 1615500435 Brush-Cover
44 1614621020 Compression Spring
45 1610591052 Holding-Down-Appliance
48 1619990186 Clutch Sleeve
52 1610224015 Retaining snap ring
54 1610190071 Spacer Tube
58 1600A0014J Locking Bush
59 1615805074 Bearing Pedestal
72 1616317090 Eccentric Cog Wheel
80 1607233458 Speed governor
84 1602025081 Auxiliary Handle
85 1600A008BL Clamping Piece
86 2911021267 Hex Screw
88 1613349017 Star Knob M8 BLACK
94 1610290111 Supporting Disc
95 1613120023 Driving Pin
99 1600220029 Backup ring
110 1610190073 Seal ring
111 1610290046 Bushing
112 1613300007 Hex Nut
113 1613412001 Tapping Screw B 4,8x68 MM
115 1610300086 Bushing
117 1610913023 Needle-Roller Assembly
119 1610910081 Needle-Roller Bearing
120 1610190080 Spacer Tube
122 1610290128 Spacer Ring
125 1613435040 Torx Oval-Head Screw
126 2603490023 Torx Oval-Head Screw 4x20
129 1610300080 Bushing
131 161111A082 Reference Plate
138 1611015064 Sealing Frame
142 1610290112 Rotary shaft lip seal
143 1614601072 Retaining ring
144 1610103025 Supporting Disc
151 1610210222 O-Ring
152 1614601073 Retaining ring
153 2916540017 Retaining ring DIN 7993 A 30
154 2916660027 Spring retaining ring DIN 472 62x2 MM
155 1614601074 Retaining ring
157 1610210103 O-Ring 33,0x2,0 MM
158 1610210224 O-Ring
160 1610210246 O-Ring
161 1610210227 Damping Ring
162 1610210228 O-Ring
165 1610290125 Seal ring
166 1613200020 Cylindrical Roller
167 161029012A Rotary shaft lip seal
168 1610206027 Packing Washer
171 1613414026 Torx socket button screw
172 1613435041 Torx Oval-Head Screw
175 2603490021 Torx Oval-Head Screw 4x12
189 1615133038 Handle
190 1615500438 Handle Cover
192 1614611028 Rocker Foot
194 1610099018 Screw Plate
195 1610099019 Screw Plate
196 1610026004 Damping rubber
197 1616232000 Leaf Spring
204 1615102162 Rear Housing Section
206 1612386006 Holding strip
661 1615430010 Grease Tube 30 ML
691 161543851A Carrying Case
803 1614010267 Armature 230V
804 1610190027 Stop Disc
805 1617000723 Power supply cord
808 160111A3H5 Nameplate
810 1617000A50 Carbon-Brush Set
820 1618597102 Toolholder
821 1610508058 Plain bearing
840 1607000C38 Impact Mechanism Housing
841 1617000A4R Striker Pin
849 1617000A31 Control Fork
853 1610231004 Guide Bushing
856 1617000A32 Hammer Piston
857 1617000A33 Striker
858 1616317620 Cylindrical Gear
872 1617000A35 Eccentric
873 1617000A4S Housing Cover
883 1613490019 Hex Screw
884 160202508T Auxiliary Handle
885 160202508J Auxiliary Handle
887 1611316029 Clamping Band
891 1612099005 Rocker Arm
895 1613120024 Diaphragm
897 1610415005 Bellows
898 1610415004 Bellows
899 1600A004E6 Service package
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GSH7VC - 3611C22000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GSH 7 VC

Diagram Bosch GSH 7 VC

Download (287.08KB)

You might also like

Bosch SKU: 1612300027
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE Bosch Genuine part, Steel Stopping Device for Demolition Hammers 5/40 DCE - GBH 7-46 DE. Part for the following products: - Demolition Hammer GBH 5/40 DCE / 0611216703 -...
Last items in stock €15.95
Bosch SKU: 1615430010
Grease Tube 30 ML for Bosch Hammer GBH-GSH Genuine spare parts Bosch, Grease Tube 30 ML for Bosch Hammer GBH 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GBH 5/40 DCE/0 611 216 703 - GBH 5-38 D - 0 611 240 003 - GBH...
on 7/10 Business Days Approx €9.33
Bosch SKU: 1610910089
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 Bosch original parts, Needle-Roller Bearing for Rotary Hammer GBH 7-46 DE - GBH 11 DE - GSH 11 E - GBH 8-45 D. Parts for the following products: - Rotary Hammer GBH 7-46 DE/0...
AVAILABLE €31.79
Bosch SKU: 1610290046
Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D Genuine replacement part Bosch, Rubber Bushing for Demolition Hammers GBH 8-45 D - 3 611 B65 100 - GBH 7-46 DE/0 611 263 703. Part for the following products: - Demolition Hammer...
Last items in stock €3.54
Bosch SKU: 1613300007
Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D Original Spare Part Bosch, Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D - 3 611 B65 100 - GBH 7-46 DE/0 611 263 703. Part for the following...
AVAILABLE €2.48
Bosch SKU: 1610900026
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D Genuine Part Bosch, Groove Ball Bearing 8x24x8 for Rotary Hammer Bosch GBH 5-38 D - 0611240003. Part for the following products: -  Hammer Bosch GBH...
on 7/10 Business Days Approx €17.13
Bosch SKU: 1610290109
Bosch Rotary Hammer GBH 8-45 D Indexing Disk Original Spare Part Bosch, Indexing Disk for Rotary Hammer Bosch GBH 8-45 D -  GBH 8-45 DV. Part for the following products: - ...
on 7/10 Business Days Approx. €6.04
Comments (0)
