Bosch

Bosch Spare Parts for Rotary Hammer GBH 8-45 DV

SKU: Bosch GBH8-45DV - 3611B65000
€3.12
VAT included

Bosch Spare Parts for Rotary Hammer GBH 8-45 DV

BOSCH service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer GBH 8-45 DV - 3611B65000.

Bosch GBH 8-45 DV - 3611B65000
Bosch Spare Parts for Rotary Hammer GBH 8-45 DV
  • Bosch Spare Parts for Rotary Hammer GBH 8-45 DV
  • Bosch Spare Parts for Rotary Hammer GBH 8-45 DV
  • Bosch Spare Parts for Rotary Hammer GBH 8-45 DV
Bosch

Bosch Spare Parts for Rotary Hammer GBH 8-45 DV

SKU: Bosch GBH8-45DV - 3611B65000 Condition: New
€3.12
VAT included

Bosch Spare Parts for Rotary Hammer GBH 8-45 DV

BOSCH service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer GBH 8-45 DV - 3611B65000.

Bosch GBH 8-45 DV - 3611B65000
settings 114 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
114 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

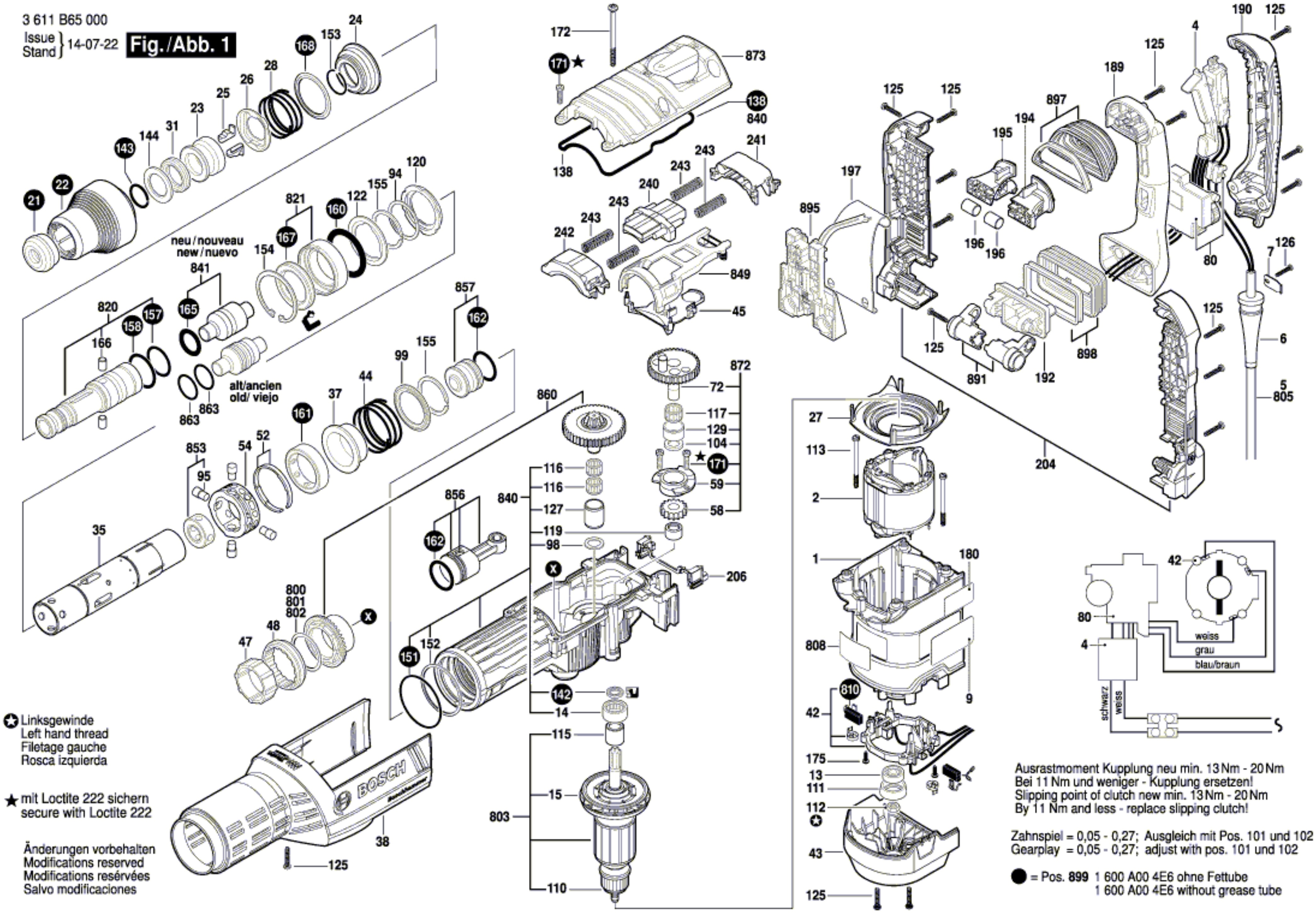

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1615108165 Motor Housing €29.24
2
 photo_cameraImage coming soon 1614220124 Field 220-240V €48.38
4
 photo_cameraImage coming soon 1617200130 Switch €32.95
6
 photo_cameraImage coming soon 1610703053 Grommet Ø9,7-Ø12x89 MM €3.20
7
 photo_cameraImage coming soon 1601302018 Fastening Clamp €2.25
9
 photo_cameraImage coming soon 160111C0U7 Manufacturer's nameplate €2.78
13
 Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D 1610900026 Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D €17.13
14
 Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 1610910089 Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 €31.79
15
 photo_cameraImage coming soon 1616610109 Fan €18.62
21
 photo_cameraImage coming soon 1610508038 Protective Cap €10.27
22
 photo_cameraImage coming soon 1610591051 Protection Sleeve €15.75
23
 photo_cameraImage coming soon 1610520006 Stop Sleeve €25.35
24
 photo_cameraImage coming soon 1610500025 Headed Bush €12.35
25
 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE 1612300027 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE €15.95
26
 Bosch Rotary Hammer GBH 8-45 D Indexing Disk 1610290109 Bosch Rotary Hammer GBH 8-45 D Indexing Disk €6.04
27
 photo_cameraImage coming soon 160059105C Air-Deflector Ring €2.52
28
 photo_cameraImage coming soon 1614621010 Compression Spring €5.90
31
 photo_cameraImage coming soon 1610290129 Damping Ring €7.99
35
 photo_cameraImage coming soon 1615806249 Hammer Pipe €147.35
37
 photo_cameraImage coming soon 1610322018 Control Bushing €8.84
38
 photo_cameraImage coming soon 1615190177 Covering hood €48.38
42
 photo_cameraImage coming soon 1614336090 Brush Holder €48.50
43
 photo_cameraImage coming soon 1615500435 Brush-Cover €8.85
44
 photo_cameraImage coming soon 1614621020 Compression Spring €3.17
45
 photo_cameraImage coming soon 1610591052 Holding-Down-Appliance €2.70
47
 photo_cameraImage coming soon 1610300076 Gear Sleeve €10.27
48
 photo_cameraImage coming soon 1619990177 Clutch Sleeve €12.35
52
 photo_cameraImage coming soon 1610224015 Retaining snap ring €1.33
54
 photo_cameraImage coming soon 1610190071 Spacer Tube €5.02
58
 photo_cameraImage coming soon 1616317620 Cylindrical Gear €17.47
59
 photo_cameraImage coming soon 1615805074 Bearing Pedestal €12.35
72
 photo_cameraImage coming soon 1616317090 Eccentric Cog Wheel €123.00
80
 Bosch Rotary Hammer GBH 8-45 DV Speed Governor 1607233459 Bosch Rotary Hammer GBH 8-45 DV Speed Governor €93.10
84
 photo_cameraImage coming soon 160202507H Auxiliary Handle €15.01
85
 photo_cameraImage coming soon 1618040095 index turning toolholder €7.11
94
 photo_cameraImage coming soon 1610290111 Supporting Disc €2.70
95
 photo_cameraImage coming soon 1613120023 Driving Pin €5.90
98
 photo_cameraImage coming soon 1610101015 Shim ring 1,0 MM THICK €2.09
99
 photo_cameraImage coming soon 1600220029 Backup ring €3.73
104
 photo_cameraImage coming soon 1610190027 Stop Disc €7.11
111
 Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D 1610290046 Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D €3.54
112
 Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D 1613300007 Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D €2.48
113
 photo_cameraImage coming soon 1613412001 Tapping Screw B 4,8x68 MM €2.09
115
 photo_cameraImage coming soon 1610300086 Bushing €4.32
116
 photo_cameraImage coming soon 1610913029 Needle-Roller Assembly €5.90
117
 photo_cameraImage coming soon 1610913023 Needle-Roller Assembly €25.35
119
 photo_cameraImage coming soon 1610910081 Needle-Roller Bearing €19.67
120
 photo_cameraImage coming soon 1610190080 Spacer Tube €15.75
122
 photo_cameraImage coming soon 1610290128 Spacer Ring €8.84
125
 photo_cameraImage coming soon 1613435040 Torx Oval-Head Screw €2.70
126
 Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
127
 photo_cameraImage coming soon 1610300079 Bushing €5.90
129
 photo_cameraImage coming soon 1610300080 Bushing €5.90
138
 photo_cameraImage coming soon 1611015064 Sealing Frame €7.99
142
 photo_cameraImage coming soon 1610290112 Rotary shaft lip seal €5.90
143
 photo_cameraImage coming soon 1614601072 Retaining ring €3.17
144
 photo_cameraImage coming soon 1610103025 Supporting Disc €4.47
151
 photo_cameraImage coming soon 1610210222 O-Ring €1.33
152
 photo_cameraImage coming soon 1614601073 Retaining ring €2.09
153
 Retaining Ring for Demolition Hammer Bosch GSH 11 E 2916540017 Retaining Ring for Demolition Hammer Bosch GSH 11 E €1.59
154
 photo_cameraImage coming soon 2916660027 Spring retaining ring DIN 472 62x2 MM €5.90
155
 photo_cameraImage coming soon 1614601074 Retaining ring €3.20
157
 photo_cameraImage coming soon 1610210103 O-Ring 33,0x2,0 MM €3.17
158
 photo_cameraImage coming soon 1610210224 O-Ring €1.33
160
 photo_cameraImage coming soon 1610210246 O-Ring €2.09
161
 photo_cameraImage coming soon 1610210227 Damping Ring €10.27
162
 photo_cameraImage coming soon 1610210228 O-Ring €2.79
165
 photo_cameraImage coming soon 1610290125 Seal ring €13.99
166
 photo_cameraImage coming soon 1613200020 Cylindrical Roller €3.73
167
 photo_cameraImage coming soon 161029012A Rotary shaft lip seal €5.90
168
 photo_cameraImage coming soon 1610206027 Packing Washer €3.17
171
 photo_cameraImage coming soon 1613414026 Torx socket button screw €3.17
172
 photo_cameraImage coming soon 1613435041 Torx Oval-Head Screw €2.09
175
 photo_cameraImage coming soon 2603490021 Torx Oval-Head Screw 4x12 €1.39
189
 photo_cameraImage coming soon 1615133038 Handle €11.95
190
 photo_cameraImage coming soon 1615500438 Handle Cover €14.36
192
 photo_cameraImage coming soon 1614611028 Rocker Foot €4.32
194
 photo_cameraImage coming soon 1610099018 Screw Plate €1.66
195
 photo_cameraImage coming soon 1610099019 Screw Plate €1.66
197
 photo_cameraImage coming soon 1616232000 Leaf Spring €8.52
204
 photo_cameraImage coming soon 1615102162 Rear Housing Section €17.55
206
 photo_cameraImage coming soon 1612386006 Holding strip €1.33
240
 photo_cameraImage coming soon 1600A000K3 Counterweight €12.35
241
 photo_cameraImage coming soon 1615190181 Guide Piece €3.17
242
 photo_cameraImage coming soon 1615190182 Guide Piece €3.17
243
 photo_cameraImage coming soon 1614621013 Compression Spring €3.17
661
 Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
691
 photo_cameraImage coming soon 161543851A Carrying Case €45.83
800
 photo_cameraImage coming soon 1600A0037C Shim 0,2 MM €1.94
801
 photo_cameraImage coming soon 1610102096 Shim €2.09 Not available for order
802
 photo_cameraImage coming soon 1610102095 Shim €1.66
803
 photo_cameraImage coming soon 1614010267 Armature 230V €203.56
805
 photo_cameraImage coming soon 1617000723 Power supply cord €45.86
808
 photo_cameraImage coming soon 160111A3H5 Nameplate €3.39
810
 photo_cameraImage coming soon 1617014145 Carbon-Brush Set €15.38
820
 photo_cameraImage coming soon 1618597102 Toolholder €214.37
821
 photo_cameraImage coming soon 1610508058 Plain bearing €42.72
840
 photo_cameraImage coming soon 1617000A29 Impact Mechanism Housing €317.70
841
 photo_cameraImage coming soon 1617000A4R Striker Pin €93.03
849
 photo_cameraImage coming soon 1617000A31 Control Fork €8.84
853
 photo_cameraImage coming soon 1610231004 Guide Bushing €42.72
856
 photo_cameraImage coming soon 1617000A32 Hammer Piston €83.69
857
 photo_cameraImage coming soon 1617000A33 Striker €42.72
860
 photo_cameraImage coming soon 1607000C3S Spur Wheel Clutch €207.31
863
 photo_cameraImage coming soon 1610210229 O-Ring €1.66
872
 photo_cameraImage coming soon 1617000A35 Eccentric €147.35
873
 photo_cameraImage coming soon 1617000A36 Housing Cover €83.69
884
 photo_cameraImage coming soon 1612025004 Auxiliary Handle €48.50
887
 photo_cameraImage coming soon 1617000807 Clamping Band Ø87 MM €25.35
891
 photo_cameraImage coming soon 1612099005 Rocker Arm €8.52
895
 photo_cameraImage coming soon 1613120024 Diaphragm €29.24
897
 photo_cameraImage coming soon 1610415005 Bellows €8.52
898
 photo_cameraImage coming soon 1610415004 Bellows €7.47
899
 photo_cameraImage coming soon 1600A004E6 Service package €65.33
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

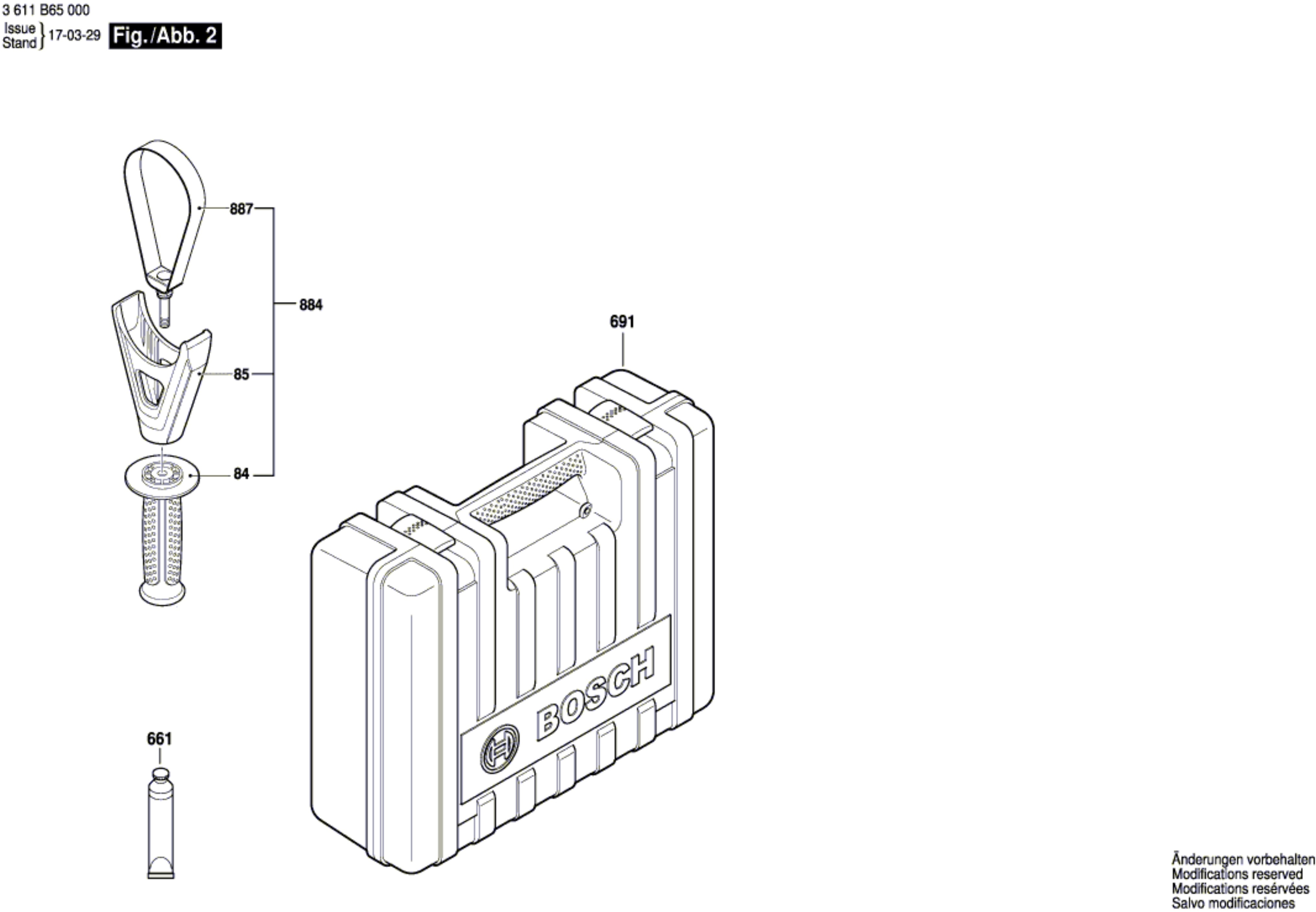

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
84
 photo_cameraImage coming soon 160202507H Auxiliary Handle €15.01
85
 photo_cameraImage coming soon 1618040095 index turning toolholder €7.11
661
 Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
691
 photo_cameraImage coming soon 161543851A Carrying Case €45.83
884
 photo_cameraImage coming soon 1612025004 Auxiliary Handle €48.50
887
 photo_cameraImage coming soon 1617000807 Clamping Band Ø87 MM €25.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Rotary Hammer GBH 8-45 DV

BOSCH service center and original spare parts Worldwide Distributor

. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer GBH 8-45 DV - 3611B65000.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Bosch GBH 8-45 DV - 3611B65000

Rotary Hammer GBH 8-45 DV/3 611 B65 000
# Part Num. Description
1 1615108165 Motor Housing
2 1614220124 Field 220-240V
4 1617200130 Switch
6 1610703053 Grommet Ø9,7-Ø12x89 MM
7 1601302018 Fastening Clamp
9 160111C0U7 Manufacturer's nameplate
13 1610900026 groove ball bearing 8x24x8
14 1610910089 Needle-Roller Bearing
15 1616610109 Fan
21 1610508038 Protective Cap
22 1610591051 Protection Sleeve
23 1610520006 Stop Sleeve
24 1610500025 Headed Bush
25 1612300027 Stopping Device
26 1610290109 Indexing Disk
27 160059105C Air-Deflector Ring
28 1614621010 Compression Spring
31 1610290129 Damping Ring
35 1615806249 Hammer Pipe
37 1610322018 Control Bushing
38 1615190177 Covering hood
42 1614336090 Brush Holder
43 1615500435 Brush-Cover
44 1614621020 Compression Spring
45 1610591052 Holding-Down-Appliance
47 1610300076 Gear Sleeve
48 1619990177 Clutch Sleeve
52 1610224015 Retaining snap ring
54 1610190071 Spacer Tube
58 1616317620 Cylindrical Gear
59 1615805074 Bearing Pedestal
72 1616317090 Eccentric Cog Wheel
80 1607233459 Speed governor - NEW 16072335R2
84 160202507H Auxiliary Handle
85 1618040095 Support clamp
94 1610290111 Supporting Disc
95 1613120023 Driving Pin
98 1610101015 Shim ring 1,0 MM THICK
99 1600220029 Backup ring
104 1610190027 Stop Disc
110 1610190073 Seal ring
111 1610290046 Bushing
112 1613300007 Hex Nut
113 1613412001 Tapping Screw B 4,8x68 MM
115 1610300086 Bushing
116 1610913029 Needle-Roller Assembly
117 1610913023 Needle-Roller Assembly
119 1610910081 Needle-Roller Bearing
120 1610190080 Spacer Tube
122 1610290128 Spacer Ring
125 1613435040 Torx Oval-Head Screw
126 2603490023 Torx Oval-Head Screw 4x20
127 1610300079 Bushing
129 1610300080 Bushing
138 1611015064 Sealing Frame
142 1610290112 Rotary shaft lip seal
143 1614601072 Retaining ring
144 1610103025 Supporting Disc
151 1610210222 O-Ring
152 1614601073 Retaining ring
153 2916540017 Retaining ring DIN 7993 A 30
154 2916660027 Spring retaining ring DIN 472 62x2 MM
155 1614601074 Retaining ring
157 1610210103 O-Ring 33,0x2,0 MM
158 1610210224 O-Ring
160 1610210246 O-Ring
161 1610210227 Damping Ring
162 1610210228 O-Ring
165 1610290125 Seal ring
166 1613200020 Cylindrical Roller
167 161029012A Rotary shaft lip seal
168 1610206027 Packing Washer
171 1613414026 Torx socket button screw
172 1613435041 Torx Oval-Head Screw
175 2603490021 Torx Oval-Head Screw 4x12
189 1615133038 Handle
190 1615500438 Handle Cover
192 1614611028 Rocker Foot
194 1610099018 Screw Plate
195 1610099019 Screw Plate
196 1610026004 Damping rubber
197 1616232000 Leaf Spring
204 1615102162 Rear Housing Section
206 1612386006 Holding strip
240 1600A000K3 Counterweight
241 1615190181 Guide Piece
242 1615190182 Guide Piece
243 1614621013 Compression Spring
661 1615430010 Grease Tube 30 ML
691 161543851A Carrying Case
800 1600A0037C Shim 0,2 MM
801 1610102096 Shim 0,45 MM
802 1610102095 Shim 0,30 MM
803 1614010267 Armature 230V
805 1617000723 Power supply cord
808 160111A3H5 Nameplate
810 1617014145 Carbon-Brush Set
820 1618597102 Toolholder
821 1610508058 Plain bearing
840 1617000A29 Impact Mechanism Housing
841 1617000A4R Striker Pin
849 1617000A31 Control Fork
853 1610231004 Guide Bushing
856 1617000A32 Hammer Piston
857 1617000A33 Striker
860 1607000C3S Spur Wheel Clutch
863 1610210229 O-Ring
872 1617000A35 Eccentric
873 1617000A36 Housing Cover
884 1612025004 Auxiliary Handle
887 1617000807 Clamping Band Ø87 MM
891 1612099005 Rocker Arm
895 1613120024 Diaphragm
897 1610415005 Bellows
898 1610415004 Bellows
899 1600A004E6 Service package
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBH8-45DV - 3611B65000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GBH 8-45 DV

Diagram Bosch GBH 8-45 DV

Download (281.06KB)

You might also like

Stopping Device for Hammers Bosch GBH GBH 5/40 DCE-GBH 7-46 DE
Bosch SKU: 1612300027
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE Bosch Genuine part, Steel Stopping Device for Demolition Hammers 5/40 DCE - GBH 7-46 DE. Part for the following products: - Demolition Hammer GBH 5/40 DCE / 0611216703 -...
Last items in stock €15.95
Details
Grease Tube 30 ML for Bosch Hammer GBH-GSH
Bosch SKU: 1615430010
Grease Tube 30 ML for Bosch Hammer GBH-GSH
Grease Tube 30 ML for Bosch Hammer GBH-GSH Genuine spare parts Bosch, Grease Tube 30 ML for Bosch Hammer GBH 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GBH 5/40 DCE/0 611 216 703 - GBH 5-38 D - 0 611 240 003 - GBH 8-45 D - 3...
Usually Ships in: 7/10 Business Days Approx. €9.33
Details
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30
Bosch SKU: 1610910089
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 Bosch original parts, Needle-Roller Bearing for Rotary Hammer GBH 7-46 DE - GBH 11 DE - GSH 11 E - GBH 8-45 D. Parts for the following products: - Rotary Hammer GBH 7-46 DE/0...
AVAILABLE €31.79
Details
Spacer Tube for Rotary Hammer Bosch GBH 11 DE
Bosch SKU: 1610590006
Spacer Tube for Rotary Hammer Bosch GBH 11 DE
Spacer Tube for Rotary Hammer Bosch GBH 11 DE Genuine part Bosch, Spacer Tube for Rotary Hammer GBH 11 DE Parts for the following products: - Rotary Hammer GBH 11 DE/0 611 245 703 - Code: 1610590006
AVAILABLE €9.54
Details
Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D
Bosch SKU: 1610290046
Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D
Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D Genuine replacement part Bosch, Rubber Bushing for Demolition Hammers GBH 8-45 D - 3 611 B65 100 - GBH 7-46 DE/0 611 263 703. Part for the following products: - Demolition Hammer...
Last items in stock €3.54
Details
Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D
Bosch SKU: 1613300007
Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D
Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D Original Spare Part Bosch, Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D - 3 611 B65 100 - GBH 7-46 DE/0 611 263 703. Part for the following...
AVAILABLE €2.48
Details
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D
Bosch SKU: 1610900026
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D Genuine Part Bosch, Groove Ball Bearing 8x24x8 for Rotary Hammer Bosch GBH 5-38 D - 0611240003. Part for the following products: -  Hammer Bosch GBH...
on 7/10 Business Days Approx €17.13
Details
Bosch Rotary Hammer GBH 8-45 D Indexing Disk
Bosch SKU: 1610290109
Bosch Rotary Hammer GBH 8-45 D Indexing Disk
Bosch Rotary Hammer GBH 8-45 D Indexing Disk Original Spare Part Bosch, Indexing Disk for Rotary Hammer Bosch GBH 8-45 D -  GBH 8-45 DV. Part for the following products: - ...
on 7/10 Business Days Approx. €6.04
Details
Bosch Rotary Hammer GBH 8-45 DV Speed Governor
Bosch SKU: 1607233459
Bosch Rotary Hammer GBH 8-45 DV Speed Governor
Bosch Rotary Hammer GBH 8-45 DV Speed Governor Original Spare Part Bosch, Speed Governor for Rotary Hammer Bosch GBH 8-45 DV. Part for the following products: -  Rotary Hammer GBH 8-45 DV - 3611B65000 - Code...
Last items in stock €93.10
Details
Comments (0)
