Bosch Spare Parts for Planer PHO 2000

SKU: Bosch PHO 2000 - 3603BA4100
€16.19
VAT included

Bosch Spare Parts for Planer PHO 2000

We have the original Bosch Spare Parts for Planer PHO 2000, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Planer PHO 2000 - 3603BA4100. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch PHO 2000 - 3603BA4100
Bosch Spare Parts for Planer PHO 2000
  • Bosch Spare Parts for Planer PHO 2000
  • Bosch Spare Parts for Planer PHO 2000

Bosch Spare Parts for Planer PHO 2000

SKU: Bosch PHO 2000 - 3603BA4100 Condition: New
€16.19
VAT included

Bosch Spare Parts for Planer PHO 2000

We have the original Bosch Spare Parts for Planer PHO 2000, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Planer PHO 2000 - 3603BA4100. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch PHO 2000 - 3603BA4100
settings 32 spare parts

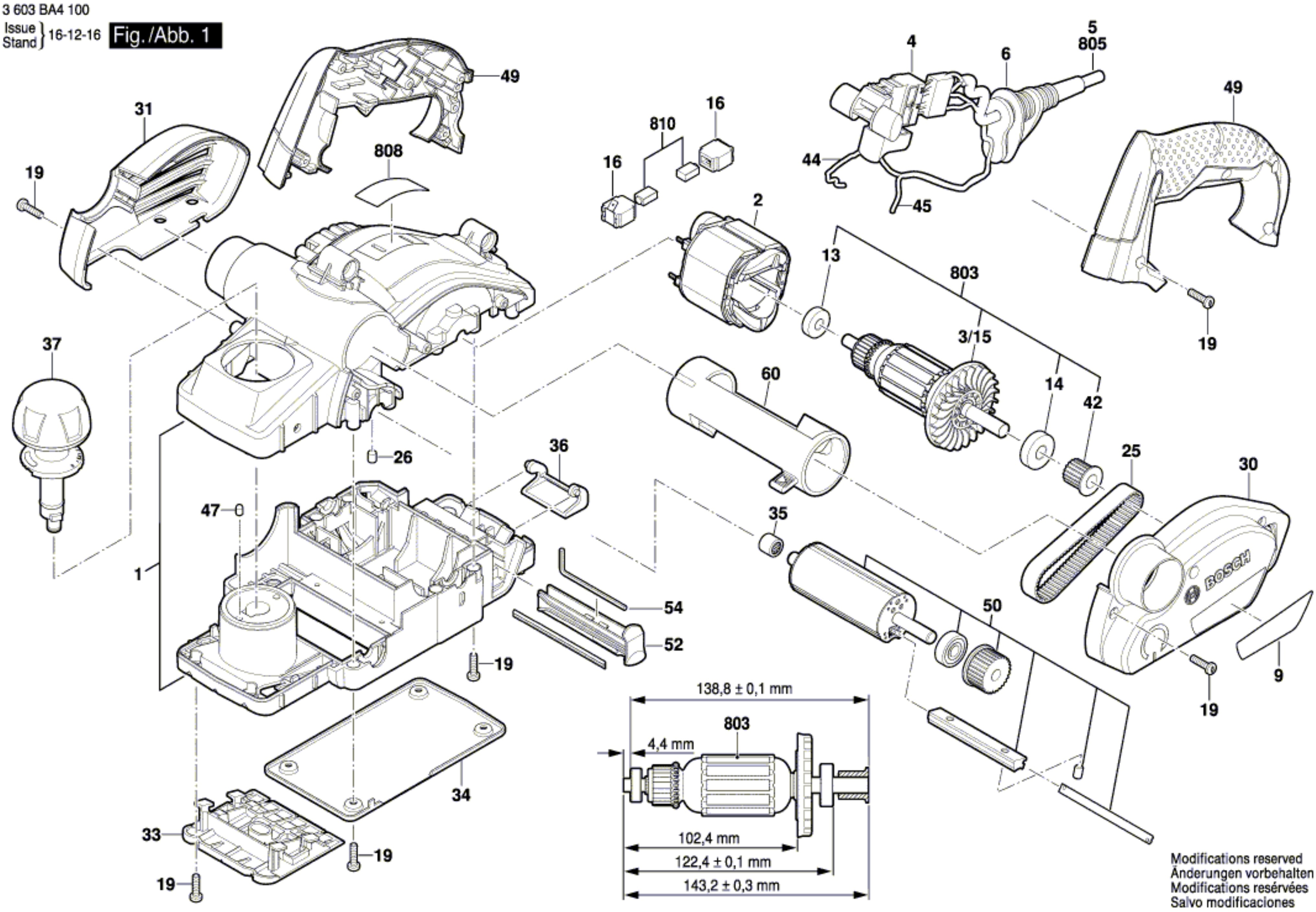

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

31 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 1619P12317 Motor Housing GREEN €25.56
2
photo_cameraImage coming soon 1619P08350 Field 220-230V €19.44
3/15
photo_cameraImage coming soon 2606610096 Fan €2.42
4
photo_cameraImage coming soon 1619X08569 Switch  €10.45
6
photo_cameraImage coming soon 1619X06341 Grommet €2.07
9
photo_cameraImage coming soon 1619X08478 Manufacturer's nameplate PHO 2000 €2.42
13
photo_cameraImage coming soon 1619X06535 groove ball bearing €3.49
14
photo_cameraImage coming soon 1619P12162 groove ball bearing €3.49
16
photo_cameraImage coming soon 1619X02735 Brush Holder €2.07
19
photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
25
Toothed Belt for Bosch Planer PHO GWS 1-100-15-16-20 2604736001 Toothed Belt for Bosch Planer PHO GWS 1-100-15-16-20 €17.45
26
photo_cameraImage coming soon 2603100056 Rubber Buffer €1.54
30
photo_cameraImage coming soon 1619X08460 Gear Cover €7.92
31
photo_cameraImage coming soon 1619X08483 Brush-Cover €6.77
33
Adjusting Slide for Planer Bosch PHO 1500 1619X08462 Adjusting Slide for Planer Bosch PHO 1500 €12.53 Not available for order
34
photo_cameraImage coming soon 1619X08463 Base Plate €7.92
35
photo_cameraImage coming soon 1610910057 Needle bearing Ø8xØ12x10 MM €2.87
36
photo_cameraImage coming soon 1619X08465 Knife Guard €2.42
37
photo_cameraImage coming soon 1619X08672 Cap-Handle BLACK €5.44
42
photo_cameraImage coming soon 1619X08472 Toothed Belt Wheel €2.87
44
photo_cameraImage coming soon 1619X08473 Connecting Cable L=300 MM BLUE €2.07
47
Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE 2600590006 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE €2.09
49
photo_cameraImage coming soon 1619X08466 Set Of Handles GREEN €9.43
50
photo_cameraImage coming soon 2608584003 Planer Head €63.15
52
photo_cameraImage coming soon 1619X08487 Knife Hood 8x22x7 €2.42
54
photo_cameraImage coming soon 2607950045 Offset Screwdriver €2.10
60
photo_cameraImage coming soon 1619X08476 Deflector Pipe €6.15
803
photo_cameraImage coming soon 1619X09120 Armature set 220-230V €36.99
805
photo_cameraImage coming soon 1607000388 Power supply cord EU 2,65m 2 x 1,0mm €15.27
808
photo_cameraImage coming soon 1619P31675 Nameplate €2.42
810
photo_cameraImage coming soon 1619X09122 Carbon-Brush Set €7.99

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Planer PHO 2000

Fix Your Planer PHO 2000 - 3603BA4100. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Planer and the respective parts of the code.
Bosch PHO 2000 - 3603BA4100
Planer PHO 2000/3 603 BA4 100
# Part Num. Description
1 1619P12317 Motor Housing GREEN
2 1619P08350 Field 220-230V
3/15 2606610096 Fan
4 1619X08569 Switch
6 1619X06341 Grommet
9 1619X08478 Manufacturer's nameplate PHO 2000
13 1619X06535 groove ball bearing
14 1619P12162 groove ball bearing
16 1619X02735 Brush Holder
19 2603490022 Screw 4x16
25 2604736001 Toothed Belt
26 2603100056 Damping rubber
30 1619X08460 Gear Cover
31 1619X08483 Brush-Cover
33 1619X08462 Adjusting Slide
34 1619X08463 Base Plate
35 1610910057 Needle bearing Ø8xØ12x10 MM
36 1619X08465 Knife Guard
37 1619X08672 Cap-Handle BLACK
42 1619X08472 Toothed Belt Wheel
44 1619X08473 Connecting Cable L=300 MM BLUE
45 1619X06542 Lead WHITE
47 2600590006 Ratchet Cap
49 1619X08466 Set Of Handles GREEN
50 2608584003 Planer Head
52 1619X08487 Knife Hood 8x22x7
54 2607950045 Offset Screwdriver
60 1619X08476 Deflector Pipe
803 1619X09120 Armature set 220-230V
805 1607000388 Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F
808 1619P31675 Nameplate
810 1619X09122 Carbon-Brush Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch PHO 2000 - 3603BA4100
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch PHO 2000

Diagram Bosch PHO 2000

Download (161.45KB)
