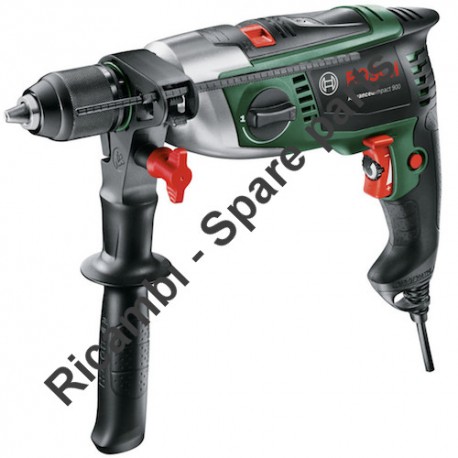

Bosch Spare Parts for Percussion Drill AdvancedImpact 900

SKU: AdvancedImpact 900 3603A74000
€1.56
VAT included

Bosch Spare Parts for Percussion Drill AdvancedImpact 900

Bosch genuine spare parts for replacing or repairing Percussion Drill AdvancedImpact 900 3603A74000.

AdvancedImpact 900 3603A74000
Bosch Spare Parts for Percussion Drill AdvancedImpact 900
  • Bosch Spare Parts for Percussion Drill AdvancedImpact 900
  • Bosch Spare Parts for Percussion Drill AdvancedImpact 900
  • Bosch Spare Parts for Percussion Drill AdvancedImpact 900
Bosch

Bosch Spare Parts for Percussion Drill AdvancedImpact 900

SKU: AdvancedImpact 900 3603A74000 Condition: New
€1.56
VAT included

Bosch Spare Parts for Percussion Drill AdvancedImpact 900

Bosch genuine spare parts for replacing or repairing Percussion Drill AdvancedImpact 900 3603A74000.

AdvancedImpact 900 3603A74000
settings 49 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
49 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 16051082CD Housing Section GREEN €20.21
2
 photo_cameraImage coming soon 2609007822 Field 230V €17.55
3
 photo_cameraImage coming soon 2609007821 Armature 230V €32.95
4
 photo_cameraImage coming soon 160720032Z IGNITION SWITCH ASSEMBLY €32.95
9
 photo_cameraImage coming soon 160111C0JA Manufacturer's nameplate AdvancedImpact 900 €1.94
9
 photo_cameraImage coming soon 160111C28J Manufacturer's nameplate AdvancedImpact 9000 €1.94
16
 photo_cameraImage coming soon 1600A00B68 Brush Holder €11.95
20
 Tapping Screw DIN 7981 for Percussion Drill Bosh GSB-PSB 2910611002 Tapping Screw DIN 7981 for Percussion Drill Bosh GSB-PSB €1.20
21
 photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
24
 photo_cameraImage coming soon 1600A0092N Cover Panel €2.78
28
 photo_cameraImage coming soon 16055002A9 Bearing cover €11.95
29
 photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
30
 photo_cameraImage coming soon 2606135130 Drilling Spindle €27.47
31
 photo_cameraImage coming soon 1600A00F24 Keyless Chuck €20.21
32
 photo_cameraImage coming soon 1900905163 Deep-Groove Ball Bearing 17x35x10 €14.25
33
 photo_cameraImage coming soon 2916650008 Spring retaining ring DIN 471 17x1 MM €2.18
35
 photo_cameraImage coming soon 2600100695 Shim 0,5 MM €2.18
36
 photo_cameraImage coming soon 2606317084 Cylindrical Gear €17.81
37
 photo_cameraImage coming soon 2606317085 Cylindrical Gear €9.92
38
 photo_cameraImage coming soon 1600A00RX5 Catch Disk €1.66
39
 photo_cameraImage coming soon 2604616013 Compression Spring €3.24
42
 photo_cameraImage coming soon 2600000021 Shim washer 1,0 MM €2.18
42
 photo_cameraImage coming soon 2600000030 Shim washer 1,35 MM €2.18
42
 photo_cameraImage coming soon 2600000031 Shim washer 1,7 MM €2.18
43
 photo_cameraImage coming soon 1903230009 Ball DIN 5401-5 G28  €1.43
43
 Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 1903230010 Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 €1.91
43
 photo_cameraImage coming soon 2603230007 Ball 5,25 MM €1.43
46
 photo_cameraImage coming soon 160312304U Carrier €10.62
47
 photo_cameraImage coming soon 2602210043 Eccentric €3.01
48
 photo_cameraImage coming soon 1600100632 Shim 0,2 MM THICK €1.57
52
 photo_cameraImage coming soon 2600914010 Needle bearing Ø6 MM €3.80
54
 photo_cameraImage coming soon 1600A0092D Rotary Knob €1.94
62
 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE 2600590006 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE €2.09
63
 photo_cameraImage coming soon 2609004109 Torsion Spring €1.24
64
 photo_cameraImage coming soon 3600210014 O-Ring 14,0x1,3 MM €1.24
65
 photo_cameraImage coming soon 2609002961 Fork Lever €1.66
66
 photo_cameraImage coming soon 2600101671 Retaining Washer €2.18
67
 photo_cameraImage coming soon 2602300032 Flat Key €4.56
70
 photo_cameraImage coming soon 2601990044 Guiding Plate €1.57
71
 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE 2600590006 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE €2.09
73
 photo_cameraImage coming soon 160111C0TV Reference Plate €1.94
75
 photo_cameraImage coming soon 1600A0092H Change-Over Switch €2.78
82
 photo_cameraImage coming soon 1600A00941 Ring d'arresto €1.94
654
 photo_cameraImage coming soon 160202508L Auxiliary Handle €10.62
655
 photo_cameraImage coming soon 2609005615 Depth-Gauge €4.55
805
 photo_cameraImage coming soon 1607000388 Power supply cord EU 2,65m 2 x 1,0mm €15.27
808
 photo_cameraImage coming soon 160111A516 Nameplat €1.94
810
 photo_cameraImage coming soon 1607014184 Carbon-Brush Set €6.28
845
 photo_cameraImage coming soon 2606309940 Transmission €27.47
860
 photo_cameraImage coming soon 1600A0092E Bearing Bracket €40.23
890
 photo_cameraImage coming soon 2607001305 Fastening parts kit  €6.01
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
654
 photo_cameraImage coming soon 160202508L Auxiliary Handle €10.62
655
 photo_cameraImage coming soon 2609005615 Depth-Gauge €4.55

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Percussion Drill AdvancedImpact 900

Bosch genuine spare parts for replacing or repairing Percussion Drill AdvancedImpact 900 3603A74000.

In the following table, look for the model of the Percussion Drill and the respective parts of the code.
AdvancedImpact 900 3603A74000

Percussion Drill AdvancedImpact 900/3 603 A74 000
# Part Num. Descriuption
1 16051082CD Housing Section GREEN
2 2609007822 Field 230V
3 2609007821 Armature 230V
4 160720032Z Switch
6 2609006376 Grommet Ø6,4-Ø7,2x76 MM
9 160111C0JA Manufacturer's nameplate AdvancedImpact 900
9 160111C28J Manufacturer's nameplate AdvancedImpact 9000
16 1600A00B68 Brush Holder
20 2910611002 Tapping Screw DIN 7981-ST2,2x9,5-C-H
21 2603490022 Screw 4x16
24 1600A0092N Cover Panel
26 1600A009B0 Plastic Insert
28 16055002A9 Cover
29 2603490022 Screw 4x16
30 2606135130 Drilling Spindle
31 1600A00F24 Keyless Chuck
32 1900905163 groove ball bearing 17x35x10
33 2916650008 Spring retaining ring DIN 471 17x1 MM
35 2600100695 Shim 0,5 MM
36 2606317084 Cylindrical Gear
37 2606317085 Cylindrical Gear
38 1600A00RX5 Catch Disk
39 2604616013 Compression Spring
42 2600000021 Shim washer 1,0 MM
42 2600000030 Shim washer 1,35 MM
42 2600000031 Shim washer 1,7 MM
43 1903230009 Ball DIN 5401-5 G28
43 1903230010 Ball DIN 5401-5,5MM-III-ST
43 2603230007 Ball 5,25 MM
46 160312304U Carrier
47 2602210043 Eccentric
48 1600100632 Shim 0,2 MM THICK
49 2609007376 Roller Body
52 2600914010 Needle-Roller Bearing Ø6 MM
54 1600A0092D Rotary Knob
62 2600590006 Ratchet Cap
63 2609004109 Torsion Spring
64 3600210014 O-Ring 14,0x1,3 MM
65 2609002961 Fork Lever
66 2600101671 Retaining Washer
67 2602300032 Flat Key
68 1600A00997 Roller Body
69 1600A0092G Changeover Lever
70 2601990044 Guiding Plate
71 2600590006 Ratchet Cap
73 160111C0TV Reference Plate
75 1600A0092H Change-Over Switch
82 1600A00941 Retainer
654 160202508L Auxiliary Handle
655 2609005615 Depth-Gauge
805 1607000388 Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F
808 160111A516 Nameplate
810 1607014184 Carbon-Brush Set
845 2606309940 Transmission
860 1600A0092E Bearing Bracket
890 2607001305 Fastening parts kit
