Bosch Spare Parts for Rotary Hammer PBH 3000-2 FRE

SKU: Bosch PBH 3000-2 FRE 3603C94200
€1.08
VAT included

Bosch Spare Parts for Rotary Hammer PBH 3000-2 FRE

BOSCH Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer PBH 3000-2 FRE - 3603C94200.

Rotary Hammer PBH 3000-2 FRE - 3603C94200.
Bosch Spare Parts for Rotary Hammer PBH 3000-2 FRE
  • Bosch Spare Parts for Rotary Hammer PBH 3000-2 FRE
  • Bosch Spare Parts for Rotary Hammer PBH 3000-2 FRE
  • Bosch Spare Parts for Rotary Hammer PBH 3000-2 FRE

Bosch Spare Parts for Rotary Hammer PBH 3000-2 FRE

SKU: Bosch PBH 3000-2 FRE 3603C94200 Condition: New
€1.08
VAT included

Bosch Spare Parts for Rotary Hammer PBH 3000-2 FRE

BOSCH Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer PBH 3000-2 FRE - 3603C94200.

Rotary Hammer PBH 3000-2 FRE - 3603C94200.
settings 86 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

74 spare parts

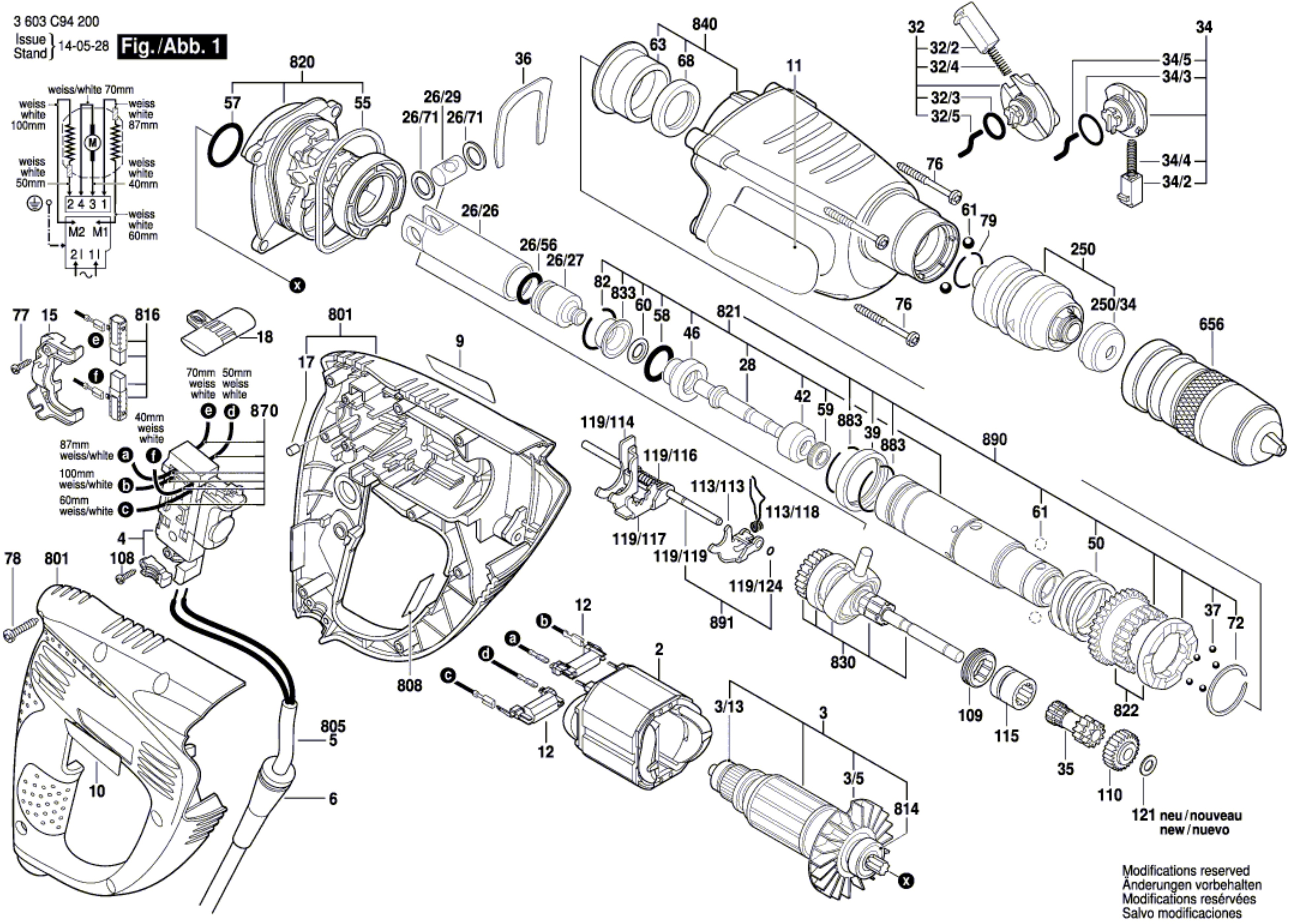

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 1614220193 Field 230V €23.92
3/13
photo_cameraImage coming soon 1610905032 groove ball bearing 7x19x6 €5.35
3
photo_cameraImage coming soon 1614010251 Armature 230V €67.32
3/5
photo_cameraImage coming soon 1616610094 Fan €2.22
4
Switch for Rotary Hammer Bosch PBH 2800 RE 1617200111 Switch for Rotary Hammer Bosch PBH 2800 RE €37.86
6
photo_cameraImage coming soon 2600703018 Grommet Ø7,3-Ø8,6x76 MM €2.22
9
photo_cameraImage coming soon 1611110Z11 Manufacturer's nameplate PBH 3000-2 FRE €1.94
10
photo_cameraImage coming soon 1611110Z12 Manufacturer's nameplate PBH 3000-2 FRE €1.94
11
photo_cameraImage coming soon 1611110Z13 Reference Plate €1.94
12
photo_cameraImage coming soon 1617328032 Suppression Filter €6.29
15
photo_cameraImage coming soon 1615808099 Bearing Bracket €2.78
17
photo_cameraImage coming soon 2603100056 Rubber Buffer €1.54
26/71
Shim Washer 1,2 mm for Rotary Hammer Bosch GBH 2-22 RE 1610101011 Shim Washer 1,2 mm for Rotary Hammer Bosch GBH 2-22 RE €1.67
26/56
O-Ring 21x15x3,15 for Hammer Bosch GBH 36 V-LI 1610210187 O-Ring 21x15x3,15 for Hammer Bosch GBH 36 V-LI €2.46
26/27
photo_cameraImage coming soon 1610311018 Striker €20.47
26/29
photo_cameraImage coming soon 1613105012 Piston Pin €3.68
26/26
photo_cameraImage coming soon 1618700089 Hammer Piston €11.95
28
photo_cameraImage coming soon 1613124091 Striker Pin €6.28
32/2
Red Knob Switch for Hammers Bosch GBH 36V-VF-LI 1612026035 Red Knob Switch for Hammers Bosch GBH 36V-VF-LI €1.67
32
photo_cameraImage coming soon 1612026134 Clamp Handle €4.32
32/4
photo_cameraImage coming soon 1614611006 Compression Spring €4.71
34
photo_cameraImage coming soon 1612026132 Clamp Handle €4.32
34/2
photo_cameraImage coming soon 1612026138 Switch Button €1.24
34/4
photo_cameraImage coming soon 1614643020 Compression Spring €2.78
35
photo_cameraImage coming soon 1616328050 Gear Sleeve €7.47
36
Holding Plate for Rotary Hammer Bosch GBH 36 VF-LI 1611016003 Holding Plate for Rotary Hammer Bosch GBH 36 VF-LI €2.22
37
photo_cameraImage coming soon 1903230007 Ball DIN 5401-4 MM-III-ST €1.58
39
photo_cameraImage coming soon 1610102078 Friction Washer €2.29
42
photo_cameraImage coming soon 1610290099 Thrust Ring €5.77
46
photo_cameraImage coming soon 1610390066 Guide Bushing €13.51
50
photo_cameraImage coming soon 1614643019 Compression Spring €1.94
55
photo_cameraImage coming soon 1610290108 O-Ring €1.92
57
O-Ring 24,0x2,5 mm for Hammers Bosch GBH 36V-VF-LI 1610210068 O-Ring 24,0x2,5 mm for Hammers Bosch GBH 36V-VF-LI €1.67
58
photo_cameraImage coming soon 1610210178 O-Ring €1.68
59
photo_cameraImage coming soon 1600A009VC Shaft Seal €21.69
61
Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 1903230010 Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 €1.91
63
photo_cameraImage coming soon 1610202026 Plain bearing €4.40
68
photo_cameraImage coming soon 1610283019 Shaft Seal €7.12
72
photo_cameraImage coming soon 1604601027 Retaining ring €15.53
76
Torx Screw M 4.5x45 for Rotary Hammer Bosch GBH 2-22 RE 160343000A Torx Screw M 4.5x45 for Rotary Hammer Bosch GBH 2-22 RE €1.02
78
Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
79
Retaining Ring mm 24x29x2,5 for Hammer Bosch GBH 2-24 DFR 1614601026 Retaining Ring mm 24x29x2,5 for Hammer Bosch GBH 2-24 DFR €1.58
109
photo_cameraImage coming soon 1615820098 Switching Element €1.66
110
photo_cameraImage coming soon 1616312008 Cylindrical Gear €4.32
113/118
photo_cameraImage coming soon 1614651020 Switch Spring €1.94
115
photo_cameraImage coming soon 1615820099 Switching Element €2.78
119/114
photo_cameraImage coming soon 1601021007 Shift Plate €1.66
119/117
photo_cameraImage coming soon 1601021008 Shift Plate €1.66
119/119
photo_cameraImage coming soon 1613023002 Guide Rod €2.29
119/116
photo_cameraImage coming soon 1614643021 Compression Spring €1.24
120
photo_cameraImage coming soon 2602025125 Auxiliary Handle BLACK €8.38
250/34
Front Hood for Hammer Bosch GBH-PBH 1610508047 Front Hood for Hammer Bosch GBH-PBH €2.89
250
photo_cameraImage coming soon 1617000663 Quick-Change Collet Chuck €67.32
651
photo_cameraImage coming soon 2609005615 Depth-Gauge €4.55
656
photo_cameraImage coming soon 1608572032 Keyless Chuck €61.72
801
photo_cameraImage coming soon 1617000V97 Motor Housing €25.88
805
photo_cameraImage coming soon 1607000392 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F €23.53
808
photo_cameraImage coming soon 160111A3H6 Nameplate €1.94
814
photo_cameraImage coming soon 1610905048 Deep-Groove Ball Bearing 9x24x7 €8.33
816
photo_cameraImage coming soon 1617014146 Carbon-Brush Set €12.72
820
photo_cameraImage coming soon 1617000V98 Intermediate Flange €20.21
821
photo_cameraImage coming soon 1617000607 Hammer Pipe €74.32
822
photo_cameraImage coming soon 1617000A41 Clutch Set €12.92
830
photo_cameraImage coming soon 1617000600 Drive bearing €61.72
833
photo_cameraImage coming soon 1610590018 Holding Jacket €5.77
840
photo_cameraImage coming soon 1617000603 Gear Housing €29.24
870
photo_cameraImage coming soon 1619P01776 Connecting Cable €4.12
883
photo_cameraImage coming soon 1604601028 Retaining ring A22 DIN 7993 €15.53
890
photo_cameraImage coming soon 1617000609 Hammer Pipe €103.01
891
photo_cameraImage coming soon 1617000602 Guide Rod €2.78
895
photo_cameraImage coming soon 1615438457 Locking Hook €4.88

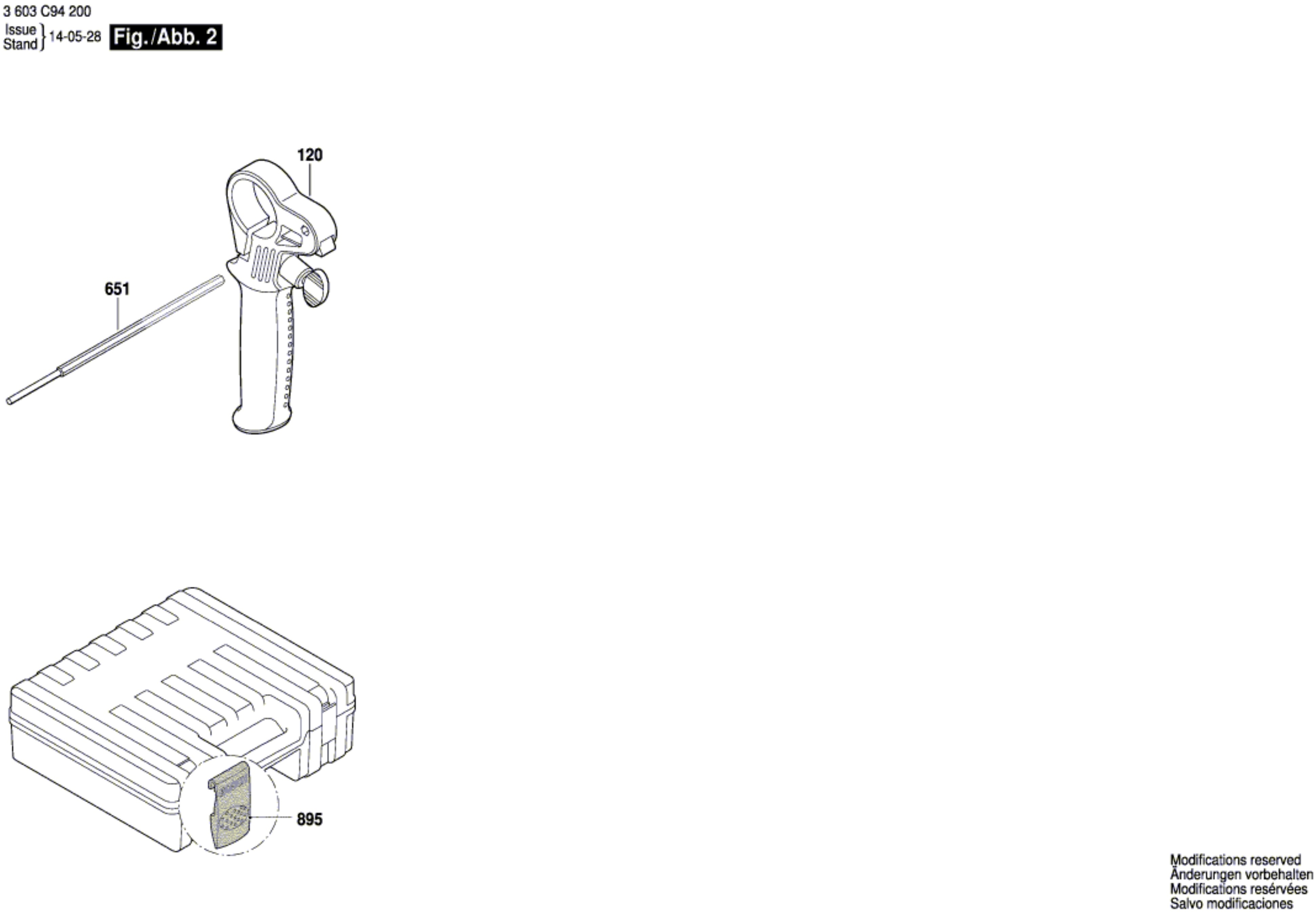

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
120
photo_cameraImage coming soon 2602025125 Auxiliary Handle BLACK €8.38
651
photo_cameraImage coming soon 2609005615 Depth-Gauge €4.55
895
photo_cameraImage coming soon 1615438457 Locking Hook €4.88

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Rotary Hammer PBH 3000-2 FRE

BOSCH Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer PBH 3000-2 FRE - 3603C94200.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Rotary Hammer PBH 3000-2 FRE - 3603C94200.

Rotary Hammer PBH 3000-2 FRE/3 603 C94 200
# Part Num. Description
2 1614220193 Field 230V
3 1614010251 Armature 230V
3/5 1616610094 Fan
3/15 1610905032 groove ball bearing 7x19x6
4 1617200111 Switch
6 2600703018 Grommet Ø7,3-Ø8,6x76 MM
9 1611110Z11 Manufacturer's nameplate PBH 3000-2 FRE
10 1611110Z12 Manufacturer's nameplate PBH 3000-2 FRE
11 1611110Z13 Reference Plate
12 1617328032 Suppression Filter
15 1615808099 Bearing Bracket
17 2603100056 Damping rubber
18 1613231025 Change-Over Switch
26/26 1618700089 Hammer Piston
26/27 1610311018 Striker
26/29 1613105012 Piston Pin
26/56 1610210187 O-Ring
26/71 1610101011 Shim washer 1,2 MM THICK
28 1613124091 Striker Pin
32 1612026134 Clamp Handle
32/2 1612026035 Switch Button RED
32/3 1610210200 O-Ring 12,5x2,5 MM
32/4 1614611006 Compression Spring
32/5 1614690006 Driver Pin
34 1612026132 Clamp Handle
34/2 1612026138 Switch Button
34/3 1610210201 O-Ring 17,0x2,0 MM
34/4 1614643020 Compression Spring
34/5 1614690007 Driver Pin
35 1616328050 Gear Sleeve
36 1611016003 Holding Plate
37 1903230007 Ball DIN 5401-4 MM-III-ST
39 1610102078 Friction Washer
42 1610290099 Thrust Ring
46 1610390066 Guide Bushing
50 1614643019 Compression Spring
55 1610290108 O-Ring
57 1610210068 O-Ring 24,0x2,5 MM
58 1610210178 O-Ring
59 1600A009VC Shaft Seal
60 1610210176 O-Ring 9,0x3,5 MM
61 1903230010 Ball DIN 5401-5,5MM-III-ST
63 1610202026 Plain bearing
68 1610283019 Shaft Seal
72 1604601027 Retaining ring
76 160343000A Thread-forming tap. Screw
77 1613435034 Lens Head Screw 3x10 ST
78 2603490023 Torx Oval-Head Screw 4x20
79 1614601026 Retaining ring
82 1614601057 Retaining ring
108 1613435034 Lens Head Screw 3x10 ST
109 1615820098 Switching Element
110 1616312008 Cylindrical Gear
113/113 1601021006 Shift Plate
113/118 1614651020 Switch Spring
115 1615820099 Switching Element
119/114 1601021007 Shift Plate
119/116 1614643021 Compression Spring
119/117 1601021008 Shift Plate
119/119 1613023002 Guide Rod
119/124 1614601063 Retaining ring
120 2602025125 Auxiliary Handle BLACK
121 1610100613 Shim
250 1617000663 Quick-Change Collet Chuck
250/34 1610508047 Protective Cap
651 2609005615 Depth-Gauge
656 1608572032 Keyless Chuck
801 1617000V97 Motor Housing
805 1607000392 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
808 160111A3H6 Nameplate
814 1610905048 groove ball bearing 9x24x7
816 1617014146 Carbon-Brush Set
820 1617000V98 Intermediate Flange
821 1617000607 Hammer Pipe
822 1617000A41 Clutch Set
830 1617000600 Drive bearing
833 1610590018 Holding Jacket
840 1617000603 Gear Housing
870 1619P01776 Connecting Cable
883 1604601028 Retaining ring A22 DIN 7993
890 1617000609 Hammer Pipe
891 1617000602 Guide Rod
895 1615438457 Locking Hook
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch PBH 3000-2 FRE 3603C94200
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram PBH 3000-2 FRE

Diagram PBH 3000-2 FRE

Download (245.01KB)

You might also like

Bosch SKU: 1903230010
Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 Bosch genuine parts, Ball DIN 5401-5,5MM-III-ST, for Impact Drills GSB 16 RE - GSB 18-2 RE - GSB 20-2 RE - GSB 22-2 RE - PSB 700-2 RE - PSB 800-2 RA - PBH 240 RE. Parts for...
AVAILABLE €1.91
Bosch SKU: 1612026035
Red Knob Switch for Hammers Bosch GBH 36V-VF-LI Original parts Bosch, Red Knob Switch for Hammers Bosch GBH GBH 36 VF-LI - GBH 36 V-LI/3 - GBH 2-23 RE/3 - PBH 220 RE/0 - PBH 240 RE. Parts for segunti articles: - Hammer Bosch GBH 36...
AVAILABLE €1.67
Bosch SKU: 1610508047
Front Hood for Hammer Bosch GBH-PBH Original parts Bosch, Front Hood for Hammer Bosch GBH 36 VF-LI/3 611 J01 R00 - GBH 36 V-LI/3 611 J00 R00 - GBH 3-28 DFR/3 611 B4A 000 - GBH 2-26 DFR/0 611 254 703 - GBH 2-23 RE/3 611 B50 400 - PBH...
Last items in stock €2.89
Retaining Ring mm 24x29x2,5 for Hammer Bosch GBH 2-24 DFR Sale
Bosch SKU: 1614601026
Retaining Ring mm 24x29x2,5 for Hammer Bosch GBH 2-24 DFR Bosch original parts, Retaining Ring mm 24x29x2,5 for Hammers GBH 2-24 DFR/0 611 238 703 - PBH 220 RE/0 603 336 703 - PBH 240 RE/0 603 326 703. Parts for segunti articles: -...
AVAILABLE €1.58
Bosch SKU: 160343000A
Torx Screw M 4.5x45 for Rotary Hammer Bosch GBH 2-22 RE Genuine part Bosch, Torx Screw M 4.5x45 T20 for Rotary Hammer Bosch GBH 2-22 RE/0 611 250 703 - Cordless Rotary Hammer Bosch GBH 36 V-LI/3 611 J00 R00 Parts for the following...
AVAILABLE €1.02
Bosch SKU: 1610210068
O-Ring 24,0x2,5 mm for Hammers Bosch GBH 36V-VF-LI Original part Bosch, O-Ring 24,0x2,5 mm for Hammers Bosch GBH 2-22 RE - GBH 36 V-LI - GBH 36 VF-LI - GBH 2-26 DFR - GBH 2-24 DFR Part for the following products: - Rotary Hammer Bosch...
AVAILABLE €1.67
Bosch SKU: 1611016003
Holding Plate for Rotary Hammer Bosch GBH 36 VF-LI Bosch original part, Holding Plate for Rotary Hammers GBH 36 VF-LI - GBH 2-26 DFR - GBH 2-20 D - GBH 2-24 DFR - PBH 300 E - PBH 220 RE - PBH 240 RE Part for the following products: -...
AVAILABLE €2.22
Bosch SKU: 1610101011
Shim Washer 1,2 mm for Rotary Hammer Bosch GBH 2-22 RE Genuine Part Bosch, Shim Washer 1,2 mm for Cordless Hammer Bosch GBH 36 VF-LI/3 611 J01 R00 - GBH 36 V-LI/3 611 J00 R00. Parts for the following products: - Rotary hammer Bosch...
AVAILABLE €1.67
Bosch SKU: 1617200111
Switch for Rotary Hammer Bosch PBH 2800 RE Genuine parts Bosch, Switch for Rotary Hammers PBH 2800 RE - PBH 3000 FRE - PBH 3000-2 FRE. Parts for the following articles: -  Rotary Hammer PBH 2800...
Last items in stock €37.86
Bosch SKU: 1610210187
O-Ring 21x15x3,15 for Hammer Bosch GBH 36 V-LI Bosch Genuine Part, O-Ring 21x15x3,15 for Rotary Hammer GBH 36 V-LI - GBH 36 VF-LI - GBH 2-22 RE - GBH 2-24 DRE - GBH 2-26 DFR. Parts for the following articles: -  Cordless Rotary Hammer...
AVAILABLE €2.46
Comments (0)
