Bosch Spare Parts for Rotary Hammer PBH 2800 RE

SKU: Bosch PBH 2800 RE 3603C93000
€2.25
VAT included

Bosch Spare Parts for Rotary Hammer PBH 2800 RE

BOSCH Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer PBH 2800 RE - 3603C93000.

Bosch PBH 2800 RE 3603C93000
Bosch Spare Parts for Rotary Hammer PBH 2800 RE
  • Bosch Spare Parts for Rotary Hammer PBH 2800 RE
  • Bosch Spare Parts for Rotary Hammer PBH 2800 RE
  • Bosch Spare Parts for Rotary Hammer PBH 2800 RE

Bosch Spare Parts for Rotary Hammer PBH 2800 RE

SKU: Bosch PBH 2800 RE 3603C93000 Condition: New
€2.25
VAT included

Bosch Spare Parts for Rotary Hammer PBH 2800 RE

BOSCH Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer PBH 2800 RE - 3603C93000.

Bosch PBH 2800 RE 3603C93000
settings 82 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

72 spare parts

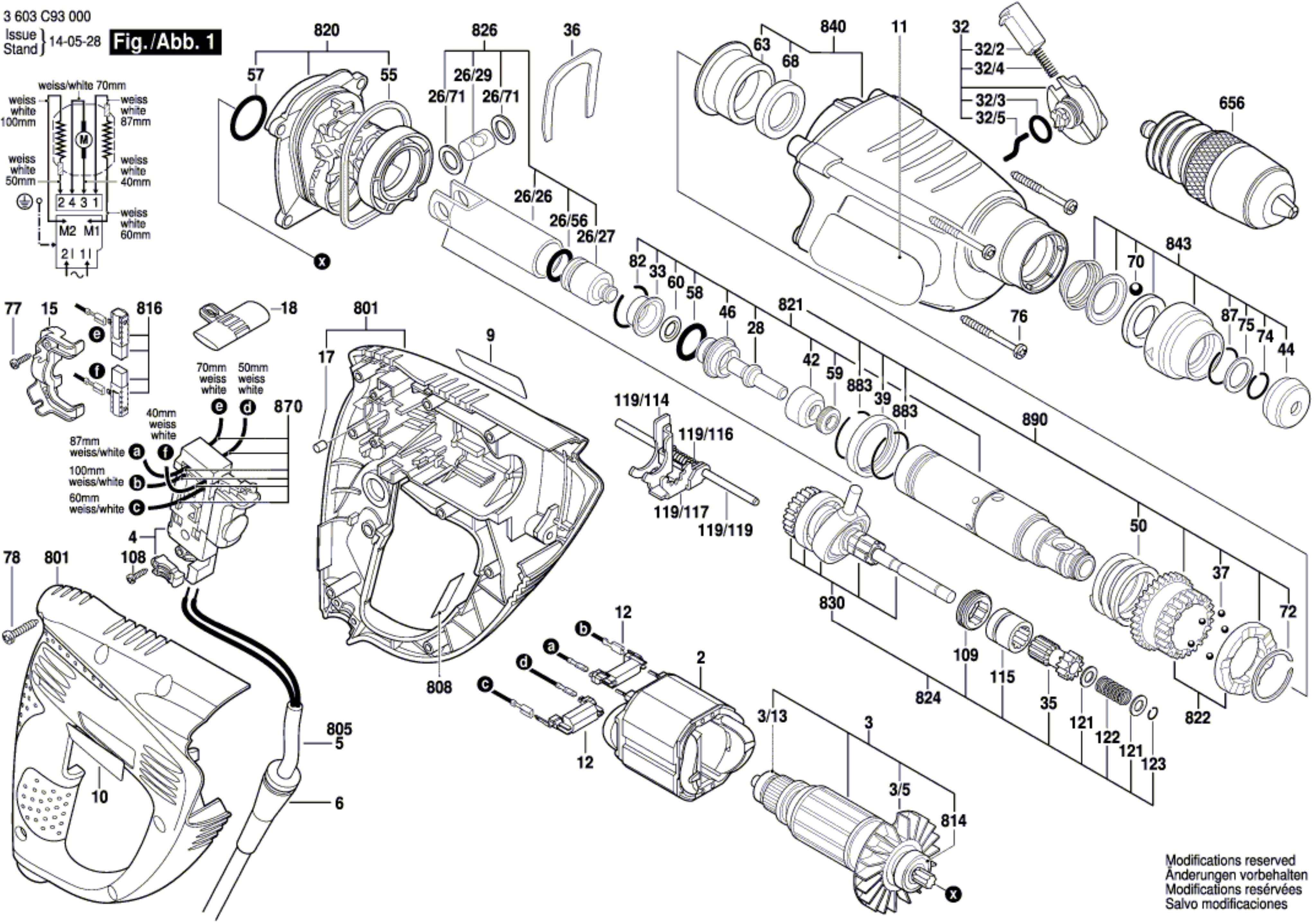

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 1614220193 Field 230V €23.92
3/13
photo_cameraImage coming soon 1610905032 groove ball bearing 7x19x6 €5.35
3
photo_cameraImage coming soon 1614010251 Armature 230V €67.32
3/5
photo_cameraImage coming soon 1616610094 Fan €2.22
4
Switch for Rotary Hammer Bosch PBH 2800 RE 1617200111 Switch for Rotary Hammer Bosch PBH 2800 RE €37.86
6
photo_cameraImage coming soon 2600703018 Grommet Ø7,3-Ø8,6x76 MM €2.22
9
photo_cameraImage coming soon 1611110Z05 Manufacturer's nameplate PBH 2800 RE €1.94
10
photo_cameraImage coming soon 1611110Z06 Manufacturer's nameplate PBH 2800 RE €1.94
11
photo_cameraImage coming soon 1611110Z13 Reference Plate €1.94
12
photo_cameraImage coming soon 1617328032 Suppression Filter €6.29
15
photo_cameraImage coming soon 1615808099 Bearing Bracket €2.78
17
photo_cameraImage coming soon 2603100056 Rubber Buffer €1.54
26/71
Shim Washer 1,2 mm for Rotary Hammer Bosch GBH 2-22 RE 1610101011 Shim Washer 1,2 mm for Rotary Hammer Bosch GBH 2-22 RE €1.67
26/56
O-Ring 21x15x3,15 for Hammer Bosch GBH 36 V-LI 1610210187 O-Ring 21x15x3,15 for Hammer Bosch GBH 36 V-LI €2.46
26/27
photo_cameraImage coming soon 1610311018 Striker €20.47
26/29
photo_cameraImage coming soon 1613105012 Piston Pin €3.68
26/26
photo_cameraImage coming soon 1618700089 Hammer Piston €11.95
28
photo_cameraImage coming soon 1613124081 Striker Pin €8.33
32/2
Red Knob Switch for Hammers Bosch GBH 36V-VF-LI 1612026035 Red Knob Switch for Hammers Bosch GBH 36V-VF-LI €1.67
32
photo_cameraImage coming soon 1612026136 Clamp Handle €4.32
32/4
photo_cameraImage coming soon 1614611006 Compression Spring €4.71
33
photo_cameraImage coming soon 1610590014 Holding Jacket €2.22
35
photo_cameraImage coming soon 1616328051 Gear Sleeve €8.52
36
Holding Plate for Rotary Hammer Bosch GBH 36 VF-LI 1611016003 Holding Plate for Rotary Hammer Bosch GBH 36 VF-LI €2.22
37
photo_cameraImage coming soon 1903230007 Ball DIN 5401-4 MM-III-ST €1.58
39
photo_cameraImage coming soon 1610102078 Friction Washer €2.29
42
photo_cameraImage coming soon 1610102073 Thrust Ring €5.51
44
Front Hood for Hammer Bosch GBH-PBH 1610508047 Front Hood for Hammer Bosch GBH-PBH €2.89
46
photo_cameraImage coming soon 1610390051 Guide Bushing €6.52
50
photo_cameraImage coming soon 1614643019 Compression Spring €1.94
55
photo_cameraImage coming soon 1610290108 O-Ring €1.92
57
O-Ring 24,0x2,5 mm for Hammers Bosch GBH 36V-VF-LI 1610210068 O-Ring 24,0x2,5 mm for Hammers Bosch GBH 36V-VF-LI €1.67
58
photo_cameraImage coming soon 1610210178 O-Ring €1.68
59
photo_cameraImage coming soon 1610283035 Rotary shaft lip seal €5.78
63
photo_cameraImage coming soon 1610202026 Plain bearing €4.40
68
photo_cameraImage coming soon 1610283019 Shaft Seal €7.12
70
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE 1903230013 Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE €2.83
72
photo_cameraImage coming soon 1604601027 Retaining ring €15.53
74
photo_cameraImage coming soon 1614601027 Retaining ring €15.53
75
photo_cameraImage coming soon 1610101629 Retaining Washer €15.53
76
Torx Screw M 4.5x45 for Rotary Hammer Bosch GBH 2-22 RE 160343000A Torx Screw M 4.5x45 for Rotary Hammer Bosch GBH 2-22 RE €1.02
78
Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
87
photo_cameraImage coming soon 2916540012 Retaining ring DIN 7993-A22 €3.05
109
photo_cameraImage coming soon 1615820098 Switching Element €1.66
115
photo_cameraImage coming soon 1615820099 Switching Element €2.78
119/114
photo_cameraImage coming soon 1601021007 Shift Plate €1.66
119/117
photo_cameraImage coming soon 1601021008 Shift Plate €1.66
119/119
photo_cameraImage coming soon 1613023002 Guide Rod €2.29
119/116
photo_cameraImage coming soon 1614643021 Compression Spring €1.24
120
photo_cameraImage coming soon 2602025125 Auxiliary Handle BLACK €8.38
651
photo_cameraImage coming soon 2609005615 Depth-Gauge €4.55
656
photo_cameraImage coming soon 1618571033 Keyless Chuck €61.72
801
photo_cameraImage coming soon 1617000V97 Motor Housing €25.88
805
photo_cameraImage coming soon 3607030489 Power supply cord €31.69
808
photo_cameraImage coming soon 160111A3H6 Nameplate €1.94
814
photo_cameraImage coming soon 1610905048 Deep-Groove Ball Bearing 9x24x7 €8.33
816
photo_cameraImage coming soon 1617014146 Carbon-Brush Set €12.72
820
photo_cameraImage coming soon 1617000V98 Intermediate Flange €20.21
821
photo_cameraImage coming soon 1617000606 Hammer Pipe €67.32
822
photo_cameraImage coming soon 1617000A41 Clutch Set €12.92
824
photo_cameraImage coming soon 1617000608 Shaft €74.32
826
photo_cameraImage coming soon 1617000604 Hammer Piston €29.24
830
photo_cameraImage coming soon 1617000601 Drive bearing €61.72
840
photo_cameraImage coming soon 1617000V99 Gear Housing €29.24
843
photo_cameraImage coming soon 1617000531 Protection Sleeve BLACK €9.52
870
photo_cameraImage coming soon 1619P01776 Connecting Cable €4.12
883
photo_cameraImage coming soon 1604601028 Retaining ring A22 DIN 7993 €15.53
890
photo_cameraImage coming soon 1617000605 Hammer Pipe €89.01
895
photo_cameraImage coming soon 1615438457 Locking Hook €4.88

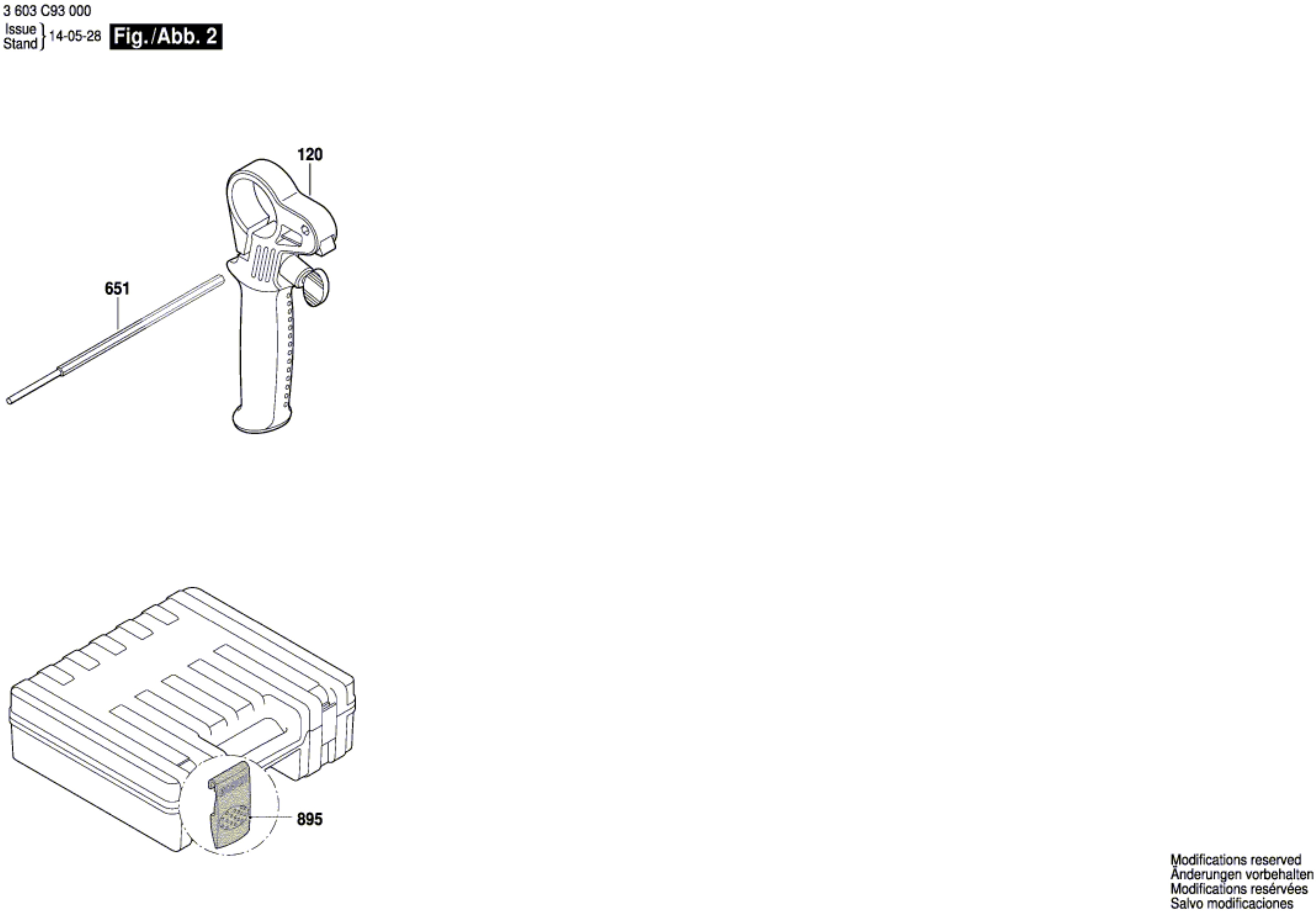

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
120
photo_cameraImage coming soon 2602025125 Auxiliary Handle BLACK €8.38
651
photo_cameraImage coming soon 2609005615 Depth-Gauge €4.55
895
photo_cameraImage coming soon 1615438457 Locking Hook €4.88

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Rotary Hammer PBH 2800 RE

BOSCH Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer PBH 2800 RE - 3603C93000.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Bosch PBH 2800 RE 3603C93000

Rotary Hammer PBH 2800 RE/3 603 C93 000
# Part Num. Description
2 1614220193 Field 230V
3 1614010251 Armature 230V
3/5 1616610094 Fan
3/13 1610905032 groove ball bearing 7x19x6
4 1617200111 Switch
6 2600703018 Grommet Ø7,3-Ø8,6x76 MM
9 1611110Z05 Manufacturer's nameplate PBH 2800 RE
10 1611110Z06 Manufacturer's nameplate PBH 2800 RE
11 1611110Z13 Reference Plate
12 1617328032 Suppression Filter
15 1615808099 Bearing Bracket
17 2603100056 Damping rubber
18 1613231025 Change-Over Switch
26/26 1618700089 Hammer Piston
26/27 1610311018 Striker
26/29 1613105012 Piston Pin
26/56 1610210187 O-Ring
26/71 1610101011 Shim washer 1,2 MM THICK
28 1613124081 Striker Pin
32 1612026136 Clamp Handle
32/2 1612026035 Switch Button RED
32/3 1610210200 O-Ring 12,5x2,5 MM
32/4 1614611006 Compression Spring
32/5 1614690006 Driver Pin
33 1610590014 Holding Jacket
35 1616328051 Gear Sleeve
36 1611016003 Holding Plate
37 1903230007 Ball DIN 5401-4 MM-III-ST
39 1610102078 Friction Washer
42 1610102073 Thrust Ring
44 1610508047 Protective Cap
46 1610390051 Guide Bushing
50 1614643019 Compression Spring
55 1610290108 O-Ring
57 1610210068 O-Ring 24,0x2,5 MM
58 1610210178 O-Ring
59 1610283035 Rotary shaft lip seal
60 1610210176 O-Ring 9,0x3,5 MM
63 1610202026 Plain bearing
68 1610283019 Shaft Seal
70 1903230013 Ball DIN 5401-Ø7MM-III-ST
72 1604601027 Retaining ring
74 1614601027 Retaining ring
75 1610101629 Retaining Washer
76 160343000A Thread-forming tap. Screw
77 1613435034 Lens Head Screw 3x10 ST
78 2603490023 Torx Oval-Head Screw 4x20
82 1614601057 Retaining ring
87 2916540012 Retaining ring DIN 7993-A22
108 1613435034 Lens Head Screw 3x10 ST
109 1615820098 Switching Element
115 1615820099 Switching Element
119/114 1601021007 Shift Plate
119/116 1614643021 Compression Spring
119/117 1601021008 Shift Plate
119/119 1613023002 Guide Rod
120 2602025125 Auxiliary Handle BLACK
121 1610100613 Shim
122 1614643022 Compression Spring
123 2916540004 Retaining ring DIN 7993-A7
651 2609005615 Depth-Gauge
656 1618571033 Keyless Chuck
801 1617000V97 Motor Housing
805 3607030489 Power supply cord
808 160111A3H6 Nameplate
814 1610905048 groove ball bearing 9x24x7
816 1617014146 Carbon-Brush Set
820 1617000V98 Intermediate Flange
821 1617000606 Hammer Pipe
822 1617000A41 Clutch Set
824 1617000608 Shaft
826 1617000604 Hammer Piston
830 1617000601 Drive bearing
840 1617000V99 Gear Housing
843 1617000531 Protection Sleeve BLACK
870 1619P01776 Connecting Cable
883 1604601028 Retaining ring A22 DIN 7993
890 1617000605 Hammer Pipe
895 1615438457 Locking Hook
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch PBH 2800 RE 3603C93000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch PBH 2800 RE

Diagram Bosch PBH 2800 RE

Download (242.36KB)
