Bosch Spare Parts for Chain Saw AKE 30 S

SKU: Bosch AKE 30 S - 3600H34400
€27.89
VAT included

Bosch Spare Parts for Chain Saw AKE 30 S

Bosch original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Chain Saw AKE 30 S - 3600H34400.

Bosch AKE 30 S - 3600H34400
Bosch Spare Parts for Chain Saw AKE 30 S
  • Online only
  • Bosch Spare Parts for Chain Saw AKE 30 S
  • Bosch Spare Parts for Chain Saw AKE 30 S

Bosch Spare Parts for Chain Saw AKE 30 S

SKU: Bosch AKE 30 S - 3600H34400 Condition: New
€27.89
VAT included

Bosch Spare Parts for Chain Saw AKE 30 S

Bosch original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Chain Saw AKE 30 S - 3600H34400.

Bosch AKE 30 S - 3600H34400
settings 40 spare parts

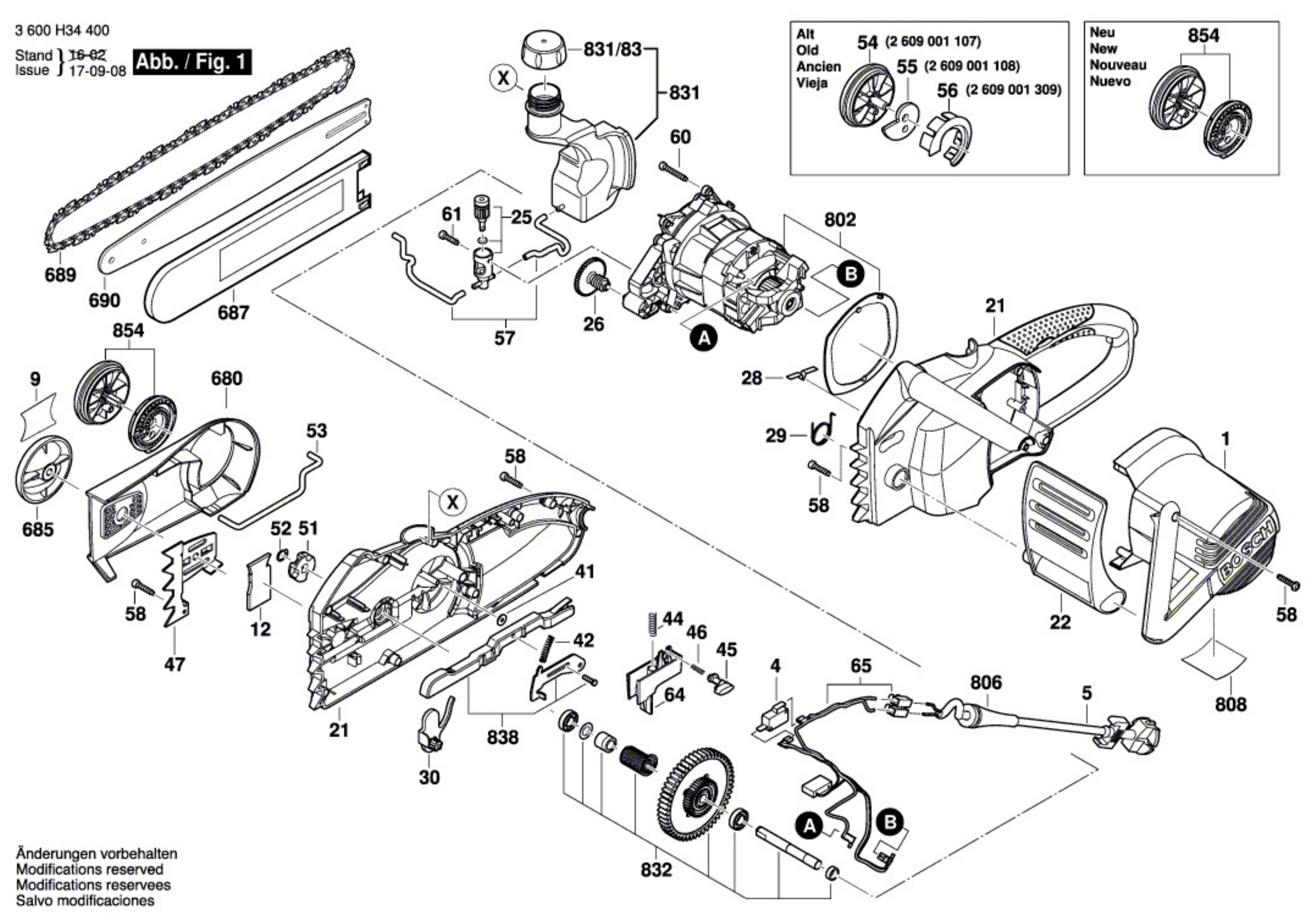

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

36 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon 2609001023 Motor Housing GREEN €26.00
4
photo_cameraImage coming soon 2609001096 Switch €6.94
5
photo_cameraImage coming soon 2604460183 Power supply cord EU 0,4m 2 x 1,0mm H07 RN-F €10.27
9
photo_cameraImage coming soon 2609002664 Manufacturer's nameplate AKE 30 S €1.94
21
photo_cameraImage coming soon 2609001110 Housing €80.08
22
photo_cameraImage coming soon 2609001024 Protective Shield €9.69
25
photo_cameraImage coming soon 1600A009Y6 Pump €17.09
26
photo_cameraImage coming soon 2609001043 Worm-Gear Pair €9.71
28
photo_cameraImage coming soon 2609001047 Spring €1.33
29
photo_cameraImage coming soon 2609006397 Torsion Spring €2.09
30
photo_cameraImage coming soon 2609001032 Lever €2.51
44
photo_cameraImage coming soon 2609001048 Compression Spring €1.33
45
photo_cameraImage coming soon 2609001031 Safety Switch €2.95
47
photo_cameraImage coming soon 2609007270 Mounting Plate €5.92
51
photo_cameraImage coming soon 2609001036 Sprocket wheel €6.32
52
photo_cameraImage coming soon 2916650001 Spring retaining ring DIN 471-10x1MM-FSt  €3.22
53
photo_cameraImage coming soon 2609001109 Rod €8.10
57
photo_cameraImage coming soon 2609001086 Pipe €2.09
58
Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
60
photo_cameraImage coming soon 2603490024 Torx Oval-Head Screw 4x25 €2.09
61
photo_cameraImage coming soon 2603490021 Torx Oval-Head Screw 4x12 €1.39
64
photo_cameraImage coming soon 2609001029 Switch Segment €2.16
65
photo_cameraImage coming soon 2609004394 Suppression Filter €8.84
680
photo_cameraImage coming soon 2609001104 Protective Cover BLACK €17.76
685
photo_cameraImage coming soon 2609001106 Wheel €5.35
687
photo_cameraImage coming soon 1605510329 Chain Guard  €9.92
689
photo_cameraImage coming soon 2609007363 Saw Chain AKE 30, AKE 30 LI €24.52
690
Guide Rail 300 mm 12" for Electric Chain Saw Bosch AKE 30 S 1602317005 Guide Rail 300 mm 12" for Electric Chain Saw Bosch AKE 30 S €27.77
802
photo_cameraImage coming soon 2609002728 Motor €100.11
806
photo_cameraImage coming soon 2609005766 Grommet €3.73
808
photo_cameraImage coming soon 160111A3V3 Nameplate €1.94
831/83
Oil Reservoir Cap for Electric Chain Saw Bosch AKE 30 S 2609001040 Oil Reservoir Cap for Electric Chain Saw Bosch AKE 30 S €2.90
831
Oil Reservoir for Electric Chain Saw Bosch AKE 30 S 2609001599 Oil Reservoir for Electric Chain Saw Bosch AKE 30 S €19.61
832
photo_cameraImage coming soon 2609001100 Clutch €55.59
838
photo_cameraImage coming soon 2609001597 Linkage €17.76
854
photo_cameraImage coming soon 2609004723 Wheel €17.76

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Chain Saw AKE 30 S

Bosch original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Chain Saw AKE 30 S - 3600H34400.

In the following table, look for the model of the Chain Saw and the respective parts of the code.
Bosch AKE 30 S - 3600H34400

Chain Saw AKE 30 S/3 600 H34 400
# Part Num. Description
1 2609001023 Motor Housing GREEN
4 2609001096 Switch
5 2604460183 Power supply cord EU 0,4m 2 x 1,0mm H07 RN-F
9 2609002664 Manufacturer's nameplate AKE 30 S
12 2609007036 Seal Element
21 2609001110 Housing
22 2609001024 Protective Shield
25 1600A009Y6 Pump
26 2609001043 Worm-Gear Pair
28 2609001047 Spring
29 2609006397 Torsion Spring
30 2609001032 Lever
41 2916011892 Plain Washer DIN 9021-B 4,3-ST
42 2609001093 Spring
44 2609001048 Compression Spring
45 2609001031 Safety Switch
46 2609001090 Compression Spring
47 2609007270 Mounting Plate
51 2609001036 Sprocket wheel
52 2916650001 Spring retaining ring DIN 471-10x1MM-FSt
53 2609001109 Rod
57 2609001086 Pipe
58 2603490023 Torx Oval-Head Screw 4x20
60 2603490024 Torx Oval-Head Screw 4x25
61 2603490021 Torx Oval-Head Screw 4x12
64 2609001029 Switch Segment
65 2609004394 Suppression Filter
680 2609001104 Protective Cover BLACK
685 2609001106 Wheel
687 1605510329 Chain Guard
689 2609007363 Saw Chain AKE 30, AKE 30 LI
690 1602317005 Guide Rail 300 MM
802 2609002728 Motor
806 2609005766 Grommet
808 160111A3V3 Nameplate
831 2609001599 Oil Reservoir
831/83 2609001040 Reservoir Cap
832 2609001100 Clutch
838 2609001597 Linkage
854 2609004723 Wheel
