Bosch Spare Parts for Cordless Percussion Screw. PSB 14,4 LI-2

SKU: PSB 14,4 LI-2 14.4 V 3603J58400
€5.93
VAT included

Bosch Spare Parts for Cordless Percussion Screw. PSB 14,4 LI-2

Bosch original spare parts for to replace broken parts or to fix Cordless Percussion Screwdriver 3603J58400 - PSB 14,4 LI-2 / 14.4 V /EU0.

Fix Your Cordless Percussion Screwdriver 3603J58400 - PSB 14,4 LI-2 / 14.4 V. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

PSB 14,4 LI-2 14.4 V 3603J58400
Bosch Spare Parts for Cordless Percussion Screw. PSB 14,4 LI-2
  • Bosch Spare Parts for Cordless Percussion Screw. PSB 14,4 LI-2

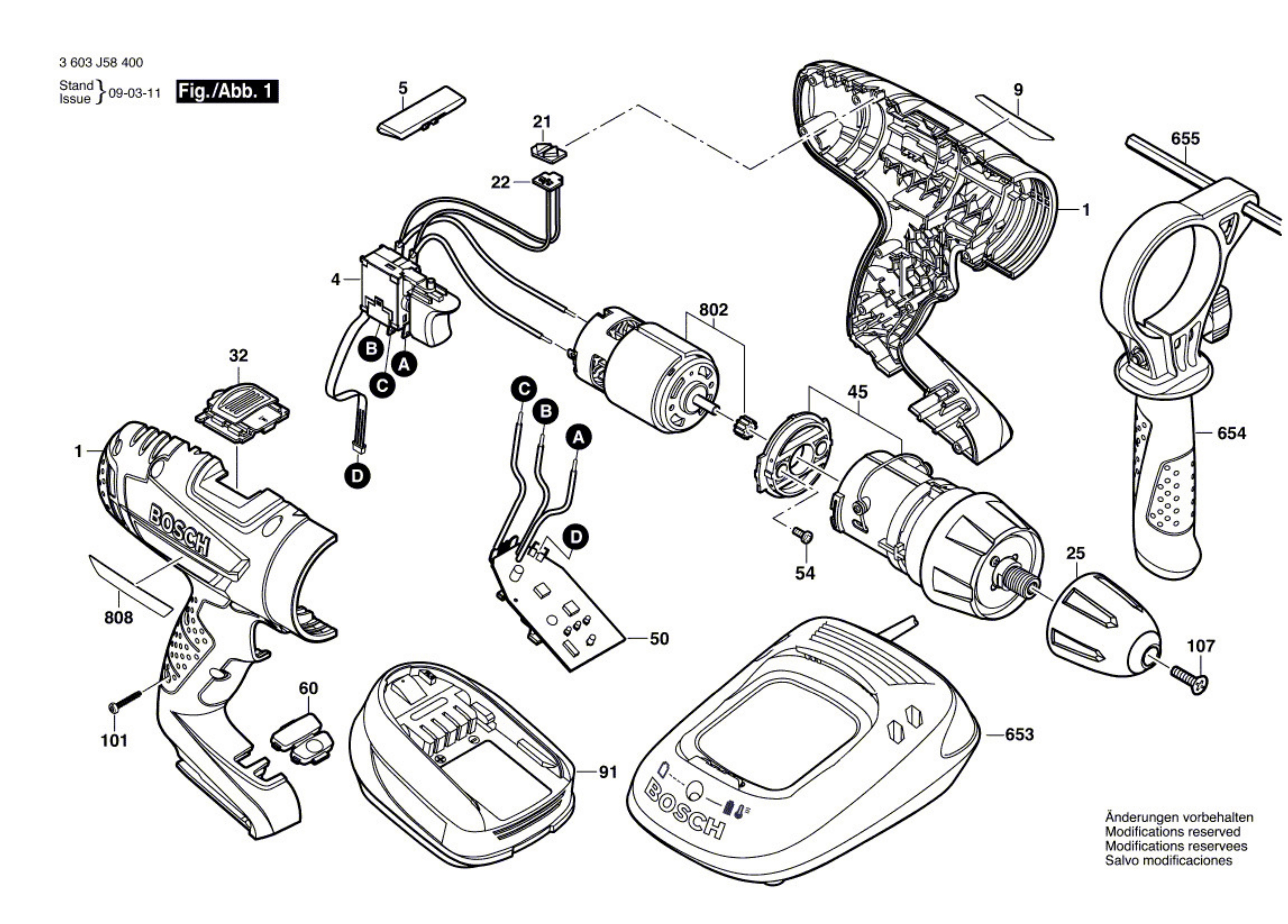

  • Bosch Spare Parts for Cordless Percussion Screw. PSB 14,4 LI-2 - Parts Diagram

Bosch Spare Parts for Cordless Percussion Screw. PSB 14,4 LI-2

SKU: PSB 14,4 LI-2 14.4 V 3603J58400 Condition: New
€5.93
VAT included

Bosch Spare Parts for Cordless Percussion Screw. PSB 14,4 LI-2

Bosch original spare parts for to replace broken parts or to fix Cordless Percussion Screwdriver 3603J58400 - PSB 14,4 LI-2 / 14.4 V /EU0.

Fix Your Cordless Percussion Screwdriver 3603J58400 - PSB 14,4 LI-2 / 14.4 V. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

PSB 14,4 LI-2 14.4 V 3603J58400
settings 23 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

21 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 2607225473 Fast Charger GB 230/14,4-18V, 1h  €66.35
photo_cameraImage coming soon 2607225475 Charger AUS 240/14,4-18V, 1h  €59.21
photo_cameraImage coming soon 2609003280 Housing GREEN  €32.67
photo_cameraImage coming soon 2609006607 Manufacturer's nameplate PSB 1440 LI-2  €2.25
4
photo_cameraImage coming soon 2607202067 On-Off Switch  €21.49
5
photo_cameraImage coming soon 2609003282 Lever  €1.43
9
photo_cameraImage coming soon 2609003278 Manufacturer's nameplate PSB 14,4 LI-2  €2.25
22
photo_cameraImage coming soon 1609271711 Printed Circuit Board  €5.04
32
photo_cameraImage coming soon 2609003283 Change-Over Switch  €3.23
45
photo_cameraImage coming soon 2609003041 Gear Box  €87.00
50
photo_cameraImage coming soon 2609003139 Electronic Assembly €78.81
54
photo_cameraImage coming soon 2603414049 Torx SH cap screw M4x8-4,8-Z €1.43
60
photo_cameraImage coming soon 2609003287 Cover  €1.92
91
photo_cameraImage coming soon 2607336037 Slide-In Accu Package 14,4V, 1,3Ah, LI €90.28
101
Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch 2603490018 Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch €0.93
107
photo_cameraImage coming soon 2609110721 Countersunk-Head Screw M5x20 €1.52
653
Bosch Fast Charger EU AL 2215 CV 230/14,4-18V 2607225471 Bosch Fast Charger EU AL 2215 CV 230/14,4-18V €129.00 Not available for order
654
photo_cameraImage coming soon 2609003247 Auxiliary Handle  €9.95
655
photo_cameraImage coming soon 2609005615 Depth-Gauge €4.55
802
photo_cameraImage coming soon 2609003661 DC motor 18V  €47.08
808
photo_cameraImage coming soon 2609003288 Nameplate €2.25

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Cordless Percussion Screw. PSB 14,4 LI-2

Bosch original spare parts for to replace broken parts or to fix Cordless Percussion Screwdriver 3603J58400 - PSB 14,4 LI-2 / 14.4 V /EU0.

Fix Your Cordless Percussion Screwdriver 3603J58400 - PSB 14,4 LI-2 / 14.4 V. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Cordless Impact Drill and the respective parts of the code.
PSB 14,4 LI-2 14.4 V 3603J58400

Cordless Percussion Screwdriver 3603J58400 - PSB 14,4 LI-2 / 14.4 V /EU
# Part Num. Description
1 2609003280 Housing GREEN
4 2607202067 On-Off Switch
5 2609003282 Lever
9 2609003278 Manufacturer's nameplate PSB 14,4 LI-2
2609006607 Manufacturer's nameplate PSB 1440 LI-2
21 2609001694 Lens
22 1609271711 Printed Circuit Board
25 2609003200 Keyless Chuck
32 2609003283 Change-Over Switch
45 2609003041 Gear Box
50 2609003139 Electronic Assembly
54 2603414049 Torx SH cap screw M4x8-4,8-Z
60 2609003287 Cover
91 2607336037 Slide-In Accu Package 14,4V, 1,3Ah, LI
101 2603490018 Torx Oval-Head Screw 3x18
107 2609110721 Countersunk-Head Screw M5x20
653 2607225471 Fast Charger EU AL 2215 CV 230/14,4-18V, 1h
2607225473 Fast Charger GB AL 2215 CV 230/14,4-18V, 1h
2607225475 Charger AUS AL 2215 CV 240/14,4-18V, 1h
654 2609003247 Auxiliary Handle
655 2609005615 Depth-Gauge
802 2609003661 DC motor 18V
808 2609003288 Nameplate
