Bosch

Bosch Spare Parts for Angle Grinder GWS 14-150C

SKU: Bosch GWS 14-150C - 0601806703
€2.31
VAT included

Bosch Spare Parts for Angle Grinder GWS 14-150C

We have the original Bosch Spare Parts for Angle Grinder GWS 14-150C, the diagram, parts list and tool repair that help you need to get your tools running like new again

Fix Your Angle Grinder GWS 14-150C - 0601806703. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee

Bosch GWS 14-150C - 0601806703
Bosch Spare Parts for Angle Grinder GWS 14-150C
  • Bosch Spare Parts for Angle Grinder GWS 14-150C
  • Bosch Spare Parts for Angle Grinder GWS 14-150C
Bosch

Bosch Spare Parts for Angle Grinder GWS 14-150C

SKU: Bosch GWS 14-150C - 0601806703 Condition: New
€2.31
VAT included

Bosch Spare Parts for Angle Grinder GWS 14-150C

We have the original Bosch Spare Parts for Angle Grinder GWS 14-150C, the diagram, parts list and tool repair that help you need to get your tools running like new again

Fix Your Angle Grinder GWS 14-150C - 0601806703. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee

Bosch GWS 14-150C - 0601806703
settings 56 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

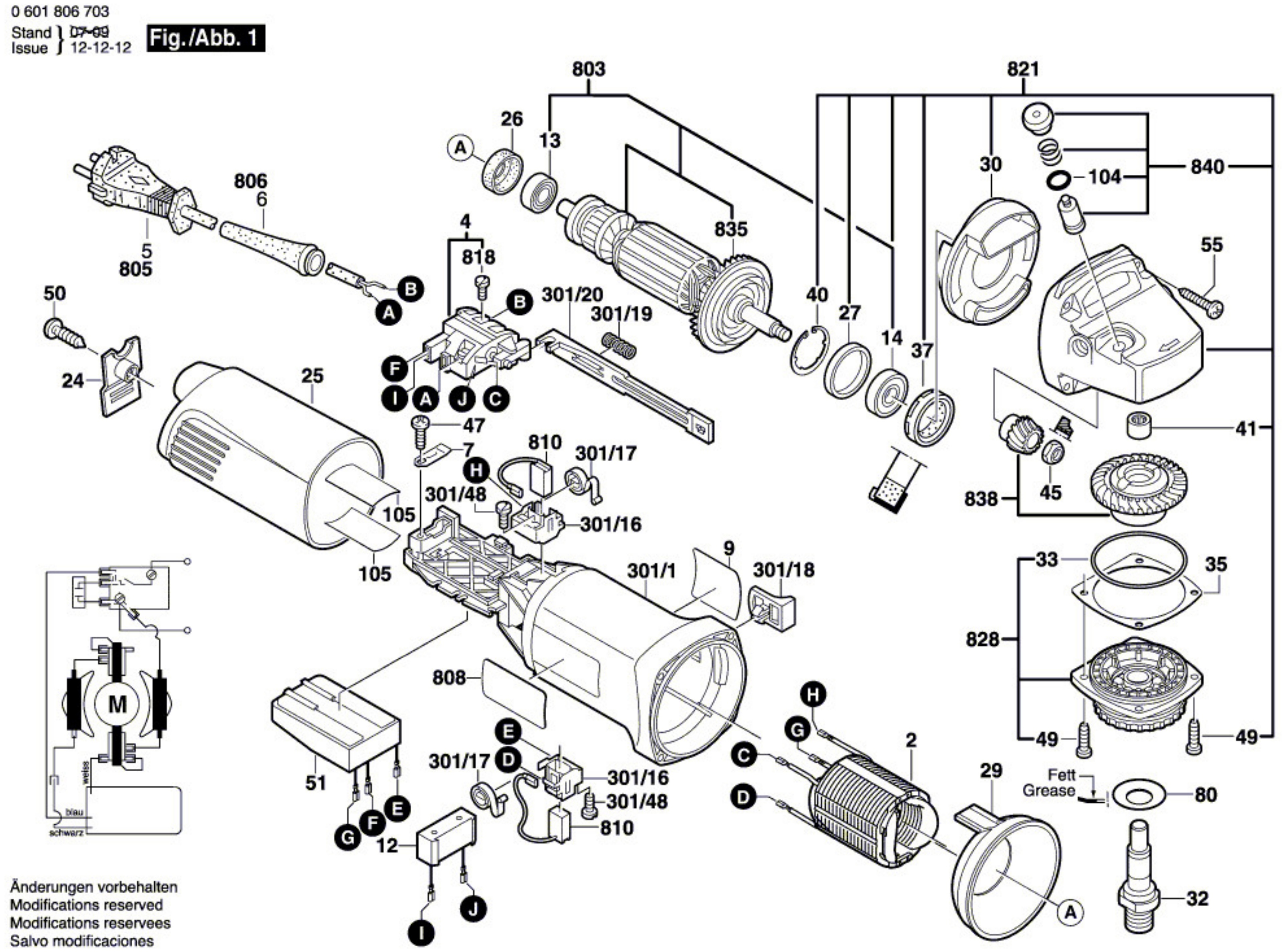

Esploso pagina 1
Pos. Item Price Buy
2
 Stator for Angle Grinder Bosch PWS 13-125 CE 1604220284 Stator for Angle Grinder Bosch PWS 13-125 CE €48.66
4
 photo_cameraImage coming soon 1607200137 Switch  €12.72
7
 Fastening Clamp for Angle grinder Bosch GWS 6-115 1601302017 Fastening Clamp for Angle grinder Bosch GWS 6-115 €1.09
9
 photo_cameraImage coming soon 1601118A78 Manufacturer's nameplate  €2.78
12
 photo_cameraImage coming soon 1607328042 Suppression Filter €5.32
13
 Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
14
 photo_cameraImage coming soon 1600905032 groove ball bearing 8x22x7 €5.65
24
 photo_cameraImage coming soon 1605500228 Cover BLUE €2.35
25
 photo_cameraImage coming soon 1605500226 Housing Cover BLUE  €4.88
26
 photo_cameraImage coming soon 1600206036 Rubber Ring €1.56
27
 Armature Bearing Rubber Ring for Angle Grinder Bosch GWS 6-115 1600206025 Armature Bearing Rubber Ring for Angle Grinder Bosch GWS 6-115 €2.28
29
 photo_cameraImage coming soon 1600591025 Air-Deflector Ring €1.99
30
 photo_cameraImage coming soon 1600591014 Air-Deflector Ring €2.08
32
 Spindle Shaft M 14 for Angle Grinders Bosch GWS 6-115 1603523110 Spindle Shaft M 14 for Angle Grinders Bosch GWS 6-115 €12.04
33
 O-Ring 46,0x1,1mm for Circular Saw Bosch GKS 55 3600210124 O-Ring 46,0x1,1mm for Circular Saw Bosch GKS 55 €2.53
35
 photo_cameraImage coming soon 1600136013 Shim 0,1 MM THICK €2.46
35
 photo_cameraImage coming soon 1600136014 Shim 0,2 MM THICK €2.46
35
 photo_cameraImage coming soon 1600136015 Shim 0,3 MM THICK €2.46
35
 photo_cameraImage coming soon 1600136020 Shim 0,15 MM THICK €3.47
37
 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 1600290016 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 €2.61
40
 Spring Retaining Ring for Angle Grinder Bosch GWS 8-115 1600119011 Spring Retaining Ring for Angle Grinder Bosch GWS 8-115 €2.25
41
 Needle-Roller Bearing for Angle Grinders Bosch GWS 6-115-GWS 660 1600910018 Needle-Roller Bearing for Angle Grinders Bosch GWS 6-115-GWS 660 €5.66
45
 Hex Nut M7 SW10 for Angle Grinder Bosch PWS 6-115 1603300016 Hex Nut M7 SW10 for Angle Grinder Bosch PWS 6-115 €1.71
47
 photo_cameraImage coming soon 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z €1.41
49
 Thread Forming Screw for Angle Grinder Bosch PWS 10-125 CE 1603435026 Thread Forming Screw for Angle Grinder Bosch PWS 10-125 CE €1.71
50
 Tapping Screw ST3,9x19-F-Z for Angle Grinder Bosch GWS 6-115 2912401420 Tapping Screw ST3,9x19-F-Z for Angle Grinder Bosch GWS 6-115 €1.05
80
 Sealing Disk for Grinder Bosch GWS 6-115 3600150021 Sealing Disk for Grinder Bosch GWS 6-115 €4.82
105
 photo_cameraImage coming soon 1601008005 Insulating Plate €2.35
301/16
 photo_cameraImage coming soon 1601323025 Brush Holder €2.86
301/18
 Switch Handle for Angle Grinders Bosch PWS 7-115 1602026057 Switch Handle for Angle Grinders Bosch PWS 7-115 €1.76
301/19
 Compression Spring for Angle Grinders Bosch PWS 7-115 1604611026 Compression Spring for Angle Grinders Bosch PWS 7-115 €0.94
301/17
 Spiral Spring for Angle Grinders Bosch GWS/PWS6-115 1604652013 Spiral Spring for Angle Grinders Bosch GWS/PWS6-115 €2.07
301/1
 photo_cameraImage coming soon 1605108208 Motor Housing BLUE €8.85
803
 photo_cameraImage coming soon 1604010654 Armature With Fan 220-240V €81.10
805
 photo_cameraImage coming soon 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F €36.70
806
 Grommet mm Ø7,3-Ø8,6x67 for Angle Grinders Bosch 1600703031 Grommet mm Ø7,3-Ø8,6x67 for Angle Grinders Bosch €2.57
808
 photo_cameraImage coming soon 160111A3H3 Nameplate  €3.22
810
 Carbon Brushes for Angle Grinders Bosch GWS 8-115-PWS 10-125 CE 1607014176 Carbon Brushes for Angle Grinders Bosch GWS 8-115-PWS 10-125 CE €16.31
821
 photo_cameraImage coming soon 1605806451 Gear Housing €45.02
828
 photo_cameraImage coming soon 1607000348 Bearing Flange Ø 150 MM  €13.70
835
 photo_cameraImage coming soon 1606610129 Fan €1.66
838
 photo_cameraImage coming soon 1607000A4P Set Of Gearwheels €30.89
840
 photo_cameraImage coming soon 1607000253 Push-Button BLACK €1.80
890
 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 1600210039 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 €1.28
891
 photo_cameraImage coming soon 1602025031 Auxiliary Handle M10, Ø37x115 MM ANTI-VIBRATION €21.05
891
 photo_cameraImage coming soon 2602025067 Auxiliary Handle M10, Ø32,5x105 MM €3.67
892
 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 1603345043 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 €9.26
893
 Pin-Type Face-Wrench for Angle Grinders Bosch GWS 850 CE 1607950052 Pin-Type Face-Wrench for Angle Grinders Bosch GWS 850 CE €4.84
894
 photo_cameraImage coming soon 1605510308 Protective Cover Ø 150 MM  €29.24
895
 Clamping Flange for Angle Grinder Bosch PWS 6-115 2605703014 Clamping Flange for Angle Grinder Bosch PWS 6-115 €7.98

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Angle Grinder GWS 14-150C

Fix Your Angle Grinder GWS 14-150C - 0601806703. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Bosch GWS 14-150C - 0601806703

Angle Grinder - 0601806703 - GWS 14-150C/230 V/EU
# Part Num. Description
2 1604220284 Field 220-230V
4 1607200137 Switch
7 1601302017 Fastening Clamp
9 1601118A78 Manufacturer's nameplate
12 1607328042 Suppression Filter
13 2600905032 Ball Bearing 7x19x6
14 1600905032 groove ball bearing 8x22x7
24 1605500228 Cover BLUE
25 1605500226 Housing Cover BLUE
26 1600206036 Rubber Ring
27 1600206025 Rubber Ring
29 1600591025 Air-Deflector Ring
30 1600591014 Air-Deflector Ring
32 1603523110 Grinding Spindle M14, SW17
33 3600210124 O-Ring 46,0x1,1 MM RED
35 1600136013 Shim 0,1 MM THICK
35 1600136020 Shim 0,15 MM THICK
35 1600136014 Shim 0,2 MM THICK
35 1600136015 Shim 0,3 MM THICK
37 1600290016 Rotary shaft lip seal
40 1600119011 Retaining clip
41 1600910018 Needle bearing Ø8xØ12x8 MM
45 1603300016 Hex Nut M7, SW10
47 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z
49 1603435026 Thread-forming tap. Screw
50 2912401420 Tapping Screw DIN7981-ST3,9x19-F-Z
51 1607233107 Speed governor 220-240V
55 1603415005 Oval-Head Screw
80 3600150021 Sealing disk
104 1600210044 O-Ring 4,5x1,0 MM BLUE
105 1601008005 Insulating Plate
301/1 1605108208 Motor Housing BLUE
301/16 1601323025 Brush Holder
301/17 1604652013 Spiral Spring
301/18 1602026057 Switch Handle BLACK
301/19 1604611026 Compression Spring
301/20 1602319011 Adjusting Slide
301/48 2912401005 Tapping Screw DIN7981-ST2,9x9,5C-Z
803 1604010654 Armature With Fan 220-240V
805 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
806 1600703031 Grommet Ø7,3-Ø8,6x67 MM
808 160111A3H3 Nameplate
810 1607014176 Carbon-Brush Set
818 2910110048 Pan head screw DIN 85-AM3x6-CUZN
821 1605806451 Gear Housing
828 1607000348 Bearing Flange Ø 150 MM
835 1606610129 Fan
838 1607000A4P Set Of Gearwheels
840 1607000253 Push-Button BLACK
890 1600210039 O-Ring 20,35x1,78 MM
891 2602025067 Auxiliary Handle M10, Ø32,5x105 MM
891 1602025031  Auxiliary Hand le M10,Ø37x115MM ANTI-VIBRATION
892 1603345043 Round Nut M14
893 1607950052 Pin-Type Face-Wrench
894 1605510308 Protective Cover Ø 150 MM
895 2605703014 Clamping Flange Ø22,3xØ42 MM
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GWS 14-150C - 0601806703
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GWS 14-150C

Diagram Bosch GWS 14-150C

Download (209.92KB)
