Bosch Spare Parts for Universal Angle Polisher GPO 14 CE

SKU: Bosch GPO 14 CE - 3601C89000
€2.31
VAT included

Bosch Spare Parts for Universal Angle Polisher GPO 14 CE

Bosch genuine replacement parts for to replace broken parts for to fix Universal Angle Polisher GPO 14 CE - 3601C89000.

Bosch Spare Parts for Universal Angle Polisher GPO 14 CE
  • Bosch Spare Parts for Universal Angle Polisher GPO 14 CE
  • Bosch Spare Parts for Universal Angle Polisher GPO 14 CE
  • Bosch Spare Parts for Universal Angle Polisher GPO 14 CE

Bosch Spare Parts for Universal Angle Polisher GPO 14 CE

SKU: Bosch GPO 14 CE - 3601C89000 Condition: New
€2.31
VAT included

Bosch Spare Parts for Universal Angle Polisher GPO 14 CE

Bosch genuine replacement parts for to replace broken parts for to fix Universal Angle Polisher GPO 14 CE - 3601C89000.

settings 23 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

20 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
4/56
photo_cameraImage coming soon 1603415004 Lens Head Screw €1.24
7
Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
13
Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
14
photo_cameraImage coming soon 1600905032 groove ball bearing 8x22x7 €5.65
17
Spiral Spring for Angle Grinders Bosch GWS/PWS6-115 1604652013 Spiral Spring for Angle Grinders Bosch GWS/PWS6-115 €2.07
26
photo_cameraImage coming soon 1600206036 Rubber Ring €1.56
27
Armature Bearing Rubber Ring for Angle Grinder Bosch GWS 6-115 1600206025 Armature Bearing Rubber Ring for Angle Grinder Bosch GWS 6-115 €2.28
29
photo_cameraImage coming soon 1600591025 Air-Deflector Ring €1.99
30
photo_cameraImage coming soon 1600591014 Air-Deflector Ring €2.08
33
photo_cameraImage coming soon 1600210035 O-Ring 46,0x1,1 MM €1.62
37
Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 1600290016 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 €2.61
40
Spring Retaining Ring for Angle Grinder Bosch GWS 8-115 1600119011 Spring Retaining Ring for Angle Grinder Bosch GWS 8-115 €2.25
41
photo_cameraImage coming soon 1619P08829 groove ball bearing  €6.51
45
Hex Nut M7 SW10 for Angle Grinder Bosch PWS 6-115 1603300016 Hex Nut M7 SW10 for Angle Grinder Bosch PWS 6-115 €1.71
50
photo_cameraImage coming soon 1619P00105 Torx Oval-Head Screw 4x20 €1.62
810
Carbon Brushes for Angle Grinders Bosch GWS 8-115-PWS 10-125 CE 1607014176 Carbon Brushes for Angle Grinders Bosch GWS 8-115-PWS 10-125 CE €16.31
835
Fan for Rotary Hammer Bosch PBH 300 E 1606610132 Fan for Rotary Hammer Bosch PBH 300 E €3.08
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
650/1
photo_cameraImage coming soon 2602025067 Auxiliary Handle M10, Ø32,5x105 MM €3.67
894
Grease Tube 225 ML for Bosch Hammers GBH-GSH 1615430020 Grease Tube 225 ML for Bosch Hammers GBH-GSH €27.30
895
photo_cameraImage coming soon 1605430003 Grease Tube 225 ML  €46.15

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Universal Angle Polisher GPO 14 CE

Bosch genuine replacement parts for to replace broken parts for to fix Universal Angle Polisher GPO 14 CE - 3601C89000.

In the following table, look for the model of the Angle Polisher and the respective parts of the code.


Universal Angle Polisher GPO 14 CE/3 601 C89 000
1 1605108255 Motor Housing BLUE
4 1607200257 Switch Assembly
4/56 1603415004 Lens Head Screw
6 1619P14643 Grommet Ø 8,6mm
7 2601035001 Cable Clip
9 1619P07982 Manufacturer's nameplate GPO 14 PE
13 2600905032 Ball Bearing 7x19x6
14 1600905032 groove ball bearing 8x22x7
16 1601323023 Brush Holder WITH DISCONNECTING DEVICE
17 1604652013 Spiral Spring
18 1602319024 Adjusting Slide
19 1604611041 Compression Spring
20 3604611039 Compression Spring
22 1619P07907 plastic covering
25 1605132009 Handle Cover BLUE
26 1600206036 Rubber Ring
27 1600206025 Rubber Ring
29 1600591025 Air-Deflector Ring
30 1600591014 Air-Deflector Ring
32 1619P07906 Grinding Spindle
33 1600210035 O-Ring 46,0x1,1 MM
37 1600290016 Rotary shaft lip seal
38 1619P07918 Crown Gear
39 1619P07919 Bevel Gear
40 1600119011 Retaining clip
41 1619P08829 groove ball bearing
42 1619P07912 Cylindrical Gear
43 1619P07911 Cylindrical Gear
45 1603300016 Hex Nut M7, SW10
47 1619P00029 Screw
48 2912401005 Tapping Screw DIN7981-ST2,9x9,5C-Z
49 1619P08825 Thread-forming tap. Screw
50 1619P00105 Torx Oval-Head Screw 4x20
53 1619P01066 Torx Oval-Head Screw 4x25
58 1619P07915 O-Ring 39,0x1,1 MM
108 1605500258 Cover BLACK
109 1605500263 Cover BLACK
180 1619P09116 Label
181 1600A000VM Polishing Cap
650/1 2602025067 Auxiliary Handle M10, Ø32,5x105 MM
650/7 1619P07612 Hex Screw Driver
650/8 1619P07611 Hex Screw
653 1619P07563 Handle
802 1604220417 Field 220-240V
803 1619P09115 Armature With Fan 220-240V
805 1607000391 Power supply cord
808 1619P30313 Nameplate
810 1607014176 Carbon-Brush Set
813 1607000378 Parts Set
821 1619P09078 Gear Housing
828 1619P09081 Bearing Flange
835 1606610132 Fan
838 1619P09080 Crown Gear
840 1619P09082 push button set
851 1607233256 Speed governor
852 1604448025 Connecting Cable
857 1619P09079 Gear Cover
894 1615430020 Grease Tube 225 ML
895 1605430003 Grease Tube 225 ML

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GPO 14 CE - 3601C89000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

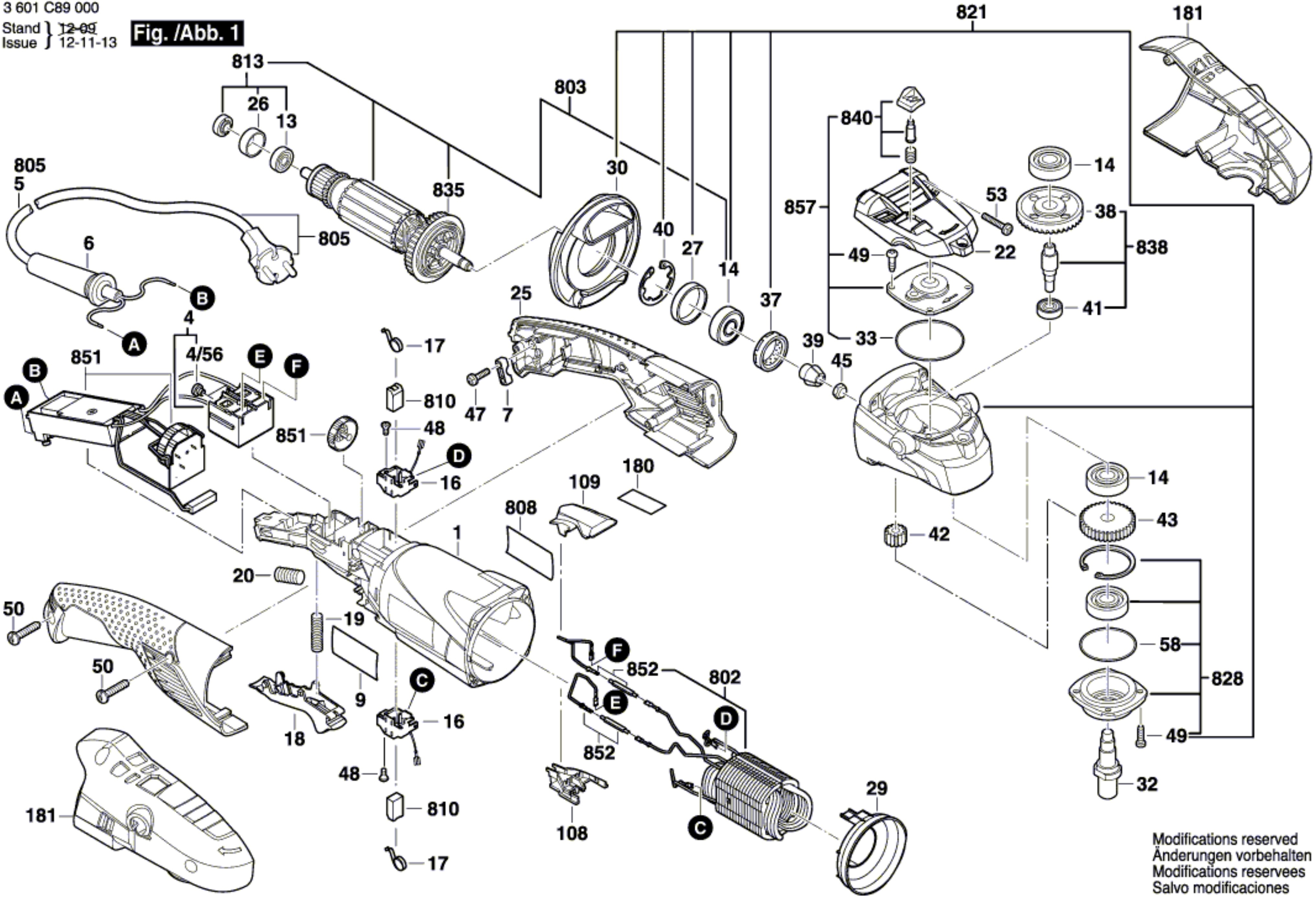

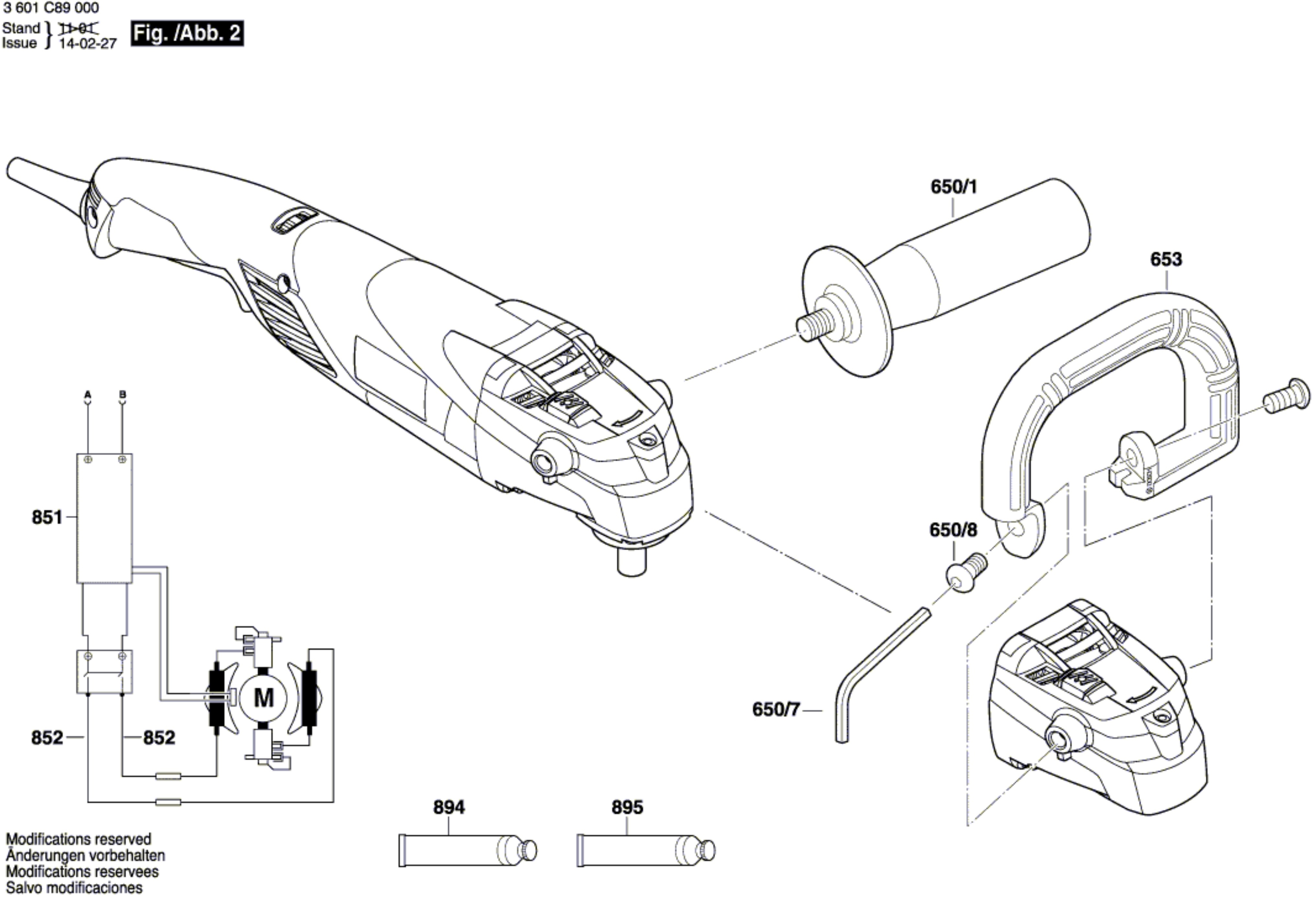

Diagram Bosch GPO 14 CE

Diagram Bosch GPO 14 CE

Download (248.53KB)
