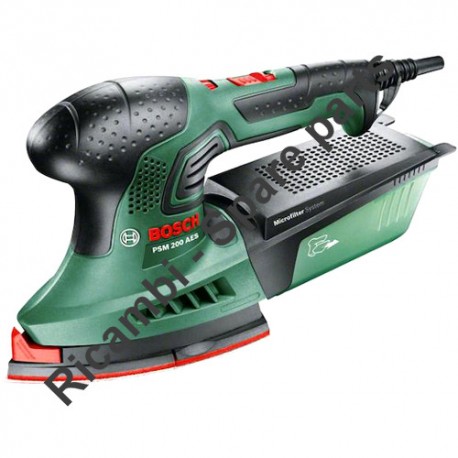

Bosch Spare Parts for Orbital Sander PSM 200 AES

SKU: Bosch PSM 200 AES - 3603CB6000
€8.86
VAT included

Bosch Spare Parts for Orbital Sander PSM 200 AES

Bosch genuine spare parts or replacement parts for to repair Orbital Sander PSM 200 AES - 3603CB6000.

Fix Your Orbital Sander PSM 200 AES. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Bosch PSM 200 AES - 3603CB6000
Bosch Spare Parts for Orbital Sander PSM 200 AES
  • Bosch Spare Parts for Orbital Sander PSM 200 AES
  • Bosch Spare Parts for Orbital Sander PSM 200 AES
  • Bosch Spare Parts for Orbital Sander PSM 200 AES

Bosch Spare Parts for Orbital Sander PSM 200 AES

SKU: Bosch PSM 200 AES - 3603CB6000 Condition: New
€8.86
VAT included

Bosch Spare Parts for Orbital Sander PSM 200 AES

Bosch genuine spare parts or replacement parts for to repair Orbital Sander PSM 200 AES - 3603CB6000.

Fix Your Orbital Sander PSM 200 AES. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Bosch PSM 200 AES - 3603CB6000
settings 28 spare parts

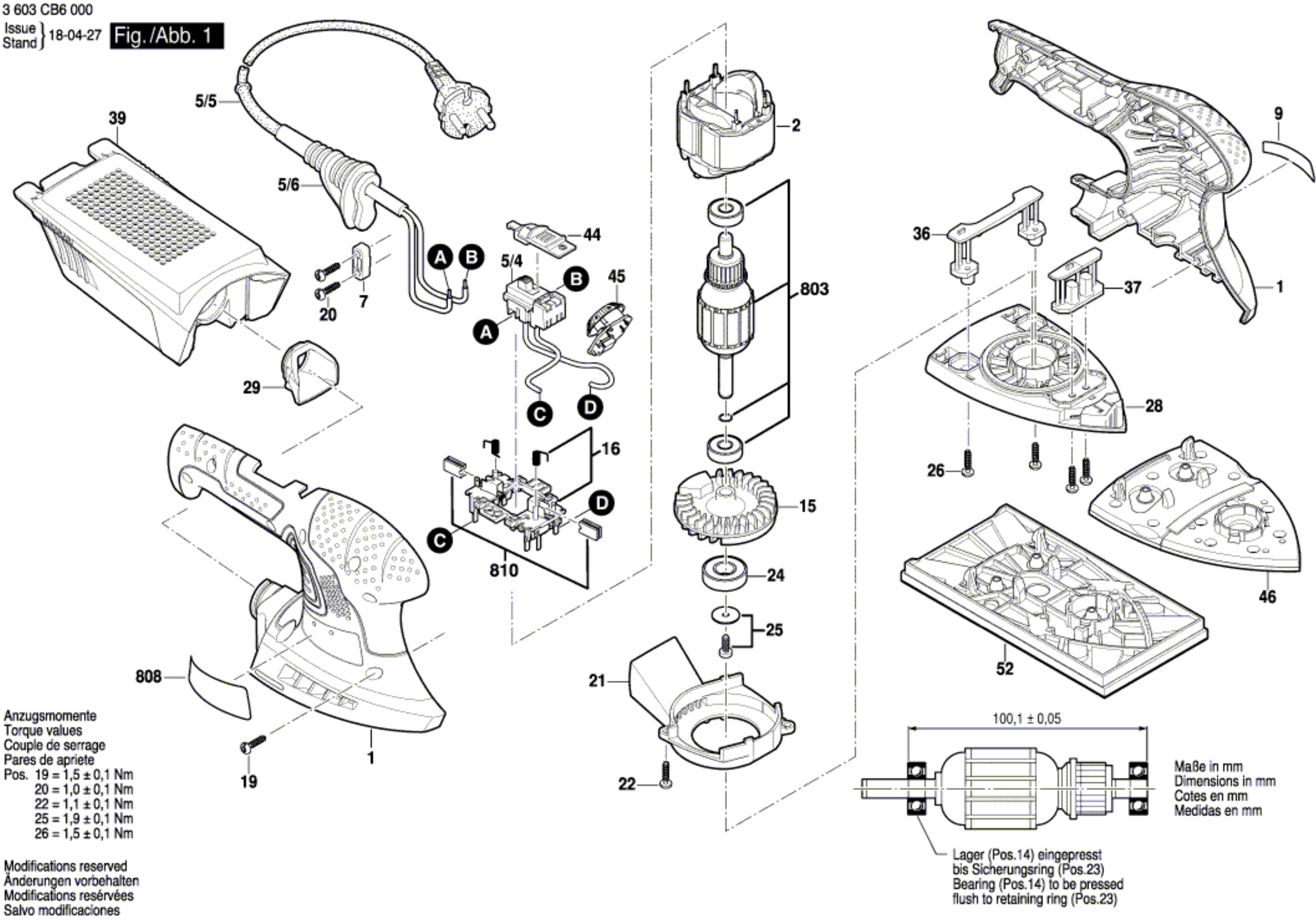

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

26 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 2609006575 Housing Section  €23.53
2
photo_cameraImage coming soon 2609001807 Field 220-240V  €20.62
5/4
photo_cameraImage coming soon 1607200254 Switch  €8.61
5/5
photo_cameraImage coming soon 2604460259 Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV-F  €14.61
5/6
photo_cameraImage coming soon 2609003080 Grommet Ø6,4-Ø7,2x76 MM  €1.72
7
Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
9
photo_cameraImage coming soon 2609007174 Manufacturer's nameplate PSM 200 AES  €2.56
15
photo_cameraImage coming soon 2609006576 Fan  €7.17
16
photo_cameraImage coming soon 2609004170 Brush Holder  €9.99
19
photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
20
photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
21
photo_cameraImage coming soon 2609006577 Fan Housing  €2.19
22
photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
24
Ball Bearing 6001LUV for Orbital Sander Bosch  PSM 200 AES 2609005180 Ball Bearing 6001LUV for Orbital Sander Bosch PSM 200 AES €4.74
25
photo_cameraImage coming soon 2610918116 Torx Oval-Head Screw €3.69
26
photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
28
photo_cameraImage coming soon 2609006896 Sander Plate  €15.97
36
photo_cameraImage coming soon 2609000017 Oscillation Insert  €3.69
37
photo_cameraImage coming soon 2609000018 Oscillation Insert  €3.69
39
photo_cameraImage coming soon 2609006578 Dust container  €12.72
45
photo_cameraImage coming soon 1607233419 Rpm Actuator  €26.97
46
photo_cameraImage coming soon 2609006899 Sander Plate  €20.00
52
photo_cameraImage coming soon 2609006901 Sander Plate  €20.00
803
photo_cameraImage coming soon 2609007384 Armature 220-240V  €44.23
808
photo_cameraImage coming soon 160111A2X0 Nameplate  €2.56
810
Carbon Brush Se for Angle Grinders Skil 9145 - 9240 2609000246 Carbon Brush Se for Angle Grinders Skil 9145 - 9240 €8.56

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Orbital Sander PSM 200 AES

Fix Your Orbital Sander PSM 200 AES - 3603CB6000. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Orbital Sander and the respective parts of the code.
Bosch PSM 200 AES - 3603CB6000

Orbital Sander PSM 200 AES/3 603 CB6 000
# Part Num. Description
1 2609006575 Housing Section
2 2609001807 Field 220-240V
5/4 1607200254 Switch
5/5 2604460259 Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV-F
5/6 2609003080 Grommet Ø6,4-Ø7,2x76 MM
7 2601035001 Cable Clip
9 2609007174 Manufacturer's nameplate PSM 200 AES
15 2609006576 Fan
16 2609004170 Brush Holder
19 2603490022 Screw 4x16
20 2603490022 Screw 4x16
21 2609006577 Fan Housing
22 2603490022 Screw 4x16
24 2609005180 groove ball bearing
25 2610918116 Torx Oval-Head Screw
26 2603490022 Screw 4x16
28 2609006896 Sander Plate
29 1600A002NZ Air Path
36 2609000017 Oscillation Insert
37 2609000018 Oscillation Insert
39 2609006578 Dust container
44 2609004171 Slider
45 1607233419 Rpm Actuator
46 2609006899 Sander Plate
52 2609006901 Sander Plate
803 2609007384 Armature 220-240V
808 160111A2X0 Nameplate
810 2609000246 Carbon-Brush Set
