Bosch Spare Parts for Agitator GRW 11 E

SKU: Bosch GRW 11 E 0601940703
€1.67
VAT included

Bosch Spare Parts for Agitator GRW 11 E

Bosch genuine replacement parts for to replace broken parts for to fix Agitator 0601940703 - GRW 11 E / 220 V /EU.

Bosch GRW 11 E 0601940703
Bosch Spare Parts for Agitator GRW 11 E
  • Bosch Spare Parts for Agitator GRW 11 E
  • Bosch Spare Parts for Agitator GRW 11 E

Bosch Spare Parts for Agitator GRW 11 E

SKU: Bosch GRW 11 E 0601940703 Condition: New
€1.67
VAT included

Bosch Spare Parts for Agitator GRW 11 E

Bosch genuine replacement parts for to replace broken parts for to fix Agitator 0601940703 - GRW 11 E / 220 V /EU.

Bosch GRW 11 E 0601940703
settings 37 spare parts

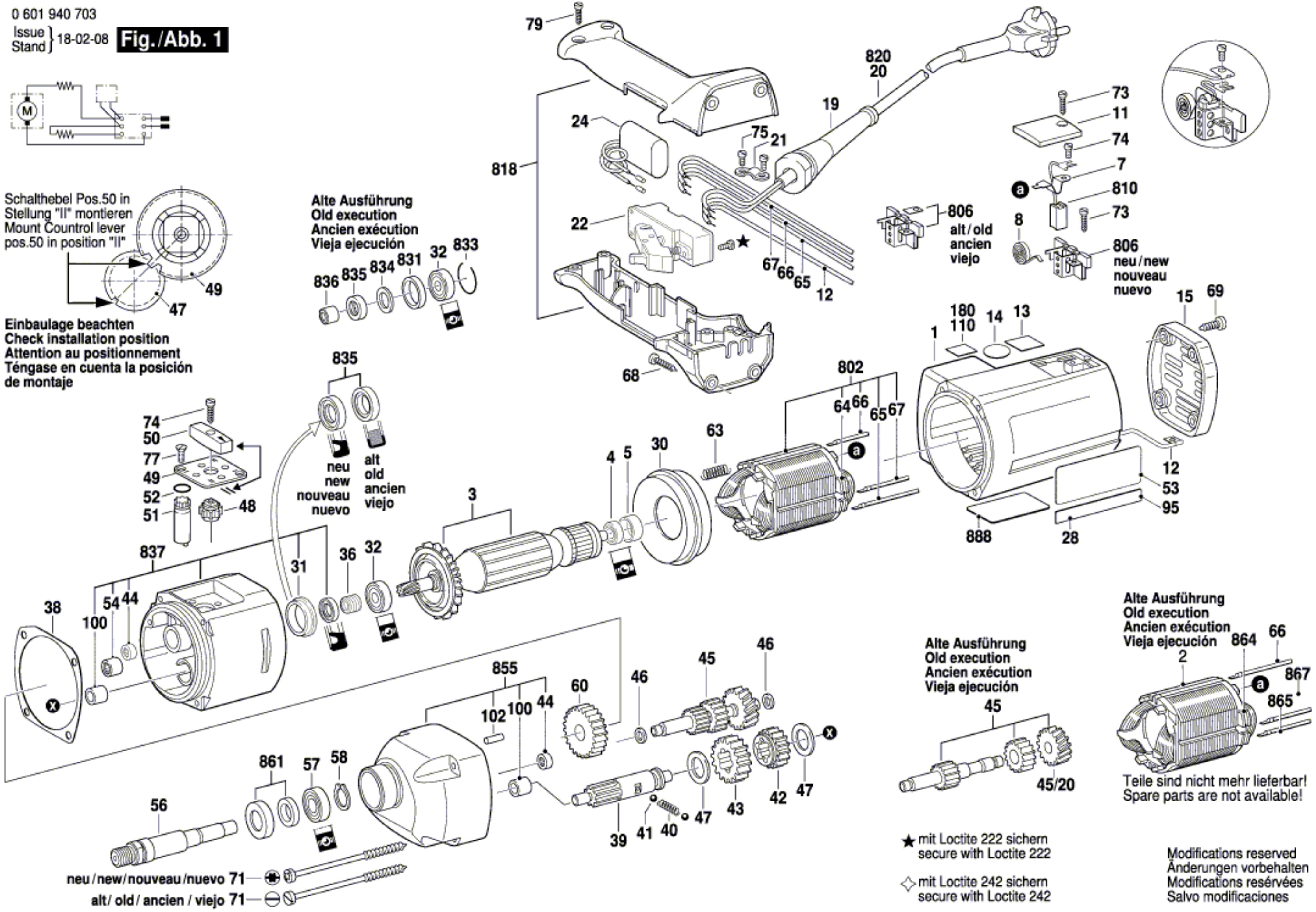

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

34 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
4
Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
5
Intermediate Ring for Circular Saw Bosch PKS 54 1600502011 Intermediate Ring for Circular Saw Bosch PKS 54 €1.53
7
photo_cameraImage coming soon 1604477001 Blade terminal €1.40
8
Spiral Spring for Percussion Drill Bosch GBM 13 1604652006 Spiral Spring for Percussion Drill Bosch GBM 13 €1.54
11
photo_cameraImage coming soon 3605500063 Sealing cap BLUE €3.70
19
photo_cameraImage coming soon 3600703011 Grommet Ø9,2-Ø12x120 MM €2.38
21
photo_cameraImage coming soon 1601302014 Fastening Clamp €1.40
24
photo_cameraImage coming soon 1607328028 Suppression Filter €6.13
30
photo_cameraImage coming soon 1600502019 Air-Deflector Ring €2.84
31
photo_cameraImage coming soon 1600221003 Intermediate Ring €1.35
32
photo_cameraImage coming soon 3600905131 Deep-Groove Ball Bearing 9x26x8 €11.04
36
photo_cameraImage coming soon 1600300090 Intermediate Ring €2.78
41
photo_cameraImage coming soon 1903230009 Ball DIN 5401-5 G28  €1.43
44
photo_cameraImage coming soon 1600910013 Needle bearing €4.48
46
photo_cameraImage coming soon 1600100631 Shim 0,5 MM THICK €1.24
54
Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 2600910001 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 €5.74
57
photo_cameraImage coming soon 1900905162 Deep-Groove Ball Bearing 15x32x9 €16.40
58
photo_cameraImage coming soon 2916650006 Spring retaining ring DIN 471-15x1-FSt €1.39
63
photo_cameraImage coming soon 1604613006 Compression Spring €1.24
64
photo_cameraImage coming soon 3601025003 Wire Guide €1.40
66
photo_cameraImage coming soon 1604438012 Connecting Cable L=330 MM WHITE €4.92
73
photo_cameraImage coming soon 2910211019 Tapping Screw DIN 7971-ST3,9x16-F €1.34
95
photo_cameraImage coming soon 3601110072 Sticker €1.24
650/50
photo_cameraImage coming soon 1613100012 Straight Pin €1.26
650/30
photo_cameraImage coming soon 1613521001 Stud bolt M8 €3.70
650/20
photo_cameraImage coming soon 1618040077 index turning toolholder €15.38
650/40
photo_cameraImage coming soon 3601038048 Clamping Band Ø43 MM €16.40
810
photo_cameraImage coming soon 3607014012 Carbon-Brush Set €31.62
831
photo_cameraImage coming soon 1600206026 Intermediate Ring €1.40
833
photo_cameraImage coming soon 2916600016 Retaining ring DIN 9045 - Ø 30MM €1.24
834
photo_cameraImage coming soon 1600102680 Supporting Disc €1.24
861
photo_cameraImage coming soon 3607030355 Retaining snap ring €12.74
864
photo_cameraImage coming soon 1601025001 Wire Guide €1.40
888
photo_cameraImage coming soon 160111A3H3 Nameplate  €3.22

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Agitator GRW 11 E

Bosch genuine replacement parts for to replace broken parts for to fix Agitator 0601940703 - GRW 11 E / 220 V /EU.

In the following table, look for the model of the Agitator and the respective parts of the code.
Bosch GRW 11 E 0601940703

Agitator 0601940703 - GRW 11 E / 220 V /EU
1 3605108091 Motor Housing BLUE
3 1619P13608 Armature
4 2600905032 Ball Bearing 7x19x6
5 1600502011 Intermediate Ring
7 1604477001 Blade terminal
8 1604652006 Spiral Spring
11 3605500063 Sealing cap BLUE
12 1604445006 Connecting Cable L=290 MM GRAY
14 3601110368 Sticker
15 3605500062 Sealing cap BLACK
19 3600703011 Grommet Ø9,2-Ø12x120 MM
21 1601302014 Fastening Clamp
22 1607200075 Switch
24 1607328028 Suppression Filter
30 1600502019 Air-Deflector Ring
31 1600221003 Intermediate Ring
32 3600905131 groove ball bearing 9x26x8
36 1600300090 Intermediate Ring
38 1601015013 Sealing Plate
39 1606309066 Toothed Shaft Z=9
40 1604611022 Compression Spring
41 1903230009 Ball DIN 5401-5 G28
42 1606317074 Cylindrical Gear Z=32
43 1606317082 Cylindrical Gear Z=43
44 1600910013 Needle bearing
45 1606309065 Pinion Shaft Z=14/24/33
45/20 1606320077 Cylindrical Gear Z=33
46 1600100631 Shim 0,5 MM THICK
47 1600101647 Shim 0,6 MM THICK
48 1606325025 Control Shaft Z=20
49 1601038025 Notched Plate
50 1602026044 Control Lever
51 1606325027 Control Shaft Z=10
52 1900210105 O-Ring 8x2,5 MM
53 3601110362 Sticker
54 2600910001 Needle-Roller Bearing Ø14 MM
56 1603523087 Drilling Spindle 5/8"
57 1900905162 groove ball bearing 15x32x9
58 2916650006 Retaining clip DIN 471-15x1-FSt
60 3606317009 Cylindrical Gear Z=39
63 1604613006 Compression Spring
64 3601025003 Wire Guide
65 3604438027 Connecting Cable L=375 MM
66 1604438012 Connecting Cable L=330 MM WHITE
67 3604438025 Connecting Cable L=470 MM WHITE
68 3603435027 Tapping Screw 5x30
69 2910211234 Tapping Screw DIN 7971-B4,8x19
71 3603435042 Lens Head Screw
73 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
74 2910021118 Socket head cap screw DIN 84-AM4x8-8.8
75 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
76 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
77 2910501120 Countersunk-Head Screw DIN 63-AM4x10-5.8
79 2910211021 Tapping Screw DIN 7971-ST3,9x22-F
95 3601110072 Sticker
100 3600328033 Bushing
102 2917500121 Straight Pin 5 H 8x18 DIN 7
650 3602025012 Auxiliary Handle Ø 43 MM
650/20 1618040077 Support clamp
650/30 1613521001 Stud bolt M8
650/40 3601038048 Clamping Band Ø43 MM
650/50 1613100012 Straight Pin
651 3609201036 Mixer Attachment Ø 140 MM, M14
652 3609201353 Threaded Fitting 215 MM, 5/8", M14
802 3604220148 Field 230V
806 3604336012 Brush Holder
810 3607014012 Carbon-Brush Set
818 3605132031 Handle
820 1607000391 Power supply cord
831 1600206026 Intermediate Ring
833 2916600016 Retaining ring DIN 9045 - Ø 30MM
834 1600102680 Supporting Disc
835 3600290070 Rotary shaft lip seal
836 1600300090 Intermediate Ring
837 3607030436 Intermediate Bearing
855 1605806368 Spindle Bearing M14
861 3607030355 Retaining snap ring
864 1601025001 Wire Guide
865 1604438013 Connecting Cable L=345 MM GRAY
867 3604460009 Connecting Cable L=450 MM WHITE
888 160111A3H3 Nameplate
