Bosch

Bosch Spare Parts for Lawnmower Rotak 32

SKU: Bosch Rotak 32 - 3600H85B04
€9.65
VAT included

Bosch Spare Parts for Lawnmower Rotak 32

Bosch genuine replacement parts for to replace broken parts for to fix Electric Lawnmower Rotak 32/230 V/EU 3600H85B04.

Fix Your Electric Lawnmower Rotak 32. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch Rotak 32 - 3600H85B04
Bosch Spare Parts for Lawnmower Rotak 32
  • Online only
  • Bosch Spare Parts for Lawnmower Rotak 32
  • Bosch Spare Parts for Lawnmower Rotak 32
Bosch

Bosch Spare Parts for Lawnmower Rotak 32

SKU: Bosch Rotak 32 - 3600H85B04 Condition: New
€9.65
VAT included

Bosch Spare Parts for Lawnmower Rotak 32

Bosch genuine replacement parts for to replace broken parts for to fix Electric Lawnmower Rotak 32/230 V/EU 3600H85B04.

Fix Your Electric Lawnmower Rotak 32. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch Rotak 32 - 3600H85B04
settings 43 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
43 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

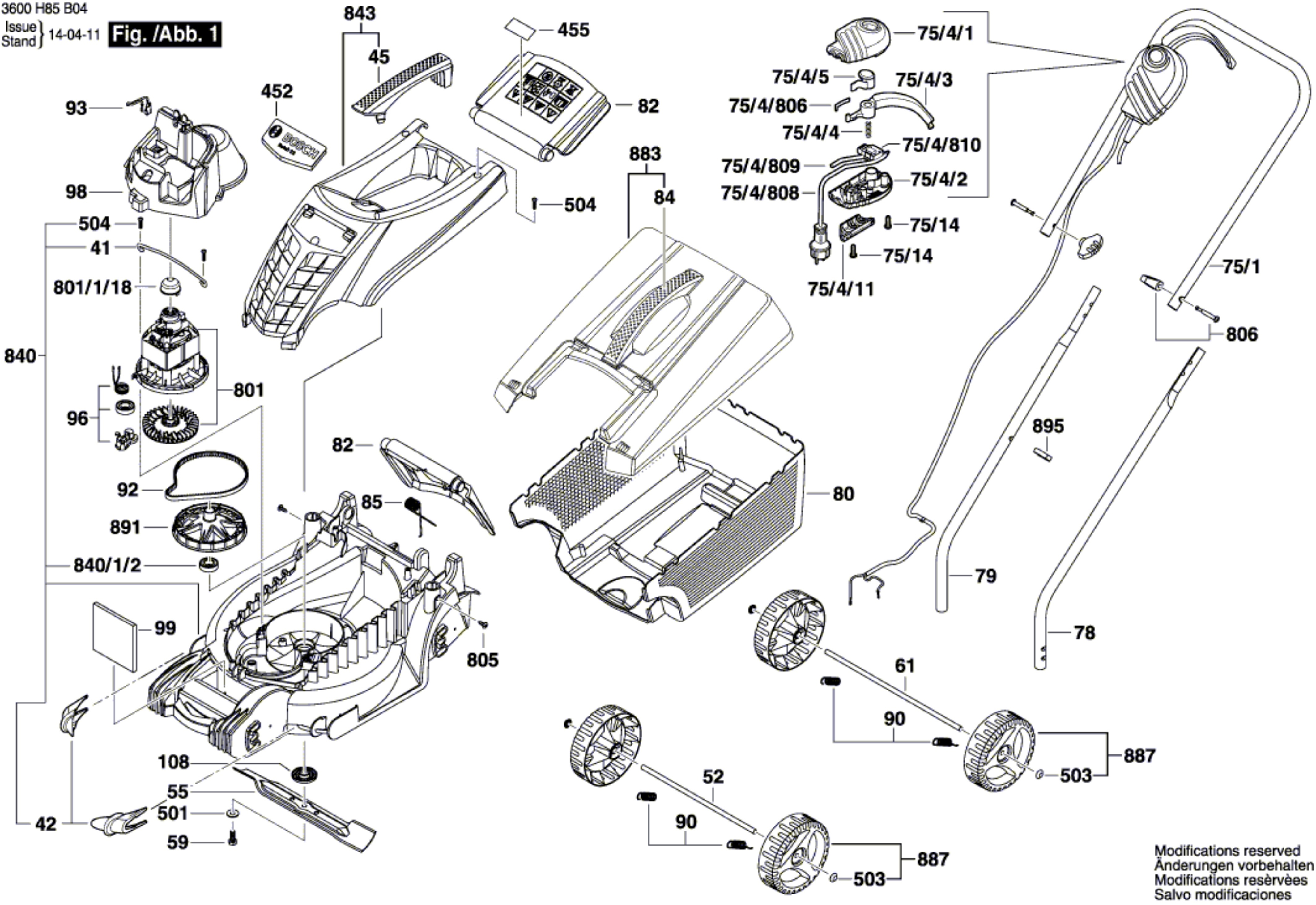

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
41
 photo_cameraImage coming soon F016L67976 Support Element  €1.40
42
 photo_cameraImage coming soon F016L66697 Comb RED  €2.22
45
 photo_cameraImage coming soon F016L66654 Carrying Handle  €3.95
52
 photo_cameraImage coming soon F016L66849 Axle  €9.37
55
 photo_cameraImage coming soon F016L65515 Cutter Blade 320 MM  €25.19
59
 photo_cameraImage coming soon F016T48547 Hex Screw M8x20 MM €3.35
61
 photo_cameraImage coming soon F016L66848 Axle  €9.37
75/4/810
 photo_cameraImage coming soon F016103606 On-Off Switch €14.52
75/4/808
 photo_cameraImage coming soon F016104086 Power supply cord EU €23.99
75/4/809
 photo_cameraImage coming soon F016104088 Connecting Cable  €16.70
75/1
 photo_cameraImage coming soon F016L62792 Handle  €39.40
75/4/2
 photo_cameraImage coming soon F016L66235 Switch Housing €3.35
75/4/5
 photo_cameraImage coming soon F016L66237 Push-Button €3.35
75/4/4
 photo_cameraImage coming soon F016L66240 Compression Spring  €1.40
75/14
 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 F016T49429 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 €1.43
78
 photo_cameraImage coming soon F016L66682 bottom handle BLACK  €12.27
79
 photo_cameraImage coming soon F016L66655 bottom handle BLACK  €12.27
80
 photo_cameraImage coming soon F016L66683 Collector Box Bottom  €20.87
82
 photo_cameraImage coming soon F016L66686 Guard Flap  €6.25
84
 photo_cameraImage coming soon F016L66685 Carrying Handle €3.95
85
 photo_cameraImage coming soon F016L66687 closing spring  €2.22
90
 photo_cameraImage coming soon F016L65773 Spring  €2.22
92
 Drive Belt for Lawnmover Bosch ROTAK 32 F016L66677 Drive Belt for Lawnmover Bosch ROTAK 32 €15.98
93
 photo_cameraImage coming soon F016L66958 Thermal protector  €10.27
96
 Belt Tensioner for Lawnmover Bosch ROTAK 32 F016L68711 Belt Tensioner for Lawnmover Bosch ROTAK 32 €6.58
98
 photo_cameraImage coming soon F016L66688 Baffle  €7.19
99
 photo_cameraImage coming soon F016L66698 Balance Weights  €10.89
108
 photo_cameraImage coming soon F016L66689 Bearing cover  €2.22
452
 photo_cameraImage coming soon F016L66695 Company Logo ROTAK 32  €2.78
501
 photo_cameraImage coming soon F016T40590 Plain Washer Ø8,15 MM  €2.09
503
 Securing Cap Ø8 MM for Lawnmover Bosch ROTAK 32 F016T48990 Securing Cap Ø8 MM for Lawnmover Bosch ROTAK 32 €1.30
504
 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 F016T49429 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 €1.43
801
 photo_cameraImage coming soon F016104035 Motor  €180.87
801/1/18
 photo_cameraImage coming soon F016L64499 Cap  €1.40
805
 photo_cameraImage coming soon F016L36542 Screw M5x8 Csk Hd. €3.35
806
 Wing Nut for Lawnmowers Bosch ARM 34 - ARM 37 F016L66155 Wing Nut for Lawnmowers Bosch ARM 34 - ARM 37 €2.35
840
 photo_cameraImage coming soon F016104246 Mower deck  €51.32
840/1/2
 photo_cameraImage coming soon F016L67442 Bearing 6002-2RS  €4.74
840/3
 photo_cameraImage coming soon F016L68323 flange-head screw  €1.40
843
 photo_cameraImage coming soon F016104033 Motor Hood  €30.70
883
 photo_cameraImage coming soon F016104032 Collector Box Top  €35.35
887
 photo_cameraImage coming soon 1600A00J3Y Wheel  €8.84
891
 photo_cameraImage coming soon F016104155 Drive Shaft  €18.25
895
 photo_cameraImage coming soon F016L66895 Cable Clip €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Lawnmower Rotak 32

Fix Your Electric Lawnmower Rotak 32/230 V/EU 3600H85B04. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Bosch Rotak 32 - 3600H85B04

Lawnmower 3600H85B04 - ROTAK 32/230 V/EU
# Part Num. Description
41 F016L67976 Support Element
42 F016L66697 Comb RED
45 F016L66654 Carrying Handle
52 F016L66849 Axle
55 F016L65515 Cutter Blade 320 MM
59 F016T48547 Hex Screw M8x20 MM
61 F016L66848 Axle
75/1 F016L62792 Handle
75/4/1 F016L66234 Switch Housing
75/4/2 F016L66235 Switch Housing
75/4/3 F016L66238 Positioning Lever
75/4/4 F016L66240 Compression Spring
75/4/5 F016L66237 Push-Button
75/4/11 F016L66236 Clamping Piece
75/4/806 F016L66416 Leaf Spring
75/4/808 F016104086 Power supply cord EU
75/4/809 F016104088 Connecting Cable
75/4/810 F016103606 On-Off Switch
75/14 F016T49429 Self-Cutting Screw 4x19 MM
78 F016L66682 bottom handle BLACK
79 F016L66655 bottom handle BLACK
80 F016L66683 Collector Box Bottom
82 F016L66686 Guard Flap
84 F016L66685 Carrying Handle
85 F016L66687 closing spring
90 F016L65773 Spring
92 F016L66677 Drive Belt
93 F016L66958 Thermal protector
96 F016L68711 Belt Tensioner
98 F016L66688 Baffle
99 F016L66698 Balance Weights
108 F016L66689 Bearing cover
452 F016L66695 Company Logo ROTAK 32
501 F016T40590 Plain Washer Ø8,15 MM
503 F016T48990 Securing Cap Ø8 MM BLACK
504 F016T49429 Self-Cutting Screw 4x19 MM
801 F016104035 Motor
801/1/18 F016L64499 Cap
805 F016L36542 Screw M5x8 Csk Hd.
806 F016L66155 Parts Set
840 F016104246 Mower deck
840/1/2 F016L67442 Bearing 6002-2RS
840/3 F016L68323 flange-head screw
843 F016104033 Motor Hood
883 F016104032 Collector Box Top
887 1600A00J3Y Wheel
891 F016104155 Drive Shaft
895 F016L66895 Cable Clip
