Bosch Spare Parts for Belt Sander PBS 75 E

SKU: Bosch PBS 75 E - 0603270703
€1.77
VAT included

Bosch Spare Parts for Belt Sander PBS 75 E

Bosch genuine spare parts or replacement parts for to repair Belt Sander PBS 75 E - 0603270703.

Fix Your Belt Sander PBS 75 E. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch PBS 75 E - 0603270703
Bosch Spare Parts for Belt Sander PBS 75 E
  • Bosch Spare Parts for Belt Sander PBS 75 E
  • Bosch Spare Parts for Belt Sander PBS 75 E
  • Bosch Spare Parts for Belt Sander PBS 75 E
Bosch

Bosch Spare Parts for Belt Sander PBS 75 E

SKU: Bosch PBS 75 E - 0603270703 Condition: New
€1.77
VAT included

Bosch Spare Parts for Belt Sander PBS 75 E

Bosch genuine spare parts or replacement parts for to repair Belt Sander PBS 75 E - 0603270703.

Fix Your Belt Sander PBS 75 E. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch PBS 75 E - 0603270703
settings 84 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
62 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

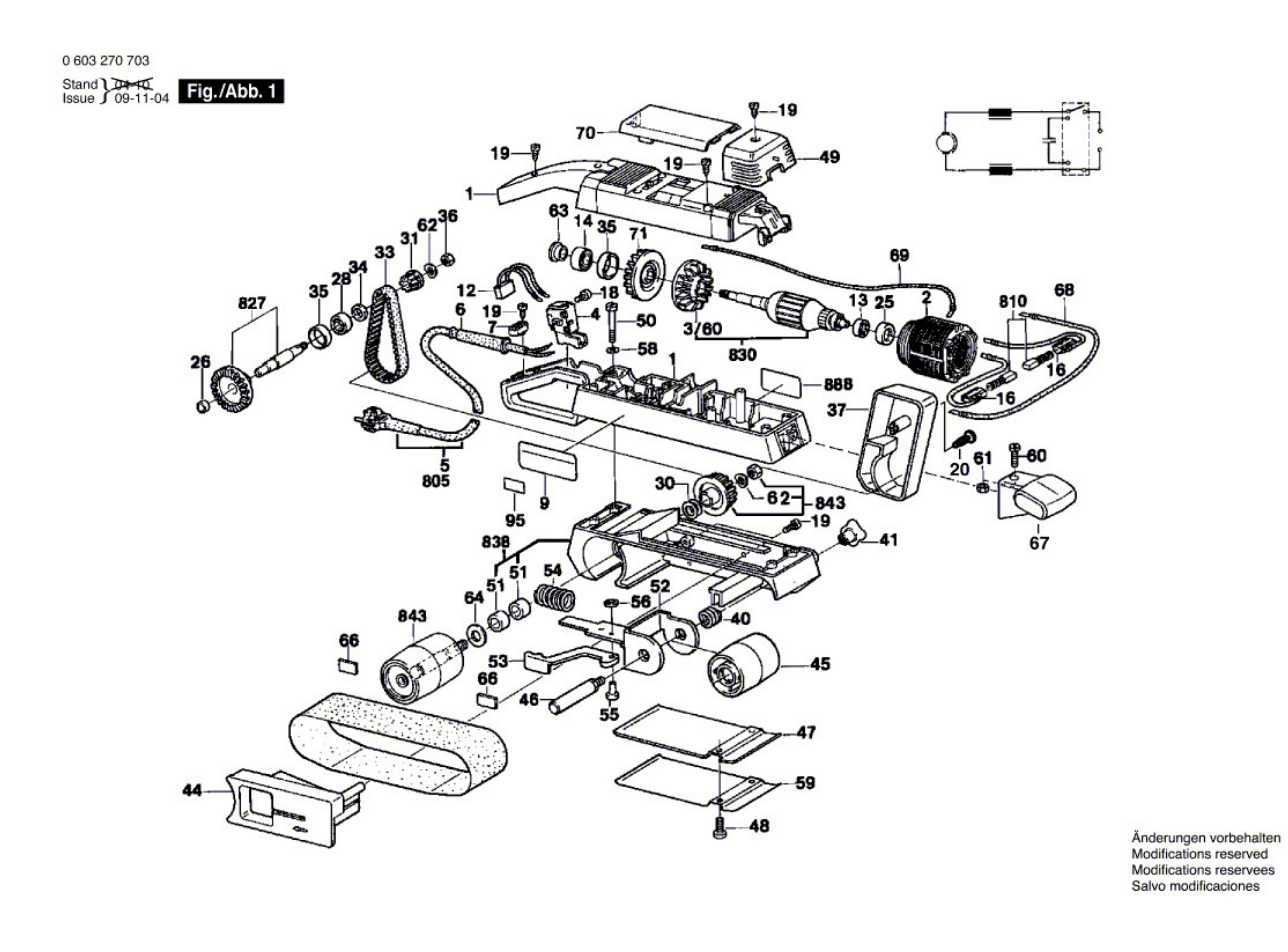

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2605104548 Motor Housing GREEN €37.62
2
 photo_cameraImage coming soon 2604220447 Field 230-240V  €24.92
3/60
 photo_cameraImage coming soon 2606610049 Fan €2.22
6
 photo_cameraImage coming soon 2600703017 Grommet Ø6,4-Ø7,2x76 MM €2.58
7
 Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
9
 photo_cameraImage coming soon 2601110608 Sticker SUNNY SIDE  €1.66
12
 photo_cameraImage coming soon 1607328028 Suppression Filter €6.13
13
 Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
14
 photo_cameraImage coming soon 1610905011 groove ball bearing 9x24x7 €16.31
16
 photo_cameraImage coming soon 2604449026 Brush Holder €1.59
18
 photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
19
 photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
20
 Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
25
 Intermediate Ring for Circular Saw Bosch PKS 54 1600502011 Intermediate Ring for Circular Saw Bosch PKS 54 €1.53
26
 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 2600910001 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 €5.74
28
 photo_cameraImage coming soon 1900905041 groove ball bearing 8x22x7 €14.47
30
 Shim 1.00 MM for Belt Sander Bosch PBS 75 A 2600100099 Shim 1.00 MM for Belt Sander Bosch PBS 75 A €2.30
33
 photo_cameraImage coming soon 1604736005 Toothed Belt Z=75  €7.92
34
 photo_cameraImage coming soon 2916021013 Plain Washer 8-ST €1.73
35
 Armature Bearing Rubber Ring for Belt Sander Bosch GBS 75 AE 1600206024 Armature Bearing Rubber Ring for Belt Sander Bosch GBS 75 AE €1.69
36
 photo_cameraImage coming soon 2603342010 Nut M 8 €1.96
36
 DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 2915011007 DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 €1.32
37
 photo_cameraImage coming soon 1605510150 Covering hood BLACK €6.20
40
 Compression Spring for Bosch Belt Sanders PBS 75A-AE 2604630002 Compression Spring for Bosch Belt Sanders PBS 75A-AE €2.89
41
 photo_cameraImage coming soon 2603339005 Wing Nut €2.45
44
 photo_cameraImage coming soon 1608005003 Base GREEN €6.99
45
 Roller for Belt Sander Bosch PBS 75 A 2606625900 Roller for Belt Sander Bosch PBS 75 A €23.52
46
 photo_cameraImage coming soon 1603521027 Axle €9.71
48
 Socket Head Cap Screw M5x10 for Belt Sander Bosch PBS 75 A 2603410045 Socket Head Cap Screw M5x10 for Belt Sander Bosch PBS 75 A €1.76
49
 photo_cameraImage coming soon 1605500122 Brush-Cover BLACK €6.20
50
 photo_cameraImage coming soon 2910011170 Socket head cap screw DIN 84-BM5x40-5.8 €1.47
52
 Bearing Bracket for Belt Sander Bosch PBS 75 A 1605807013 Bearing Bracket for Belt Sander Bosch PBS 75 A €10.04
53
 Tensioning Leve for Bosch Belt Sanders GBS 75 AE 1602098006 Tensioning Leve for Bosch Belt Sanders GBS 75 AE €4.42
54
 Compression Spring for Belt Sander Bosch PBS 75 A 1604619017 Compression Spring for Belt Sander Bosch PBS 75 A €2.19
55
 photo_cameraImage coming soon 2917030110 Button-Head Rivet €2.45
56
 Locking Washer for Sanders Bosch PBS 75 A 1600146001 Locking Washer for Sanders Bosch PBS 75 A €1.59
59
 photo_cameraImage coming soon 1601098006 Slide Plate  €2.29
61
 Hex Nut DIN 934-M4 for Belt Sander Bosch PBS 75 A 2915011005 Hex Nut DIN 934-M4 for Belt Sander Bosch PBS 75 A €0.95
63
 photo_cameraImage coming soon 1600322034 Seal ring  €2.29
64
 Shim 0.3 MM for Belt Sander Bosch PBS 75 A 1600101618 Shim 0.3 MM for Belt Sander Bosch PBS 75 A €1.77
66
 photo_cameraImage coming soon 1601010007 Ceramic Plate €2.45
67
 photo_cameraImage coming soon 1605133036 Handle BLACK €7.19
68
 photo_cameraImage coming soon 1604438018 Connecting Cable L=410 MM WHITE  €1.47
69
 photo_cameraImage coming soon 1604448000 Connecting Cable L=373 MM WHITE €2.07
70
 Housing Cover BLACK for Belt Sanders Bosch PBS 75A-AE 1605500120 Housing Cover BLACK for Belt Sanders Bosch PBS 75A-AE €4.64
71
 photo_cameraImage coming soon 1606610120 Fan €2.45
701/4
 photo_cameraImage coming soon 1601332018 Stop Bracket €3.58
701/6
 Wing Nut for Circular Saw Bosch GKS 55 1603339006 Wing Nut for Circular Saw Bosch GKS 55 €1.63
701/1
 photo_cameraImage coming soon 1610210043 O-Ring 4,0x1,5 MM €1.63
701/3
 photo_cameraImage coming soon 2603480003 Wing Screw M 6x16 MM €2.51
701/7
 photo_cameraImage coming soon 2910281196 Round-Head Bolt M6x15 DIN 603  €1.24
701/5
 photo_cameraImage coming soon 2910281203 Round-Head Bolt DIN 603-M6x25 €1.94
805
 photo_cameraImage coming soon 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F €30.17
827
 photo_cameraImage coming soon 2606333900 Crown Gear Z=45 €25.43
838
 photo_cameraImage coming soon 2605190900 Housing €69.81
888
 photo_cameraImage coming soon 160111A3H3 Nameplate  €3.22
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

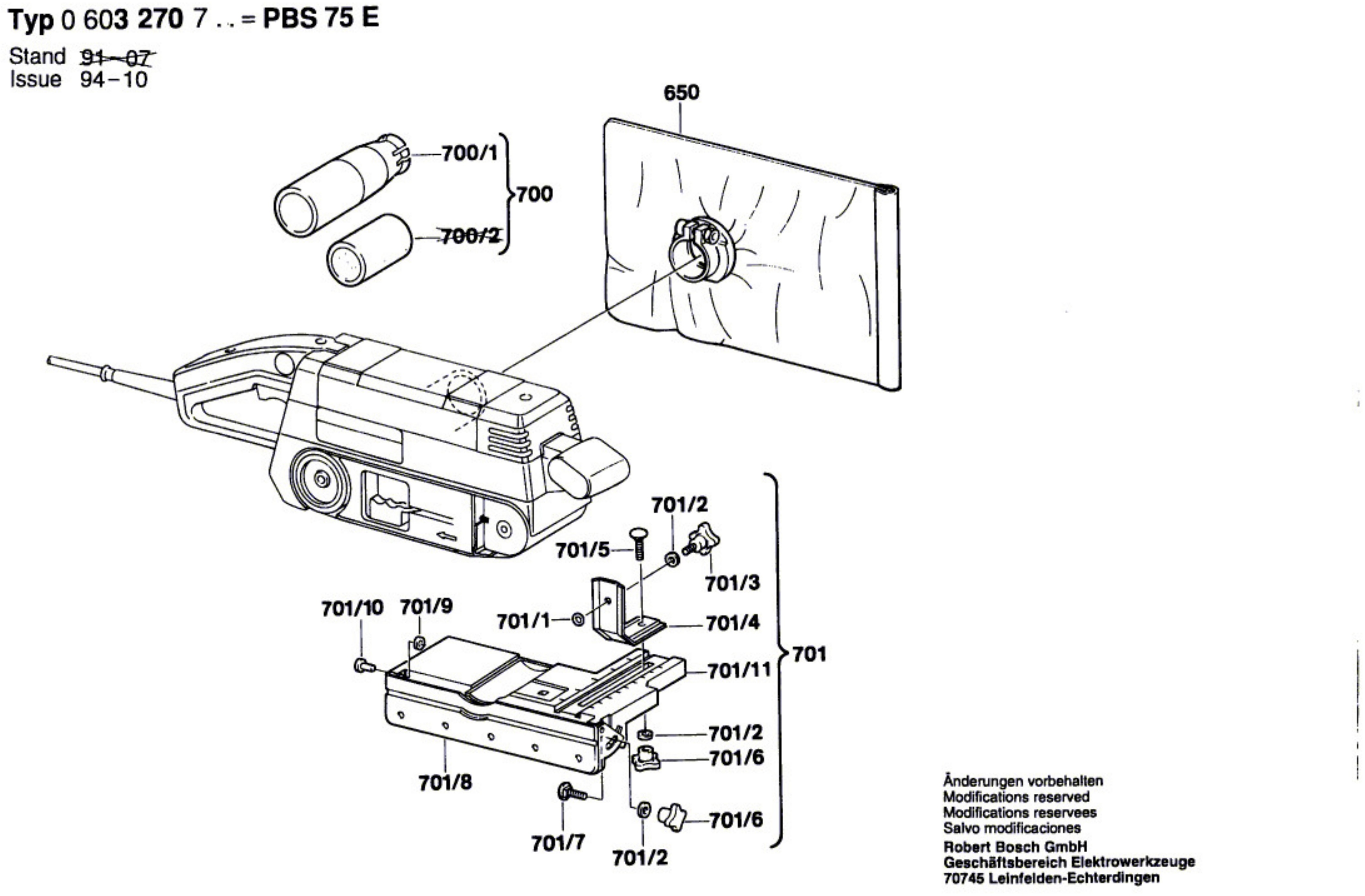

Esploso pagina 2
Pos. Item Price Buy
701/4
 photo_cameraImage coming soon 1601332018 Stop Bracket €3.58
701/6
 Wing Nut for Circular Saw Bosch GKS 55 1603339006 Wing Nut for Circular Saw Bosch GKS 55 €1.63
701/1
 photo_cameraImage coming soon 1610210043 O-Ring 4,0x1,5 MM €1.63
701/3
 photo_cameraImage coming soon 2603480003 Wing Screw M 6x16 MM €2.51
701/7
 photo_cameraImage coming soon 2910281196 Round-Head Bolt M6x15 DIN 603  €1.24
701/5
 photo_cameraImage coming soon 2910281203 Round-Head Bolt DIN 603-M6x25 €1.94

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Belt Sander PBS 75 E

Fix Your Belt Sander PBS 75 E - 0603270703. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Belt Sander and the respective parts of the code.
Bosch PBS 75 E - 0603270703

Belt Sander 220V PBS 75 E/0 603 270 703
# Part Num. Description
1 2605104548 Motor Housing GREEN
2 2604220447 Field 230-240V
3/60 2606610049 Fan
4 2607200358 On-Off Switch
6 2600703017 Grommet Ø6,4-Ø7,2x76 MM
7 2601035001 Cable Clip
9 2601110608 Sticker SUNNY SIDE
12 1607328028 Suppression Filter
13 2600905032 groove ball bearing 7x19x6
14 1610905011 groove ball bearing 9x24x7
16 2604449026 Brush Holder
18 2603410001 Socket head cap screw M3x6,5-4.8
19 2603490022 Torx Oval-Head Screw 4x16
20 2603490023 Torx Oval-Head Screw 4x20
25 1600502011 Intermediate Ring
26 2600910001 Needle bearing Ø14 MM
28 1900905041 groove ball bearing 8x22x7
30 2600100099 Shim
31 1606625026 Toothed Belt Wheel Z=19
33 1604736005 Toothed Belt Z=75
34 2916021013 Plain Washer 8-ST
35 1600206024 Intermediate Ring
36 2603342010 Nut M 8
36 2915011007 Hex Nut DIN 934-M6-8-A
37 1605510150 Covering hood BLACK
40 2604630002 Compression Spring
41 2603339005 Wing Nut
44 1608005003 Base GREEN
45 2606625900 Roller
46 1603521027 Axle
47 1601098005 Base Plate
48 2603410045 Socket head cap screw DIN 84-M5x10-4.8
49 1605500122 Brush-Cover BLACK
50 2910011170 Socket head cap screw DIN 84-BM5x40-5.8
51 1900301018 Sintered-Metal Bushing DIN 1850-J12x18x12
52 1605807013 Bearing Bracket
53 1602098006 Tensioning Lever BLACK
54 1604619017 Compression Spring
55 2917030110 Button-Head Rivet
56 1600146001 Locking Washer
58 2916060006 Spring Washer DIN 137-A5-FST
59 1601098006 Slide Plate
60 2910021126 Socket head cap screw DIN 84-AM4x16-8.8
61 2915011005 Hex Nut DIN 934 -M4-m-8
62 2916060007 Spring Washer DIN 137-A 6-ST
63 1600322034 Seal ring
64 1600101618 Shim 0,3 MM THICK
66 1601010007 Ceramic Plate
67 1605133036 Handle BLACK
68 1604438018 Connecting Cable L=410 MM WHITE
69 1604448000 Connecting Cable L=373 MM WHITE
70 1605500120 Housing Cover BLACK
71 1606610120 Fan
650 1605411025 Dust Bag
701/1 1610210043 O-Ring 4,0x1,5 MM
701/2 2916011014 Plain Washer DIN 125-A 6,4-ST
701/3 2603480003 Wing Screw M 6x16 MM
701/4 1601332018 Stop Bracket
701/5 2910281203 Round-Head Bolt DIN 603-M6x25
701/6 1603339006 Wing Nut M6
701/7 2910281196 Round-Head Bolt M6x15 DIN 603
701/8 1608000092 Stop Plate
701/9 2916011010 Plain Washer DIN 125-A4,3-ST
701/10 2917190492 Tubular rivet B 4x0,5x15 DIN 734
701/11 1608000093 Stop Bracket
805 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F
810 1617014117 Carbon-Brush Set
827 2606333900 Crown Gear Z=45
830 1604010252 Armature 220V
838 2605190900 Housing
843 2606625906 Roller
888 160111A3H3 Nameplate
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch PBS 75 E - 0603270703
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch PBS 75 E

Diagram Bosch PBS 75 E

Download (296.34KB)

You might also like

Abrasives Tapes for Sanding Belt mm 100x620
VARO-VIC.VAN ROMPUY SKU: KRT242003 - 004 - 005
Abrasives Tapes for Sanding Belt mm 75x533
Abrasives Tapes for Sanding Belt mm 75x533 Abrasive paper tape used for the levigaturabo color removal on large surfaces. - Packaging: 3 pcs - Available grits: gr. 40 - 60 - 80 - Code: KRT242003 - KRT242004 - KRT242005
AVAILABLE €8.89
Details
Carbon Brushes for Orbital Sanders PSS 200-250-300 AE
Bosch SKU: 2610391290
Carbon Brushes for Orbital Sanders PSS 200-250-300 AE
Carbon Brushes for Orbital Sanders PSS 200-250-300 AE Genuine part Bosch, Carbon Brushes for Orbital Sanders PSS 200 A - PSS 250 AE - PSS 300 AE - PEX 220 A - PBS 7 A - Jig Saw PST 680 EL - 700 PE - 800 PEL - 900 PEL. Part for the...
Last items in stock €9.44
Details
Toothed Belt for Bosch Belt Sanders PBS 7A-AE
Bosch SKU: 2610387984
Toothed Belt for Bosch Belt Sanders PBS 7A-AE
Toothed Belt for Bosch Belt Sanders PBS 7A-AE Original spare Bosch, Toothed belt for Belt Sanders PBS 7 AE - PBS 7 A. Part for the following products: -  Belt Sander Bosch PBS 7 AE/0 603 391 760 -  Belt Sander Bosch...
Last items in stock €15.85
Details
Toothed Belt for Bosch Belt Sanders PBS 75A-AE
Bosch SKU: 2604736010
Toothed Belt for Bosch Belt Sanders PBS 75A-AE
Toothed Belt for Bosch Belt Sanders PBS 75A-AE Genuine replacement part Bosch, Toothed belt for Belt Sanders PBS 75 AE - PBS 75 A. Part for the following products: -  Belt Sander PBS 75 AE/0 603 270 503 -  Belt Sander...
AVAILABLE €12.80
Details
Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE
Bosch SKU: 2604321905
Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE
Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE Genuine Part Bosch, Carbon Brushes, for Impact Drills GSB 20-2 RE - GSB 20-2 RCE - Circular Saw PKS 40 - Planer PHO 20-82 - PHO 1. Parts for the following products: - Percussion...
Last items in stock €14.02
Details
Base Plate for Belt Sanders Bosch PBS 75A-AE
Bosch SKU: 2601098040
Base Plate for Belt Sanders Bosch PBS 75A-AE
Base Plate for Belt Sanders Bosch PBS 75A-AE Original parts Bosch, Metal Base Plate for Belt Sanders PBS 75 AE/0 603 270 503. Part for the following products: -  Belt sander PBS 75 A - 0603270103 -  Belt sander PBS 75...
Last items in stock €8.99
Details
Toothed Belt Gear for Bosch Belt Sanders PBS 75A-AE
Bosch SKU: 2606625037
Toothed Belt Gear for Bosch Belt Sanders PBS 75A-AE
Toothed Belt Gear for Bosch Belt Sanders PBS 75A-AE Original spare Bosch, Toothed belt Gear for Belt Sanders PBS 75 AE - PBS 75 A. Parts for segunti articles: -  Belt Sander PBS 75 A/0 603 270 103 -  Belt Sander PBS 75 AE/0 603 270...
AVAILABLE €5.94
Details
Compression Spring for Bosch Belt Sanders PBS 75A-AE
Bosch SKU: 2604630002
Compression Spring for Bosch Belt Sanders PBS 75A-AE
Compression Spring for Bosch Belt Sanders PBS 75A-AE Original spare Bosch, Compression Spring for Belt Sanders PBS 75 AE - PBS 75 A. Parts for segunti articles: -  Belt Sander PBS 75 AE/0 603 270 503 -  Belt Sander GBS 75 AE -...
AVAILABLE €2.89
Details
Locking Washer for Sanders Bosch PBS 75 A Sale
Bosch SKU: 1600146001
Locking Washer for Sanders Bosch PBS 75 A
Locking Washer for Sanders Bosch PBS 75 A Original parts Bosch, Locking Washer for Sander PBS 75 A/0 603 270 103. Part for the following article: - Sander PBS 75 A/0 603 270 103 - Code: 1605500120
AVAILABLE €1.59
Details
Switch for Belt Sanders Bosch PBS 7 A-AE
Bosch SKU: 2610390848
Switch for Belt Sanders Bosch PBS 7 A-AE
Switch for Belt Sanders Bosch PBS 7 A-AE Genuine parts Bosch, Switch for Belt Sanders PBS 7 AE/0 603 391 760 - PBS 7 A/0 603 391 003. Part for the following products: -  Belt Sander Bosch PBS 7 AE/0 603 391 760 - ...
Last items in stock €15.10
Details
Armature Bearing Rubber Ring for Belt Sander Bosch GBS 75 AE
Bosch SKU: 1600206024
Armature Bearing Rubber Ring for Belt Sander Bosch GBS 75 AE
Armature Bearing Rubber Ring for Belt Sander Bosch GBS 75 AE Original parts Bosch, Armature Bearing Rubber Ring for Belt Sander GBS 75 AE/0 601 274 703 - Belt Sander PBS 75 AE/0 603 270 503. Parts for the following products: -  Belt...
AVAILABLE €1.69
Details
Toothed Belt Gear for Bosch Belt Sanders GBS 75 AE
Bosch SKU: 2606625907
Toothed Belt Gear for Bosch Belt Sanders GBS 75 AE
Toothed Belt Gear for Bosch Belt Sanders GBS 75 AE Genuine spare part Bosch, Toothed Belt Gear for Belt Sanders GBS 75 AE - PBS 75 AE - PBS 75 A. Part for the following products: - Belt Sander Bosch GBS 75...
Last items in stock €5.94
Details
Tensioning Leve for Bosch Belt Sanders GBS 75 AE
Bosch SKU: 1602098006
Tensioning Leve for Bosch Belt Sanders GBS 75 AE
Tensioning Leve for Bosch Belt Sander GBS 75 AE Original replacement part Bosch, tensioning leve for Belt Sanders GBS 75 AE - PBS 75 AE - PBS 75 AE. Part for the following products: -  Belt...
AVAILABLE €4.42
Details
Hex Nut DIN 934-M4 for Belt Sander Bosch PBS 75 A Sale
Bosch SKU: 2915011005
Hex Nut DIN 934-M4 for Belt Sander Bosch PBS 75 A
Hex Nut DIN 934-M4 for Belt Sander Bosch PBS 75 A Genuine spare part Bosch, Hex Nut DIN 934-M4-m-8 for Belt Sanders PBS 75 A - PBS 75 AE - PBS 75 E - GBS 75 AE. Part for the following products: - Belt Sander Bosch PBS 75 A/0 603 270...
AVAILABLE €0.95
Details
Shim 0.3 MM for Belt Sander Bosch PBS 75 A
Bosch SKU: 1600101618
Shim 0.3 MM for Belt Sander Bosch PBS 75 A
Shim 0.3 MM for Belt Sander Bosch PBS 75 A Bosch genuine part, Shim 0.3 MM for Belt Sanders PBS 75 A - PBS 75 AE - GBS 75 AE - PBS 75 E - PBS 75. Part for the following products: -  Belt Sander GBS 75 AE - 0601274703 -  Belt Sander...
AVAILABLE €1.77
Details
Shim 1.00 MM for Belt Sander Bosch PBS 75 A
Bosch SKU: 2600100099
Shim 1.00 MM for Belt Sander Bosch PBS 75 A
Shim 1.00 MM for Belt Sander Bosch PBS 75 A Bosch genuine part, Shim 1.00 MM for Belt Sanders PBS 75 A - PBS 75 AE - GBS 75 AE - PBS 75 E - PBS 75. Part for the following products: - Belt Sander GBS 75 AE/0 601 274 703 - Belt Sander...
AVAILABLE €2.30
Details
Wing Nut for Circular Saw Bosch GKS 55
Bosch SKU: 1603339006
Wing Nut for Circular Saw Bosch GKS 55
Wing Nut for Circular Saw Bosch GKS 55 Original Spare Parts Bosch, Wing Nut M6 for Circular Saw GKS 55 - GKS 65 - GKS 66 CE - GKS 160 Part for the following article : -  Circular Saw GKS 55 - 0601567003 -  Circular Saw GKS 65 -...
AVAILABLE €1.63
Details
Socket Head Cap Screw M5x10 for Belt Sander Bosch PBS 75 A
Bosch SKU: 2603410045
Socket Head Cap Screw M5x10 for Belt Sander Bosch PBS 75 A
Socket Head Cap Screw M5x10 for Belt Sander Bosch PBS 75 A Bosch genuine part, Socket Head Cap Screw DIN 84-M5x10-4.8 for Belt Sanders Bosch PBS 75 A - PBS 75 AE - GBS 75 AE - GBS 75 A. Part for the following products: -  Belt Sander...
on 7/10 Business Days Approx €1.76
Details
Bearing Bracket for Belt Sander Bosch PBS 75 A
Bosch SKU: 1605807013
Bearing Bracket for Belt Sander Bosch PBS 75 A
Bearing Bracket for Belt Sander Bosch PBS 75 A Bosch genuine part, Bearing Bracket for Belt Sanders Bosch PBS 75 A - PBS 75 AE - GBS 75 AE. Part for the following products: -  Belt Sander...
Last items in stock €10.04
Details
Comments (0)
