Bosch Spare Parts for Cordless Impact Drill PSB 9,6 VES-2

SKU: PSB 9,6 VES-2 - 0603926627
€3.12
VAT included

Bosch Spare Parts for Cordless Impact Drill PSB 9,6 VES-2

Bosch genuine spare parts for replacing or repairing Cordless Impact Drill PSB 9,6 VES-2 /EU - 0603926627.

Cordless Impact Drill PSB 9,6 VES-2 /EU - 0603926627

Bosch Spare Parts for Cordless Impact Drill 9.6 V
  • Bosch Spare Parts for Cordless Impact Drill 9.6 V
  • Bosch Spare Parts for Cordless Impact Drill 9.6 V

Bosch Spare Parts for Cordless Impact Drill PSB 9,6 VES-2

SKU: PSB 9,6 VES-2 - 0603926627 Condition: New
€3.12
VAT included

Bosch Spare Parts for Cordless Impact Drill PSB 9,6 VES-2

Bosch genuine spare parts for replacing or repairing Cordless Impact Drill PSB 9,6 VES-2 /EU - 0603926627.

Cordless Impact Drill PSB 9,6 VES-2 /EU - 0603926627

settings 54 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

49 spare parts
Pos. Item Price Buy
9
photo_cameraImage coming soon 2601118384 Manufacturer's nameplate SUNNY SIDE  €1.66
20
photo_cameraImage coming soon 2601118385 Reference Plate SHADOW SIDE  €1.66
27
photo_cameraImage coming soon 1900905120 groove ball bearing 10x26x8  €7.47
28
photo_cameraImage coming soon 2605719006 Adapter  €1.24
29
photo_cameraImage coming soon 2605510147 Insert Piece BLACK  €2.29
32
photo_cameraImage coming soon 2601099032 Adjusting Slide  €1.94
33
photo_cameraImage coming soon 2604601004 Ring elastic release €1.24
34
photo_cameraImage coming soon 2602210014 Eccentric  €9.50
35
photo_cameraImage coming soon 2602329024 Roller Body  €1.24
37
photo_cameraImage coming soon 2606440002 Carrier  €2.29
42
photo_cameraImage coming soon 1609340007 Set Of Gears Z=58/67  €15.38
47
photo_cameraImage coming soon 2606316120 Pinion Z=14  €5.37
49
photo_cameraImage coming soon 2605510117 Insert Piece BLACK  €1.24
50
photo_cameraImage coming soon 2605190037 Adjusting Screw  €2.78
53
photo_cameraImage coming soon 2608005045 Clamping Sleeve  €2.78
54
photo_cameraImage coming soon 2603410043 Thread-forming tap. Screw  €1.24
55
photo_cameraImage coming soon 2600190056 Locating Washer  €1.24
60
photo_cameraImage coming soon 2604618001 Compression Spring  €1.24
68
photo_cameraImage coming soon 1900905122 Deep-Groove Ball Bearing 15x32x9 €7.85
69
photo_cameraImage coming soon 2916650001 Spring retaining ring DIN 471-10x1MM-FSt  €3.22
70
photo_cameraImage coming soon 2600100569 Shim 1,0 MM €1.48
71
photo_cameraImage coming soon 2600290023 Backup ring  €2.78
73
photo_cameraImage coming soon 2606490060 Catch Disk  €2.29
77
photo_cameraImage coming soon 2600190064 Corrugated Washer  €8.52
78
photo_cameraImage coming soon 2600101516 Thrust Bearing Disc  €1.24
79
photo_cameraImage coming soon 2600923003 Ball Cage  €2.78
94
photo_cameraImage coming soon 2600301011 Sintered-Metal Bushing  €1.24
95
photo_cameraImage coming soon 2600302002 Sintered-Metal Bushing  €1.24
96
photo_cameraImage coming soon 2600290022 Insert  €2.29
100
photo_cameraImage coming soon 2601322016 Clamp Spring  €2.29
101
photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
102
Retaining Bracket for Cordless Drill Bosch PSR 12 VES-2 2601329041 Retaining Bracket for Cordless Drill Bosch PSR 12 VES-2 €2.60
104
photo_cameraImage coming soon 2608018004 Contact retainer  €4.32
107
photo_cameraImage coming soon 2603421218 Countersunk-Head Screw M6x38/12(Ø10) LEFTHAND THREADS  €1.94
753
photo_cameraImage coming soon 2607224425 Fast Charger EU 230/7,2-24V, 1h €176.29
753
photo_cameraImage coming soon 2607224427 Fast Charger GB 230/7,2-24V, 1h €137.58
753
photo_cameraImage coming soon 2607224431 Fast Charger USA 120/7,2-24V, 1h €154.65
753
photo_cameraImage coming soon 2607224443 Fast Charger AUS 240/7,2-14,4V, 1h €91.25
753
photo_cameraImage coming soon 2607224701 Fast Charger EU 230/7,2-14,4V, 30 MIN. €119.04
753
photo_cameraImage coming soon 2607224703 Fast Charger GB 230/7,2-14,4V, 30 MIN. €153.12
753
photo_cameraImage coming soon 2607224705 Fast Charger AUS 240/7,2-14,4V, 30 MIN. €154.53
791
photo_cameraImage coming soon 2607336143 Slide-In Accu Package 9,6V, 1,5 Ah, NiCd  €165.94
793
photo_cameraImage coming soon 1609200147 Screwdriver Blade 6 MM €2.47
801
photo_cameraImage coming soon 2605104852 Housing Section GREEN  €13.70
826
photo_cameraImage coming soon 2606309920 Drilling Spindle 1/2",BIT-1/4",M6 LEFTHAND THREADS  €32.95
836
photo_cameraImage coming soon 2600202025 Ring  €4.32
838
photo_cameraImage coming soon 2606309918 Splined Shaft  €7.47
840
photo_cameraImage coming soon 2606308914 Toothed Shaft Z= 10/19/63  €17.55
852
photo_cameraImage coming soon 2600499903 Guide Sleeve €22.52

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Cordless Impact Drill PSB 9,6 VES-2

Bosch genuine spare parts for replacing or repairing Cordless Impact Drill PSB 9,6 VES-2 /EU - 0603926627.

In the following table, look for the model of the Cordles Drill and the respective parts of the code.
Cordless Impact Drill PSB 9,6 VES-2 /EU - 0603926627

Cordless Impact Drill PSB 9,6 VES-2 /EU - 0603926627
# Part Num. Description
4 2607200309 On-Off Switch
9 2601118384 Manufacturer's nameplate SUNNY SIDE
20 2601118385 Reference Plate SHADOW SIDE
27 1900905120 groove ball bearing 10x26x8
28 2605719006 Adapter
29 2605510147 Insert Piece BLACK
32 2601099032 Adjusting Slide
33 2604601004 Retaining ring
34 2602210014 Eccentric
35 2602329024 Roller Body
37 2606440002 Carrier
42 1609340007 Set Of Gears Z=58/67
47 2606316120 Pinion Z=14
49 2605510117 Insert Piece BLACK
50 2605190037 Adjusting Screw
53 2608005045 Clamping Sleeve
54 2603410043 Thread-forming tap. Screw
55 2600190056 Locating Washer
60 2604618001 Compression Spring
68 1900905122 groove ball bearing 15x32x9
69 2916650001 Spring retaining ring DIN 471-10x1MM-FSt
70 2600100569 Shim 1,0 MM
71 2600290023 Backup ring
73 2606490060 Catch Disk
77 2600190064 Corrugated Washer
78 2600101516 Thrust Bearing Disc
79 2600923003 Ball Cage
94 2600301011 Sintered-Metal Bushing
95 2600302002 Sintered-Metal Bushing
96 2600290022 Insert
100 2601322016 Clamp Spring
101 2603490022 Torx Oval-Head Screw 4x16
102 2601329041 Retaining Bracket
104 2608018004 Contact retainer
107 2603421218 Countersunk-Head Screw M6x38/12(Ø10) LEFTHAND THREADS
725 2608572053 Keyless Chuck Ø 1,5-10 MM,1/2"
753 2607224708 Fast Charger USA 120/7,2-14,4V, 30 MIN.
753 2607224431 Fast Charger USA 120/7,2-24V, 1h
753 2607224701 Fast Charger EU 230/7,2-14,4V, 30 MIN.
753 2607224425 Fast Charger EU 230/7,2-24V, 1h
753 2607224703 Fast Charger GB 230/7,2-14,4V, 30 MIN.
753 2607224427 Fast Charger GB 230/7,2-24V, 1h
753 2607224705 Fast Charger AUS 240/7,2-14,4V, 30 MIN.
753 2607224443 Fast Charger AUS 240/7,2-14,4V, 1h
791 2607336143 Slide-In Accu Package 9,6V, 1,5 Ah, NiCd
791 2607336143 Slide-In Accu Package 9,6V, 1,5 Ah, NiCd
793 1609200147 Screwdriver Blade 6 MM
797 2601398009 Carrying Loop
801 2605104852 Housing Section GREEN
802 2607022921 DC motor 9,6-12V
826 2606309920 Drilling Spindle 1/2",BIT-1/4",M6 LEFTHAND THREADS
836 2600202025 Ring
838 2606309918 Splined Shaft
840 2606308914 Toothed Shaft Z= 10/19/63
852 2600499903 Guide Sleeve
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of
PSB 9,6 VES-2 - 0603926627
11 Items

Specific References

New

Download

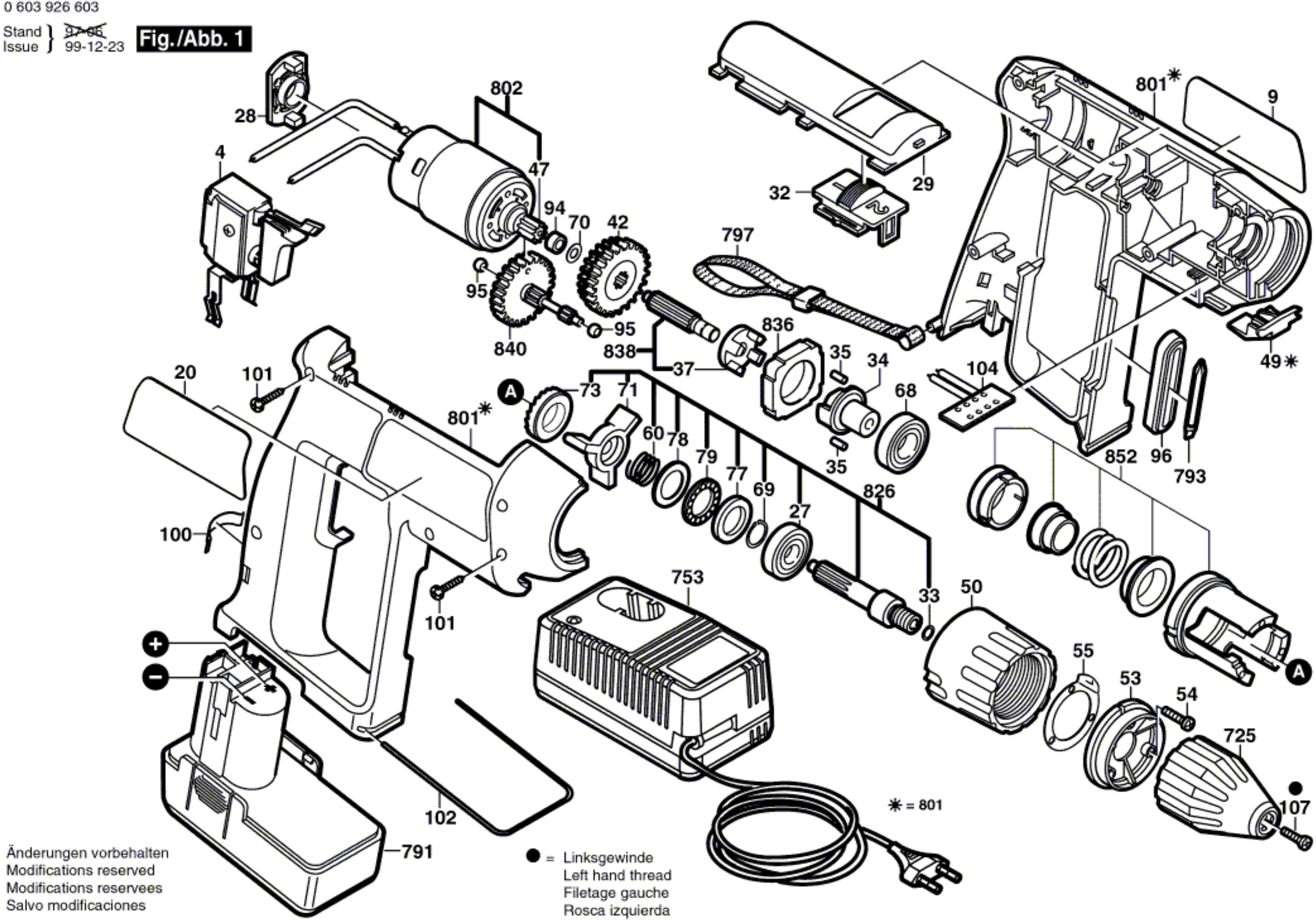

Diagram Bosch PSB 9,6 VES-2

Diagram Bosch PSB 9,6 VES-2

Download (179.74KB)
