Bosch

Bosch Spare Parts for Cordless Drill Driver GSR 12-2

SKU: Bosch GSR 12-2 - 3601J18J00
€2.31
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 12-2

We have the original BOSCH Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Cordless Drill Driver GSR 12-2 / 12 V /EU - 3601j18J00. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch GSR 12-2 - 3601J18J00
Bosch Spare Parts for Cordless Drill Driver GSR 12-2
  • Bosch Spare Parts for Cordless Drill Driver GSR 12-2
  • Bosch Spare Parts for Cordless Drill Driver GSR 12-2
Bosch

Bosch Spare Parts for Cordless Drill Driver GSR 12-2

SKU: Bosch GSR 12-2 - 3601J18J00 Condition: New
€2.31
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 12-2

We have the original BOSCH Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Cordless Drill Driver GSR 12-2 / 12 V /EU - 3601j18J00. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch GSR 12-2 - 3601J18J00
settings 16 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
16 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

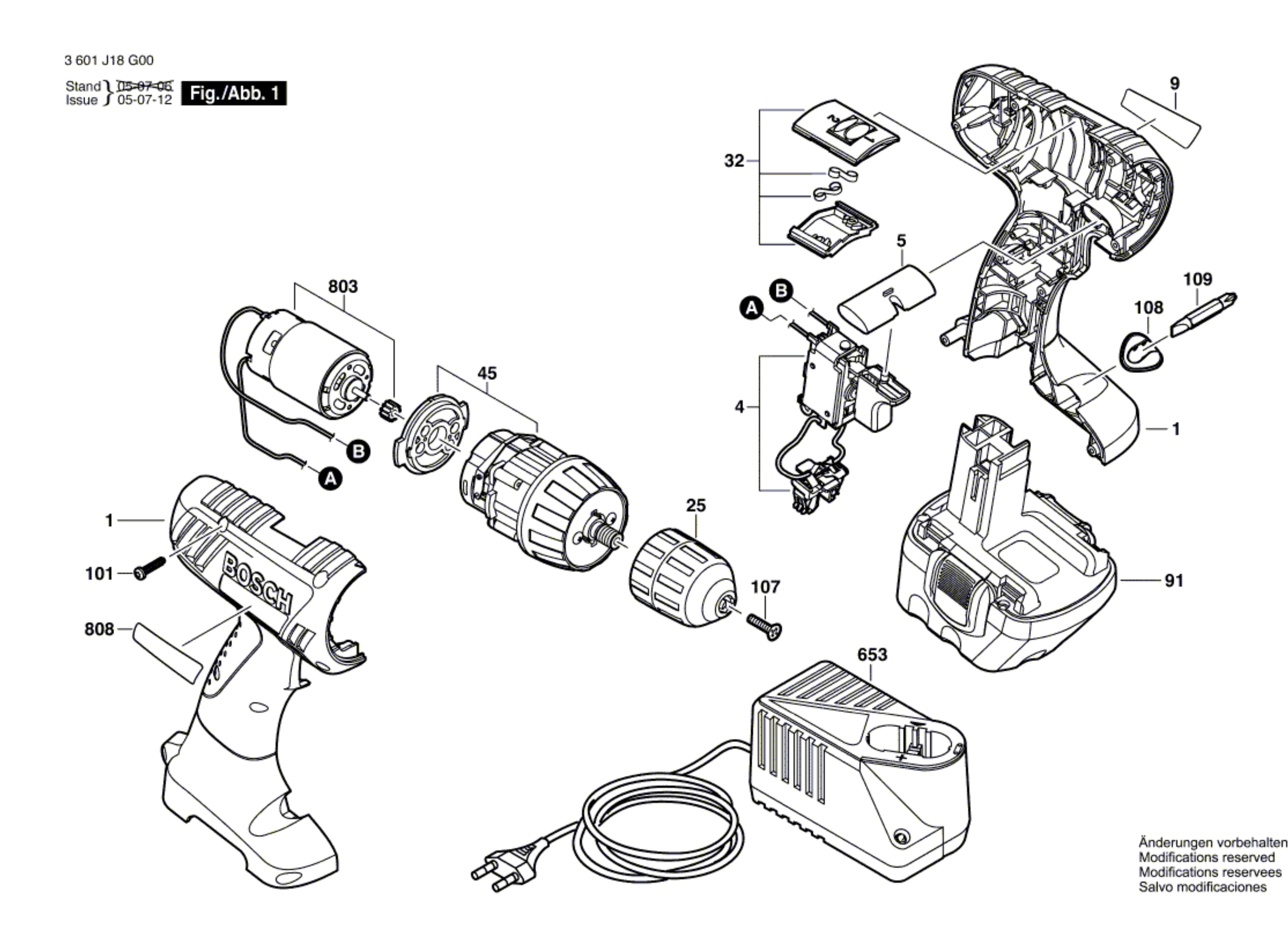

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Housing for Cordless Bosch GSR 12-2 2609100625 Housing for Cordless Bosch GSR 12-2 €30.26
4
 Switch for Cordless Bosch GSR 14,4 2609199070 Switch for Cordless Bosch GSR 14,4 €62.31
5
 Button Right/Left for Cordless Drill Bosch GSR 14,4 2609100744 Button Right/Left for Cordless Drill Bosch GSR 14,4 €3.04
9
 Manufacturer's Nameplate for Cordless Bosch GSR 12-2 2609130866 Manufacturer's Nameplate for Cordless Bosch GSR 12-2 €3.79
25
 photo_cameraImage coming soon 2609110495 Keyless Chuck Ø1,0-10 MM, 3/8 €47.08
32
 photo_cameraImage coming soon 2609120202 Regulator €6.27
45
 photo_cameraImage coming soon 2609110385 Planetary Gear Train  €23.64
91
 photo_cameraImage coming soon 2607335697 Slide-In Accu Package 12V,2,0Ah,NiMh  €242.74
101
 photo_cameraImage coming soon 2609110201 Torx Flat-Head Screw 3x16 €2.77
107
 photo_cameraImage coming soon 2609110721 Countersunk-Head Screw M5x20 €1.52
108
 photo_cameraImage coming soon 2607001443 Toolholder €1.92
109
 photo_cameraImage coming soon 2609160063 Screwdriver Bit €2.74
653
 photo_cameraImage coming soon 2607224391 Fast Charger EU 230/7,2-14,4V, 1h €168.97
653
 photo_cameraImage coming soon 2607224393 Fast Charger GB 230/7,2-14,4V, 1h €168.97
803
 12 V DC Motor for Cordless Bosch GSR 12-2 2609120621 12 V DC Motor for Cordless Bosch GSR 12-2 €35.45
808
 Nameplate for Cordless Bosch GSR 12-2 2609135875 Nameplate for Cordless Bosch GSR 12-2 €2.64

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Cordless Drill Driver GSR 12-2

We have the original BOSCH Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Cordless Drill Driver GSR 12-2 / 12 V /EU - 3601j18J00. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Cordles Drill and the respective parts of the code.
Bosch GSR 12-2 - 3601J18J00

Cordless Drill Driver 3601j18J00 - GSR 12-2 / 12 V /EU
# Part Num. Description
1 2609100625 Housing
4 2609199070 On-Off Switch
5 2609100744 Button
9 2609130866 Manufacturer's nameplate GSR 12-2
25 2609110495 Keyless Chuck Ø1,0-10 MM, 3/8
32 2609120202 Regulator
45 2609110385 Planetary Gear Train
91 1617S00N7F Slide-In Accu Package 12V, 1,5Ah, NiCd
91 2607335697 Slide-In Accu Package 12V,2,0Ah,NiMh
91 2607335261 Slide-In Accu Package 12V,2,0Ah,NiCd
101 2609110201 Torx Flat-Head Screw 3x16
107 2609110721 Countersunk-Head Screw M5x20
108 2607001443 Toolholder
109 2609160063 Screwdriver Bit
653 2607224391 Fast Charger EU 230/7,2-14,4V, 1h
653 2607224393 Fast Charger GB 230/7,2-14,4V, 1h
803 2609120621 DC motor
808 2609135875 Nameplate
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GSR 12-2 - 3601J18J00
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GSR 12-2

Diagram Bosch GSR 12-2

Download (140.58KB)
