Bosch Spare Parts for Angle Grinder GWS 22-230 JH/3 601 H82 M01

SKU: Bosch GWS 22-230 JH 3601H82M01
€2.09
VAT included

Bosch Spare Parts for Angle Grinder GWS 22-230 JH - 3601H82M01

Bosch original spare parts, sourced from the manufacturer, at the best price on the web, for to Make Maintenance or Replacement of Broken parts of the Angle Grinder GWS 22-230 JH - 3601H82M01

Fix Your Angle Grinder GWS 22-230 JH. All Spares are original and can be supplied at Low and discounted prices, and Come with a Full Guarantee.

Bosch GWS 22-230 JH 3601H82M01

Bosch Spare Parts for Angle Grinder GWS 22-230 JH
  • Bosch Spare Parts for Angle Grinder GWS 22-230 JH
  • Bosch Spare Parts for Angle Grinder GWS 22-230 JH
  • Bosch Spare Parts for Angle Grinder GWS 22-230 JH
Bosch

Bosch Spare Parts for Angle Grinder GWS 22-230 JH/3 601 H82 M01

SKU: Bosch GWS 22-230 JH 3601H82M01 Condition: New
€2.09
VAT included

Bosch Spare Parts for Angle Grinder GWS 22-230 JH - 3601H82M01

Bosch original spare parts, sourced from the manufacturer, at the best price on the web, for to Make Maintenance or Replacement of Broken parts of the Angle Grinder GWS 22-230 JH - 3601H82M01

Fix Your Angle Grinder GWS 22-230 JH. All Spares are original and can be supplied at Low and discounted prices, and Come with a Full Guarantee.

Bosch GWS 22-230 JH 3601H82M01

settings 71 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
70 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

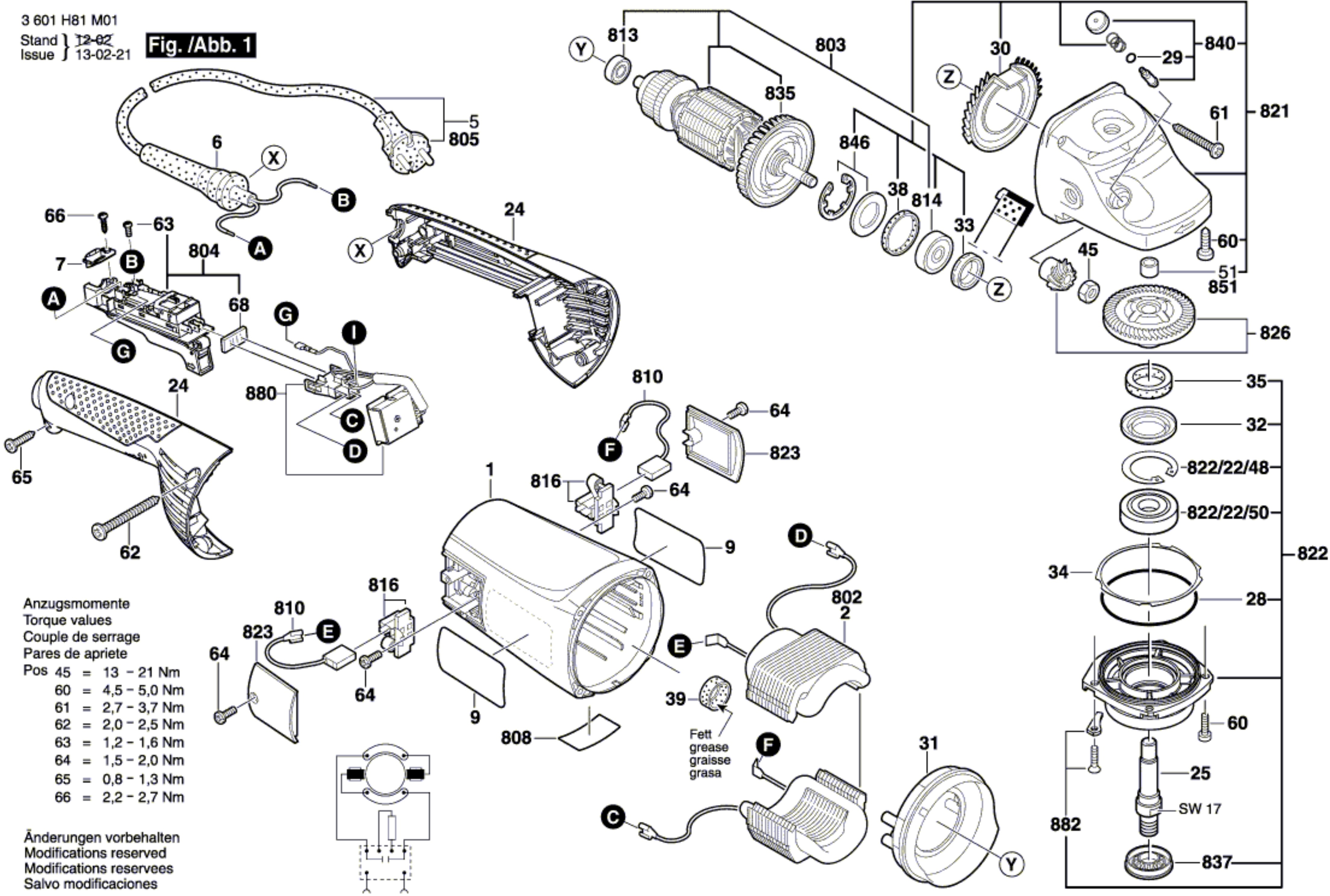

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1605108275 Motor Housing €19.62
6
 photo_cameraImage coming soon 1600703036 Grommet Ø10,5-Ø11,0x100 MM €2.11
7
 photo_cameraImage coming soon 1601302018 Fastening Clamp €2.25
24
 Bosch  Blue Rear Handle for GWS 22-230 JH 1605132149 Bosch  Blue Rear Handle for GWS 22-230 JH €13.12
25
 photo_cameraImage coming soon 160312305U Grinding Spindle  €17.81
28
 O-Ring 79,0x1,78 mm for Angle Grinder Bosch GWS 20-230 1600210033 O-Ring 79,0x1,78 mm for Angle Grinder Bosch GWS 20-230 €2.04
29
 photo_cameraImage coming soon 1600210045 O-Ring 8,0x1,0 MM €2.14
30
 Air Distributor for Angle Grinder GWS 22-230 JH 1600591029 Air Distributor for Angle Grinder GWS 22-230 JH €2.53
31
 Air-Deflector Ring for Angle Grinder GWS 22-230 JH 1600591028 Air-Deflector Ring for Angle Grinder GWS 22-230 JH €2.53
32
 photo_cameraImage coming soon 1600290019 Retaining snap ring €2.14
33
 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 20-230 1600290013 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 20-230 €3.09
34
 Shim mm 0.15 for Angle Grinders Bosch GWS 20-230 1600190020 Shim mm 0.15 for Angle Grinders Bosch GWS 20-230 €2.04
34
 Shim mm 0.3 for Angle Grinders Bosch GWS 20-230 1600190021 Shim mm 0.3 for Angle Grinders Bosch GWS 20-230 €3.10
34
 Shim mm 0.1 for Angle Grinders Bosch GWS 20-230 1600190022 Shim mm 0.1 for Angle Grinders Bosch GWS 20-230 €2.04
34
 photo_cameraImage coming soon 1600190037 Shim 0,2 MM THICK €1.34
34
 photo_cameraImage coming soon 1600190038 Shim 0,25 MM THICK €1.34
34
 photo_cameraImage coming soon 1600190039 Shim 0,35 MM THICK €1.34
34
 photo_cameraImage coming soon 1600190040 Shim 0,4 MM THICK €1.34
35
 Felt Washer for Angle Grinder Bosch GWS 21-230 1600205034 Felt Washer for Angle Grinder Bosch GWS 21-230 €2.04
38
 Bottom Ring for Angle Grinder Bosch GWS 20-230 1600206020 Bottom Ring for Angle Grinder Bosch GWS 20-230 €2.28
39
 Front Ring for Angle Grinder Bosch GWS20-230 1600206030 Front Ring for Angle Grinder Bosch GWS20-230 €2.28
45
 Hex Nut for Angle Grinder Bosch GWS-PWS 1603300019 Hex Nut for Angle Grinder Bosch GWS-PWS €2.04
51
 Plain Bearing Ø14 mm for Angle Grinder Bosch GWS 21-230 1600200031 Plain Bearing Ø14 mm for Angle Grinder Bosch GWS 21-230 €3.62
60
 Round head screw for Angle Grinder Bosch GWS-PWS 1603435023 Round head screw for Angle Grinder Bosch GWS-PWS €2.04
61
 Tapping Screw DIN 7981-4,8x38-C-Z-ST for Angle Grinder Bosch 2912401038 Tapping Screw DIN 7981-4,8x38-C-Z-ST for Angle Grinder Bosch €1.28
62
 photo_cameraImage coming soon 1603435060 Tapping Screw 4,8x55 €2.05
63
 Flat Head Screw for Angle Grinder Bosch GWS-PWS 1603410014 Flat Head Screw for Angle Grinder Bosch GWS-PWS €2.04
64
 Self-Cutting Screw for Angle Grinder Bosch GWS-PWS 1603435042 Self-Cutting Screw for Angle Grinder Bosch GWS-PWS €2.04
65
 Tapping Screw DIN 7981-3,9x19-C-Z-ST for Angle Grinder Bosch 2912401020 Tapping Screw DIN 7981-3,9x19-C-Z-ST for Angle Grinder Bosch €1.28
66
 photo_cameraImage coming soon 2910211019 Tapping Screw DIN 7971-ST3,9x16-F €1.34
68
 Sealing Plate for Angle Grinders Bosch GWS22-230JH/24-230B/PWS1900 1601006011 Sealing Plate for Angle Grinders Bosch GWS22-230JH/24-230B/PWS1900 €2.95
651
 Protective Cover for Angle Grinder GWS 22-230 JH 1605510407 Protective Cover for Angle Grinder GWS 22-230 JH €32.36
802
 Field 230V for Angle Grinder GWS 22-230 JH - 3 601 H82 M01 1604220435 Field 230V for Angle Grinder GWS 22-230 JH - 3 601 H82 M01 €66.97
803
 Armature 230V for Angle Grinder GWS 22-230 JH 1604011296 Armature 230V for Angle Grinder GWS 22-230 JH €96.72
804
 Switch for Angle Grinder Bosch GWS 22-230 JH 1607000C13 Switch for Angle Grinder Bosch GWS 22-230 JH €52.44
805
 photo_cameraImage coming soon 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F €36.70
808
 photo_cameraImage coming soon 160111A3H3 Nameplate  €3.22
810
 photo_cameraImage coming soon 1607000480 Carbon-Brush Set 10 x 1 607 014 171 €188.97
810
 Carbon Brushes for Angle Grinders Bosch 20-21-23 230 1607014171 Carbon Brushes for Angle Grinders Bosch 20-21-23 230 €19.11
813
 Ball Bearing 8x22x7 for Angle Grinder Bosch GWS 20-230 1600905011 Ball Bearing 8x22x7 for Angle Grinder Bosch GWS 20-230 €7.10
814
 photo_cameraImage coming soon 1600905028 Deep-Groove Ball Bearing €14.25
816
 Brush Holder for Angle Grinders Bosch GWS 22-24-230 1604336048 Brush Holder for Angle Grinders Bosch GWS 22-24-230 €7.84
821
 Gear Housing for Angle Grinder GWS 22-230 JH 1607000C03 Gear Housing for Angle Grinder GWS 22-230 JH €65.08
822/22/48
 Spring Retaining Ring for Angle Grinders Bosch GWS 20-21-22-230 1600119010 Spring Retaining Ring for Angle Grinders Bosch GWS 20-21-22-230 €2.04
822/22/50
 photo_cameraImage coming soon 1600905026 Deep-Groove Ball Bearing 17x40x12 €10.47
822
 photo_cameraImage coming soon 1607000C22 Bearing Flange Ø230 MM €46.15
823
 Bosch Sealing Cap for GWS 22-230 JH 1605500206 Bosch Sealing Cap for GWS 22-230 JH €4.90
826
 photo_cameraImage coming soon 1619P02776 Bevel Gear Set €46.15
835
 photo_cameraImage coming soon 1606610142 Fan €4.02
837
 photo_cameraImage coming soon 1600290036 Seal ring BLACK €2.77
840
 photo_cameraImage coming soon 1607000354 Push-Button €8.15
846
 photo_cameraImage coming soon 1607000342 Retaining Washer €2.94
851
 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 2600910001 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 €5.74
880
 Electronics Module for Angle Grinder GWS 22-230 JH 1607233319 Electronics Module for Angle Grinder GWS 22-230 JH €69.39
882
 photo_cameraImage coming soon 1619P06597 Stopper €4.79
890
 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 1600210039 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 €1.28
891
 photo_cameraImage coming soon 1602025022 Auxiliary Handle M14 BLACK €17.32
891/1
 Heavy-Duty Auxiliary Side Handle for Angle Grinder PWS 1900 1602025030 Heavy-Duty Auxiliary Side Handle for Angle Grinder PWS 1900 €29.42
892
 Auxiliary Handle for Angle Grinder GWS 22-230 JH 1607950061 Auxiliary Handle for Angle Grinder GWS 22-230 JH €5.39
893
 Clamping Flange for Angle Grinder Bosch PWS 6-115 2605703014 Clamping Flange for Angle Grinder Bosch PWS 6-115 €7.98
894
 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 1603345043 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 €9.26
896
 photo_cameraImage coming soon 1603340027 Fast Locking Flange M14, SDS-CLIC €75.80
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

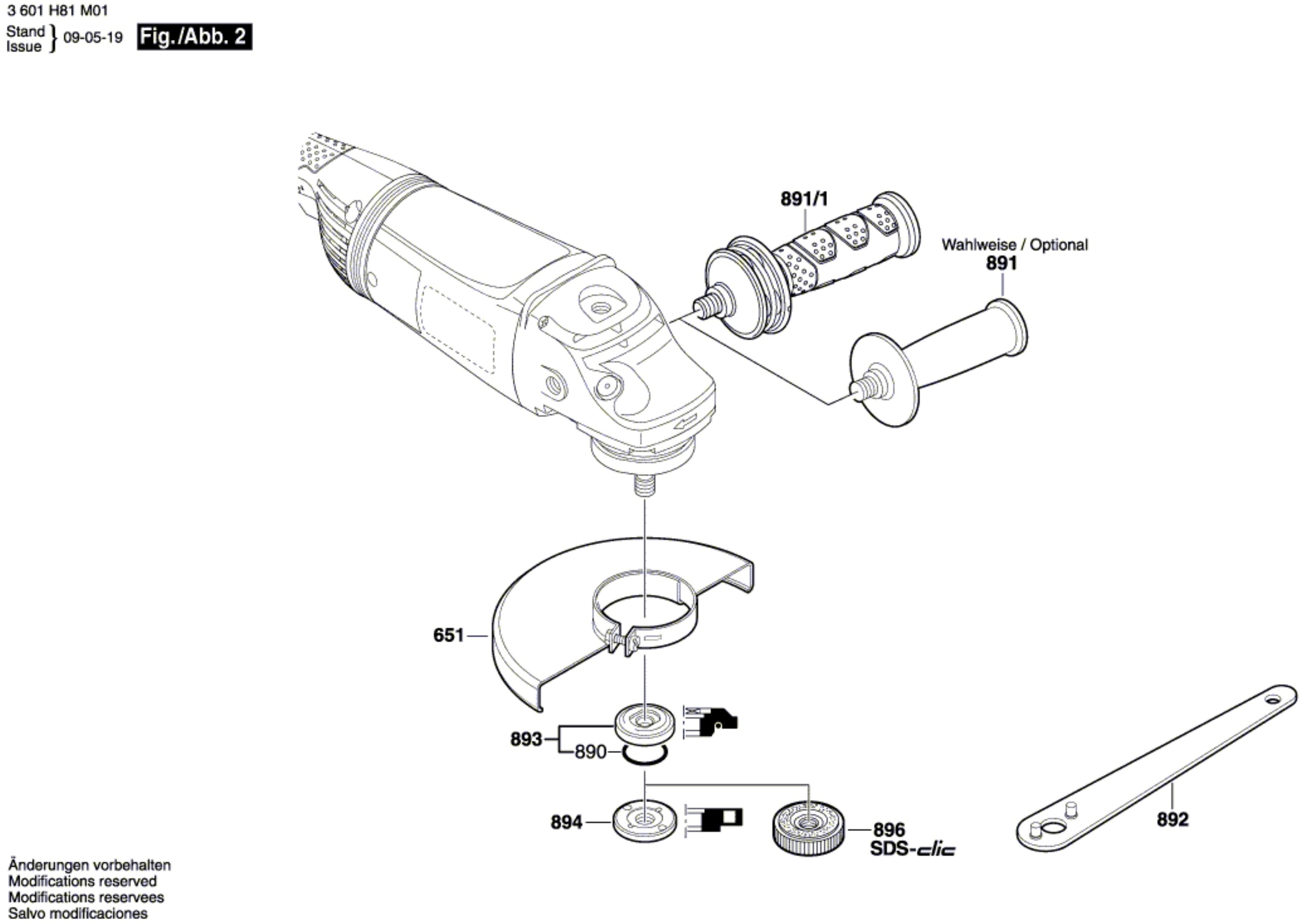

Esploso pagina 2
Pos. Item Price Buy
651
 Protective Cover for Angle Grinder GWS 22-230 JH 1605510407 Protective Cover for Angle Grinder GWS 22-230 JH €32.36
890
 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 1600210039 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 €1.28
891
 photo_cameraImage coming soon 1602025022 Auxiliary Handle M14 BLACK €17.32
891/1
 Heavy-Duty Auxiliary Side Handle for Angle Grinder PWS 1900 1602025030 Heavy-Duty Auxiliary Side Handle for Angle Grinder PWS 1900 €29.42
892
 Auxiliary Handle for Angle Grinder GWS 22-230 JH 1607950061 Auxiliary Handle for Angle Grinder GWS 22-230 JH €5.39
893
 Clamping Flange for Angle Grinder Bosch PWS 6-115 2605703014 Clamping Flange for Angle Grinder Bosch PWS 6-115 €7.98
894
 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 1603345043 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 €9.26
896
 photo_cameraImage coming soon 1603340027 Fast Locking Flange M14, SDS-CLIC €75.80

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Angle Grinder GWS 22-230 JH - 3601H82M01

Bosch original spare parts, sourced from the manufacturer, at the best price on the web, for to Make Maintenance or Replacement of Broken parts of the Angle Grinder GWS 22-230 JH - 3601H82M01.

Fix Your Angle Grinder GWS 22-230 JH. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Bosch GWS 22-230 JH 3601H82M01

Angle Grinder GWS 22-230 JH/3 601 H82 M01
# Part Num. Description
1 1605108275 Motor Housing
6 1600703036 Grommet Ø10,5-Ø11,0x100 MM
7 1601302018 Fastening Clamp
9 1618B00023 Manufacturer's nameplate
24 1605132149 Handle BLUE
25 160312305U Grinding Spindle
28 1600210033 O-Ring 79,0x1,78 MM
29 1600210045 O-Ring 8,0x1,0 MM
30 1600591029 Air Distributor
31 1600591028 Air-Deflector Ring
32 1600290019 Retaining snap ring
33 1600290013 Rotary shaft lip seal 18,7 MM
34 1600190020 Shim 0,15 MM THICK
34 1600190021 Shim 0,3 MM THICK
34 1600190022 Shim 0,1 MM THICK
34 1600190037 Shim 0,2 MM THICK
34 1600190038 Shim 0,25 MM THICK
34 1600190039 Shim 0,35 MM THICK
34 1600190040 Shim 0,4 MM THICK
35 1600205034 Felt Washer
38 1600206020 Rubber Ring 7 MM WIDE
39 1600206030 Rubber Ring
45 1603300019 Hex Nut M10, SW14
51 1600200031 Plain bearing Ø14 MM
60 1603435023 Thread-forming tap. Screw TT M5x18 MM
61 2912401038 Tapping Screw DIN 7981-4,8x38-C-Z-ST
62 1603435060 Tapping Screw 4,8x55
63 1603410014 Pan head screw M4x10 MM
64 1603435042 Self-Cutting Screw St3,9x12
65 2912401020 Tapping Screw DIN 7981-3,9x19-C-Z-ST
66 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
68 1601006011 Sealing Plate
651 1605510407 Protective Cover Ø230 MM
802 1604220435 Field 230V
803 1604011296 Armature 230V
804 1607000C13 On-Off Switch
805 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
808 160111A3H3 Nameplate
810 1607014171 Carbon-Brush Set
810 1607000480 Carbon-Brush Set 10 x 1 607 014 171
813 1600905011 groove ball bearing 8x22x7
814 1600905028 groove ball bearing
816 1604336048 Brush Holder
821 1607000C03 Gear Housing
822 1607000C22 Bearing Flange Ø230 MM
822/22/48 1600119010 Spring retaining ring
822/22/50 1600905026 groove ball bearing 17x40x12
823 1605500206 Sealing cap BLUE
826 1619P02776 Bevel Gear Set
835 1606610142 Fan
837 1600290036 Seal ring BLACK
840 1607000354 Push-Button
846 1607000342 Retaining Washer
851 2600910001 Needle bearing Ø14 MM
880 1607233319 Electronics Module
882 1619P06597 Stopper
890 1600210039 O-Ring 20,35x1,78 MM
891 1602025022 Auxiliary Handle M14 BLACK
891/1 1602025030 Auxiliary Handle M14, Ø37x115 MM BLACK
892 1607950061 Pin-Type Face-Wrench
893 2605703014 Clamping-Flange Ø22,3xØ42 MM
894 1603345043 Round Nut M14
896 1603340027 Fast Locking Flange M14, SDS-CLIC
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GWS 22-230 JH 3601H82M01
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GWS 22-230 JH

Diagram Bosch GWS 22-230 JH

Download (233.47KB)

You might also like

Carbon Brushes for Angle Grinders Bosch 20-21-23 230
Bosch SKU: 1607014171
Carbon Brushes for Angle Grinders Bosch 20-21-23 230
Carbon Brushes for Angle Grinders Bosch 20-21-23 230 Genuine part Bosch, Carbon Brushe Set for Angle Grinders GWS 18-180 - GWS 18-230 - GWS 20-180 - GWS 20-230 - GWS 21-180 - GWS 21-230 - GWS 23-230. Part for the following products:...
Last items in stock €19.11
Details
Brush Holder for Angle Grinders Bosch GWS 22-24-230
Bosch SKU: 1604336048
Brush Holder for Angle Grinders Bosch GWS 22-24-230
Brush Holder for Angle Grinders Bosch GWS 22-24-230 Bosch original parts, Brush holder for Angle Grinders GWS 22-230 - GWS 24-230 - PWS 1900. Part for the following products: - GRINDER GWS 22-230 JH / 3601 H82 200 - GRINDER GWS...
on 7/10 Business Days Approx €7.84
Details
Switch for Angle Grinders Bosch GWS 22-230 Sale
Bosch SKU: 1607000479
Switch for Angle Grinders Bosch GWS 22-230
Switch for Angle Grinders Bosch GWS 22-230 Original parts Bosch, Switch for ANGLE GRINDER BOSCH GWS 22-230 JH / 3601 H82 200. Parts for the follows articles: - ANGLE GRINDER BOSCH GWS 22-230 JH / 3601 H82 200 - CODE: 1607000479
AVAILABLE €53.09
Details
Armature 230V for Angle Grinder GWS 22-230 JH
Bosch SKU: 1604011296
Armature 230V for Angle Grinder GWS 22-230 JH
Armature 230V for Angle Grinder GWS 22-230 JH Genuine Part Bosch, Armature 230V for Angle Grinders GWS 22-230 JH/3 601 H82 200 - GWS 22-230 JH/3 601 H82 M01 Part for the following products: -  Angle Grinder Bosch GWS 22-230 JH/3 601...
AVAILABLE €96.72
Details
Electronics Module for Angle Grinder GWS 22-230 JH
Bosch SKU: 1607233319
Electronics Module for Angle Grinder GWS 22-230 JH
Electronics Module for Angle Grinder GWS 22-230 JH Genuine Part Bosch, Electronics Module for Angle Grinders GWS 22-230 JH/3 601 H82 M01 Part for the following products: - Angle Grinder Bosch GWS 22-230 JH/3 601 H82 M01 - Code:...
on 7/10 Business Days Approx €69.39
Details
Auxiliary Handle for Angle Grinder GWS 22-230 JH
Bosch SKU: 1602025051
Auxiliary Handle for Angle Grinder GWS 22-230 JH
Auxiliary Handle for Angle Grinder GWS 22-230 JH Genuine Part Bosch, Auxiliary Handle M14 BLACK for Angle Grinders GWS 22-230 JH/3 601 H82 200 - GWS 22-230 LVI/3601H91C00 - GWS 24-230 B/0 601 854 003. Part for the following products:...
AVAILABLE €29.42
Details
Auxiliary Handle for Angle Grinder GWS 22-230 JH
Bosch SKU: 1607950061
Auxiliary Handle for Angle Grinder GWS 22-230 JH
Auxiliary Handle for Angle Grinder GWS 22-230 JH Genuine Part Bosch, Auxiliary Handle M14 BLACK for Angle Grinders GWS 22-230 JH/3 601 H82 200 - GWS 22-230 JH/3 601 H82 M01 - GWS 24-230 B/0 601 854 003 Part for the following products:...
Last items in stock €5.39
Details
Air-Deflector Ring for Angle Grinder GWS 22-230 JH
Bosch SKU: 1600591028
Air-Deflector Ring for Angle Grinder GWS 22-230 JH
Air-Deflector Ring for Angle Grinder GWS 22-230 JH Genuine Part Bosch, Air-Deflector Ring for Angle Grinders GWS 22-230 JH/3 601 H82 200 - GWS 22-230 JH/3 601 H82 M01 - GWS 24-230 B - 0601854003 Part for the following products: -...
AVAILABLE €2.53
Details
Air Distributor for Angle Grinder GWS 22-230 JH
Bosch SKU: 1600591029
Air Distributor for Angle Grinder GWS 22-230 JH
Air Distributor for Angle Grinder GWS 22-230 JH Genuine Part Bosch, Air Distributor for Angle Grinders GWS 22-230 JH/3 601 H82 200 - GWS 22-230 JH/3 601 H82 M01 - GWS 24-230 B - 0601854003 Part for the following products: - Angle...
AVAILABLE €2.53
Details
Gear Housing for Angle Grinder GWS 22-230 JH
Bosch SKU: 1607000C03
Gear Housing for Angle Grinder GWS 22-230 JH
Gear Housing for Angle Grinder GWS 22-230 JH Genuine Part Bosch, Gear Housing for Angle Grinders GWS 22-230 JH/3 601 H82 200 - GWS 22-230 JH/3 601 H82 M01 - GWS 24-230 B - 0601854003 Part for the following products: - Angle Grinder...
AVAILABLE €65.08
Details
Heavy-Duty Auxiliary Side Handle for Angle Grinder PWS 1900
Bosch SKU: 1602025030
Heavy-Duty Auxiliary Side Handle for Angle Grinder PWS 1900
Heavy-Duty Auxiliary Side Handle for Angle Grinder PWS 1900 Genuine Part Bosch, Heavy-Duty Auxiliary Side Handle M14 Ø 37x115 mm BLACK for Angle Grinders PWS 1900 - GWS 22-230 JH - Impact Drill GBM 13. Part for the following products:...
AVAILABLE €29.42
Details
Felt Washer for Angle Grinder Bosch GWS 21-230
Bosch SKU: 1600205034
Felt Washer for Angle Grinder Bosch GWS 21-230
Felt Washer for Angle Grinder Bosch GWS 21-230 Genuine replacement part Bosch, Felt Washer Angle Grinders GWS 21-230 - PWS 20-230 J - GWS 22-230 JH - GWS 24-230B - PWS 20-230 - PWS 1900. Part for the following products: - Angle...
AVAILABLE €2.04
Details
Plain Bearing Ø14 mm for Angle Grinder Bosch GWS 21-230
Bosch SKU: 1600200031
Plain Bearing Ø14 mm for Angle Grinder Bosch GWS 21-230
Plain Bearing Ø14 mm for Angle Grinder Bosch GWS 21-230 Genuine part Bosch, Plain Bearing Ø14 mm for Angle Grinders GWS 20-230 - GWS 21-230 - PWS 20-230 - PWS 1900 - PWS 20-230 - 22-230 JH. Part for the following products: - Angle...
AVAILABLE €3.62
Details
O-Ring 79,0x1,78 mm for Angle Grinder Bosch GWS 20-230
Bosch SKU: 1600210033
O-Ring 79,0x1,78 mm for Angle Grinder Bosch GWS 20-230
O-Ring 79,0x1,78 mm for Angle Grinder Bosch GWS 20-230 Original part Bosch, O-Ring 79,0x1,78 mm for Angle Grinders GWS 20-230 - GWS 21-230 - GWS 22-230 JH - GWS 24-230 B - PWS 1900 Part for Following products: - Angle Grinder GWS...
AVAILABLE €2.04
Details
Shim mm 0.15 for Angle Grinders Bosch GWS 20-230
Bosch SKU: 1600190020
Shim mm 0.15 for Angle Grinders Bosch GWS 20-230
Shim mm 0.15 for Angle Grinders Bosch GWS 20-230 Bosch original part, Shim mm 0.15 for Angle Grinders GWS 20-230 - GWS 21-230 - GWS 22-230 JH - GWS 24-230B. Part for the following products: - Angle Grinder GWS 20-230/0 601 357 003 -...
AVAILABLE €2.04
Details
Shim mm 0.3 for Angle Grinders Bosch GWS 20-230
Bosch SKU: 1600190021
Shim mm 0.3 for Angle Grinders Bosch GWS 20-230
Shim mm 0.3 for Angle Grinders Bosch GWS 20-230 Bosch original part, Shim mm 0.3 for Angle Grinders GWS 20-230 - GWS 21-230 - GWS 22-230 JH - GWS 24-230B. Part for the following products: - Angle Grinder GWS 20-230/0 601 357 003 -...
AVAILABLE €3.10
Details
Shim mm 0.1 for Angle Grinders Bosch GWS 20-230
Bosch SKU: 1600190022
Shim mm 0.1 for Angle Grinders Bosch GWS 20-230
Shim mm 0.1 for Angle Grinders Bosch GWS 20-230 Bosch original part, Shim mm 0.1 for Angle Grinders GWS 20-230 - GWS 21-230 - GWS 22-230 JH - GWS 24-230B. Part for the following products: - Angle Grinder GWS 20-230/0 601 357 003 -...
AVAILABLE €2.04
Details
Protective Cover for Angle Grinder GWS 22-230 JH
Bosch SKU: 1605510407
Protective Cover for Angle Grinder GWS 22-230 JH
Protective Cover for Angle Grinder GWS 22-230 JH Genuine Part Bosch, Protective Cover ø 230 mm for Angle Grinders GWS 22-230 JH/3 601 H82 200 - GWS 22-230 JH/3 601 H82 M01 Part for the following products: -  Angle Grinder Bosch GWS...
Last items in stock €32.36
Details
Rotary Shaft lip Seal for Angle Grinder Bosch GWS 20-230
Bosch SKU: 1600290013
Rotary Shaft lip Seal for Angle Grinder Bosch GWS 20-230
Rotary Shaft lip Seal for Angle Grinder Bosch GWS 20-230 Genuine part Bosch, Rotary Shaft lip Seal 18,7 MM for Angle Grinders GWS 20-230 - GWS 21-230 - GWS 22-230 JH. Part for the following products: -  Angle Grinder GWS 20-230 -...
on 7/10 Business Days Approx €3.09
Details
Ball Bearing 8x22x7 for Angle Grinder Bosch GWS 20-230
Bosch SKU: 1600905011
Ball Bearing 8x22x7 for Angle Grinder Bosch GWS 20-230
Ball Bearing 8x22x7 for Angle Grinder Bosch GWS 20-230 Genuine part Bosch, Groove Ball Bearing 8x22x7 608Z SD02 for Angle Grinders GWS 20-230 - GWS 21-230 - GWS 22-230 JH. Part for the following products: -  Angle Grinder GWS 20-230 -...
Last items in stock €7.10
Details
Bosch Sealing Cap for GWS 22-230 JH
Bosch SKU: 1605500206
Bosch Sealing Cap for GWS 22-230 JH
Bosch Sealing Cap for Angle Grinder GWS 22-230 JH Genuine spare part Bosch, Carbon Brush Cap Blue for Angle Grinder GWS 22-230 JH - GWS 24-230B. Part for the following products: - Angle Grinder GWS 22-230 JH - 3601H82200 - Angle...
Last items in stock €4.90
Details
Bosch Blue Rear Handle for GWS 22-230 JH New
Bosch SKU: 1605132149
Bosch  Blue Rear Handle for GWS 22-230 JH
Bosch  Blue Rear Handle for GWS 22-230 JH Genuine Bosch Spare Part. Blue Rear Handle for GWS 22-230 JH Angle Grinder. Spare part for the following products: Bosch GWS 22-230 JH - 3601H82200 Bosch GWS 22-230 JH - 3601H82M01...
Last items in stock €13.12
Details
Comments (0)
