Bosch Spare Parts for Jig Saw PST 650 L

Name: Bosch Spare Parts for Jig Saw PST 650 L
Brand: Bosch
SKU: Bosch PST 650 L - 3603C92200
Availability: InStock

SKU: Bosch PST 650 L - 3603C92200

€31.07

VAT included

Bosch Spare Parts for Jig Saw PST 650 L

Bosch original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of Jig Saw PST 650 L - 3603C92200

Fix Your Jig Saw PST 650 L. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch PST 650 L - 3603C92200

28 spare parts

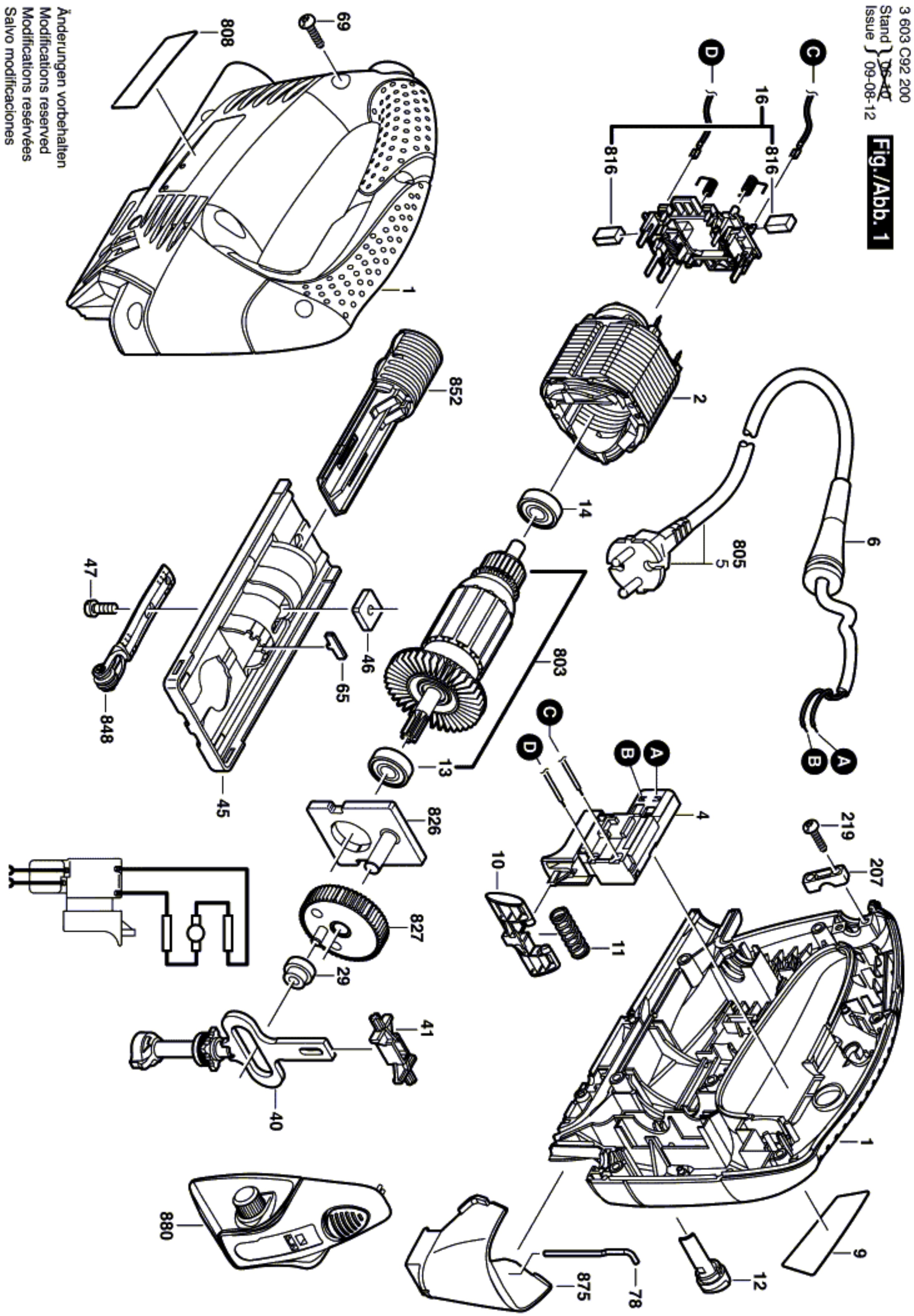

Page 1 View exploded Usually Ships in: 10 BUSYNESS DAYS

Pos.		Item	Price	Buy
1	Image coming soon	2609000656 Housing Section	€18.81
2	Image coming soon	2604220601 Field 220-240V	€23.73
6		2609002019 Grommet for Sander BOSCH PSS 300 AE	€2.64
9	Image coming soon	2609000954 Manufacturer's nameplate PST 650 L	€2.84
12	Image coming soon	2602026132 Rotary-Knob Valve RED	€1.60
13		3130900020 Ball Bearing 608-2Z/C3 for Percussion Drill Bosch PSB 500 RE	€6.00
14		3130900020 Ball Bearing 608-2Z/C3 for Percussion Drill Bosch PSB 500 RE	€6.00
16	Image coming soon	2604337102 Brush Plate	€10.09
29	Image coming soon	2605801044 Plain bearing	€3.70
40		2600780148 Lifting Rod for Jigsaw Bosch PST 650-PST 680	€44.08	Not available for order
41		2605801053 Lifting Rod Guide Bearing for Jigsaw Bosch PST 650 L	€5.93
46		2600040003 Base Plate Fixing for Jigsaw Bosch PST650L-680E-680EL	€2.03
47		2603413034 Socket Head Cap Screw for Jigsaw Bosch PST 650	€1.54
65	Image coming soon	2601030166 Adjustment Element	€1.89
69	Image coming soon	2603490022 Torx Oval-Head Screw 4x16	€1.66
78	Image coming soon	2603105088 Safety pin	€1.23
207		2601035001 Cable Clip 2601035001 for Power Tools Bosch	€2.09
219	Image coming soon	2603490022 Torx Oval-Head Screw 4x16	€1.66
803	Image coming soon	2609000359 Armature 220-240V	€39.53
805	Image coming soon	1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F	€30.17
808	Image coming soon	2609000956 Nameplat	€2.84
816		2610391290 Carbon Brushes for Orbital Sanders PSS 200-250-300 AE	€9.44
826	Image coming soon	2609000346 Bearing Bracket	€5.65
827	Image coming soon	2609002094 Eccentric Cog Wheel	€14.61
848		2601321072 Retaining Brack for Jigsaws Bosch PST650L-680E-680EL	€12.65	Not available for order
852	Image coming soon	2608040231 Saw Blade Depot	€5.90
875		2605510219 Covering Hood for Jigsaws Bosch PST650-680	€6.24	Not available for order
880	Image coming soon	2609001212 Laser	€31.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Jig Saw PST 650 L

Bosch original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of Jig Saw PST 650 L/3 603 C92 200.

In the following table, look for the model of the Jig Saw and the respective parts of the code.

Jig Saw PST 650 L/3 603 C92 200
1	2609000656	Housing Section
2	2604220601	Field 220-240V
4	2607200608	Switch
6	2609002019	Grommet
9	2609000954	Manufacturer's nameplate PST 650 L
10	2609000290	Locking Lever
11	2609000421	Compression Spring
12	2602026132	Rotary-Knob Valve RED
13	3130900020	Deep-Groove Ball Bearing 8x22x7 608-2Z/C3
14	3130900020	Deep-Groove Ball Bearing 8x22x7 608-2Z/C3
16	2604337102	Brush Plate
29	2605801044	Plain bearing
40	2600780148	Lifting Rod
41	2605801053	Guide Bearing
46	2600040003	Fastening Plate
47	2603413034	Socket head cap screw
65	2601030166	Adjustment Element
69	2,6E+09	Torx Oval-Head Screw 4x16
78	2603490022	Locking pin
207	2601035001	Cable Clip
219	2603490022	Torx Oval-Head Screw 4x16
803	2609000359	Armature 220-240V
805	1607000386	Power supply cord EU 230V 2 x 1,0mm
808	2609000956	Nameplate
816	2610391290	Carbon-Brush Set
826	2609000346	Bearing Bracket
827	2609002094	Eccentric Cog Wheel
848	2601321072	Retaining Bracket
852	2608040231	Saw Blade Depot
875	2605510219	Covering hood
880	2609001212	Laser

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Bosch PST 650 L - 3603C92200

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

Condition New

Download

Diagram Bosch PST 650 L

Download (107.97KB)
