Bosch Spare Parts for Impact Drill GSB 22-2 RE

SKU: Bosch GSB 22-2 RE - 0601146403
€31.07
VAT included

Bosch Spare Parts for Impact Drill GSB 22-2 RE

We have the original Spares BOSCH for Impact Drill GSB 22-2 RE - 0601146403 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Impact Drill GSB 22-2 RE. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Guarantee



Bosch Spare Parts for Impact Drill GSB 22-2 RE
  • Bosch Spare Parts for Impact Drill GSB 22-2 RE
  • Bosch Spare Parts for Impact Drill GSB 22-2 RE
Bosch

Bosch Spare Parts for Impact Drill GSB 22-2 RE

SKU: Bosch GSB 22-2 RE - 0601146403 Condition: New
€31.07
VAT included

Bosch Spare Parts for Impact Drill GSB 22-2 RE

We have the original Spares BOSCH for Impact Drill GSB 22-2 RE - 0601146403 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Impact Drill GSB 22-2 RE. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Guarantee



settings 69 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
51 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

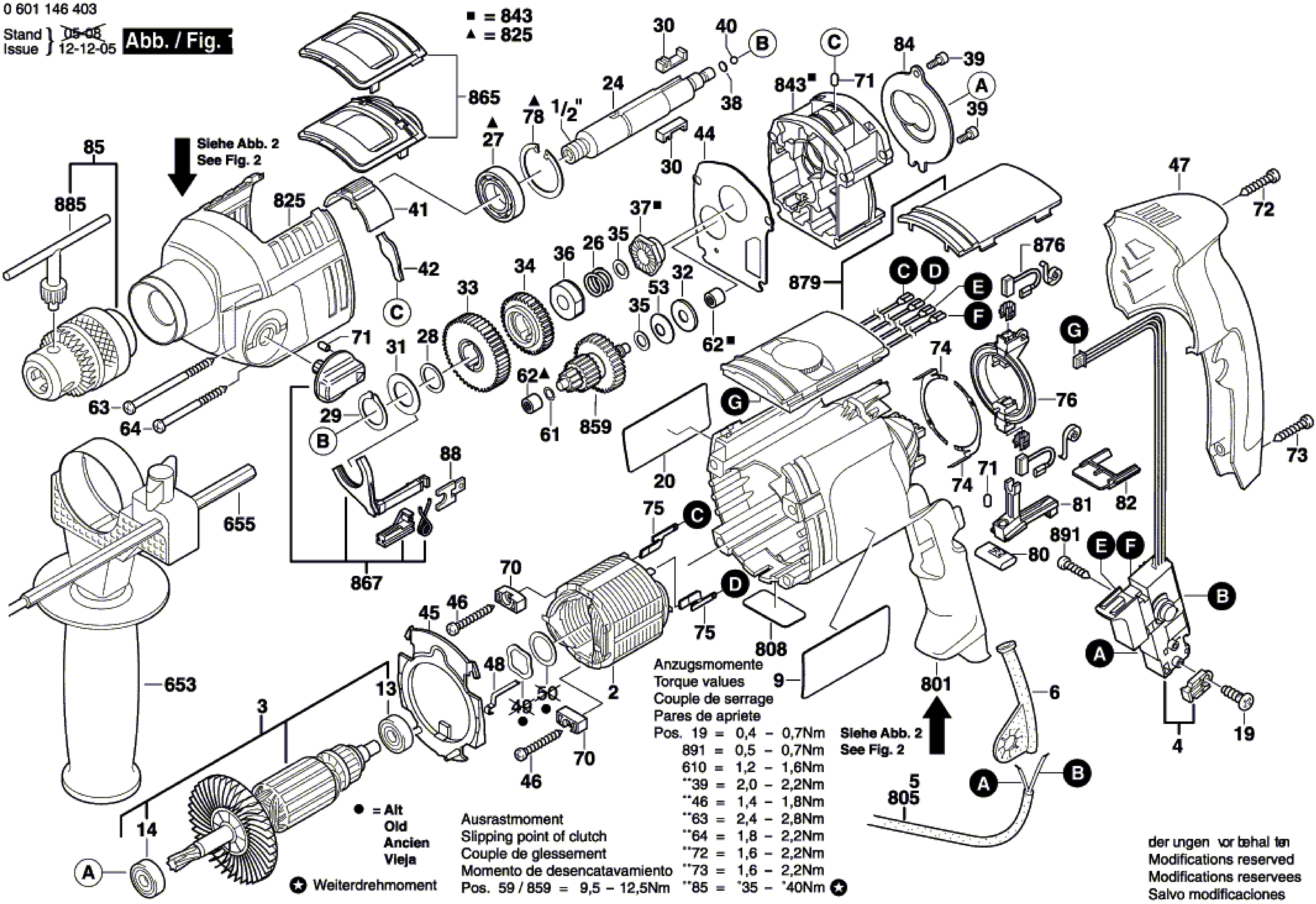

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 1614220136 Field 230-240V €24.83
6
 Grommet for Drills Bosch PSB550-650-700/2-1000 2600707066 Grommet for Drills Bosch PSB550-650-700/2-1000 €2.28
9
 photo_cameraImage coming soon 2601116658 Manufacturer's nameplate €2.93
13
 Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
14
 photo_cameraImage coming soon 1610905017 Deep-Groove Ball Bearing 9x24x7 €11.59
19
 photo_cameraImage coming soon 2603490017 Torx Oval-Head Screw 3x10 €2.82
20
 photo_cameraImage coming soon 2601117956 Reference Plate €2.93
24
 photo_cameraImage coming soon 2606135099 Drilling Spindle €16.89
26
 photo_cameraImage coming soon 2604616013 Compression Spring €3.24
27
 photo_cameraImage coming soon 1900905163 Deep-Groove Ball Bearing 17x35x10 €14.25
28
 photo_cameraImage coming soon 2600100695 Shim 0,5 MM €2.18
29
 photo_cameraImage coming soon 2916650008 Spring retaining ring DIN 471 17x1 MM €2.18
30
 photo_cameraImage coming soon 2602300032 Flat Key €4.56
31
 photo_cameraImage coming soon 2600101671 Retaining Washer €2.18
32
 photo_cameraImage coming soon 2600101056 Shim €1.35
33
 photo_cameraImage coming soon 2606317084 Cylindrical Gear €17.81
34
 photo_cameraImage coming soon 2606317098 Cylindrical Gear €16.04
35
 Shim mm 0.3 for Percussion Drill Bosch GSB 13 RE 2600101047 Shim mm 0.3 for Percussion Drill Bosch GSB 13 RE €1.52
38
 photo_cameraImage coming soon 2600000021 Shim washer 1,0 MM €2.18
39
 Torx Screw M 4x8 for Percussion Drills Bosch GSB 20-22-2 RE 2603410048 Torx Screw M 4x8 for Percussion Drills Bosch GSB 20-22-2 RE €1.52
40
 photo_cameraImage coming soon 1903230009 Ball DIN 5401-5 G28  €1.43
40
 Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 1903230010 Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 €1.91
40
 photo_cameraImage coming soon 2603230007 Ball 5,25 MM €1.43
41
 photo_cameraImage coming soon 2602098014 Changeover Lever €1.73
42
 photo_cameraImage coming soon 2600114016 Pressure Plate €2.01
44
 photo_cameraImage coming soon 2601073014 Gasket €1.64
45
 photo_cameraImage coming soon 2600148007 Air Guide Plate €1.96
46
 photo_cameraImage coming soon 2603490024 Torx Oval-Head Screw 4x25 €2.09
47
 photo_cameraImage coming soon 2605132053 Housing Cover DARK BLUE €9.27
53
 photo_cameraImage coming soon 2600550008 Disc Spring €2.13
61
 Shim Washer 0,3 mm for Hammer Drill Bosch GSB 18-2 RE 2600100607 Shim Washer 0,3 mm for Hammer Drill Bosch GSB 18-2 RE €2.09
62
 photo_cameraImage coming soon 2600914010 Needle bearing Ø6 MM €3.80
63
 photo_cameraImage coming soon 2603435070 Headless Screw €2.27
71
 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE 2600590006 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE €2.09
73
 photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
78
 photo_cameraImage coming soon 2916660014 Spring retaining ring DIN 472 35x1,5 MM €2.18
80
 photo_cameraImage coming soon 2602099016 Change-Over Switch €2.01
81
 Carrier Bracke for Percussion Drill Bosch GSB 22-2 RE 2602319024 Carrier Bracke for Percussion Drill Bosch GSB 22-2 RE €1.52
84
 photo_cameraImage coming soon 2601098067 Retaining Washer €2.01
85
 photo_cameraImage coming soon 2608571060 Key Chuck €50.83
653
 photo_cameraImage coming soon 2602025118 Auxiliary Handle Ø43 MM €20.04
655
 photo_cameraImage coming soon 1613001009 Depth-Gauge SW 6x210 MM €9.00
801
 photo_cameraImage coming soon 2605104784 Motor Housing DARK BLUE €26.51
805
 photo_cameraImage coming soon 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F €30.17
825
 photo_cameraImage coming soon 2605806894 Gear Housing €37.71
843
 photo_cameraImage coming soon 2605700942 Intermediate Flange €37.71
859
 photo_cameraImage coming soon 2606309933 Transmission €36.46
865
 photo_cameraImage coming soon 2605510901 Bulb Shield €11.59
876
 photo_cameraImage coming soon 2604321927 Carbon-Brush Set €10.39
885
 photo_cameraImage coming soon 2607950007 Chuck Wrench SG2 €16.17
891
 photo_cameraImage coming soon 2603410046 Screw Phillips M3x5 €2.77
