Bosch Spare Parts for Impact Drill GSB 16 RE

Name: Bosch Spare Parts for Impact Drill GSB 16 RE
Brand: Bosch
SKU: GSB 16 RE - 0601140603
Availability: InStock

SKU: GSB 16 RE - 0601140603

€17.28

VAT included

Bosch Spare Parts for Impact Drill GSB 16 RE

BOSCH tools repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Impact Drill GSB 16 RE - 0601140603.

GSB 16 RE - 0601140603

48 spare parts

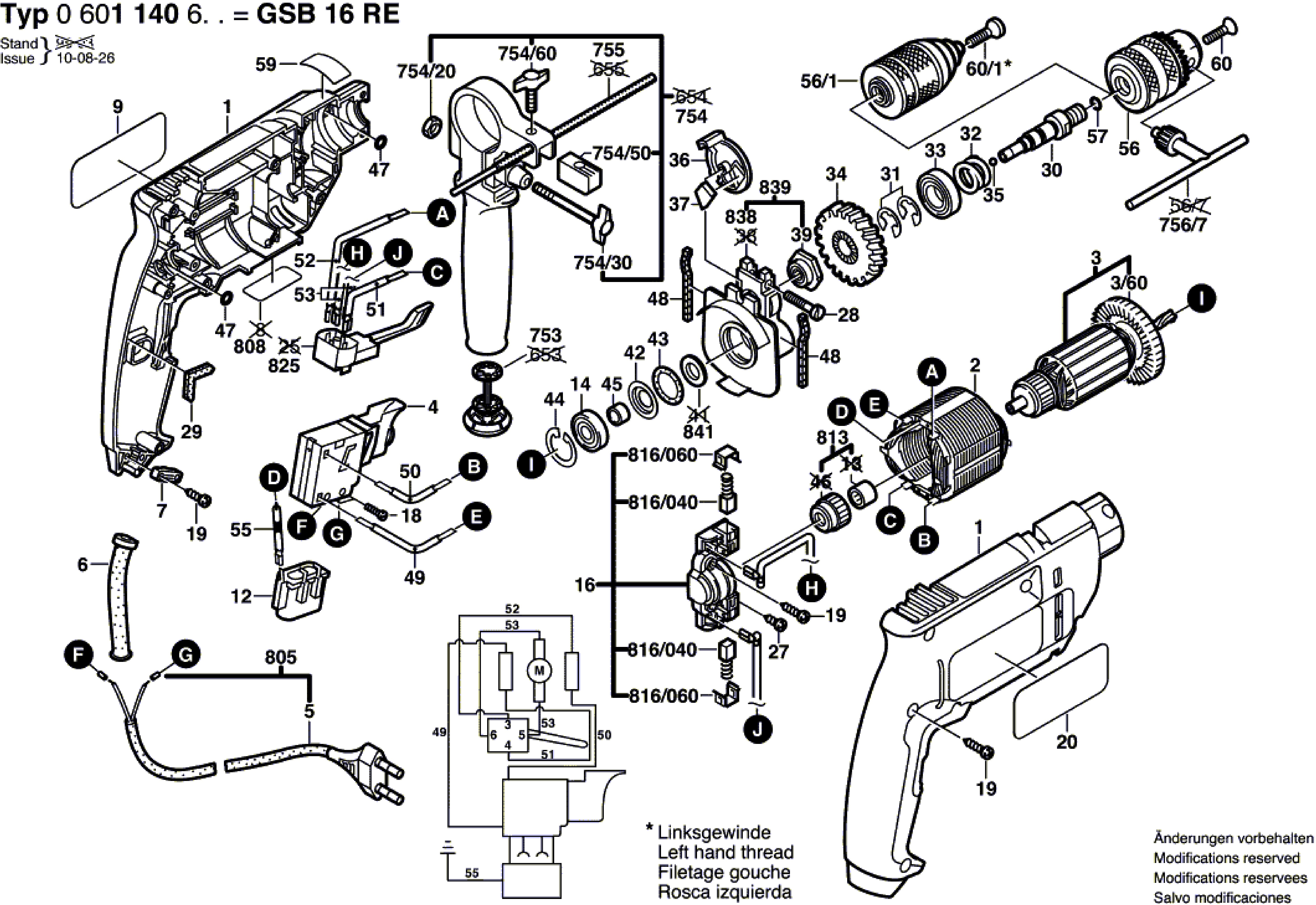

Page 1 View exploded Usually Ships in: 10 BUSYNESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
	Image coming soon	1608571069 Chuck Ø1,5-13 MM, 1/2 "	€75.60
	Image coming soon	2600118002 Rosetta Security0.8MM	€2.13
	Image coming soon	2600118006 Rosetta Security0.3MM	€1.83
	Image coming soon	2601322013 Ratchet Cap	€1.58
1	Image coming soon	2605104436 Housing Section BLUE	€31.18
2		2604220430 Field 240V for Impact Drill Bosch GSB 16 RE	€36.14
3/60		2606610029 Fan for Hammer Drill Bosch GSB 18-2 RE	€3.09
4		2607200188 Switch for Impact Drills Bosch GSB16-18/2RE	€47.18	Not available for order
6		2600707059 Grommet for Percussion Drills Bosch GSB 16-18-20 RE	€3.17
7		2601035001 Cable Clip 2601035001 for Power Tools Bosch	€2.09
9	Image coming soon	2601118433 Manufacturer's nameplate SUNNY SIDE	€1.59
14	Image coming soon	2600905039 Rigid bearing 9x24x7 BALL	€12.94
18	Image coming soon	2603410001 Socket head cap screw M3x6,5-4.8	€2.09
19	Image coming soon	2603490022 Torx Oval-Head Screw 4x16	€1.66
20	Image coming soon	2601118434 Reference Plate SHADOW SIDE	€1.59
27	Image coming soon	2603490017 Torx Oval-Head Screw 3x10	€2.82
29	Image coming soon	2601022000 Plate Damping	€1.58
31	Image coming soon	2600118001 Rosetta Security 0.6 MM	€1.39
33	Image coming soon	1900905122 Deep-Groove Ball Bearing 15x32x9	€7.85
35		1903230010 Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22	€1.91
36	Image coming soon	2601990001 Switching element BLACK	€1.39
37	Image coming soon	2601074003 Plate Pressure	€1.39
43	Image coming soon	1900210117 O-Ring 18x3 MM	€3.31
44	Image coming soon	2916660008 Spring retaining ring DIN 472-24x1,2 MM	€2.74
45		2600400008 Sleeve-Type Terminal for Hammer Drill Bosch GSB 16 RE	€2.09
47	Image coming soon	1900210000 O-Ring 5,0x1,5 MM	€2.13
48	Image coming soon	2601005011 Band Felt	€1.83
49	Image coming soon	2604448060 Electric cable L = 173 MM WHITE	€2.12
50	Image coming soon	2604448045 Electric cable L = 98 MM BLACK	€1.39
51	Image coming soon	2604448034 Connection Cable L = 88 MM WHITE	€1.39
52	Image coming soon	2604448132 Connection Cable L = 103 MM BLUE	€1.39
53	Image coming soon	2604448115 Connection Cable L = 73 MM WHITE	€1.39
56	Image coming soon	2608572106 Keyless Chuck Ø 1,5-13 MM, 1/2"	€121.07
57	Image coming soon	2604601004 Ring elastic release	€1.24
60/1		2603421213 Screw M 6x34 MM Left for Percussion Drills Bosch GSB 16 RE	€3.17
60	Image coming soon	2603421215 Countersunk-Head Screw M 6x38 MM LEFTHAND THREADS	€1.59
754	Image coming soon	1612025031 Auxiliary Handle Ø43 MM BLACK	€12.76
754/30	Image coming soon	1613480007 Wing Screw M6x(15)55	€1.74
754/60	Image coming soon	1613480008 Wing Screw M6x20 MM	€1.79
754/50	Image coming soon	2608040014 Clamping Plate M6	€3.07
754/20		2915011007 DIN 934-M6-8-A for Angle Grinder Bosch GWS 660	€1.32
756/7	Image coming soon	2607950007 Chuck Wrench SG2	€16.17
805	Image coming soon	1607000385 Power supply cord EU 2,6m 2 x 1,0 mm	€16.29
808	Image coming soon	2601119001 Nameplate	€2.82
813	Image coming soon	2600917902 Needle roller bearings	€6.58
816/060	Image coming soon	2601329051 Ratchet Cap	€2.49
825		2607200231 Switch Change-Over for Impact Drills Bosch GSB16-18/2RE	€16.62
839	Image coming soon	2605807915 Bearing Bracket	€18.67

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Impact Drill GSB 16 RE

BOSCH tools repair center

and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Impact Drill GSB 16 RE - 0601140603.

Bosch genuine spare parts or replacement parts for to repair Impact Drill GSB 16 RE/0 601 140 603.

Impact Drill GSB 16 RE/0 601 140 603
#	Part Num.	Description
1	2605104436	Housing Section BLUE
2	2604220430	Field 240V
3	2604011077	Armature 230-240V
3/60	2606610029	Fan
4	2607200188	Switch
6	2600707059	Grommet Ø6,9 MM
7	2601035001	Cable Clip
9	2601118433	Manufacturer's nameplate SUNNY SIDE
12	2607329114	Suppression Filter
14	2600905039	Deep-Groove Ball Bearing 9x24x7
16	2605807060	Brush Plate
18	2603410001	Socket head cap screw M3x6,5-4.8
19	2603490022	Torx Oval-Head Screw 4x16
20	2601118434	Reference Plate SHADOW SIDE
27	2603490017	Torx Oval-Head Screw 3x10
28	2910021134	Socket head cap screw DIN 84-BM4x30-8.8
29	2601022000	Damping Plate
30	2606135033	Drilling Spindle 1/2",M6 LEFTHAND THREADS
31	2600118001	Locking Washer 0,6 MM
	2600118002	Locking Washer 0,8 MM
	2600118006	Locking Washer 0,3 MM
	2600118007	Locking Washer 1,2 MM
32	2604617000	Compression Spring
33	1900905122	Deep-Groove Ball Bearing 15x32x9
34	2606320050	Cylindrical Gear Z=42
35	1903230010	Ball DIN 5401-5,5MM-III-ST
36	2601990001	Indexing Disk BLACK
37	2601074003	Pressure Plate
39	2606490056	Screen Disc
42	2600500014	Cupped Washer
43	1900210117	O-Ring 18x3 MM
44	2916660008	Spring retaining ring DIN 472-24x1,2 MM
45	2600400008	Receptacle
47	1900210000	O-Ring 5,0x1,5 MM
48	2601005011	Felt Strip
49	2604448060	Cable L=173 MM WHITE
50	2604448045	Cable L=98 MM BLACK
51	2604448034	Connecting Cable L=88 MM WHITE
52	2604448132	Connecting Cable L=103 MM BLUE
53	2604 448115	Connecting Cable L=73 MM WHITE
55	2604448103	Earth Conductor
56	2608 572106	Keyless Chuck Ø 1,5-13 MM, 1/2"
	1608571069	Chuck Ø1,5-13 MM, 1/2"
57	2604601004	Retaining ring
59	2601110580	Sticker
60	2603421215	Countersunk-Head Screw M 6x38 MM LEFTHAND THREADS
60/1	2603421213	Countersunk-Head Screw M 6x34 MM LEFTHAND THREADS
753	2607000122	Drill Holder
754	1612025031	Auxiliary Handle Ø43 MM BLACK
754/20	2915011007	Hex Nut DIN 934-M6-8-A
754/30	1613480007	Wing Screw M6x(15)55
754/50	2608040014	Clamping Plate M6
754/60	1613480008	Wing Screw M6x20 MM
755	1613001005	Depth-Gauge SW 6x210 MM
756/7	2607950007	Chuck Wrench SG2
805	1607000 385	Power supply cord EU 2,6m 2 x 1,0 mm
808	2601119001	Nameplate
813	2600917902	Needle bearing
816/040	2604321913	Carbon-Brush Set
816/060	2601329051	Ratchet Cap
	2601322013	Ratchet Cap
825	2607200231	Change-Over Switch
838	2605807029	Bearing Bracket
839	2605807915	Bearing Bracket
841	2600108000	Felt Disc

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference GSB 16 RE - 0601140603

Available 11 Items

Data sheet

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

Condition New

Download

Diagram Bosch GSB 16 RE

Download (86.27KB)
