Bosch Parts for Cordles Drill PSB 18 VE-2

€3.24
VAT included

Bosch Parts for Cordles Drill PSB 18 VE-2

Bosch genuine replacement parts for to replace broken parts for to fix Cordles Drill Driver PSB 18 VE-2/0 603 941 320.

Cordles Drill Driver PSB 18 VE-2/0 603 941 320

Bosch Spare Parts for Cordless Drill Driver PSB
  • Out-of-Stock
  • Bosch Spare Parts for Cordless Drill Driver PSB
  • Bosch Parts for Cordles Drill PSB 18 VE-2
Bosch

Bosch Parts for Cordles Drill PSB 18 VE-2

Condition: New
€3.24
VAT included

Bosch Parts for Cordles Drill PSB 18 VE-2

Bosch genuine replacement parts for to replace broken parts for to fix Cordles Drill Driver PSB 18 VE-2/0 603 941 320.

Cordles Drill Driver PSB 18 VE-2/0 603 941 320

settings 21 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
21 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

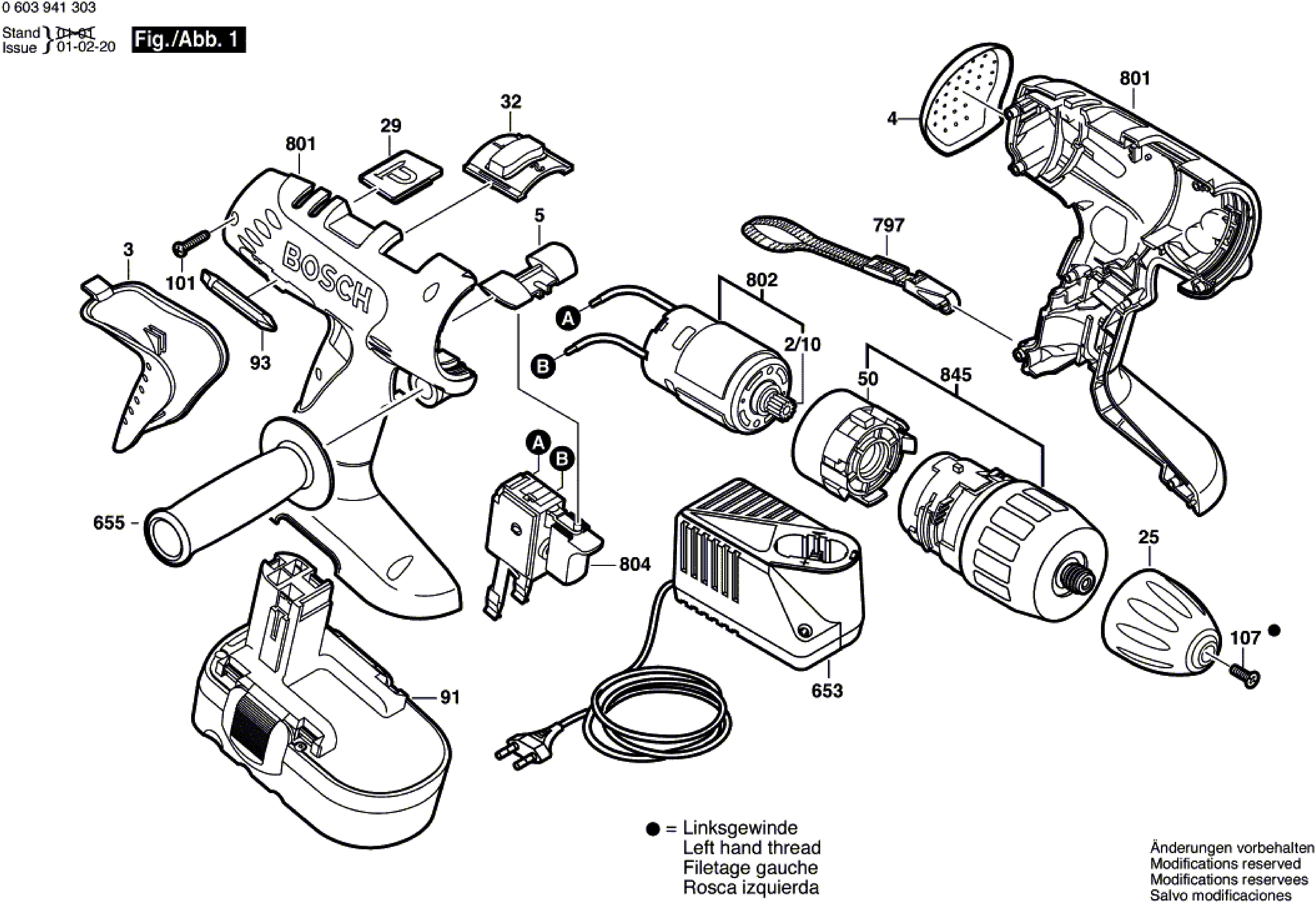

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2/10
 photo_cameraImage coming soon 2606316188 Pinion €0.00 Not available for order
3
 photo_cameraImage coming soon 2608040154 Handle Cover €2.38 Not available for order
4
 photo_cameraImage coming soon 2608040157 Handle Cover €2.38 Not available for order
5
 Adjusting Slide for Cordless Drill Bosch PSR 12-2 2601099096 Adjusting Slide for Cordless Drill Bosch PSR 12-2 €2.38
25
 photo_cameraImage coming soon 2608572225 Keyless Chuck  €58.50
29
 photo_cameraImage coming soon 2600290043 Magnet Disk €2.38
32
 Adjusting Slide for Cordless Drill Driver Bosch PSR 12 VE-2 2601099098 Adjusting Slide for Cordless Drill Driver Bosch PSR 12 VE-2 €3.90
50
 photo_cameraImage coming soon 2605719027 Intermediate Flange €2.38 Not available for order
91
 photo_cameraImage coming soon 2607335277 Slide-In Accu Package 18V, 1,25Ah, NiCd €0.00 Not available for order
93
 photo_cameraImage coming soon 1609200147 Screwdriver Blade 6 MM €2.38
101
 Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch 2603490018 Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch €1.16
107
 photo_cameraImage coming soon 2603421229 Countersunk-Head Screw M6x23 €2.38
653
 photo_cameraImage coming soon 2607224425 Fast Charger EU 230/7,2-24V, 1h €185.38
653
 photo_cameraImage coming soon 2607224427 Fast Charger GB 230/7,2-24V, 1h €145.12
653
 photo_cameraImage coming soon 2607224429 Fast Charger AUS 240/7,2-24V, 1h €131.70
655
 Auxiliary Handle M10, Ø32,5x105 MM 2602025067 Auxiliary Handle M10, Ø32,5x105 MM €3.60 Not available for order
797
 photo_cameraImage coming soon 2601398009 Carrying Loop €0.00 Not available for order
801
 photo_cameraImage coming soon 2605104810 Housing Section €0.00 Not available for order
802
 photo_cameraImage coming soon 2607022991 DC motor 18V €60.94 Not available for order
804
 photo_cameraImage coming soon 2607200483 On-Off Switch €0.00 Not available for order
845
 photo_cameraImage coming soon 2606200923 Planetary Gear Train €106.08

Shipping and delivery information will be available shortly.

Bosch Parts for Cordles Drill PSB 18 VE-2

Bosch genuine replacement parts for to replace broken parts for to fix Cordles Drill Driver PSB 18 VE-2/0 603 941 320.

In the following table, look for the model of the Cordless Drill Driver and the respective parts of the code.
Cordles Drill Driver PSB 18 VE-2/0 603 941 320

Cordless Drill Driver PSB 18 VE-2/0 603 941 320
# Part Num. Description
2/10 2606316188 Pinion
3 2608040154 Handle Cover
4 2608040157 Handle Cover
5 2601099096 Adjusting Slide RED
25 2608572225 Keyless Chuck
29 2600290043 Magnet Disk
32 2601099098 Adjusting Slide
50 2605719027 Intermediate Flange
91 2607335277 Slide-In Accu Package 18V, 1,25Ah, NiCd
93 1609200147 Screwdriver Blade 6 MM
101 2603490018 Torx Oval-Head Screw 3x18
107 2603421229 Countersunk-Head Screw M6x23
653 2607224425 Fast Charger EU 230/7,2-24V, 1h
653 2607224427 Fast Charger GB 230/7,2-24V, 1h
653 2607224429 Fast Charger AUS 240/7,2-24V, 1h
655 2602025067 Auxiliary Handle M10, Ø32,5x105 MM
797 2601398009 Carrying Loop
801 2605104810 Housing Section
802 2607022991 DC motor 18V
804 2607200483 On-Off Switch
845 2606200923 Planetary Gear Train
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS

Specific References

New

Download

Diagram Bosch PSB 18 VE-2

Diagram Bosch PSB 18 VE-2

Download (72.56KB)
