Bosch genuine replacement parts for to replace broken parts for to fix Corded Chain Saw GKE 35 BC - 0601586703.

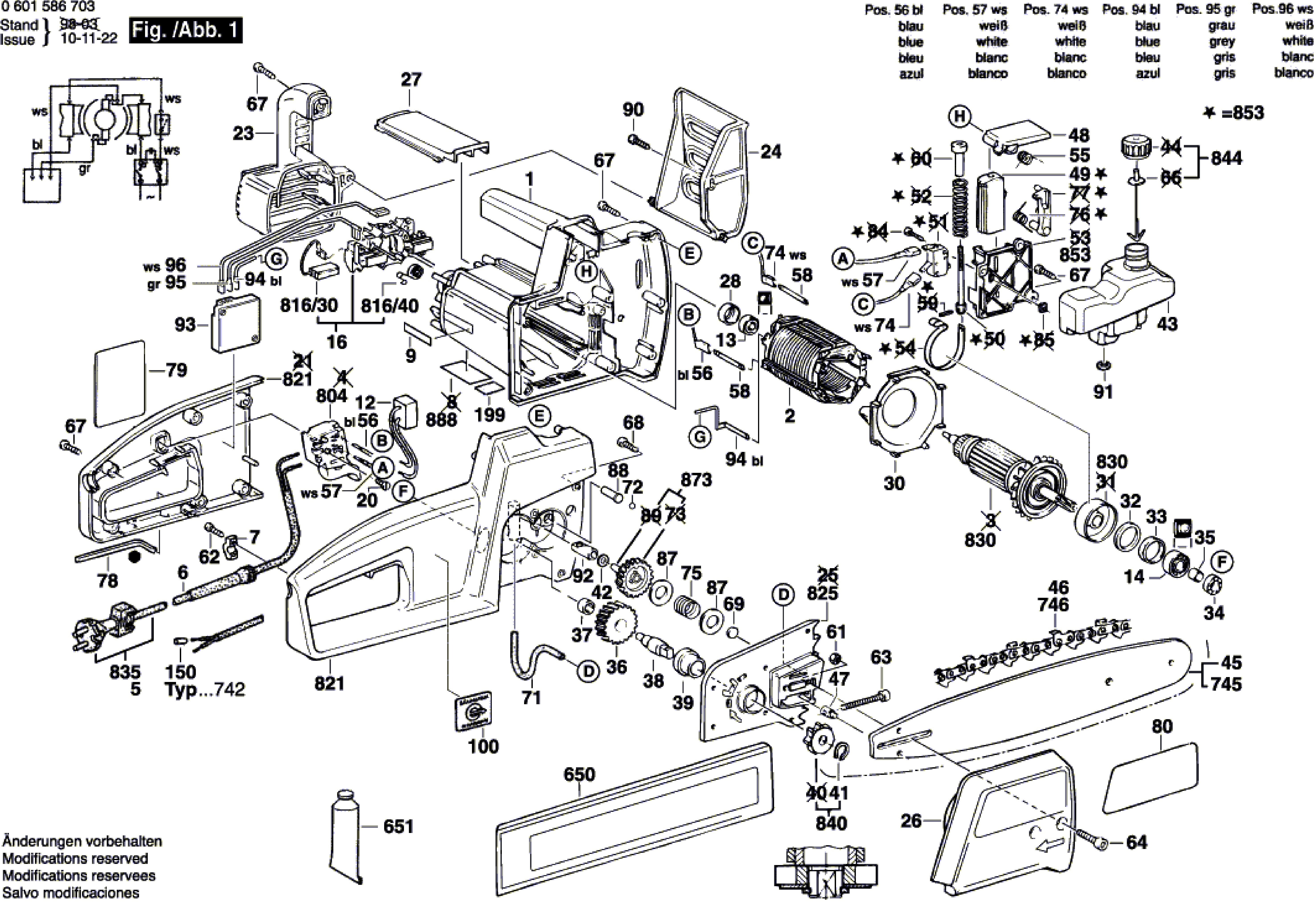

In the following table, look for the model of the Electric Saw and the respective parts of the code.![]()
| Corded Chain Saw GKE 35 BC/0 601 586 703 | ||
| # | Part Num. | Description |
| 1 | 3605108103 | Motor Housing BLUE |
| 2 | 1604220357 | Field 220-240V |
| 6 | 1600703025 | Grommet Ø9,6-Ø10,2x70 MM |
| 7 | 2601035001 | Cable Clip |
| 9 | 1601110483 | Manufacturer's nameplate |
| 12 | 1607328028 | Suppression Filter |
| 13 | 3600905135 | Deep Groove Ball Bearing 607-2Z |
| 14 | 3600905136 | groove ball bearing |
| 16 | 1604336024 | Brush Holder |
| 20 | 2603410001 | Socket head cap screw M3x6,5-4.8 |
| 23 | 3605500084 | Sealing cap BLACK |
| 24 | 3602311018 | Protective Shield |
| 26 | 3605500037 | Protective Cover |
| 27 | 3601012000 | Cover Strip |
| 28 | 1600502011 | Intermediate Ring |
| 30 | 3600591003 | Air-Deflector Ring |
| 32 | 3600190007 | Conical Spring Washer |
| 33 | 1600206026 | Intermediate Ring |
| 34 | 1600290016 | Rotary shaft lip seal |
| 35 | 1600300090 | Intermediate Ring |
| 36 | 3606317021 | Cylindrical Gear Z=41 |
| 37 | 1600910018 | Needle bearing Ø8xØ12x8 MM |
| 38 | 3603124011 | Drive Shaft |
| 39 | 3600323000 | Headed Bush - DISCONTINUED |
| 41 | 2916650903 | Spring retaining ring DIN 471-12x1-FSTM |
| 42 | 3600283034 | Rotary shaft lip seal 8X12X3 |
| 43 | 3607030320 | Oil Reservoir |
| 47 | 3603121004 | Stud bolt |
| 48 | 3601990001 | Swivelling Lever |
| 55 | 3604651002 | Coiled Spring |
| 56 | 3604431018 | Connecting Cable L=420 MM BLUE |
| 57 | 3604431012 | Connecting Cable L=180 MM WHITE - DISCONTINUED |
| 58 | 1604477005 | Blade terminal |
| 61 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 62 | 3603414026 | Lens Head Screw DIN 7981-ST3,9x16-C-H |
| 63 | 3603410001 | Socket head cap screw |
| 64 | 2910141203 | Hex Socket Head Cap Screw DIN 912-M6x25-8.8 |
| 67 | 2914201506 | Oval-Head Screw 4x18 MM,TORX T20 |
| 68 | 2914411403 | Thread-forming tap. Screw DIN 7500-CM 5x12-ST |
| 69 | 3600000006 | Cover Plate |
| 71 | 3600703001 | Hose - DISCONTINUED |
| 72 | 1903230007 | Ball DIN 5401-4 MM-III-ST |
| 74 | 3604431013 | Connecting Cable L=260 MM WHITE - DISCONTINUED |
| 75 | 3604630000 | Compression Spring |
| 78 | 1907950006 | Offset Screwdriver DIN 911-SW5 BLACK |
| 79 | 3601119077 | Reference Plate CAUTION |
| 80 | 3601110155 | Reference Plate |
| 87 | 1600101023 | Plain Washer 0,5 MM THICK |
| 88 | 3603121003 | Detent Pin |
| 90 | 2914552107 | Microencapsulated Screw DIN 84-AM4x12-8.8 |
| 2910211006 | Tapping Screw DIN 7971-BZ2,9x13 | |
| 91 | 3600210015 | O-Ring 4,0x1,0 MM |
| 92 | 3600301007 | Sintered-Metal Bushing 14 MM |
| 93 | 3607218001 | Speed governor 230-240V |
| 94 | 3604438005 | Connecting Cable L=300 MM GRAY |
| 95 | 3604438004 | Connecting Cable L=300 MM BLUE - DISCONTINUED |
| 96 | 3604438006 | Connecting Cable L=420 MM WHITE |
| 100 | 1601110310 | Reference Plate |
| 199 | 1601110265 | Sticker |
| 650 | 3605500038 | Protective Cover BLACK |
| 745 | 3602317035 | Guide Rail 350 MM |
| 746 | 3604730001 | Saw Chain 350 MM |
| 804 | 1607200107 | On-Off Switch |
| 816/30 | 1607014129 | Carbon-Brush Set |
| 816/40 | 2604652008 | Spiral Spring |
| 821 | 3607031214 | Housing Section |
| 825 | 3605500082 | Gear Cover |
| 830 | 3604010050 | Armature 220-240V |
| 835 | 1614460026 | Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F |
| 840 | 3607031199 | Sprocket wheel |
| 844 | 3603317002 | Reservoir Cap |
| 853 | 3607031182 | Braking Device |
| 873 | 3606317031 | Spindle With Gear Z=38 |
| 888 | 1601106032 | Nameplate 26x52 MM |
