Bosch genuine replacement parts for to replace broken parts for to fix Bench Grinder GSM 175 - 0601277003.

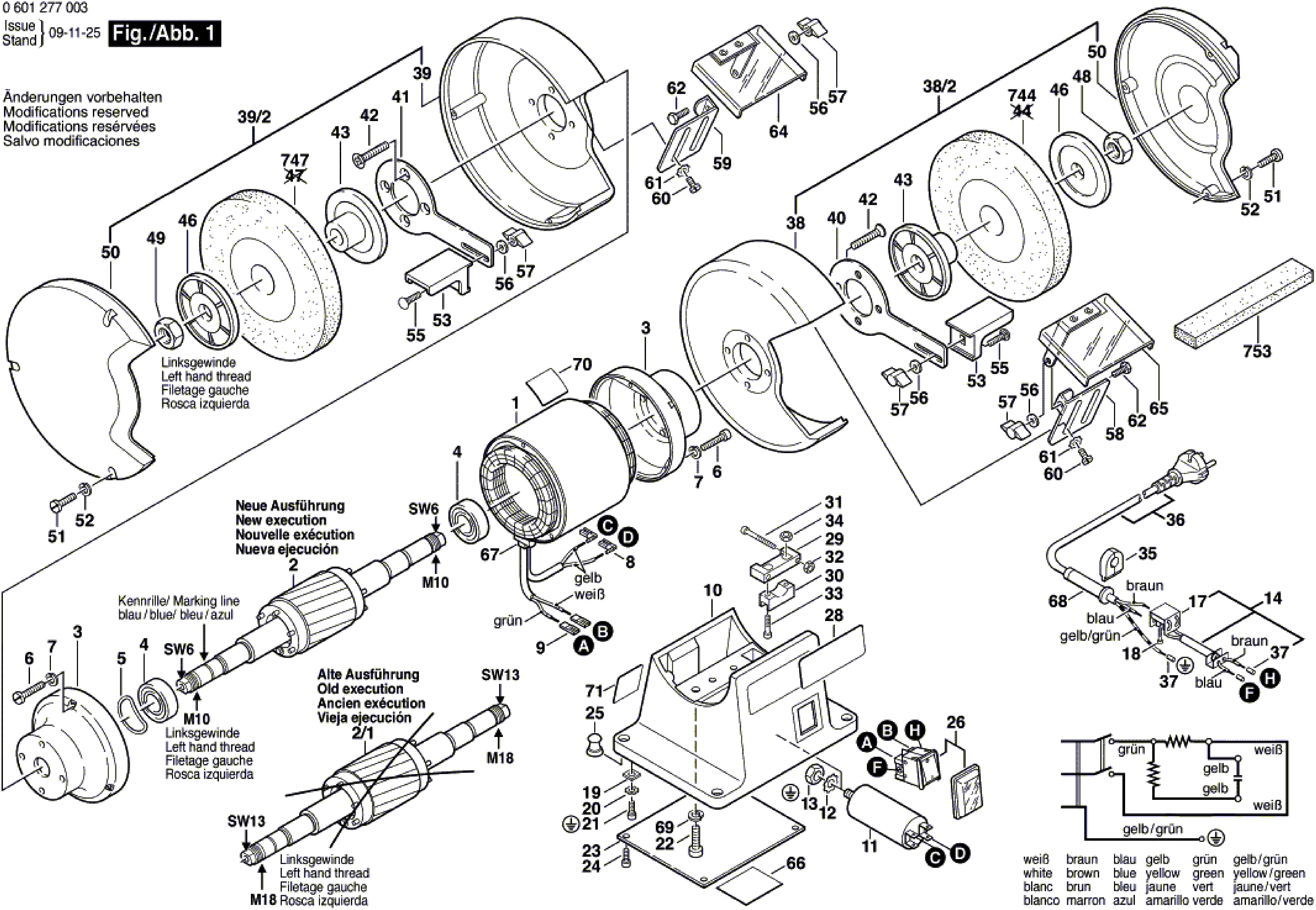

In the following table, look for the model of the Bench Grinder and the respective parts of the code.![]()
| Bench Grinder GSM 175/0 601 277 003 | ||
| # | Part Num. | Description |
| 1 | 1609203271 | Stator 230-240V |
| 2 | 1609203649 | Rotor 230V |
| 3 | 1609203298 | End Shield |
| 4 | 1900905124 | groove ball bearing 20x42x12 |
| 5 | 1609203230 | Corrugated Washer |
| 6 | 2910011166 | Socket head cap screw DIN 84-BM5x30-5.8 |
| 7 | 2916690004 | Spring Lock Washer DIN 128-A5-FST |
| 8 | 1609203231 | Insulating Sleeve |
| 9 | 1609203247 | End Splice |
| 10 | 1609203226 | Base Plate |
| 11 | 1609203273 | Motor Capacitor |
| 12 | 2916040008 | Spring Washer DIN 6797-J8,2-FST |
| 13 | 2915011009 | Hex Nut DIN 934-M8-8-A |
| 14 | 1609203235 | Connecting Cable |
| 17 | 1901091001 | Socket-Terminal Strip 2x2,5 MM/2 |
| 18 | 2910011058 | Socket head cap screw DIN 84-AM3X14-5.8 |
| 19 | 1609203238 | Clamping Plate |
| 20 | 2916030006 | Toothed lock washer DIN 6797-A4,3-FST |
| 21 | 2910001118 | Socket head cap screw DIN 84-AM4x8-4.8 |
| 22 | 2910022197 | Socket head cap screw DIN 84-M 6x16-8.8 |
| 23 | 1609203239 | Base Plate |
| 24 | 2910011120 | Socket head cap screw DIN 84-AM4x10-5.8 |
| 25 | 1609203240 | Rubber Base |
| 26 | 1609203241 | Tip Switch |
| 28 | 1601118394 | Manufacturer's nameplate |
| 29 | 1609203243 | Clamping Plate |
| 30 | 1609203244 | Clamping Plate |
| 31 | 2910011064 | Socket head cap screw DIN 84-AM3x25-5.8 |
| 32 | 2915011003 | Hex Nut DIN 934-M 3-m-8 |
| 33 | 2910021130 | Socket head cap screw DIN 84-AM4x20-8.8 |
| 34 | 2915011005 | Hex Nut DIN 934 -M4-m-8 |
| 35 | 1609203245 | Cable Passage |
| 36 | 1609203246 | Power supply cord |
| 37 | 1609203247 | End Splice |
| 38 | 1609203636 | Protective Cover |
| 1609203274 | Protective Cover | |
| 38/2 | 1609203636 | Protective Cover |
| 39 | 1609203638 | Protective Cover |
| 1609203275 | Protective Cover | |
| 39/2 | 1609203639 | Protective Cover |
| 40 | 1609203276 | Connecting Carrier |
| 41 | 1609203302 | Connecting Carrier |
| 42 | 2912341203 | Countersunk-Head Screw DIN 965-M6x25-8.8-Z |
| 43 | 1609203252 | Clamping Flange |
| 46 | 1609203640 | Counterflange Ø 10 MM |
| 1609203253 | Counterflange Ø18 MM | |
| 48 | 2915011010 | Hex Nut DIN 934-M 10-m-8 |
| 2915011014 | Hex Nut DIN 934 M18-8-A | |
| 49 | 1609203621 | Hex Nut M10 |
| 1609203299 | Hex Nut M18 LEFTHAND THREADS | |
| 50 | 1609203641 | Lateral Guard |
| 1609203283 | Lateral Guard | |
| 51 | 2910021126 | Socket head cap screw DIN 84-AM4x16-8.8 |
| 2910021126 | Socket head cap screw DIN 84-AM4x16-8.8 | |
| 52 | 2916681005 | Spring Lock Washer B 4 DIN 127 |
| 2916681005 | Spring Lock Washer B 4 DIN 127 | |
| 53 | 1609203300 | Support Plate |
| 55 | 2910281201 | Round-Head Bolt DIN 603-M6x20 |
| 56 | 2916011013 | Plain Washer DIN 433-6,4-ST 50 |
| 57 | 1609203258 | Wing Nut |
| 58 | 1609203259 | Guard Plate |
| 59 | 1609203260 | Guard Plate |
| 60 | 2910021152 | Socket head cap screw DIN 84-AM5x10-8.8 |
| 61 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 62 | 2911051195 | Hex Screw ISO-4017-M6x14-5.6 |
| 64 | 1609203261 | Protective Glass |
| 65 | 1609203295 | Protective Glass |
| 66 | 1601118386 | Reference Plate |
| 67 | 1609203293 | Seal |
| 68 | 1609203296 | Grommet |
| 69 | 2916690005 | Spring Lock Washer M6 |
| 70 | 1601118388 | Reference Plate |
| 71 | 1601118391 | Nameplate |
