Bosch Spare Parts for Circular Saw GKS 65

SKU: Bosch GKS 65 - 0601568003
€7.30
VAT included

Bosch Spare Parts for Circular Saw GKS 65

We have the original BOSCH Spare Parts for Circular Saw GKS 65, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Circular Saw GKS 65 - 0601568003. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Circular Saw GKS 65
Bosch Spare Parts for Circular Saw GKS 65
  • Bosch Spare Parts for Circular Saw GKS 65
  • Bosch Spare Parts for Circular Saw GKS 65
  • Bosch Spare Parts for Circular Saw GKS 65

Bosch Spare Parts for Circular Saw GKS 65

SKU: Bosch GKS 65 - 0601568003 Condition: New
€7.30
VAT included

Bosch Spare Parts for Circular Saw GKS 65

We have the original BOSCH Spare Parts for Circular Saw GKS 65, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Circular Saw GKS 65 - 0601568003. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Circular Saw GKS 65
settings 79 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

57 spare parts

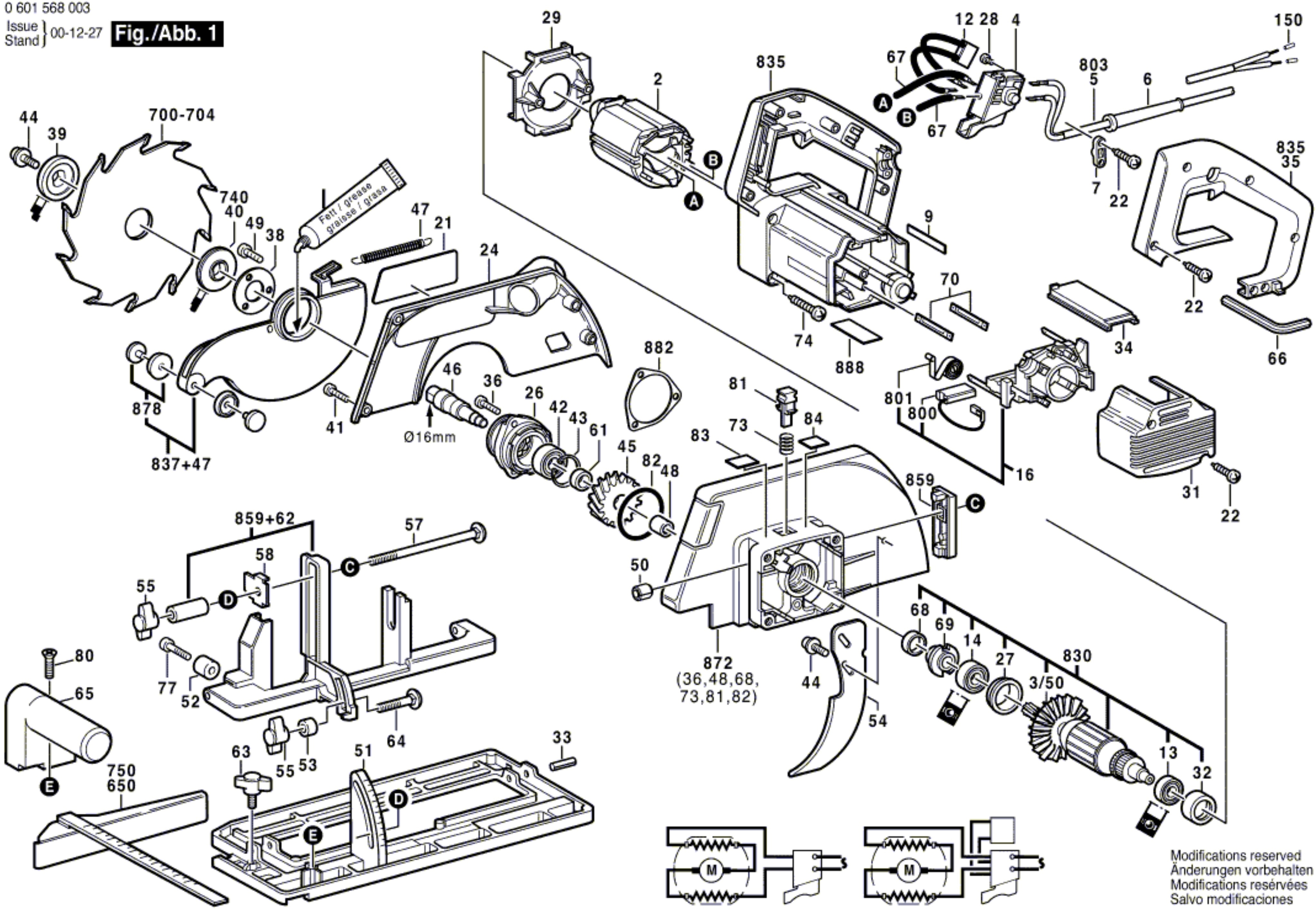

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 1604220354 Field 220-230V €35.62
3/50
photo_cameraImage coming soon 1606610122 Fan €2.46
6
Power Cord Grommet Ø6,5-Ø6,9x95 MM for Power Tools Bosch 2600703012 Power Cord Grommet Ø6,5-Ø6,9x95 MM for Power Tools Bosch €2.53
6
photo_cameraImage coming soon 2600703013 Grommet Ø7,6-Ø8,2x95 MM €2.46
7
Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
9
photo_cameraImage coming soon 1601110483 Manufacturer's nameplate €2.13
12
photo_cameraImage coming soon 1607328028 Suppression Filter €6.13
13
Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
16
photo_cameraImage coming soon 3604336001 Brush Holder €16.62
21
photo_cameraImage coming soon 1601110605 Manufacturer's nameplate  €2.24
22
photo_cameraImage coming soon 2912401019 Tapping Screw DIN7981-ST3,9x16-C-Z  €1.48
24
photo_cameraImage coming soon 1605510157 Protective Cover  €15.11
27
photo_cameraImage coming soon 1600221003 Intermediate Ring €1.35
28
photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
29
photo_cameraImage coming soon 1600591007 Air-Deflector Ring €2.46
31
photo_cameraImage coming soon 1605500158 Sealing cap BLUE €6.78
32
Intermediate Ring for Circular Saw Bosch PKS 54 1600502011 Intermediate Ring for Circular Saw Bosch PKS 54 €1.53
33
Spring Pin for Circular Saw Bosch GKS 55 2917780150 Spring Pin for Circular Saw Bosch GKS 55 €0.92
34
photo_cameraImage coming soon 1601099021 Cover Strip BLUE €1.78
35
photo_cameraImage coming soon 1605500159 Handle Cover BLUE €8.07
36
Thread-form. Tap. Screw M4x10 for Random Orb. Sander Bosch GEX 125 AC 2603435042 Thread-form. Tap. Screw M4x10 for Random Orb. Sander Bosch GEX 125 AC €1.54
38
photo_cameraImage coming soon 1600134005 Mounting Plate €1.78
42
photo_cameraImage coming soon 1900905163 Deep-Groove Ball Bearing 17x35x10 €14.25
43
photo_cameraImage coming soon 2916660014 Spring retaining ring DIN 472 35x1,5 MM €2.18
44
Hex Socket Head Cap Screw M6x14 mm for Circular Saw Bosch GKS 55 1603414007 Hex Socket Head Cap Screw M6x14 mm for Circular Saw Bosch GKS 55 €1.68
46
photo_cameraImage coming soon 1603124112 Drive Shaft M6, Ø16 MM €12.88
47
Extension Spring for Circular Saw Bosch GKS 55 1604649001 Extension Spring for Circular Saw Bosch GKS 55 €6.18
48
photo_cameraImage coming soon 1600910019 Nozzle Socket  €2.99
52
photo_cameraImage coming soon 1600305001 Rubber Buffer €1.48
53
photo_cameraImage coming soon 1600309012 Spacer Bushing  €1.35
54
Riving Knife for Circular Saw Bosch GKS 65 1600025013 Riving Knife for Circular Saw Bosch GKS 65 €7.11
55
Wing Nut for Circular Saw Bosch GKS 55 1603339006 Wing Nut for Circular Saw Bosch GKS 55 €1.63
57
Flat Head Screw M6x170 mm for Circular Saw Bosch PKS66CE 1603434005 Flat Head Screw M6x170 mm for Circular Saw Bosch PKS66CE €2.13 Not available for order
61
photo_cameraImage coming soon 1600201014 Spacer Ring €1.78
63
photo_cameraImage coming soon 1603480022 Wing Screw  €2.09
66
photo_cameraImage coming soon 1907950006 Offset Screwdriver DIN 911-SW5 BLACK €5.40
67
photo_cameraImage coming soon 1604503014 Suppressor Box €10.28
68
Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 1600290016 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 €2.61
69
photo_cameraImage coming soon 1600390013 Locking Ring €4.66
70
photo_cameraImage coming soon 1604477005 Blade terminal €1.78
73
photo_cameraImage coming soon 1604611029 Compression Spring €1.33
74
photo_cameraImage coming soon 1603435022 Thread-forming tap. Screw TT M5x30 MM €1.48
77
photo_cameraImage coming soon 2910271120 Pan head screw DIN 923-M4x10-5.8  €1.35
81
photo_cameraImage coming soon 1603231011 Stopping Device €3.90
82
O-Ring 46,0x1,1mm for Circular Saw Bosch GKS 55 3600210124 O-Ring 46,0x1,1mm for Circular Saw Bosch GKS 55 €2.53
83
photo_cameraImage coming soon 1601110470 Reference Plate €1.55
800
Carbon Brush Set for Circular Saws Bosch PKS 54 - PKS 66 1607014129 Carbon Brush Set for Circular Saws Bosch PKS 54 - PKS 66 €17.95 Not available for order
801
photo_cameraImage coming soon 2604652008 Spiral Spring €1.48
803
photo_cameraImage coming soon 1607000228 Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F €37.86
830
photo_cameraImage coming soon 1604010328 Armature With Fan 220-230V €179.46
835
photo_cameraImage coming soon 1607000925 Handle Cover BLUE  €66.74
836
photo_cameraImage coming soon 1602099003 Locking Lever €1.78
859
photo_cameraImage coming soon 1607000197 Parts Set  €49.55
872
photo_cameraImage coming soon 1607000223 Parts Set €140.17
878
photo_cameraImage coming soon 1607000192 Parts Set €2.96
888
photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.61

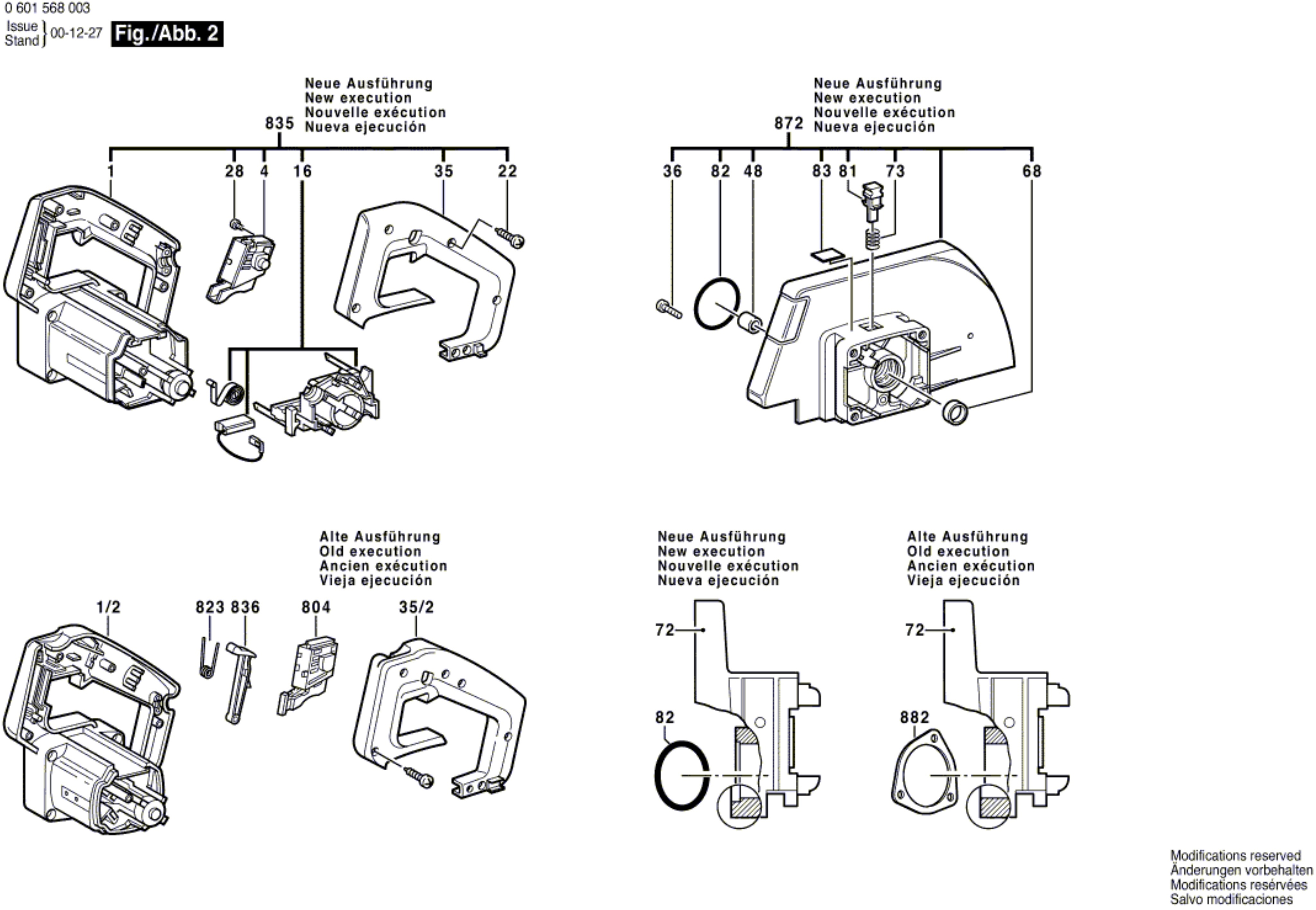

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
836
photo_cameraImage coming soon 1602099003 Locking Lever €1.78

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Circular Saw GKS 65

We have the original BOSCH Spare Parts for Circular Saw GKS 65, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Circular Saw GKS 65 - 0601568003. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Circular Saw and the respective parts of the code.
Circular Saw GKS 65
GKS 65/0 601 568 003
1 1607000925 Handle Cover BLUE
2 1604220354 Field 220-230V
3/50 1606610122 Fan
4 2607200169 Switch
6 2600703013 Grommet Ø7,6-Ø8,2x95 MM
6 2600703012 Grommet Ø6,5-Ø6,9x95 MM
7 2601035001 Cable Clip
9 1601110483 Manufacturer's nameplate
12 1607328028 Suppression Filter
13 2600905032 Deep-Groove Ball Bearing 7x19x6
14 1610905009 Deep-Groove Ball Bearing 9x26x8
16 3604336001 Brush Holder
21 1601110605 Manufacturer's nameplate
22 2912401019 Tapping Screw DIN7981-ST3,9x16-C-Z
24 1605510157 Protective Cover
26 1605808062 Bearing cover
27 1600221003 Intermediate Ring
28 2603410001 Socket head cap screw M3x6,5-4.8
29 1600591007 Air-Deflector Ring
31 1605500158 Sealing cap BLUE
32 1600502011 Intermediate Ring
33 2917780150 Slotted Spring Pin 6x22 DIN7346
34 1601099021 Cover Strip BLUE
34 1601099014 Cover Strip BLUE
35 1605500159 Handle Cover BLUE
35 1605500155 Handle Cover BLUE
36 2603435042 Thread-forming tap. Screw
38 1600134005 Mounting Plate
39 1605703079 Conical Spring Washer SW 36
40 1605703080 Conical Spring Washer Ø 30 MM
41 2914491409 Thread-forming tap. Screw DIN 7500-M 4x12
42 1900905163 Deep-Groove Ball Bearing 17x35x10
43 2916660014 Spring retaining ring DIN 472 35x1,5 MM
44 1603414007 Hex Socket Head Cap Screw M6x14 MM
45 1606320076 Cylindrical Gear Z=41
46 1603124112 Drive Shaft M6, Ø16 MM
47 1604649001 Extension Spring
48 1600910019 Nozzle Socket
49 2910011115 Socket head cap screw DIN 84-AM4x5-5.8
50 1600309011 Guide Bushing
51 1608000107 Base Plate 358x151 MM
52 1600305001 Rubber Buffer
53 1600309012 Spacer Bushing
54 1600025013 Riving Knife
55 1603339006 Wing Nut M6
57 1603434005 Pan head screw M6x170 MM
58 1601329015 Adjusting Plate
61 1600201014 Spacer Ring
62 1608040112 Thrust Member
63 1603480022 Wing Screw
64 2910281207 Round-Head Bolt DIN 603-M6x35
65 1605133039 Auxiliary Handle BLACK
66 1907950006 Offset Screwdriver DIN 911-SW5 BLACK
67 1604503014 Suppressor Box
68 1600290016 Rotary shaft lip seal
69 1600390013 Locking Ring
70 1604477005 Blade terminal
73 1604611029 Compression Spring
74 1603435022 Thread-forming tap. Screw TT M5x30 MM
77 2910271120 Pan head screw DIN 923-M4x10-5.8
80 2910641197 Oval-Head Screw DIN 7985-M6x16-4.8
81 1603231011 Stopping Device
82 3600210124 O-Ring 46,0x1,1 MM RED
83 1601110470 Reference Plate
800 1607014129 Carbon-Brush Set
801 2604652008 Spiral Spring
803 1607000228 Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F
823 1604651008 Coiled Spring
830 1604010328 Armature With Fan 220-230V
835 1607000925 Handle Cover BLUE
836 1602099003 Locking Lever
837 1605510172 Pivoting Blade Guard
859 1607000197 Parts Set
872 1607000223 Parts Set
878 1607000192 Parts Set
878 1607000205 Parts Set
882 1600135002 Sealing disk
888 1601106032 Nameplate 26x52 MM
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GKS 65 - 0601568003
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GKS 65

Diagram Bosch GKS 65

Download (296.11KB)
