We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Jig Saw GST 120 BE - 0601511603.

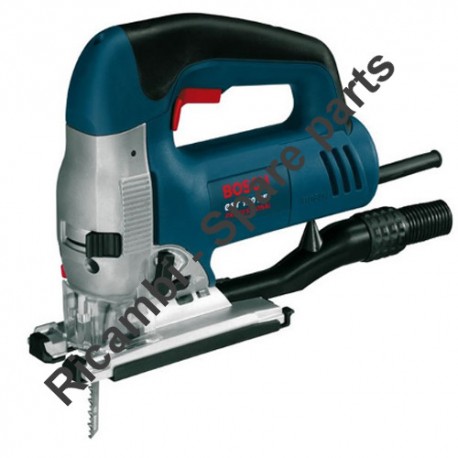

Bosch Spare Parts for Jig Saw GST 120 BE
SKU: Bosch GST 120 BE - 0601511603
Condition:
New
€31.07
VAT included
Bosch Spare Parts for Jig Saw GST 120 BE
We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Jig Saw GST 120 BE - 0601511603.
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Bosch Spare Parts for Jig Saw GST 120 BE
We are BOSCH original spare parts Worldwide Dealers
at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Jig Saw GST 120 BE - 0601511603.

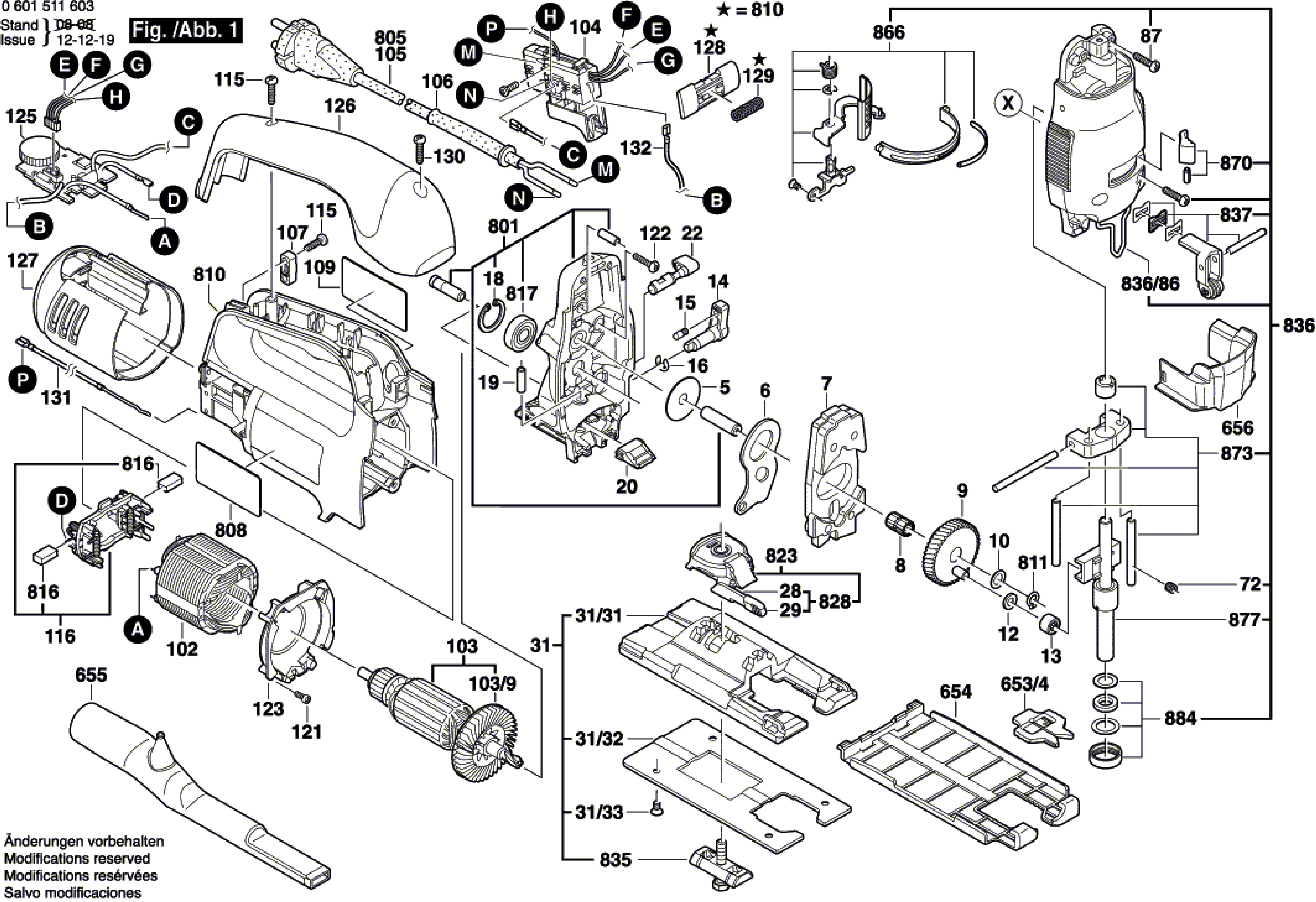

In the following table, look for the model of the jig Saw and the respective parts of the code.
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F
808
2601116830
Nameplate
810
2605108913
Motor Housing
811
2916080909
Locking Washer DIN 6799-6-FST
816
2604321941
Carbon-Brush Set
817
2600905095
Deep-Groove Ball Bearing 9x24x7
823
2601990907
Fan Cover
828
2601990042
Tensioning Lever
835
2602317900
Clamping Piece
836
2605808929
Gear Cover
836/86
2603101046
Protecting Cover BLACK
837
2601321907
Roller Lever
866
2601990911
Control Unit
870
2600591900
Cap-Handle
873
2601322901
Carrier
877
2600780911
Lifting Rod
884
2600290903
Seal Kit
