Bosch Spare Parts for Orbital Sander GSS 23 A

SKU: Bosch GSS 23 A 3601K70400
€21.01
VAT included

Bosch Spare Parts for Orbital Sander GSS 23 A

BOSCH repair service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Orbiatal Sander GSS 23 A - 3601K70400.

Bosch GSS 23 A 3601K70400
Bosch Spare Parts for Orbital Sander
  • Out-of-Stock
  • Bosch Spare Parts for Orbital Sander
  • Bosch Spare Parts for Orbital Sander GSS 23 A
Bosch

Bosch Spare Parts for Orbital Sander GSS 23 A

SKU: Bosch GSS 23 A 3601K70400 Condition: New
€21.01
VAT included

Bosch Spare Parts for Orbital Sander GSS 23 A

BOSCH repair service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Orbiatal Sander GSS 23 A - 3601K70400.

Bosch GSS 23 A 3601K70400
settings 36 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
Machine Type: Sander
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
36 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

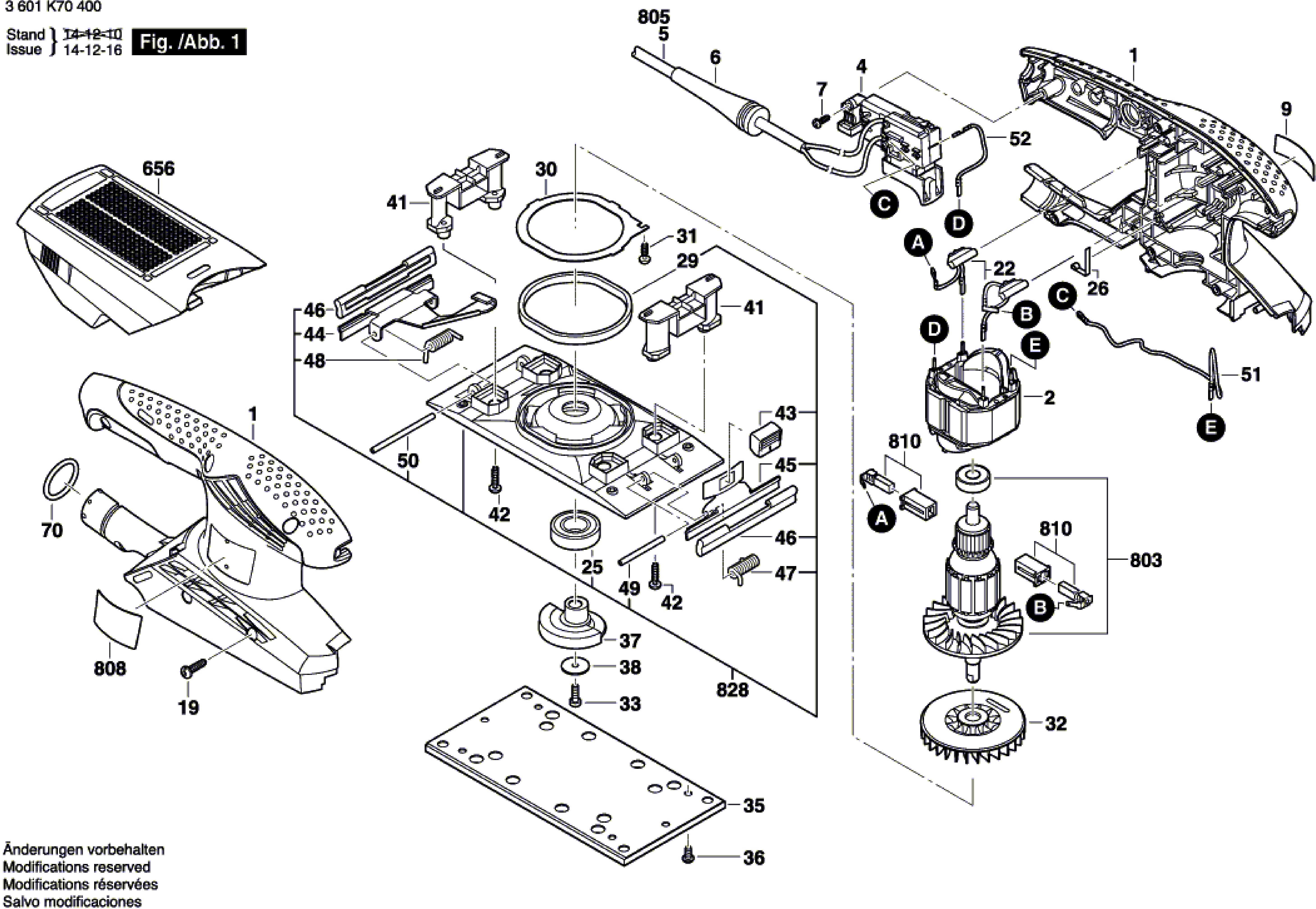

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Image coming soon 2609100590 Housing BLUE €31.66
2
 Image coming soon 1604220408 Field 230-240V €20.68
4
 Image coming soon 2607200632 Switch €7.26
6
 Image coming soon 2600703017 Grommet Ø6,4-Ø7,2x76 MM €2.58
7
 Image coming soon 2609110190 Torx Oval-Head Screw €0.00 Not available for order
9
 Image coming soon 2609131572 Manufacturer's nameplate GSS 230 PROFESSIONAL €2.38
19
 Image coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.16
22
 Image coming soon 2609120182 Suppression Filter €4.70
25
 Image coming soon 2600905068 Deep-Groove Ball Bearing 15x32x9 €10.92
26
 Image coming soon 2601329057 Contact Spring €0.00 Not available for order
29
 Image coming soon 2609170044 Felt Strip €0.00 Not available for order
30
 Image coming soon 2609110407 Sheet metal cover €0.00 Not available for order
31
 Image coming soon 2609110190 Torx Oval-Head Screw €0.00 Not available for order
32
 Image coming soon 2609100544 Fan €4.82
33
 Image coming soon 2912731122 Socket head cap screw M 4x12 €0.00 Not available for order
35
 Foam Base for Sander BOSCH GSS 23 A 2609100403 Foam Base for Sander BOSCH GSS 23 A €17.02
36
 Torx Screw M 4x8 for Percussion Drills Bosch GSB 20-22-2 RE 2603410048 Torx Screw M 4x8 for Percussion Drills Bosch GSB 20-22-2 RE €1.16
37
 Image coming soon 2609110405 Counterweight €2.38
38
 Image coming soon 2609110409 Plain Washer €0.00 Not available for order
41
 Vibration Foot for Orbital Sander Bosch GSS 23 A 2609100398 Vibration Foot for Orbital Sander Bosch GSS 23 A €2.60
42
 Image coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.16
43
 Image coming soon 2610920651 Push Button  €1.16
44
 Image coming soon 2609110410 Clamping Saddle €3.60
45
 Image coming soon 2609110411 Clamping Saddle €2.38
46
 Rubber Bar for Sander BOSCH GSS 23 A 2609170042 Rubber Bar for Sander BOSCH GSS 23 A €2.38
47
 Image coming soon 2610920646 Coiled Spring Pin €0.00 Not available for order
48
 Image coming soon 2609110412 Compression Spring €0.00 Not available for order
49
 Image coming soon 2610923311 Roller Pin €2.38
50
 Image coming soon 2603201085 Straight Pin €0.00 Not available for order
51
 Image coming soon 2604448113 Connecting Cable L=180MM BLUE €0.00 Not available for order
52
 Image coming soon 2609120183 Connecting Cable €0.00 Not available for order
70
 Image coming soon 1610210045 O-Ring 23,0x3,0 MM €2.38
656
 Image coming soon 2609199059 Dust Chamber €13.36
803
 Image coming soon 2609199085 Armature With Fan 230-240V €42.64
805
 Image coming soon 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F €25.78
808
 Image coming soon 2609131573 Nameplate €2.38
810
 Carbon Brushes for Orbital Sander Bosch GSS 23 A 2609120199 Carbon Brushes for Orbital Sander Bosch GSS 23 A €10.92
828
 Image coming soon 2609199066 Swing-Plate €28.00

Shipping and delivery information will be available shortly.

Bosch Spare Parts for Orbital Sander GSS 23 A

BOSCH repair service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Orbiatal Sander GSS 23 A - 3601K70400.

In the following table, look for the model of the Orbital Sander and the respective parts of the code.
Bosch GSS 23 A 3601K70400

Orbital Sander GSS 23 A/3 601 K70 400
# Part Num. Description
1 2609100590 Housing BLUE
2 1604220408 Field 230-240V
4 2607200632 Switch
6 2600703017 Grommet Ø6,4-Ø7,2x76 MM
7 2609110190 Torx Oval-Head Screw
9 2609131572 Manufacturer's nameplate GSS 230 PROFESSIONAL
19 2603490022 Torx Oval-Head Screw 4x16
22 2609120182 Suppression Filter
25 2600905068 Deep-Groove Ball Bearing 15x32x9
26 2601329057 Contact Spring
29 2609170044 Felt Strip
30 2609110407 Sheet metal cover
31 2609110190 Torx Oval-Head Screw
32 2609100544 Fan
33 2912731122 Socket head cap screw M 4x12
35 2609100403 Foam Panel
36 2603410048 Thread-forming tap. Screw M4x8
37 2609110405 Counterweight
38 2609110409 Plain Washer
41 2609100398 Vibration Foot
42 2603490022 Torx Oval-Head Screw 4x16
43 2610920651 Push Button
44 2609110410 Clamping Saddle
45 2609110411 Clamping Saddle
46 2609170042 Rubber Bar
47 2610920646 Coiled Spring Pin
48 2609110412 Compression Spring
49 2610923311 Roller Pin
50 2603201085 Straight Pin
51 2604448113 Connecting Cable L=180MM BLUE
52 2609120183 Connecting Cable
70 1610210045 O-Ring 23,0x3,0 MM
656 2609199059 Dust Chamber
803 2609199085 Armature With Fan 230-240V
805 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F
808 2609131573 Nameplate
810 2609120199 Carbon-Brush Set
828 2609199066 Swing-Plate

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Bosch GSS 23 A 3601K70400

Data sheet

CHECK S/N BOSCH
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
Machine Type
Sander
SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Bosch GSS 23 A

Diagram Bosch GSS 23 A

Download (75.36KB)
