Bosch Spare Parts for Demolition Hammer SDS-Max GSH 11 E

SKU: Bosch GSH 11 E - 0611316703
€2.60
VAT included

Bosch Spare Parts for Demolition Hammer SDS-Max GSH 11 E

We are BOSCH original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer GSH 11 E - 0611316703.

Bosch Spare Parts for Demolition Hammer SDS-Max GSH 11 E
  • Bosch Spare Parts for Demolition Hammer SDS-Max GSH 11 E
  • Bosch Spare Parts for Demolition Hammer SDS-Max GSH 11 E
  • Bosch Spare Parts for Demolition Hammer SDS-Max GSH 11 E
Bosch

Bosch Spare Parts for Demolition Hammer SDS-Max GSH 11 E

SKU: Bosch GSH 11 E - 0611316703 Condition: New
€2.60
VAT included

Bosch Spare Parts for Demolition Hammer SDS-Max GSH 11 E

We are BOSCH original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer GSH 11 E - 0611316703.

settings 110 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
103 spare parts

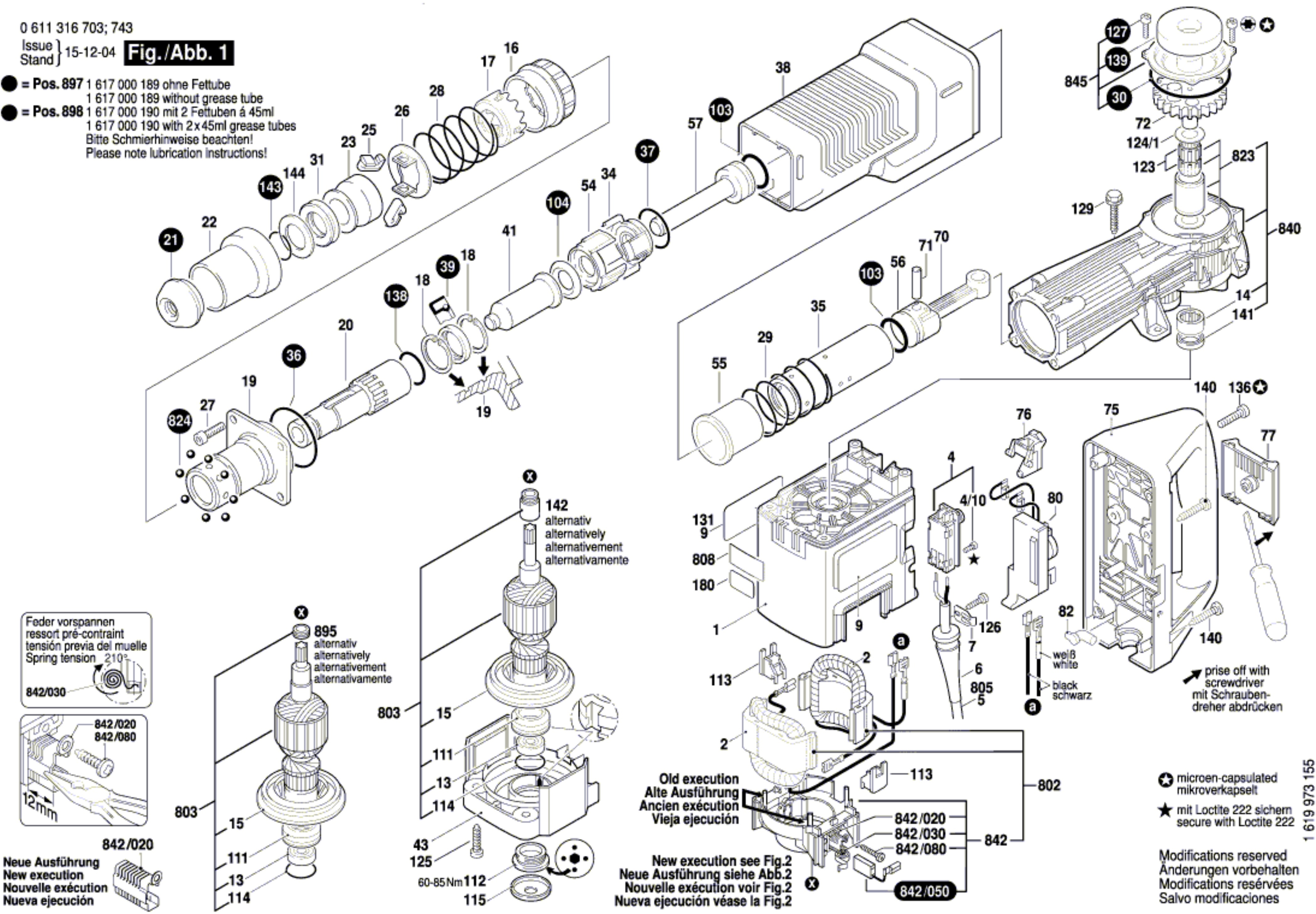

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1615108091 Motor Housing BLUE €41.44
2
 photo_cameraImage coming soon 160422052J Field 230V €93.89
4
 Switch for Demolition Hammer Bosch GSH 11 E 1617200048 Switch for Demolition Hammer Bosch GSH 11 E €24.90
4/10
 photo_cameraImage coming soon 2910011088 Socket head cap screw DIN 84-AM3,5x12-5.8 €1.34
6
 photo_cameraImage coming soon 1610703053 Grommet Ø9,7-Ø12x89 MM €3.20
7
 photo_cameraImage coming soon 1601302018 Fastening Clamp €2.25
9
 photo_cameraImage coming soon 1611110C01 Manufacturer's nameplate €3.31
13
 photo_cameraImage coming soon 2610909310 Deep-Groove Ball Bearing €14.90
14
 Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 1610910089 Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 €31.79
15
 photo_cameraImage coming soon 1616610083 Fan €23.52
16
 photo_cameraImage coming soon 1610499022 Ratchet Sleeve €5.27
17
 photo_cameraImage coming soon 1610590004 Retaining snap ring €11.79
18
 photo_cameraImage coming soon 1610119010 Spring retaining ring €3.31
19
 photo_cameraImage coming soon 1615700034 Clamping-Flange €112.68
20
 photo_cameraImage coming soon 1618597067 Toolholder €164.13
21
 photo_cameraImage coming soon 1610508025 Protective Cap €4.55
22
 photo_cameraImage coming soon 1610499023 Protection Sleeve €4.31
23
 photo_cameraImage coming soon 1610521011 Stop Sleeve €19.18
25
 photo_cameraImage coming soon 1612300025 Stopping Device €9.24
26
 photo_cameraImage coming soon 1610290027 Indexing Disk €3.31
27
 photo_cameraImage coming soon 2910151246 Hex Socket Head Cap Screw DIN 912-M8x30-10.9 €2.22
28
 photo_cameraImage coming soon 1614621002 Compression Spring €2.22
29
 photo_cameraImage coming soon 1614621003 Compression Spring €2.67
30
 O-Ring 79,5x2,65 mm for Demolition Hammer Bosch GSH 11 E 1610210147 O-Ring 79,5x2,65 mm for Demolition Hammer Bosch GSH 11 E €2.10
31
 photo_cameraImage coming soon 1610290026 Damping Ring €2.67
34
 photo_cameraImage coming soon 1610390029 Spacer Tube €19.18
35
 photo_cameraImage coming soon 1615806108 Hammer Pipe €96.63
36
 O-Ring 64,0x2,5 mm for Demolition Hammer Bosch GSH 11 E 1610210127 O-Ring 64,0x2,5 mm for Demolition Hammer Bosch GSH 11 E €1.59
37
 O-Ring 35,0x3,0 mm for Demolition Hammer Bosch GSH 11 E 1610210128 O-Ring 35,0x3,0 mm for Demolition Hammer Bosch GSH 11 E €1.59
38
 photo_cameraImage coming soon 1615190093 Covering hood €28.21
41
 photo_cameraImage coming soon 1618710071 Striker Pin €25.29
43
 photo_cameraImage coming soon 1615808083 Bearing cover BLUE €37.36
54
 photo_cameraImage coming soon 1610190019 Control Disc €8.12
55
 photo_cameraImage coming soon 1610420005 Control Bushing €25.29
56
 photo_cameraImage coming soon 1618700064 Hammer Piston €12.72
57
 photo_cameraImage coming soon 1618710062 Striker €77.84
70
 photo_cameraImage coming soon 1612001033 Connecting Rod €12.30
71
 photo_cameraImage coming soon 1613101006 Straight Pin €2.22
72
 photo_cameraImage coming soon 1616317045 Eccentric Cog Wheel Z=60 €112.68
75
 photo_cameraImage coming soon 1615132082 Handle BLACK €46.27
76
 Control Lever for Demolition Hammer Bosch GSH 11 E 1612026049 Control Lever for Demolition Hammer Bosch GSH 11 E €2.10
77
 Shift Plate for Demolition Hammer Bosch GSH 11 E 1612026048 Shift Plate for Demolition Hammer Bosch GSH 11 E €9.26
80
 photo_cameraImage coming soon 1617233055 Speed governor 220-240V €96.63
82
 photo_cameraImage coming soon 1615510000 Light Conductor €1.95
84
 photo_cameraImage coming soon 160202508D Auxiliary Handle €17.86
86
 photo_cameraImage coming soon 2911021267 Hex Screw €3.23
88
 photo_cameraImage coming soon 1613349017 Star Knob M8 BLACK €6.15
89
 Clamping Piece for Demolition for Hammer Bosch GSH 5 E 1600A00748 Clamping Piece for Demolition for Hammer Bosch GSH 5 E €2.67
103
 photo_cameraImage coming soon 1610210122 O-Ring 30,0x5,0 MM €6.32
104
 photo_cameraImage coming soon 1610210123 O-Ring 22,0x11,0 MM €2.67
111
 Bushing for Hammer Bosch GBH 11 DE-GSH 11 E 3610501500 Bushing for Hammer Bosch GBH 11 DE-GSH 11 E €25.78
112
 Threaded Ring for Rotary Hammer Bosch GBH 11 DE 3613461500 Threaded Ring for Rotary Hammer Bosch GBH 11 DE €13.53
113
 Spacer for Hammer Bosch GBH 11 DE-GSH 11 E 1610009007 Spacer for Hammer Bosch GBH 11 DE-GSH 11 E €2.28
114
 O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE 1610210139 O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE €3.19
115
 photo_cameraImage coming soon 1610508027 Protective Cap BLACK €2.67
123
 Needle-Roller Ass'y for Hammer Bosch GSH 11 E 1610913013 Needle-Roller Ass'y for Hammer Bosch GSH 11 E €9.06
124/1
 photo_cameraImage coming soon 1610101608 Thrust Bearing Disc €1.34
125
 Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH 1613435010 Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH €2.48
126
 photo_cameraImage coming soon 2910211019 Tapping Screw DIN 7971-ST3,9x16-F €1.34
127
 photo_cameraImage coming soon 2914551117 Microencapsulated Screw DIN 912-M 5x12-8.8 €1.48
129
 photo_cameraImage coming soon 1613433001 Screw and washer assembly 6,3x32 €1.32
131
 photo_cameraImage coming soon 1611110890 Manufacturer's nameplate €3.31
138
 photo_cameraImage coming soon 1610210130 O-Ring 32,0x2,5 MM €5.23
139
 photo_cameraImage coming soon 1610108020 Felt Washer €5.96
140
 Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH 1613435010 Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH €2.48
141
 Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 1610290028 Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 €5.32
142
 photo_cameraImage coming soon 1610300063 Bushing €17.08
143
 Retaining Ring for Demolition Hammer Bosch GSH 11 E 2916540017 Retaining Ring for Demolition Hammer Bosch GSH 11 E €1.59
144
 photo_cameraImage coming soon 1610102029 Supporting Disc €3.31
661
 Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
802
 photo_cameraImage coming soon 1607000C3V Subassembly €141.32
803
 photo_cameraImage coming soon 1614011072 Armature 220-240V €299.13
805
 photo_cameraImage coming soon 1617000723 Power supply cord €45.86
808
 photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.61
823
 photo_cameraImage coming soon 1617000403 Needle-Roller Assembly €25.29
824
 photo_cameraImage coming soon 1617000240 Ball DIN 5401-6,5MM-III-ST €2.93
840
 photo_cameraImage coming soon 1617000969 Impact Mechanism Housing €299.13
842
 photo_cameraImage coming soon 1600A005AF Brush Holder €50.65
842
 photo_cameraImage coming soon 1607000481 Carbon-Brush Set 10 x 1 617 014 126 €141.32
842/020
 photo_cameraImage coming soon 1614336017 Brush Guide €11.79
842/030
 photo_cameraImage coming soon 1614652004 Spiral Spring €9.47
842/050
 Carbon Brushes for Hammers Bosch GBH10DC-11DE-GSH10C-11E 1617014126 Carbon Brushes for Hammers Bosch GBH10DC-11DE-GSH10C-11E €29.88
845
 photo_cameraImage coming soon 1617000418 Housing Cover €11.79
886
 photo_cameraImage coming soon 2911011270 Hex Screw DIN 931-M8x130-8.8 €4.22
887
 Bosch GSH 11 E Clamping Band 50 MM 1617000188 Bosch GSH 11 E Clamping Band 50 MM €14.10
889
 photo_cameraImage coming soon 1618040053 Clamping Piece €2.22
890
 Catch Disk for Demolition Hammer Bosch GSH 11 E 1610190053 Catch Disk for Demolition Hammer Bosch GSH 11 E €1.72
891
 Grease Tube 225 ML for Bosch Hammers GBH-GSH 1615430020 Grease Tube 225 ML for Bosch Hammers GBH-GSH €27.30
892
 photo_cameraImage coming soon 1615430002 Grease Tube 225 ML €66.26
893
 Special Grease Tube 225 ML for Bosch Hammers 1615430015 Special Grease Tube 225 ML for Bosch Hammers €53.09
895
 photo_cameraImage coming soon 3613344500 Oil Return Ring €9.24
897
 photo_cameraImage coming soon 1617000189 Wear and Tear Part Set €57.77
898
 photo_cameraImage coming soon 1617000190 Wear and Tear Part Set €77.84

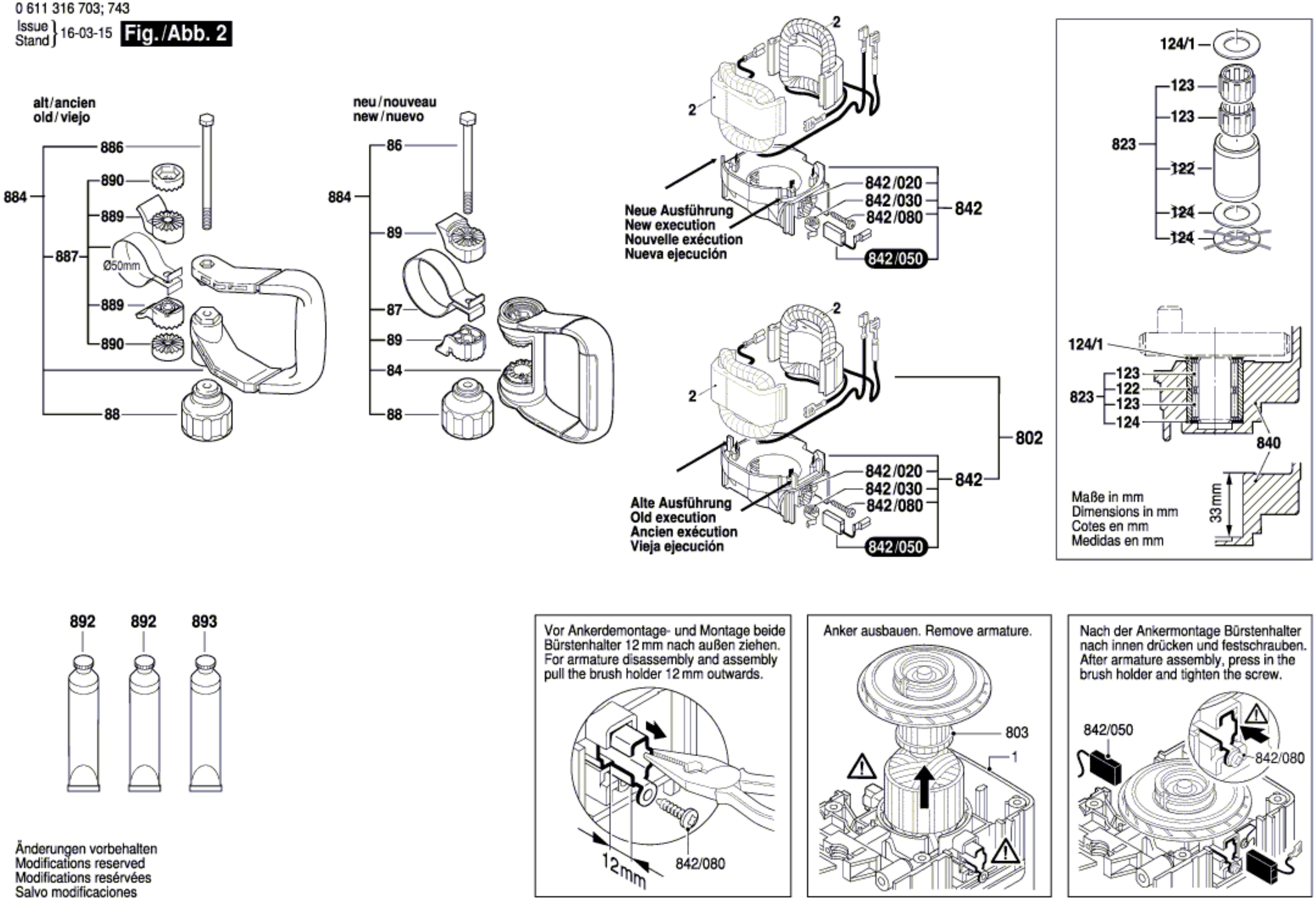

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
84
 photo_cameraImage coming soon 160202508D Auxiliary Handle €17.86
86
 photo_cameraImage coming soon 2911021267 Hex Screw €3.23
88
 photo_cameraImage coming soon 1613349017 Star Knob M8 BLACK €6.15
89
 Clamping Piece for Demolition for Hammer Bosch GSH 5 E 1600A00748 Clamping Piece for Demolition for Hammer Bosch GSH 5 E €2.67
886
 photo_cameraImage coming soon 2911011270 Hex Screw DIN 931-M8x130-8.8 €4.22
887
 Bosch GSH 11 E Clamping Band 50 MM 1617000188 Bosch GSH 11 E Clamping Band 50 MM €14.10
889
 photo_cameraImage coming soon 1618040053 Clamping Piece €2.22
890
 Catch Disk for Demolition Hammer Bosch GSH 11 E 1610190053 Catch Disk for Demolition Hammer Bosch GSH 11 E €1.72
892
 photo_cameraImage coming soon 1615430002 Grease Tube 225 ML €66.26
893
 Special Grease Tube 225 ML for Bosch Hammers 1615430015 Special Grease Tube 225 ML for Bosch Hammers €53.09

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Demolition Hammer SDS-Max GSH 11 E

We are BOSCH original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer GSH 11 E - 0611316703.

In the following table, look for the model of the Demolition Hammer and the respective parts of the code.
Demolition Hammer GSH 11 E - 0611316703

Demolition Hammer GSH 11 E/0 611 316 703
# Part Num. Description
1 1615108091 Motor Housing BLUE
2 160422052J Field 230V
4 1617200048 Switch
4/10 2910011088 Socket head cap screw DIN 84-AM3,5x12-5.8
6 1610703053 Grommet Ø9,7-Ø12x89 MM
7 1601302018 Fastening Clamp
9 1611110C01 Manufacturer's nameplate
13 2610909310 groove ball bearing
14 1610910089 Needle-Roller Bearing
15 1616610083 Fan
16 1610499022 Ratchet Sleeve
17 1610590004 Retaining snap ring
18 1610119010 Spring retaining ring
19 1615700034 Clamping-Flange
20 1618597067 Toolholder
21 1610508025 Protective Cap
22 1610499023 Protection Sleeve
23 1610521011 Stop Sleeve
25 1612300025 Stopping Device
26 1610290027 Indexing Disk
27 2910151246 Hex Socket Head Cap Screw DIN 912-M8x30-10.9
28 1614621002 Compression Spring
29 1614621003 Compression Spring
30 1610210147 O-Ring 79,5x2,65 MM
31 1610290026 Damping Ring
34 1610390029 Spacer Tube
35 1615806108 Hammer Pipe
36 1610210127 O-Ring 64,0x2,5 MM
37 1610210128 O-Ring 35,0x3,0 MM
38 1615190093 Covering hood
39 1610283030 Rotary shaft lip seal DIN 3760-A ,Ø32x42x7x6 MM
41 1618710071 Striker Pin
43 1615808083 Bearing cover BLUE
54 1610190019 Control Disc
55 1610420005 Control Bushing
56 1618700064 Hammer Piston
57 1618710062 Striker
70 1612001033 Connecting Rod
71 1613101006 Straight Pin
72 1616317045 Eccentric Cog Wheel Z=60
75 1615132082 Handle BLACK
76 1612026049 Control Lever
77 1612026048 Shift Plate GRAY
80 1617233055 Speed governor 220-240V
82 1615510000 Light Conductor
84 160202508D Auxiliary Handle
86 2911021267 Hex Screw
87 1611316010 Clamping Band
88 1613349017 Star Knob M8 BLACK
89 1600A00748 Clamping Piece
103 1610210122 O-Ring 30,0x5,0 MM
104 1610210123 O-Ring 22,0x11,0 MM
111 3610501500 Bushing
112 3613461500 Threaded Ring
113 1610009007 Spacer
114 1610210139 O-Ring 30,0x2,5 MM
115 1610508027 Protective Cap BLACK
123 1610913013 Needle-Roller Assembly
124/1 1610101608 Thrust Bearing Disc
125 1613435010 Torx Oval-Head Screw 5,5x25
126 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
127 2914551117 Microencapsulated Screw DIN 912-M 5x12-8.8
129 1613433001 Screw and washer assembly 6,3x32
131 1611110890 Manufacturer's nameplate
136 1613490029 Torx Oval-Head Screw M6x30
138 1610210130 O-Ring 32,0x2,5 MM
139 1610108020 Felt Washer
140 1613435010 Torx Oval-Head Screw 5,5x25
141 1610290028 Rotary shaft lip seal
142 1610300063 Bushing
143 2916540017 Retaining ring DIN 7993 A 30
144 1610102029 Supporting Disc
661 1615430010 Grease Tube 30 ML
802 1607000C3V Subassembly
803 1614011072 Armature 220-240V
805 1617000723 Power supply cord
808 1601106032 Nameplate 26x52 MM
823 1617000403 Needle-Roller Assembly
824 1617000240 Ball DIN 5401-6,5MM-III-ST
840 1617000969 Impact Mechanism Housing
842 1600A005AF Brush Holder
842/020 1614336017 Brush Guide
842/030 1614652004 Spiral Spring
842/050 1617014126 Carbon-Brush Set
842 1607000481 Carbon-Brush Set 10 x 1 617 014 126
842/080 2910611012 Tapping Screw DIN 7981-ST3,5x16-C-H
845 1617000418 Housing Cover
884 160202508E Auxiliary Handle
886 2911011270 Hex Screw DIN 931-M8x130-8.8
887 1617000188 Clamping Band Ø50 MM
889 1618040053 Clamping Piece
890 1610190053 Catch Disk
891 1615430020 Grease Tube 225 ML
892 1615430002 Grease Tube 225 ML
893 1615430015 Grease Tube 225 ML
895 3613344500 Oil Return Ring
897 1617000189 Wear and Tear Part Set
898 1617000190 Wear and Tear Part Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GSH 11 E - 0611316703
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GSH 11 E

Diagram Bosch GSH 11 E

Download (351.89KB)

You might also like

Spacer for Hammer Bosch GBH 11 DE-GSH 11 E
Bosch SKU: 1610009007
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E Genuine spare parts Bosch, Spacer for Hammer Bosch GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703. Parts for the following products: -  DEMOLITION HAMMER GBH 11 DE/0 611 245 703 - HAMMER...
AVAILABLE €2.28
Details
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E
Bosch SKU: 3610501500
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E Original parts Bosch, Bushing for Hammer Bosch GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703. Parts for the following products: - HAMMER GBH 11 DE/0 611 245 703 - HAMMER GSH 11 E/0 611...
AVAILABLE €25.78
Details
Catch Disk for Demolition Hammer Bosch GSH 11 E
Bosch SKU: 1610190053
Catch Disk for Demolition Hammer Bosch GSH 11 E
Catch Disk for Demolition Hammer Bosch GSH 11 E Genuine spare parts Bosch, Catch Disk for Demolition Hammer Bosch GSH 11 E / 0 611 316 703. Parts for the following products: - Demolition Hammer BOSCH GSH 11 E/0 611 316 703 - Code:...
AVAILABLE €1.72
Details
Switch for Demolition Hammer Bosch GSH 11 E
Bosch SKU: 1617200048
Switch for Demolition Hammer Bosch GSH 11 E
Switch for Demolition Hammer Bosch GSH 11 E Bosch original replacement part, Switch for Demolition Hammer GSH 11 E/0 611 316 703 - GBH 5/40 DCE/0 611 216 703. Part for the following products: -...
Last items in stock €24.90
Details
O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE
Bosch SKU: 1610210139
O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE
O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE Original spare Bosch, O-Ring 30,0x2,5 mm for Hammers GBH 7-46 DE/0 611 263 703 - GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703 Part for the...
AVAILABLE €3.19
Details
Threaded Ring for Rotary Hammer Bosch GBH 11 DE
Bosch SKU: 3613461500
Threaded Ring for Rotary Hammer Bosch GBH 11 DE
Threaded Ring for Rotary Hammer Bosch GBH 11 DE Genuine part Bosch, Threaded Ring for Rotary Hammer GBH 11 DE - Demolition Hammer GSH 11 E - 0611316703 Parts for the following products: -  Rotary Hammer GBH 11 DE- 0611245703 -...
AVAILABLE €13.53
Details
Shift Plate for Demolition Hammer Bosch GSH 11 E
Bosch SKU: 1612026048
Shift Plate for Demolition Hammer Bosch GSH 11 E
Shift Plate for Demolition Hammer Bosch GSH 11 E Bosch Genuine part, Shift Plate for Demolition Hammers GSH10C /0611311703 - GSH11E/ 0611316703 Part for the following products: - Demolition Hammer Bosch 11311EVS / 0611311739 -...
AVAILABLE €9.26
Details
Control Lever for Demolition Hammer Bosch GSH 11 E
Bosch SKU: 1612026049
Control Lever for Demolition Hammer Bosch GSH 11 E
Control Lever for Demolition Hammer Bosch GSH 11 E Bosch original replacement part, Control Lever for Demolition Hammer GSH 11 E/0 611 316 703 - GBH 5/40 DCE/0 611 216 703. Part for the following products: - Demolition Hammer GSH 10C...
Last items in stock €2.10
Details
O-Ring 35,0x3,0 mm for Demolition Hammer Bosch GSH 11 E
Bosch SKU: 1610210128
O-Ring 35,0x3,0 mm for Demolition Hammer Bosch GSH 11 E
O-Ring 35,0x3,0 mm for Demolition Hammer Bosch GSH 11 E Bosch original replacement part, O-Ring 35,0x3,0 mm for Demolition Hammer GSH 11 E/0 611 316 703 - GBH 5/40 DCE/0 611 216 703. Part for the following products: - Demolition...
AVAILABLE €1.59
Details
Retaining Ring for Demolition Hammer Bosch GSH 11 E
Bosch SKU: 2916540017
Retaining Ring for Demolition Hammer Bosch GSH 11 E
Retaining Ring for Demolition Hammer Bosch GSH 11 E Bosch original replacement part, Retaining Ring DIN 7993 A 30 for Demolition Hammer GSH 10C - GSH 11 E/0 611 316 703. Part for the following products: - Rotary Hammer 11247 -...
AVAILABLE €1.59
Details
O-Ring 64,0x2,5 mm for Demolition Hammer Bosch GSH 11 E
Bosch SKU: 1610210127
O-Ring 64,0x2,5 mm for Demolition Hammer Bosch GSH 11 E
O-Ring 64,0x2,5 mm for Demolition Hammer Bosch GSH 11 E Bosch original replacement part, O-Ring 64,0x2,5 mm for Demolition Hammer GSH 11 E/0 611 316 703 - GBH 5/40 DCE/0 611 216 703. Part for the following products: - Demolition...
AVAILABLE €1.59
Details
O-Ring 79,5x2,65 mm for Demolition Hammer Bosch GSH 11 E
Bosch SKU: 1610210147
O-Ring 79,5x2,65 mm for Demolition Hammer Bosch GSH 11 E
O-Ring 79,5x2,65 mm for Demolition Hammer Bosch GSH 11 E Bosch original replacement part, O-Ring 79,5x2,65 mm for Demolition Hammer GSH 11 E/0 611 316 703 - GBH 5/40 DCE/0 611 216 703. Part for the following products: - Demolition...
AVAILABLE €2.10
Details
Needle-Roller Ass'y for Hammer Bosch GSH 11 E
Bosch SKU: 1610913013
Needle-Roller Ass'y for Hammer Bosch GSH 11 E
Needle-Roller Ass'y for Demolition Hammer Bosch GSH 11 E Genuine replacement part Bosch, Needle-Roller Assembly for Demolition Hammer GSH 11 E - 0611316703 Part for the following products: -  Demolition Hammer GSH 11 E - 0611316703 -...
on 7/10 Business Days Approx €9.06
Details
Bosch GSH 11 E Clamping Band Ø50 MM
Bosch SKU: 1617000188
Bosch GSH 11 E Clamping Band 50 MM
Bosch GSH 11 E Clamping Band Ø50 MM Bosch original replacement part, Clamping Band Ø50 MM for Demolition Hammer GSH 11 E. Part for the following products: - Demolition Hammer Bosch GSH 11 E - 0611316703...
Last items in stock €14.10
Details
Comments (0)
