Bosch Spare Parts for Orbital Sander GSS 140 A

SKU: Bosch GSS 140 A - 0601297003
€17.28
VAT included

Bosch Spare Parts for Orbital Sander GSS 140 A

Bosch genuine replacement parts for to replace broken parts for to fix Orbiatal Sander GSS 140 A - 0601297003.

Fix Your Orbital Sander GSS 140 A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch GSS 140 A - 0601297003e.
Bosch Spare Parts for Orbital Sander
  • Bosch Spare Parts for Orbital Sander
  • Bosch Spare Parts for Orbital Sander

Bosch Spare Parts for Orbital Sander GSS 140 A

SKU: Bosch GSS 140 A - 0601297003 Condition: New
€17.28
VAT included

Bosch Spare Parts for Orbital Sander GSS 140 A

Bosch genuine replacement parts for to replace broken parts for to fix Orbiatal Sander GSS 140 A - 0601297003.

Fix Your Orbital Sander GSS 140 A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch GSS 140 A - 0601297003e.
settings 36 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

29 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 2609100680 Housing  €21.62
2
photo_cameraImage coming soon 2610920611 Field 230V  €21.62
3
photo_cameraImage coming soon 2610920610 Armature 230V  €49.35
4
photo_cameraImage coming soon 1607200190 Switch €8.38
6
photo_cameraImage coming soon 2600703017 Grommet Ø6,4-Ø7,2x76 MM €2.58
7
Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
8
photo_cameraImage coming soon 2610921049 Nameplate  €2.84
12
photo_cameraImage coming soon 2610920617 Suppression Filter  €1.91
13
photo_cameraImage coming soon 2610917489 Ball Bearing  €7.91
14
photo_cameraImage coming soon 2610917489 Ball Bearing  €7.91
15
photo_cameraImage coming soon 2610920618 Fan  €5.65
19
Screw ST 3,9x19 for Rotary Tool Dremel 3000 2610315386 Screw ST 3,9x19 for Rotary Tool Dremel 3000 €1.51
22
photo_cameraImage coming soon 2610920619 Suppression Filter  €2.85
23
photo_cameraImage coming soon 2610920620 Fan Cover  €5.10
24
photo_cameraImage coming soon 2610928031 Cable  €4.33
26
photo_cameraImage coming soon 2610910009 Connection Block €1.73
28
photo_cameraImage coming soon 2609110748 Ball Bearing  €5.65
29
photo_cameraImage coming soon 2610921132 Vibration Foot  €4.48
30
photo_cameraImage coming soon 2610915161 Screw €3.31
33
Foam Base for Sander BOSCH GSS 140 A 2610920631 Foam Base for Sander BOSCH GSS 140 A €24.25
34
photo_cameraImage coming soon 2610920634 Counterweight  €2.84
39
photo_cameraImage coming soon 2610925983 Clamp Handle  €14.61
45
photo_cameraImage coming soon 2610350103 Pin  €1.31
48
photo_cameraImage coming soon 2610920651 Push Button  €1.60
654
photo_cameraImage coming soon 2610920650 Punching Tool  €6.58
655
Dust Container for Sander BOSCH GSS 140 A 2609199193 Dust Container for Sander BOSCH GSS 140 A €10.59
805
photo_cameraImage coming soon 1607000385 Power supply cord EU 2,6m 2 x 1,0 mm  €16.29
810
photo_cameraImage coming soon 2610924701 Carbon-Brush Set  €8.02
832
photo_cameraImage coming soon 2609100684 Swing-Plate  €31.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Orbital Sander GSS 140 A

Bosch genuine replacement parts for to replace broken parts for to fix Orbiatal Sander GSS 140 A - 0601297003.

Fix Your Orbital Sander GSS 140 A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Orbital Sander and the respective parts of the code.
Bosch GSS 140 A - 0601297003

GSS 140 A/0 601 297 003
# Part Num. Description
1 2609100680 Housing
2 2610920611 Field 230V
3 2610920610 Armature 230V
4 1607200190 Switch
6 2600703017 Grommet Ø6,4-Ø7,2x76 MM
7 2601035001 Cable Clip
8 2610921049 Nameplate
9 2610921050 Reference Plate
12 2610920617 Suppression Filter
13 2610917489 Ball Bearing
14 2610917489 Ball Bearing
15 2610920618 Fan
19 2610315386 Screw ST3,9x19
22 2610920619 Suppression Filter
23 2610920620 Fan Cover
24 2610928031 Cable
26 2610910009 Connection Block
27 2916649005 Spring retaining ring DIN471-8
28 2609110748 Ball Bearing
29 2610921132 Vibration Foot
30 2610915161 Screw
31 2610991395 Screw
33 2610920631 Foam Panel
34 2610920634 Counterweight
35 2610920635 Felt
39 2610925983 Clamp Handle
40 2603490020 Torx Oval-Head Screw 4x8
42 2609101232 Rubber Bar
45 2610350103 Pin
48 2610920651 Push Button
49 2610920652 O-Ring
654 2610920650 Punching Tool
655 2609199193 Dust container
805 1607000385 Power supply cord EU 2,6m 2 x 1,0 mm
810 2610924701 Carbon-Brush Set
832 2609100684 Swing-Plate

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of
Bosch GSS 140 A - 0601297003
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

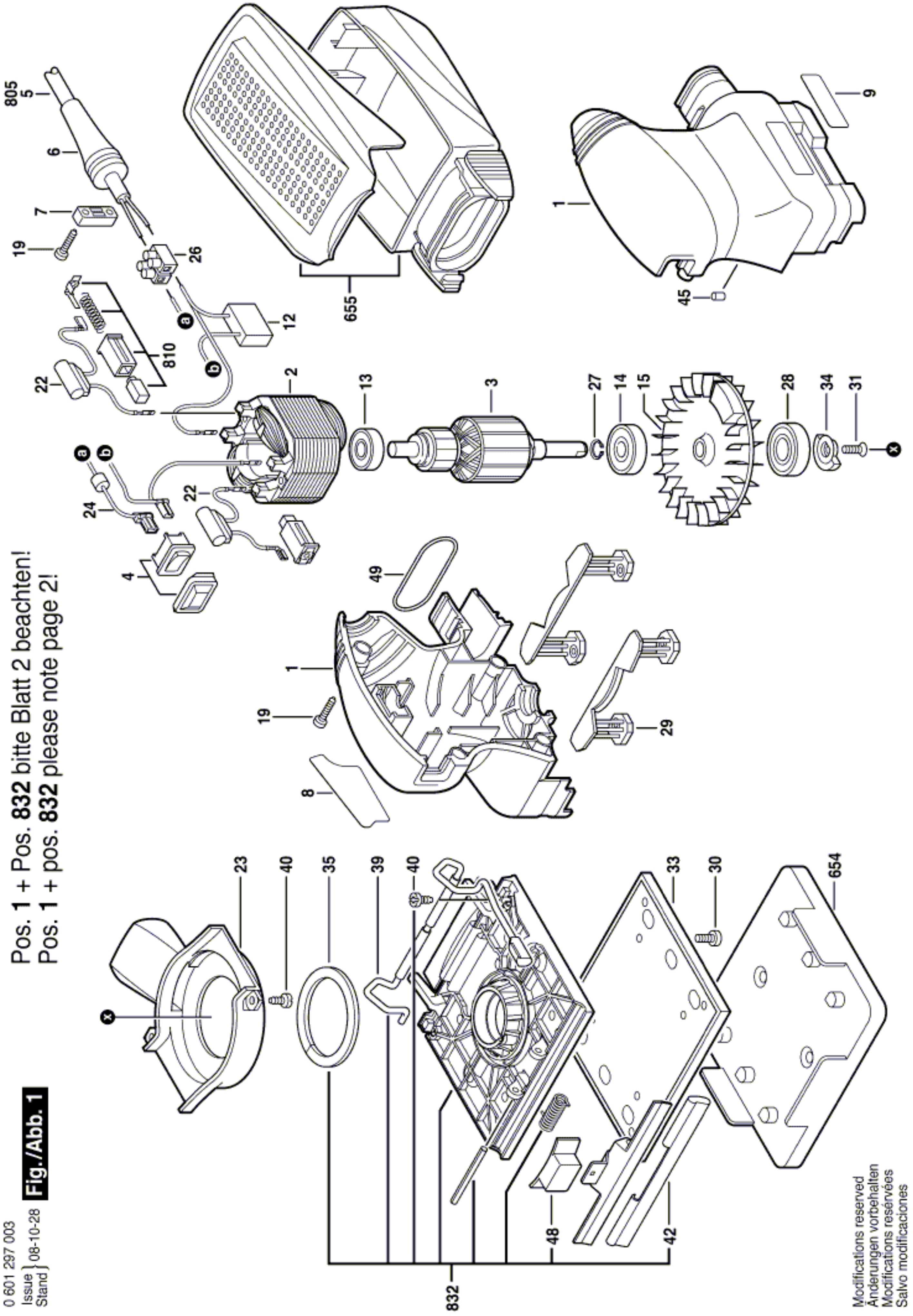

Diagram Bosch GSS 140 A

Diagram Bosch GSS 140 A

Download (155.65KB)
