Bosch Parts for Random Orbital Sander GEX 150 AC

We have the original Spares for BOSCH Random Orbital Sander GEX 150 AC - 0601372703, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Random Orbital Sander GEX 150 AC. All Spares are original and can be supplied at Low prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch GEX 150 AC - 0601372703

44 spare parts

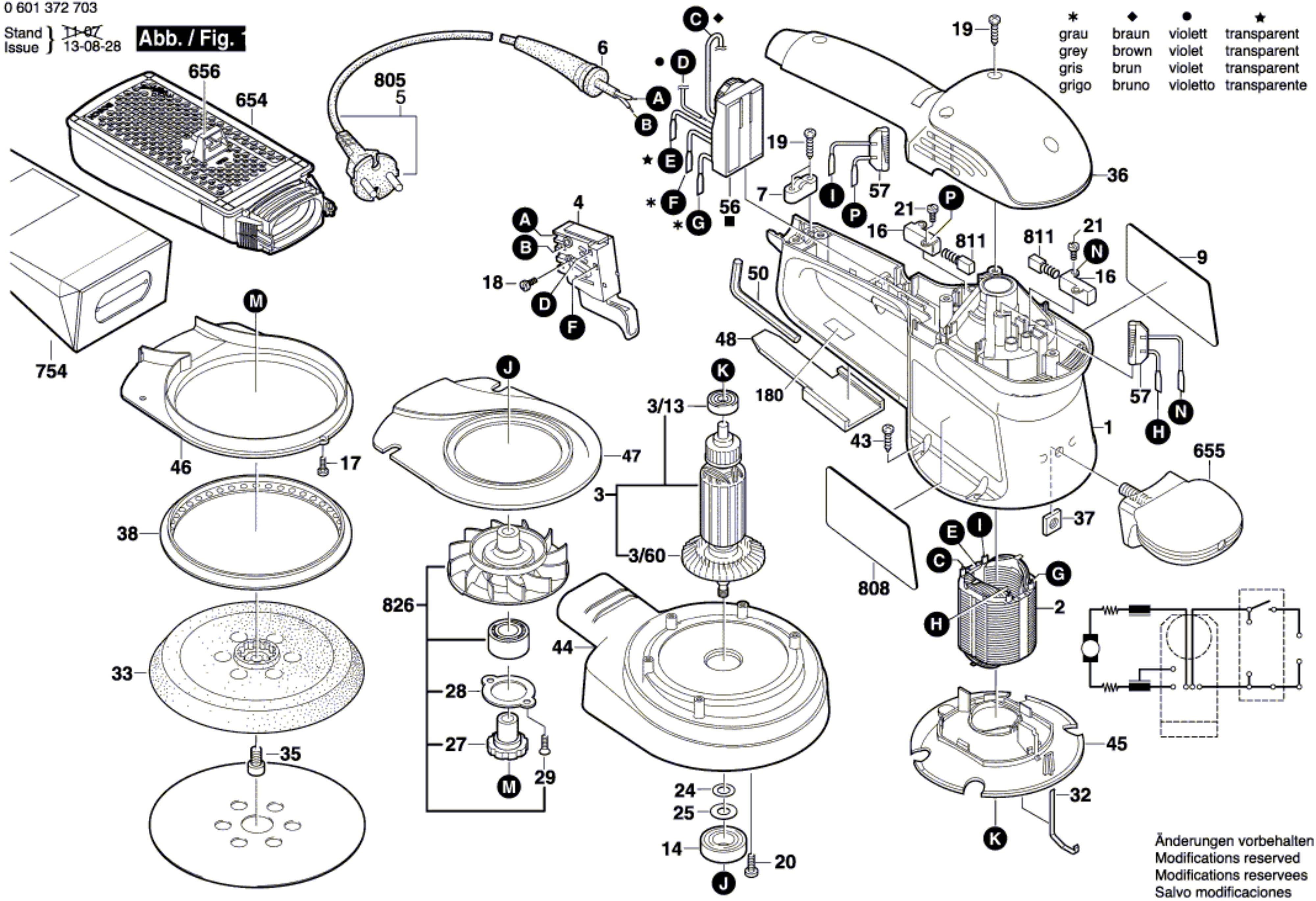

Page 1 View exploded Usually Ships in: 10 BUSYNESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	2605104410 Housing Section BLUE	€17.63
2		2604220529 Stator for Rotorbital Sanders Bosch GEX 125-150 AC	€34.08
3/13	Image coming soon	2600905051 groove ball bearing 7x19x6	€8.33
3	Image coming soon	2604011028 Armature 220-240V	€70.79
3/60	Image coming soon	2606610076 Fan	€4.15
4		2607200260 Switch for Random Orbital Sander BOSCH GEX 125 AC	€12.92
6	Image coming soon	2600703017 Grommet Ø6,4-Ø7,2x76 MM	€2.58
7		2601035001 Cable Clip 2601035001 for Power Tools Bosch	€2.09
9	Image coming soon	2601116496 Manufacturer's nameplate	€2.99
14		2600905034 Deep-Groove Ball Bearing 6002 2RZ for Sanders BOSCH PEX 400 - 420 AE	€16.46
16		2604337016 Brush Holder for Rotorbital Sander Bosch GEX 125-150 AC	€1.98
17	Image coming soon	2603435089 Torx Oval-Head Screw M3x8	€1.40
18	Image coming soon	2603410001 Socket head cap screw M3x6,5-4.8	€2.09
19	Image coming soon	2603490022 Torx Oval-Head Screw 4x16	€1.66
20		2603435043 Special Srew M3x8 for Random Orbital Sander Bosch GEX 125 AC	€2.84
21	Image coming soon	2603490017 Torx Oval-Head Screw 3x10	€2.82
24		2600101047 Shim mm 0.3 for Percussion Drill Bosch GSB 13 RE	€1.52
25	Image coming soon	2600100041 Plain Washer DIN 315-M8-GT-C	€2.10
27	Image coming soon	2600328026 Carrier	€6.78
28		2600190060 Tab Washer for Random Orbital Sander Bosch GEX 125 AC - GEX 150 AC	€3.89
29		3603391003 Screw M3x8 for Random Orbital Sander Bosch GEX 125 AC - GEX 150 AC	€1.74
32	Image coming soon	2601329053 Contact Strap	€1.72
33		2608601106 Backing Pad for Sander BOSCH GEX 150 AC	€48.66
35		2910130244 Hex Socket Head Screw for Random Orbital BOSCH GEX 150 AC	€1.75
36	Image coming soon	2605500124 Housing Cover BLUE	€14.41
37	Image coming soon	2915121006 Square Nut DIN 562-M6-04	€2.50
38		1600A00JE7 Friction Ring for Random Orbital Sander BOSCH GEX 125 AC	€6.02
43		2603435042 Thread-form. Tap. Screw M4x10 for Random Orb. Sander Bosch GEX 125 AC	€1.54
44	Image coming soon	2600282015 Suction Hood	€23.17
45	Image coming soon	2601328047 Air-Deflector Ring	€2.61
46	Image coming soon	2601328048 Suction Piece	€2.61
47	Image coming soon	2601328049 Suction Piece	€2.61
48	Image coming soon	2601035002 Pusher	€2.50
50	Image coming soon	1907950006 Offset Screwdriver DIN 911-SW5 BLACK	€5.40
56	Image coming soon	2607230119 Speed governor 230-240V	€37.04
57	Image coming soon	2604465090 Suppression Filter	€8.08
654	Image coming soon	2605411193 Dust Chamber	€23.20
655	Image coming soon	2602026069 Auxiliary Handle BLACK	€6.23
656		2605702039 Adapter for Orbital Sander BOSCH GSS 230 AE	€4.16
754		2605411069 Dust Bag for Rotorbital Sanders Bosch GEX 125-150 AC	€3.81
805	Image coming soon	1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F	€30.17
808	Image coming soon	2601119204 Marking Plate	€2.99
811		1607014117 Carbon Brushes for Rotorbital Sanders GEX 125-150 AC	€17.45
826		2606610903 Fan for Random Orbital Sander BOSCH GEX 150 AC	€72.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Parts for Random Orbital Sander GEX 150 AC

Fix Your Random Orbital Sander GEX 150 AC - 0601372703. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Rotorbital Sander and the respective parts of the code.

Rotorbital Sander GEX 150 AC/0 601 372 703
#	Part Num.	Description
1	2605104410	Housing Section BLUE
2	2604220529	Field 230-240V
3	2604011028	Armature 220-240V
3/13	2600905051	Deep-Groove Ball Bearing 7x19x6
3/60	2606610076	Fan
4	2607200260	Switch
6	2600703017	Grommet Ø6,4-Ø7,2x76 MM
7	2601035001	Cable Clip
9	2601116496	Manufacturer's nameplate
14	2600905034	Deep-Groove Ball Bearing 6002 2RZ
16	2604337016	Brush Holder
17	2603435089	Torx Oval-Head Screw M3x8
18	2603410001	Socket head cap screw M3x6,5-4.8
19	2603490022	Torx Oval-Head Screw 4x16
20	2603435043	Special Screw 3x8 MM
21	2603490017	Torx Oval-Head Screw 3x10
24	2600101047	Shim 0,3 MM
25	2600100041	Plain Washer DIN 315-M8-GT-C
27	2600328026	Carrier
28	2600190060	Tab Washer
29	3603391003	Thread-forming tap. Screw M3x8
32	2601329053	Contact Strap
33	2608601106	Backing Pad Ø150
35	2910130244	Hex Socket Head Cap Screw DIN 7984-M8x25-8.8
36	2605500124	Housing Cover BLUE
37	2915121006	Square Nut DIN 562-M6-04
38	1600A00JE7	Friction Ring
43	2603435042	Thread-forming tap. Screw
44	2600282015	Suction Hood
45	2601328047	Air-Deflector Ring
46	2601328048	Suction Piece
47	2601328049	Suction Piece
48	2601035002	Pusher
50	1907950006	Offset Screwdriver DIN 911-SW5 BLACK
56	2607230119	Speed governor 230-240V
57	2604465090	Suppression Filter
654	2605411193	Dust Chamber
655	2602026069	Auxiliary Handle BLACK
656	2605702039	Adapter
754	2605411069	Dust Bag 1 PIECE
805	1607000386	Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F
808	2601119204	Marking Plate
811	1607014117	Carbon Brush
826	2606610903	Fan

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Bosch GEX 150 AC - 0601372703

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

Condition New

Download

Diagram Bosch GEX 150 AC

Download (174.62KB)

Bosch SKU: 1607014117

Carbon Brushes for Rotorbital Sanders GEX 125-150 AC

Carbon Brushes for Rotorbital Sanders GEX 125-150 AC Genuine Parts Bosch, Carbon Brusches for Orbital Sanders GSS 230 A-AE - GSS 280 A-AE - GSS 280 AE - Rotorbital Sanders GEX 125 A-AC - GEX 150 AC - Circular Sasw PKS 40-46.
