Bosch

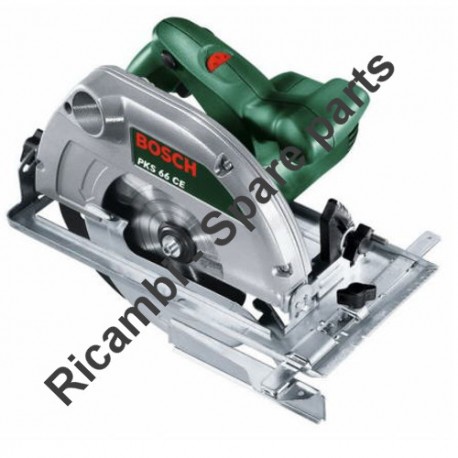

Bosch Spare Parts for Circular Saw PK 66 CE

SKU: Bosch PKS 66 CE - 0603234703
€7.30
VAT included

Bosch Spare Parts for Circular Saw PK 66 CE

Bosch genuine spare parts or replacement parts for to repair Circular Saw PKS 66 CE - 0603234703.

Bosch PKS 66 CE - 0603234703
Bosch Spare Parts for Circular Saw PK 66 CE
  • Bosch Spare Parts for Circular Saw PK 66 CE
  • Bosch Spare Parts for Circular Saw PK 66 CE
Bosch

Bosch Spare Parts for Circular Saw PK 66 CE

SKU: Bosch PKS 66 CE - 0603234703 Condition: New
€7.30
VAT included

Bosch Spare Parts for Circular Saw PK 66 CE

Bosch genuine spare parts or replacement parts for to repair Circular Saw PKS 66 CE - 0603234703.

Bosch PKS 66 CE - 0603234703
settings 69 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

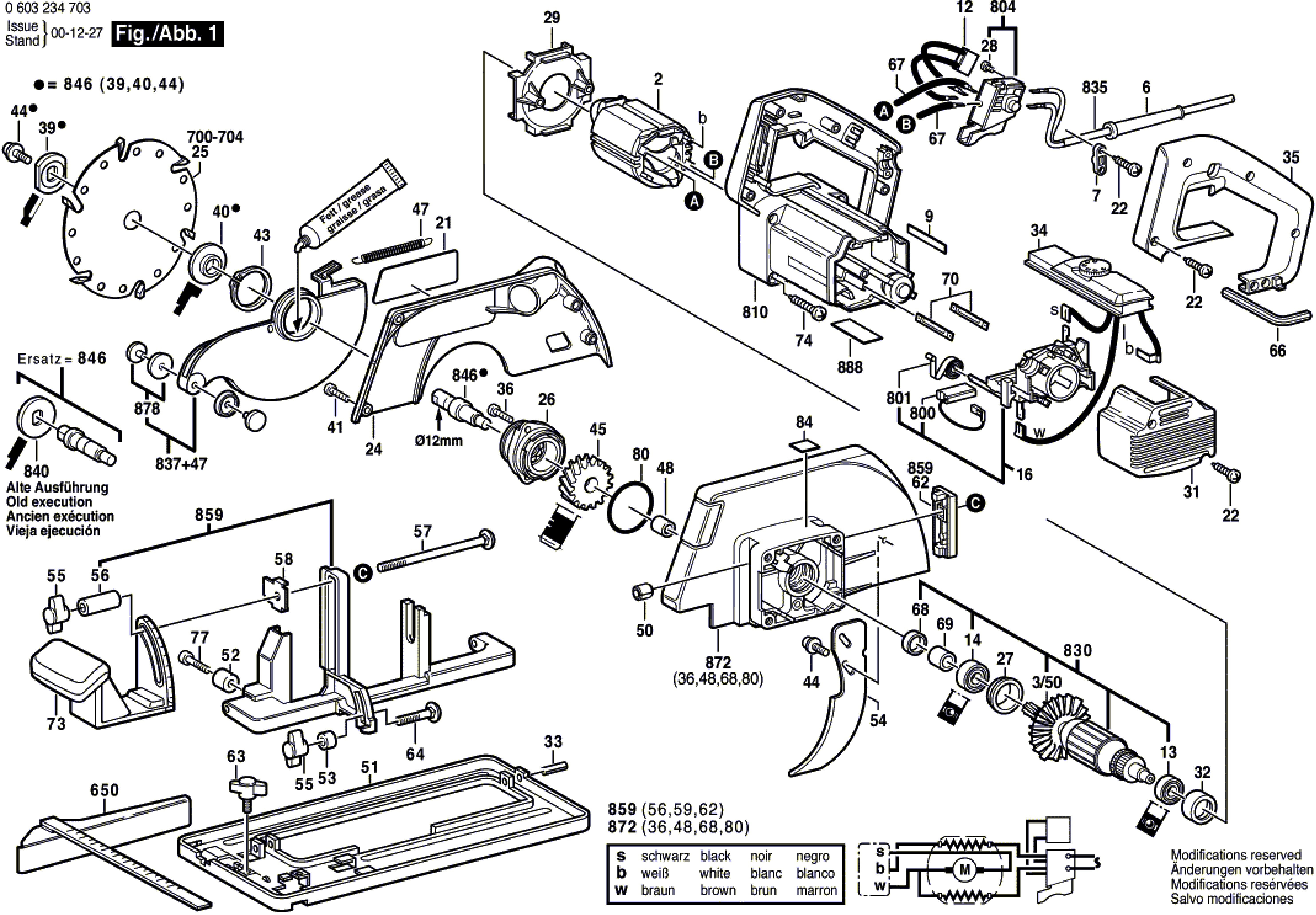

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 1604220357 Field 220-240V €44.39
3/50
 photo_cameraImage coming soon 3606610002 Fan  €1.83
6
 Grommet mm 8,8-9,0x70 for Angle Grinder Bosch 1600703024 Grommet mm 8,8-9,0x70 for Angle Grinder Bosch €2.54
7
 Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
9
 photo_cameraImage coming soon 1601110483 Manufacturer's nameplate €2.13
12
 photo_cameraImage coming soon 1607328028 Suppression Filter €6.13
13
 Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
16
 photo_cameraImage coming soon 1604336024 Brush Holder €15.99
22
 photo_cameraImage coming soon 2912401019 Tapping Screw DIN7981-ST3,9x16-C-Z  €1.48
24
 photo_cameraImage coming soon 1605510157 Protective Cover  €15.11
26
 photo_cameraImage coming soon 1605808065 Bearing Flange  €11.71
27
 photo_cameraImage coming soon 1600221003 Intermediate Ring €1.35
28
 photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
32
 Intermediate Ring for Circular Saw Bosch PKS 54 1600502011 Intermediate Ring for Circular Saw Bosch PKS 54 €1.53
33
 Spring Pin for Circular Saw Bosch GKS 55 2917780150 Spring Pin for Circular Saw Bosch GKS 55 €0.92
35
 photo_cameraImage coming soon 1605500153 Handle Cover GREEN  €6.58
36
 Thread-form. Tap. Screw M4x10 for Random Orb. Sander Bosch GEX 125 AC 2603435042 Thread-form. Tap. Screw M4x10 for Random Orb. Sander Bosch GEX 125 AC €1.54
39
 Conical Spring Washer for Circular Saw Bosch GKS 66 CE 1605703107 Conical Spring Washer for Circular Saw Bosch GKS 66 CE €4.00
43
 Spring Retaining Ring DIN 471-40x1,75-FST for Circular Saw Bosch 2916650020 Spring Retaining Ring DIN 471-40x1,75-FST for Circular Saw Bosch €4.11
44
 Hex Socket Head Cap Screw M6x14 mm for Circular Saw Bosch GKS 55 1603414007 Hex Socket Head Cap Screw M6x14 mm for Circular Saw Bosch GKS 55 €1.68
47
 Extension Spring for Circular Saw Bosch GKS 55 1604649001 Extension Spring for Circular Saw Bosch GKS 55 €6.18
48
 photo_cameraImage coming soon 1600910019 Nozzle Socket  €2.99
52
 photo_cameraImage coming soon 1600305001 Rubber Buffer €1.48
53
 photo_cameraImage coming soon 1600309012 Spacer Bushing  €1.35
54
 Riving Knife for Circular Saw Bosch GKS 65 1600025013 Riving Knife for Circular Saw Bosch GKS 65 €7.11
55
 Wing Nut for Circular Saw Bosch PKS66CE 1603339005 Wing Nut for Circular Saw Bosch PKS66CE €2.57
57
 Flat Head Screw M6x170 mm for Circular Saw Bosch PKS66CE 1603434005 Flat Head Screw M6x170 mm for Circular Saw Bosch PKS66CE €2.13 Not available for order
63
 photo_cameraImage coming soon 1603480022 Wing Screw  €2.09
64
 photo_cameraImage coming soon 1603434006 Round-Head Bolt M6x35 MM  €1.33
66
 photo_cameraImage coming soon 1907950006 Offset Screwdriver DIN 911-SW5 BLACK €5.40
67
 photo_cameraImage coming soon 1604503014 Suppressor Box €10.28
69
 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 1600290016 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 €2.61
70
 photo_cameraImage coming soon 1604477005 Blade terminal €1.78
73
 photo_cameraImage coming soon 1608190009 Miter Square  €5.31
74
 photo_cameraImage coming soon 1603435022 Thread-forming tap. Screw TT M5x30 MM €1.48
77
 photo_cameraImage coming soon 2910271120 Pan head screw DIN 923-M4x10-5.8  €1.35
80
 photo_cameraImage coming soon 1600210035 O-Ring 46,0x1,1 MM €1.62
84
 photo_cameraImage coming soon 1601110656 Reference Plate €2.13
650
 photo_cameraImage coming soon 2608005036 Parallel-Guide  €7.12
800
 Carbon Brush Set for Circular Saws Bosch PKS 54 - PKS 66 1607014129 Carbon Brush Set for Circular Saws Bosch PKS 54 - PKS 66 €17.95 Not available for order
801
 photo_cameraImage coming soon 2604652008 Spiral Spring €1.48
804
 Switch for Circular Saws Bosch PKS 54-66 CE 1607000231 Switch for Circular Saws Bosch PKS 54-66 CE €27.07
810
 photo_cameraImage coming soon 1607000923 Parts Set GREEN  €54.49
810
 photo_cameraImage coming soon 1607000925 Handle Cover BLUE  €66.74
835
 photo_cameraImage coming soon 1607000228 Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F €37.86
859
 photo_cameraImage coming soon 1607000197 Parts Set  €49.55
888
 photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.61
899
 photo_cameraImage coming soon 1605430003 Grease Tube 225 ML  €46.15

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Circular Saw PK 66 CE

Bosch genuine spare parts or replacement parts for to repair Circular Saw PKS 66 CE - 0603234703.

In the following table, look for the model of the Circular Saw and the respective parts of the code.
Bosch PKS 66 CE - 0603234703
Circular Saw PKS 66 CE/0 603 234 703
# Part num. Description
2 1604220357 Field 220-240V
3/50 3606610002 Fan
6 1600703024 Grommet Ø8,8-Ø9,0x70 MM
7 2601035001 Cable Clip
9 1601110483 Manufacturer's nameplate
12 1607328028 Suppression Filter
13 2600905032 Deep-Groove Ball Bearing 7x19x6
14 1610905009 Deep-Groove Ball Bearing 9x26x8
16 1604336024 Brush Holder
21 1601110638 Manufacturer's nameplate
22 2912401019 Tapping Screw DIN7981-ST3,9x16-C-Z
24 1605510157 Protective Cover
25 1608640086 Circular Saw Blade
26 1605808065 Bearing Flange
27 1600221003 Intermediate Ring
28 2603410001 Socket head cap screw M3x6,5-4.8
29 3600591001 Air-Deflector Ring
31 1605500156 Sealing cap BLACK
32 1600502011 Intermediate Ring
33 2917780150 Slotted Spring Pin 6x22 DIN7346
34 1607233030 Speed governor 220-240V
35 1605500153 Handle Cover GREEN
36 2603435042 Thread-forming tap. Screw
39 1605703107 Conical Spring Washer
40 1605703091 Clamping-Flange Ø 12x30 MM
41 2914491409 Thread-forming tap. Screw DIN 7500-M 4x12
43 2916650020 Spring retaining ring DIN 471-40x1,75-FST
44 1603414007 Hex Socket Head Cap Screw M6x14 MM
45 1606320081 Cylindrical Gear Z=41
47 1604649001 Extension Spring
48 1600910019 Nozzle Socket
50 1600309011 Guide Bushing
51 1608000105 Base Plate 170x382 MM
52 1600305001 Rubber Buffer
53 1600309012 Spacer Bushing
54 1600025013 Riving Knife
55 1603339005 Wing Nut M6
56 1600309013 Spacer Bushing Ø33xØ6,2xØ14,7 MM
57 1603434005 Pan head screw M6x170 MM
58 1601329015 Adjusting Plate
62 1608040112 Thrust Member
63 1603480022 Wing Screw
64 1603434006 Round-Head Bolt M6x35 MM
66 1907950006 Offset Screwdriver DIN 911-SW5 BLACK
67 1604503014 Suppressor Box
68 1600300092 Intermediate Ring
69 1600290016 Rotary shaft lip seal
70 1604477005 Blade terminal
73 1608190009 Miter Square
74 1603435022 Thread-forming tap. Screw TT M5x30 MM
77 2910271120 Pan head screw DIN 923-M4x10-5.8
80 1600210035 O-Ring 46,0x1,1 MM
84 1601110656 Reference Plate
650 2608005036 Parallel-Guide
800 1607014129 Carbon-Brush Set
801 2604652008 Spiral Spring
804 1607000231 On-Off Switch
810 1607000923 Parts Set GREEN
810 1607000925 Handle Cover BLUE
830 1604010339 Armature 220-240V
835 1607000228 Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F
837 1605510172 Pivoting Blade Guard
840 1605703093 Clamping-Flange
846 1607000225 Parts Set Ø 12 MM, M6
859 1607000197 Parts Set
872 1607000222 Parts Set
878 1607000205 Parts Set
888 1601106032 Nameplate 26x52 MM
899 1605430003 Grease Tube 225 ML
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
