Bosch Spare Parts for Circular Saw PKS 54 CE

SKU: Bosch PKS 54 CE - 0603223603
€4.85
VAT included

Bosch Spare Parts for Circular Saw PKS 54 CE

We are BOSCH original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw PKS 54 CE - 0603223603.
Bosch Spare Parts for Circular Saw PK 54 CE
  • Bosch Spare Parts for Circular Saw PK 54 CE
  • Bosch Spare Parts for Circular Saw PK 54 CE

Bosch Spare Parts for Circular Saw PKS 54 CE

SKU: Bosch PKS 54 CE - 0603223603 Condition: New
€4.85
VAT included

Bosch Spare Parts for Circular Saw PKS 54 CE

We are BOSCH original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw PKS 54 CE - 0603223603.
settings 64 spare parts

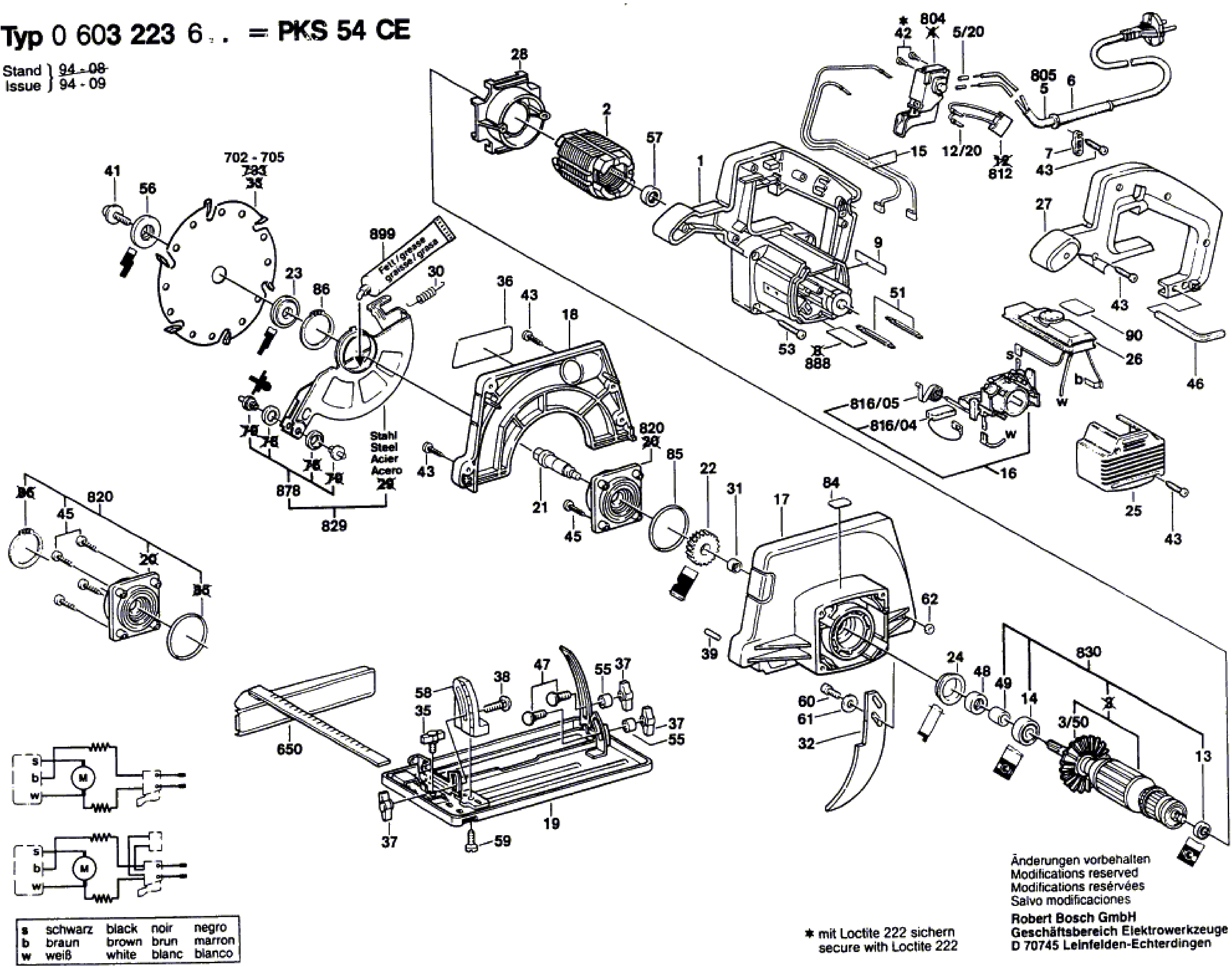

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

49 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
dic-20
photo_cameraImage coming soon 2601355007 Blade terminal €1.48
2
photo_cameraImage coming soon 1604220353 Field 220-240V €33.72
3-50
photo_cameraImage coming soon 3606610002 Fan  €1.83
6
Grommet mm 8,8-9,0x70 for Angle Grinder Bosch 1600703024 Grommet mm 8,8-9,0x70 for Angle Grinder Bosch €2.54
7
Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
9
photo_cameraImage coming soon 2601110601 Manufacturer's nameplate  €1.48
13
Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
16
photo_cameraImage coming soon 1604336024 Brush Holder €15.99
17
photo_cameraImage coming soon 1605806440 Gear Housing GREEN €20.59
19
photo_cameraImage coming soon 1608000106 Base Plate 145x290 MM €35.10
21
photo_cameraImage coming soon 1603124114 Drive Shaft M6, Ø12 MM €10.28
22
photo_cameraImage coming soon 1606320079 Cylindrical Gear Z=35 €28.05
24
photo_cameraImage coming soon 1600221003 Intermediate Ring €1.35
26
photo_cameraImage coming soon 1607233034 Speed governor 230-240V €76.38
27
photo_cameraImage coming soon 1605500137 Handle Cover GREEN €10.28
28
photo_cameraImage coming soon 3600591002 Air-Deflector Ring €4.13
30
Exstension Spring for Circular Saw Bosch PKS 54 1604650010 Exstension Spring for Circular Saw Bosch PKS 54 €3.54
31
photo_cameraImage coming soon 1600910020 Needle bearing €4.13
32
photo_cameraImage coming soon 1600025017 Riving Knife €4.79
34
photo_cameraImage coming soon 1607328045 Interference Suppr.Choke €6.28
35
Wing Screw M6x10 for Circular Saw Bosch PKS 40 1603480018 Wing Screw M6x10 for Circular Saw Bosch PKS 40 €2.46
36
photo_cameraImage coming soon 1601110717 Manufacturer's nameplate €1.83
37
Wing Nut for Circular Saw Bosch GKS 55 1603339006 Wing Nut for Circular Saw Bosch GKS 55 €1.63
38
photo_cameraImage coming soon 2910281201 Round-Head Bolt DIN 603-M6x20  €1.34
41
Hex Socket Head Cap Screw M6x14 mm for Circular Saw Bosch GKS 55 1603414007 Hex Socket Head Cap Screw M6x14 mm for Circular Saw Bosch GKS 55 €1.68
42
photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
43
photo_cameraImage coming soon 2912401019 Tapping Screw DIN7981-ST3,9x16-C-Z  €1.48
46
photo_cameraImage coming soon 1907950006 Offset Screwdriver DIN 911-SW5 BLACK €5.40
47
photo_cameraImage coming soon 2910281203 Round-Head Bolt DIN 603-M6x25 €1.94
48
Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 1600290016 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 €2.61
51
photo_cameraImage coming soon 1604477005 Blade terminal €1.78
53
Tapping Screw DIN 7981-4,8x38-C-Z-ST for Angle Grinder Bosch 2912401038 Tapping Screw DIN 7981-4,8x38-C-Z-ST for Angle Grinder Bosch €1.28
55
photo_cameraImage coming soon 1600309010 Spacer Bushing  €1.48
56
Outer Washer Disc Lock for Circular Saw Bosch PKS 54 CE 1605703108 Outer Washer Disc Lock for Circular Saw Bosch PKS 54 CE €4.42
57
Intermediate Ring for Circular Saw Bosch PKS 54 1600502011 Intermediate Ring for Circular Saw Bosch PKS 54 €1.53
58
photo_cameraImage coming soon 1608190010 Miter Square €2.96
62
DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 2915011007 DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 €1.32
86
Spring Retaining Ring DIN 471-40x1,75-FST for Circular Saw Bosch 2916650020 Spring Retaining Ring DIN 471-40x1,75-FST for Circular Saw Bosch €4.11
90
photo_cameraImage coming soon 1601110656 Reference Plate €2.13
650
photo_cameraImage coming soon 2608005036 Parallel-Guide  €7.12
804
Switch for Circular Saws Bosch PKS 54-66 CE 1607000231 Switch for Circular Saws Bosch PKS 54-66 CE €27.07
805
photo_cameraImage coming soon 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F €36.70
812
photo_cameraImage coming soon 1607328028 Suppression Filter €6.13
816/04
photo_cameraImage coming soon 1607014133 Brush Series €7.53
816/05
photo_cameraImage coming soon 2604652008 Spiral Spring €1.48
820
photo_cameraImage coming soon 1607000243 Parts Set €14.92
830
photo_cameraImage coming soon 1604010348 Armature 230V €114.96
888
photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.61
899
photo_cameraImage coming soon 1605430003 Grease Tube 225 ML  €46.15

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Circular Saw PKS 54 CE

We are BOSCH original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw PKS 54 CE - 0603223603.

In the following table, look for the model of the Circular Saw and the respective parts of the code.


Circular Saw PKS 54 CE - 0603223603
1 1605108135 Motor Housing GREEN
2 1604220353 Field 220-240V
3-50 3606610002 Fan
5-20 1900452012 End Splice DIN 46 228-A1-6
6 1600703024 Grommet Ø8,8-Ø9,0x70 MM
7 2601035001 Cable Clip
9 2601110601 Manufacturer's nameplate
dic-20 2601355007 Blade terminal
13 2600905032 Deep-Groove Ball Bearing 7x19x6
14 1610905009 Deep-Groove Ball Bearing 9x26x8
15 1604449012 Connecting Cable L=330 MM WHITE
16 1604336024 Brush Holder
17 1605806440 Gear Housing GREEN
18 1605510206 Covering hood
19 1608000106 Base Plate 145x290 MM
21 1603124114 Drive Shaft M6, Ø12 MM
22 1606320079 Cylindrical Gear Z=35
23 1605703097 Clamping-Flange
24 1600221003 Intermediate Ring
25 1605500156 Sealing cap BLACK
26 1607233034 Speed governor 230-240V
27 1605500137 Handle Cover GREEN
28 3600591002 Air-Deflector Ring
30 1604650010 Extension Spring
31 1600910020 Needle bearing
32 1600025017 Riving Knife
34 1607328045 Interference Suppr.Choke
35 1603480018 Wing Screw M6
36 1601110717 Manufacturer's nameplate
37 1603339006 Wing Nut M6
38 2910281201 Round-Head Bolt DIN 603-M6x20
39 2917610130 Straight Pin DIN 7-5m6x36-C35K
41 1603414007 Hex Socket Head Cap Screw M6x14 MM
42 2603410001 Socket head cap screw M3x6,5-4.8
43 2912401019 Tapping Screw DIN7981-ST3,9x16-C-Z
45 1603435032 Thread-forming tap. Screw
46 1907950006 Offset Screwdriver DIN 911-SW5 BLACK
47 2910281203 Round-Head Bolt DIN 603-M6x25
48 1600290016 Rotary shaft lip seal
49 1600300092 Intermediate Ring
51 1604477005 Blade terminal
53 2912401038 Tapping Screw DIN 7981-4,8x38-C-Z-ST
55 1600309010 Spacer Bushing
56 1605703108 Conical Spring Washer
57 1600502011 Intermediate Ring
58 1608190010 Miter Square
59 2910211017 Tapping Screw DIN 7971-BZ3,9x9,5
60 2910141193 Hex Socket Head Cap Screw DIN 912-M6x12-8.8
61 2916011013 Plain Washer DIN 433-6,4-ST 50
62 2915011007 Hex Nut DIN 934-M6-8-A
85 1600210038 O-Ring 38,0x1,5 MM
86 2916650020 Spring retaining ring DIN 471-40x1,75-FST
90 1601110656 Reference Plate
650 2608005036 Parallel-Guide
804 1607000231 On-Off Switch
805 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
812 1607328028 Suppression Filter
816/04 1607014133 Carbon-Brush Set
816/05 2604652008 Spiral Spring
820 1607000243 Parts Set
829 1605510170 Pivoting Blade Guard
830 1604010348 Armature 230V
878 1607000205 Parts Set
888 1601106032 Nameplate 26x52 MM
899 1605430003 Grease Tube 225 ML

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch PKS 54 CE - 0603223603
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch PKS 54 CE

Diagram Bosch PKS 54 CE

Download (85.93KB)
