Bosch

Bosch Spare Parts for Random Orbital Sander PEX 420 AE

SKU: Bosch PEX 420 AE - 0603298603
€1.56
VAT included

Bosch Spare Parts for Random Orbital Sander PEX 420 AE

Bosch original spare parts for to replace broken parts for to fix Random Orbital Sander PEX 420 AE - 0603298603.

Fix Your Random Orbital Sander. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch PEX 420 AE - 0603298603
Bosch Spare Parts for Rotorbital Sander PEX 420AE
  • Bosch Spare Parts for Rotorbital Sander PEX 420AE
  • Bosch Spare Parts for Rotorbital Sander PEX 420AE
Bosch

Bosch Spare Parts for Random Orbital Sander PEX 420 AE

SKU: Bosch PEX 420 AE - 0603298603 Condition: New
€1.56
VAT included

Bosch Spare Parts for Random Orbital Sander PEX 420 AE

Bosch original spare parts for to replace broken parts for to fix Random Orbital Sander PEX 420 AE - 0603298603.

Fix Your Random Orbital Sander. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch PEX 420 AE - 0603298603
settings 54 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

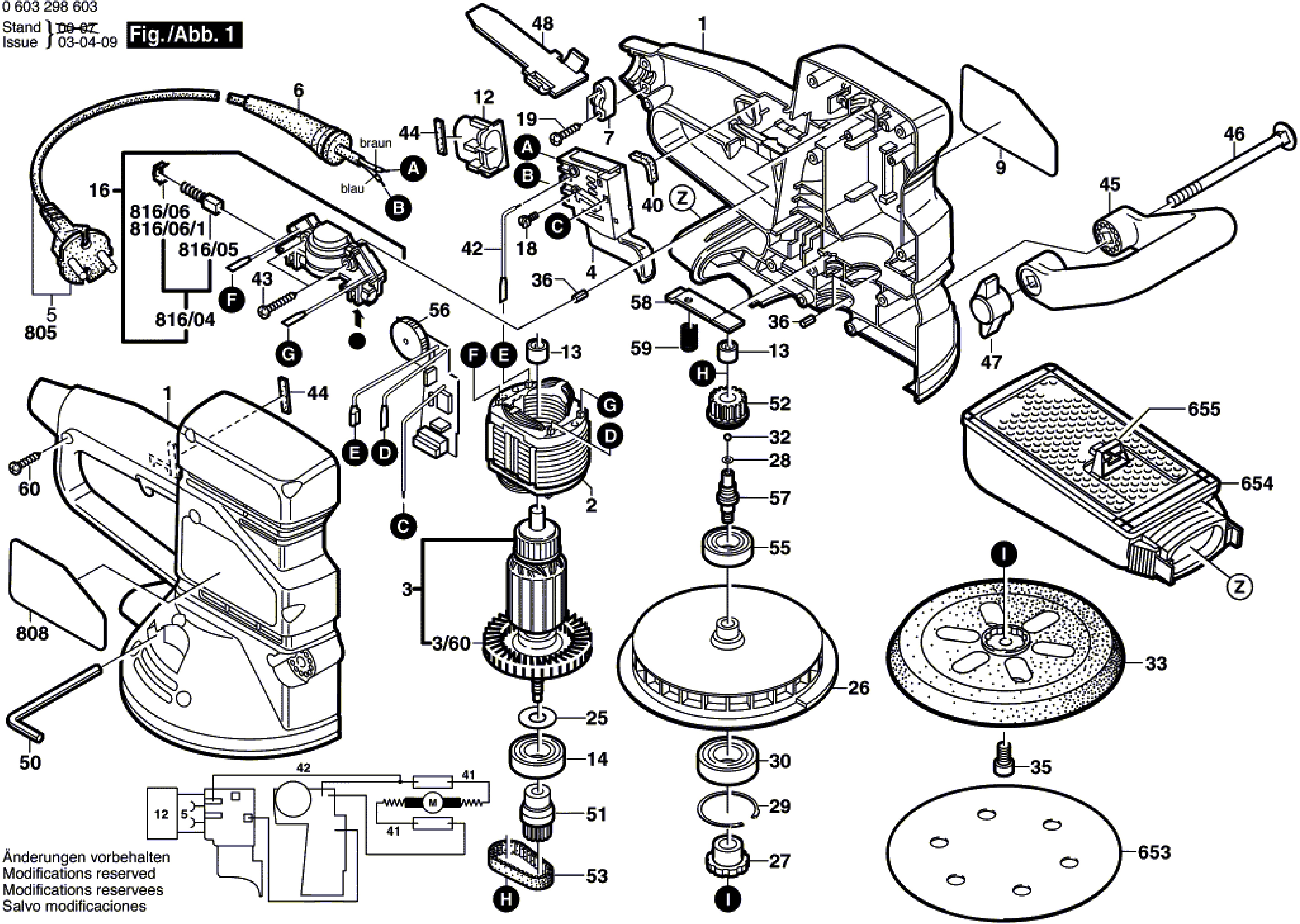

Esploso pagina 1
Pos. Item Price Buy
3/60
 photo_cameraImage coming soon 2606610055 Fan €3.69
4
 Switch for Random Orbital Sander BOSCH GEX 125 AC 2607200260 Switch for Random Orbital Sander BOSCH GEX 125 AC €12.92
6
 photo_cameraImage coming soon 2600703017 Grommet Ø6,4-Ø7,2x76 MM €2.58
7
 photo_cameraImage coming soon 2601035004 Cable Clip €2.25
9
 photo_cameraImage coming soon 2601117751 Manufacturer's nameplate €3.59
12
 photo_cameraImage coming soon 1607328028 Suppression Filter €6.13
13
 photo_cameraImage coming soon 2600917002 Needle bearing €3.59
14
 Deep-Groove Ball Bearing 6002 2RZ for Sanders BOSCH PEX 400 - 420 AE 2600905034 Deep-Groove Ball Bearing 6002 2RZ for Sanders BOSCH PEX 400 - 420 AE €16.46
16
 photo_cameraImage coming soon 2604337118 Brush Plate €29.34
18
 photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
19
 photo_cameraImage coming soon 2603490021 Torx Oval-Head Screw 4x12 €1.39
25
 photo_cameraImage coming soon 2600100041 Plain Washer DIN 315-M8-GT-C €2.10
27
 photo_cameraImage coming soon 2606490053 Carrier €11.07
28
 photo_cameraImage coming soon 2600000022 Shim 0,1 MM €1.58
28
 photo_cameraImage coming soon 2600000023 Shim 0,2 MM €1.58
28
 photo_cameraImage coming soon 2600000024 Shim 0,5 MM €1.58
28
 photo_cameraImage coming soon 2600000025 Shim 1,0 MM €1.58
29
 photo_cameraImage coming soon 2600116014 Spring retaining ring €1.58
30
 photo_cameraImage coming soon 2600905111 Deep-Groove Ball Bearing 15x35x11 €12.35
32
 photo_cameraImage coming soon 1903230007 Ball DIN 5401-4 MM-III-ST €1.58
36
 Rubber Buffer for Random Orbital Sanders BOSCH PEX 400-420 AE 1603100036 Rubber Buffer for Random Orbital Sanders BOSCH PEX 400-420 AE €1.52
40
 photo_cameraImage coming soon 2601022000 Plate Damping €1.58
42
 photo_cameraImage coming soon 2604448166 Connecting Cable €1.58
43
 Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
44
 photo_cameraImage coming soon 2602380003 Seal Strip €1.58
46
 Bolt M6x110 for Random Orbital Sander Bosch PEX 400 AE 2910285226 Bolt M6x110 for Random Orbital Sander Bosch PEX 400 AE €1.68
47
 Wing Nut for Circular Saw Bosch GKS 55 1603339006 Wing Nut for Circular Saw Bosch GKS 55 €1.63
48
 photo_cameraImage coming soon 2608005043 Pusher €1.58
50
 photo_cameraImage coming soon 1907950006 Offset Screwdriver DIN 911-SW5 BLACK €5.40
53
 Toothed Belt for Rotorbital Sander Bosch PEX 420 AE 2604736009 Toothed Belt for Rotorbital Sander Bosch PEX 420 AE €9.10
55
 photo_cameraImage coming soon 2600923002 Deep-Groove Ball Bearing €26.32
57
 photo_cameraImage coming soon 2603124116 Output Shaft €12.35
58
 photo_cameraImage coming soon 2601901006 Lever €3.59
59
 photo_cameraImage coming soon 2604610032 Compression Spring €1.58
60
 photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
654
 Dust Chamber for Belt Sander Bosch PBS 7 A 2605411129 Dust Chamber for Belt Sander Bosch PBS 7 A €15.53
655
 Adapter for Orbital Sander BOSCH GSS 230 AE 2605702039 Adapter for Orbital Sander BOSCH GSS 230 AE €4.16
805
 photo_cameraImage coming soon 1607000388 Power supply cord EU 2,65m 2 x 1,0mm €15.27
808
 photo_cameraImage coming soon 2601117755 Nameplate €3.59
816/05
 photo_cameraImage coming soon 2601322013 Ratchet Cap €1.58
816/06
 photo_cameraImage coming soon 2601329051 Ratchet Cap €2.49
816/05
 Compression Spring for Random Orbital Sander Bosch PEX 420 AE 2604610026 Compression Spring for Random Orbital Sander Bosch PEX 420 AE €2.72

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Random Orbital Sander PEX 420 AE

Bosch original spare parts for to replace broken parts for to fix Random Orbital Sander PEX 420 AE - 0603298603.

In the following table, look for the model of the Orbital Sander and the respective parts of the code.
Bosch PEX 420 AE - 0603298603

Random Orbital Sander PEX 420 AE/0 603 298 603
# Part Num. Description
1 2605104388 Housing Section GREEN
2 2604220526 Field 230-240V
3 2604010881 Armature 230V
3/60 2606610055 Fan
4 2607200260 Switch
6 2600703017 Grommet Ø6,4-Ø7,2x76 MM
7 2601035004 Cable Clip
9 2601117751 Manufacturer's nameplate
12 1607328028 Suppression Filter
13 2600917002 Needle bearing
14 2600905034 Deep-Groove Ball Bearing 6002 2RZ
16 2604337118 Brush Plate
18 2603410001 Socket head cap screw M3x6,5-4.8
19 2603490021 Torx Oval-Head Screw 4x12
25 2600100041 Plain Washer DIN 315-M8-GT-C
26 2606610066 Fan
27 2606490053 Carrier
28 2600000025 Shim 1,0 MM
28 2600000022 Shim 0,1 MM
28 2600000023 Shim 0,2 MM
28 2600000024 Shim 0,5 MM
29 2600116014 Spring retaining ring
30 2600905111 Deep-Groove Ball Bearing 15x35x11
32 1903230007 Ball DIN 5401-4 MM-III-ST
33 2608601049 Backing Pad Ø 150 MM
35 2910130238 Hex Socket Head Cap Screw DIN 7984-M8x12-8.8
36 1603100036 Rubber Buffer
40 2601022000 Damping Plate
42 2604448166 Connecting Cable
43 2603490023 Torx Oval-Head Screw 4x20
44 2602380003 Seal Strip
45 2602025068 Handle BLACK
46 2910285226 Round-Head Bolt DIN 603-M6x110
47 1603339006 Wing Nut M6
48 2608005043 Pusher
50 1907950006 Offset Screwdriver DIN 911-SW5 BLACK
51 2606625014 Toothed Belt Wheel Z=18
52 2606625015 Toothed Belt Wheel Z=30
53 2604736009 Toothed Belt
55 2600923002 Deep-Groove Ball Bearing
56 2608300008 Speed governor 230-240V
57 2603124116 Output Shaft
58 2601901006 Lever
59 2604610032 Compression Spring
60 2603490022 Torx Oval-Head Screw 4x16
653 2608604098 Set Of Sanding Papers 3 PIECE
654 2605411129 Dust Chamber
655 2605702039 Adapter
805 1607000388 Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F
808 2601117755 Nameplate
816/04 2604321917 Carbon-Brush Set
816/05 2604610026 Compression Spring
816/06 2601329051 Ratchet Cap
816/05 2601322013 Ratchet Cap
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
