Bosch

Bosch Spare Parts for Vacuum Cleaner PAS 11-21

SKU: Bosch PAS 11-21
€37.71
VAT included

Bosch Spare Parts for Vacuum Cleaner PAS 11-21

Bosch genuine replacement parts for to replace broken parts for to fix Vacuum Cleaner PAS 11-21/0 603 395 003.

Vacuum Cleaner PAS 11-21/0 603 395 003
Bosch Spare Parts for Vacuum Cleaner PAS 11-21
  • Online only
  • Bosch Spare Parts for Vacuum Cleaner PAS 11-21
  • Bosch Spare Parts for Vacuum Cleaner PAS 11-21
  • Bosch Spare Parts for Vacuum Cleaner PAS 11-21
  • Bosch Spare Parts for Vacuum Cleaner PAS 11-21
  • Bosch Spare Parts for Vacuum Cleaner PAS 11-21
Bosch

Bosch Spare Parts for Vacuum Cleaner PAS 11-21

SKU: Bosch PAS 11-21 Condition: New
€37.71
VAT included

Bosch Spare Parts for Vacuum Cleaner PAS 11-21

Bosch genuine replacement parts for to replace broken parts for to fix Vacuum Cleaner PAS 11-21/0 603 395 003.

Vacuum Cleaner PAS 11-21/0 603 395 003
settings 53 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
53 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

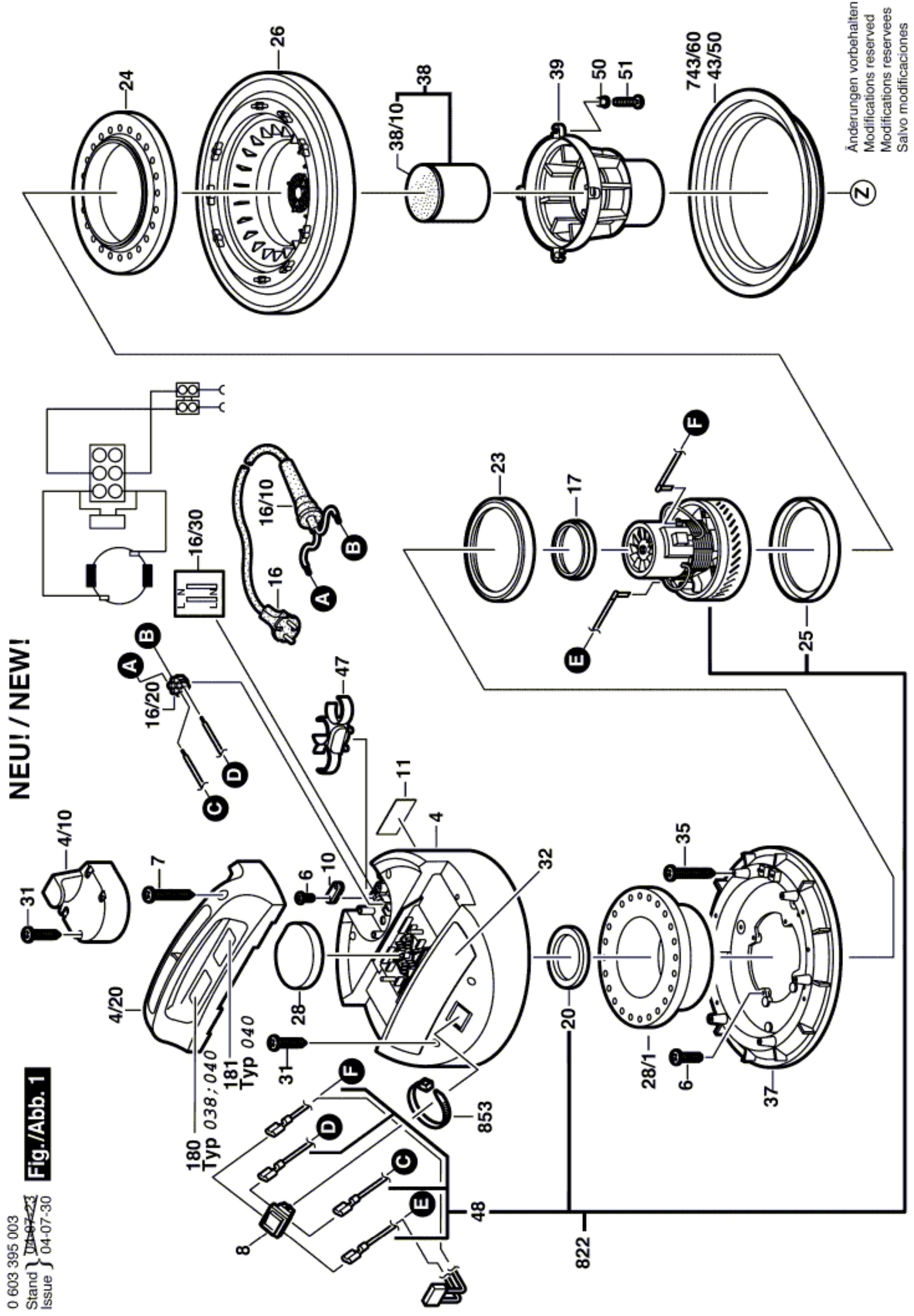

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4/10
 photo_cameraImage coming soon 1609203A29 Cover  €5.00
4/20
 photo_cameraImage coming soon 1609203A31 Handle  €10.60
4
 photo_cameraImage coming soon 1609203A34 Covering hood  €17.10
6
 photo_cameraImage coming soon 1609203A27 Tapping Screw 5x20 MM  €2.15
7
 photo_cameraImage coming soon 1609203A74 Tapping Screw 5x55 MM  €2.15
8
 photo_cameraImage coming soon 1609203A33 On-Off Switch  €12.12
10
 photo_cameraImage coming soon 1609203A26 Cable Clip  €1.54
11
 photo_cameraImage coming soon 1601118B21 Nameplate  €3.78
16
 photo_cameraImage coming soon 1609203A24 Power supply cord  €19.65
16/10
 photo_cameraImage coming soon 1609203A25 Grommet  €2.56
16/20
 photo_cameraImage coming soon 1609203A28 Socket-Terminal Strip  €3.07
16/30
 photo_cameraImage coming soon 1609203B34 Reference Plate  €3.78
17
 photo_cameraImage coming soon 1609203A36 Air-Deflector Ring  €3.78
20
 photo_cameraImage coming soon 1609203A35 Seal ring  €5.00
23
 photo_cameraImage coming soon 1609203A41 Seal ring  €5.00
24
 photo_cameraImage coming soon 1609203A42 Air-Deflector Ring  €6.02
25
 photo_cameraImage coming soon 1609203N44 Seal ring  €8.86
26
 photo_cameraImage coming soon 1609203A43 Intermediate Flange  €22.09
28
 photo_cameraImage coming soon 1609203A32 Filter Disc  €3.07
28/1
 photo_cameraImage coming soon 1609203A37 Air Filter  €8.86
31
 photo_cameraImage coming soon 1609203A30 Tapping Screw 5x30 MM  €2.15
32
 photo_cameraImage coming soon 1601118B18 Manufacturer's nameplate  €3.78
35
 photo_cameraImage coming soon 1609203A38 Tapping Screw 5x40 MM  €2.15
37
 photo_cameraImage coming soon 1609203A39 Intermediate housing  €13.54
38
 photo_cameraImage coming soon 1609203A52 Float  €3.07
38/10
 photo_cameraImage coming soon 1609203B33 Seal  €2.15
39
 photo_cameraImage coming soon 1609203A51 Suction Basket  €10.60
43/50
 photo_cameraImage coming soon 1609203A53 Retaining snap ring  €6.02
43/60
 Filter for Vacuum Cleaner Bosch PAS 11-21 1609203A54 Filter for Vacuum Cleaner Bosch PAS 11-21 €13.54
43/70
 photo_cameraImage coming soon 1609203A55 Support Frame  €6.02
47
 photo_cameraImage coming soon 1609203A44 index turning toolholder  €3.78
48
 photo_cameraImage coming soon 1609203N58 Cable Set  €37.34
50
 photo_cameraImage coming soon 1609203A49 Sleeve  €1.54
51
 photo_cameraImage coming soon 1609203A50 Tapping Screw 5x20 MM  €2.15
650/20
 photo_cameraImage coming soon 1609203A77 Fitting Ø 35 MM  €6.02
650/30
 photo_cameraImage coming soon 1609203A78 Fitting Ø 45 MM  €6.02
652
 Bosch PAS 11-21 Suction Pipe 1609203B92 Bosch PAS 11-21 Suction Pipe €16.38
690/40
 photo_cameraImage coming soon 1609203A30 Tapping Screw 5x30 MM  €2.15
690
 photo_cameraImage coming soon 1609203A56 Dust container  €89.42
690/50
 photo_cameraImage coming soon 1609203A59 Deflector  €5.81
690/60
 photo_cameraImage coming soon 1609203A60 Plate  €3.07
690/70
 photo_cameraImage coming soon 1609203A61 Spring  €1.54
690/80
 photo_cameraImage coming soon 1609203A62 Sealing Plate  €3.78
690/90
 photo_cameraImage coming soon 1609203A63 Push-Button  €1.54
690/100
 photo_cameraImage coming soon 1609203A64 Cover Plate  €6.02
690/110
 photo_cameraImage coming soon 1609203A65 Corner Protection  €10.60
690/120
 photo_cameraImage coming soon 1609203A66 Impeller  €12.12
754/10
 photo_cameraImage coming soon 1609390493 Flat Brush  €29.11
754/20
 photo_cameraImage coming soon 1609390494 Flat Brush  €13.54
754/30
 photo_cameraImage coming soon 1609390495 Strip brush  €19.65
759/20
 photo_cameraImage coming soon 1609202534 Brush Insert  €3.07
822
 photo_cameraImage coming soon 1609203N53 Suction Blower 230V  €162.65
852
 photo_cameraImage coming soon 1609203D20 O-Ring  €2.15
853
 photo_cameraImage coming soon 1609203A46 Cable tie  €1.54
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

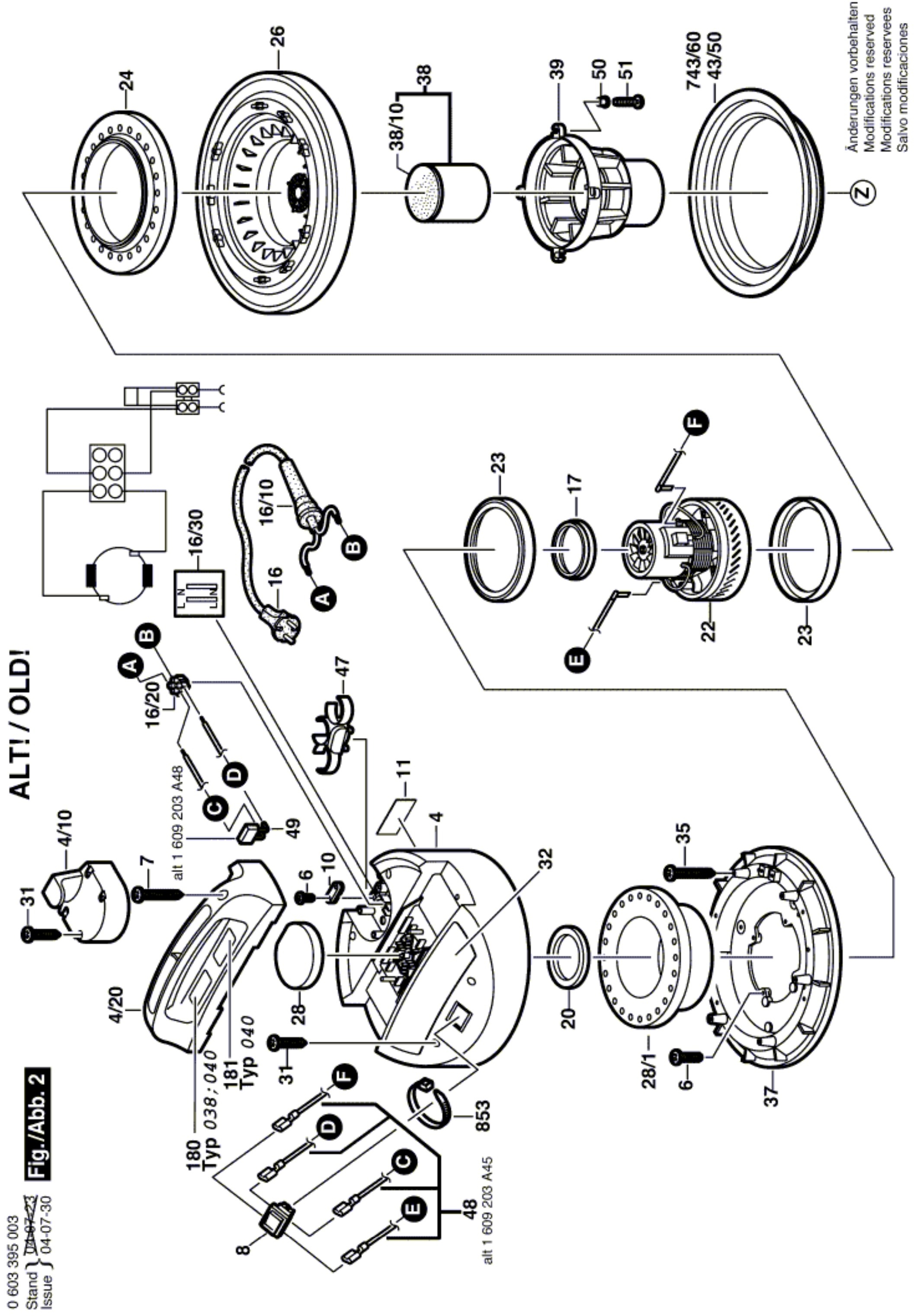

Esploso pagina 2
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

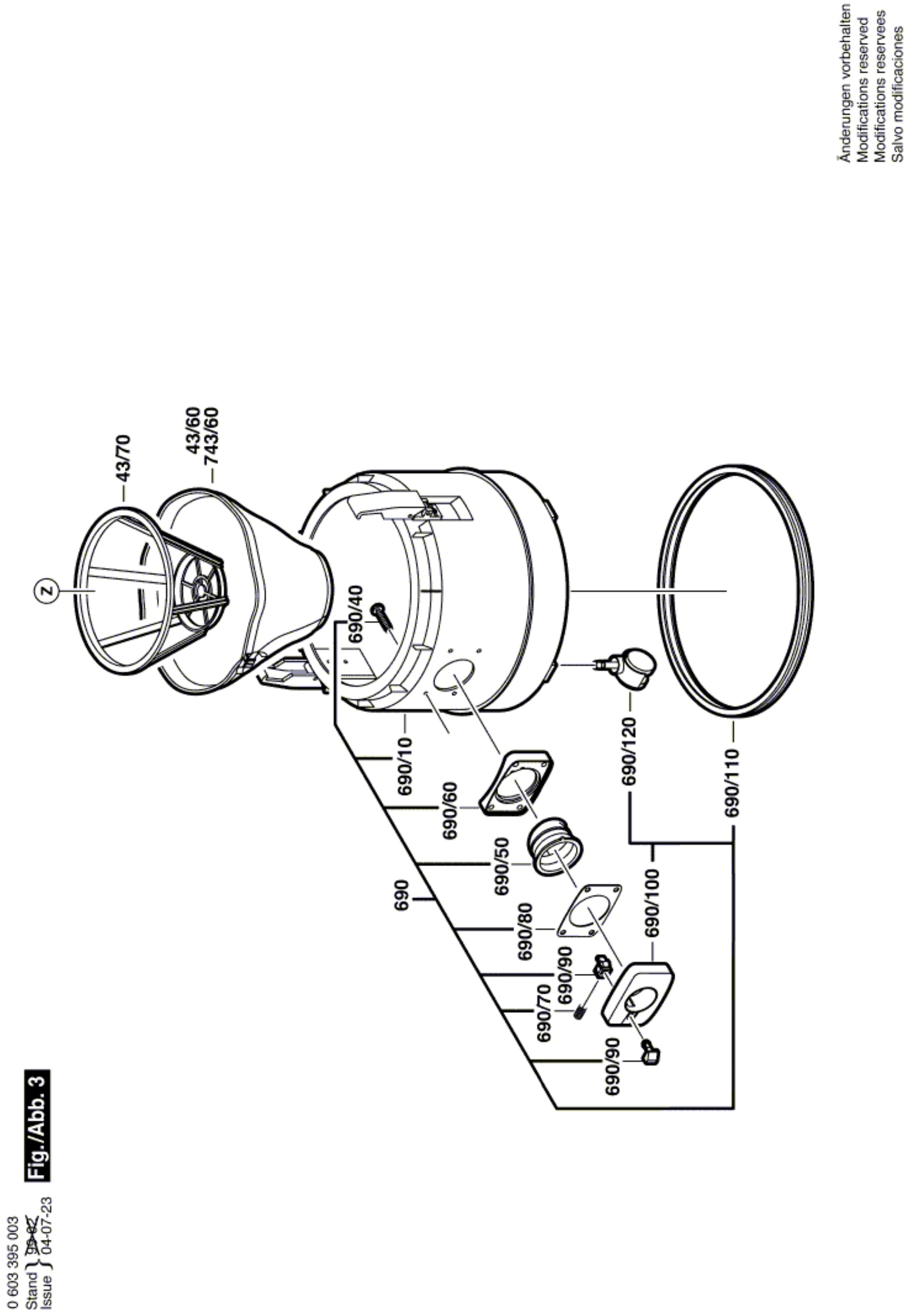

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
43/60
 Filter for Vacuum Cleaner Bosch PAS 11-21 1609203A54 Filter for Vacuum Cleaner Bosch PAS 11-21 €13.54
43/70
 photo_cameraImage coming soon 1609203A55 Support Frame  €6.02
690
 photo_cameraImage coming soon 1609203A56 Dust container  €89.42
690/50
 photo_cameraImage coming soon 1609203A59 Deflector  €5.81
690/60
 photo_cameraImage coming soon 1609203A60 Plate  €3.07
690/70
 photo_cameraImage coming soon 1609203A61 Spring  €1.54
690/80
 photo_cameraImage coming soon 1609203A62 Sealing Plate  €3.78
690/90
 photo_cameraImage coming soon 1609203A63 Push-Button  €1.54
690/100
 photo_cameraImage coming soon 1609203A64 Cover Plate  €6.02
690/110
 photo_cameraImage coming soon 1609203A65 Corner Protection  €10.60
690/120
 photo_cameraImage coming soon 1609203A66 Impeller  €12.12
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

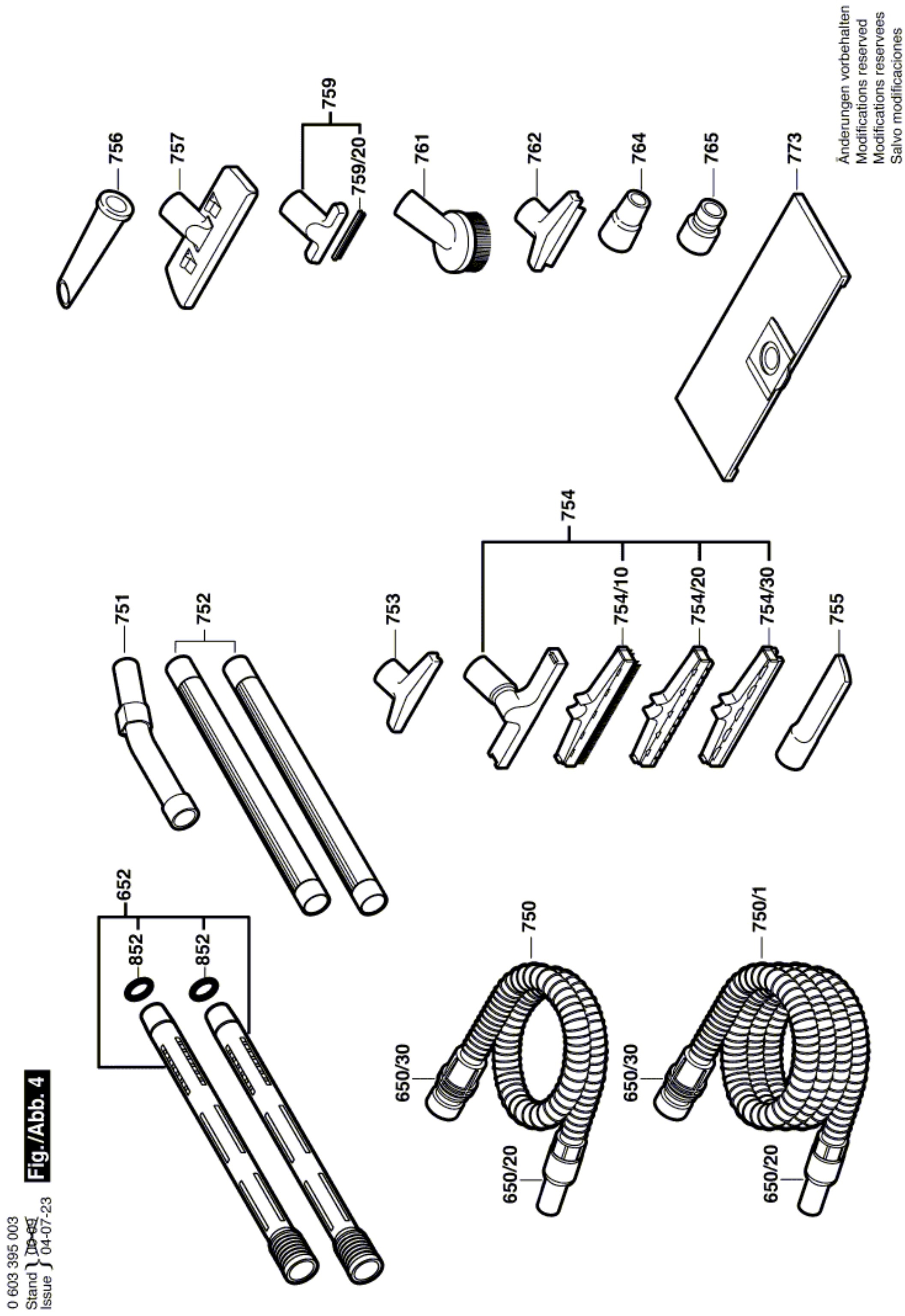

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
650/20
 photo_cameraImage coming soon 1609203A77 Fitting Ø 35 MM  €6.02
650/30
 photo_cameraImage coming soon 1609203A78 Fitting Ø 45 MM  €6.02
652
 Bosch PAS 11-21 Suction Pipe 1609203B92 Bosch PAS 11-21 Suction Pipe €16.38
754/10
 photo_cameraImage coming soon 1609390493 Flat Brush  €29.11
754/20
 photo_cameraImage coming soon 1609390494 Flat Brush  €13.54
754/30
 photo_cameraImage coming soon 1609390495 Strip brush  €19.65
759/20
 photo_cameraImage coming soon 1609202534 Brush Insert  €3.07
852
 photo_cameraImage coming soon 1609203D20 O-Ring  €2.15

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Vacuum Cleaner PAS 11-21

Bosch genuine replacement parts for to replace broken parts for to fix Vacuum Cleaner PAS 11-21/0 603 395 003.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
Vacuum Cleaner PAS 11-21/0 603 395 003
Vacuum Cleaner PAS 11-21/0 603 395 003
# Part Num. Description
4 1609203A34 Covering hood
4/10 1609203A29 Cover
4/20 1609203A31 Handle
6 1609203A27 Tapping Screw 5x20 MM
7 1609203A74 Tapping Screw 5x55 MM
8 1609203A33 On-Off Switch
10 1609203A26 Cable Clip
11 1601118B21 Nameplate
16 1609203A24 Power supply cord
16/10 1609203A25 Grommet
16/20 1609203A28 Socket-Terminal Strip
16/30 1609203B34 Reference Plate
17 1609203A36 Air-Deflector Ring
20 1609203A35 Seal ring
23 1609203A41 Seal ring
24 1609203A42 Air-Deflector Ring
25 1609203N44 Seal ring
26 1609203A43 Intermediate Flange
28 1609203A32 Filter Disc
28/1 1609203A37 Air Filter
31 1609203A30 Tapping Screw 5x30 MM
32 1601118B18 Manufacturer's nameplate
35 1609203A38 Tapping Screw 5x40 MM
37 1609203A39 Intermediate housing
38 1609203A52 Float
38/10 1609203B33 Seal
39 1609203A51 Suction Basket
43/50 1609203A53 Retaining snap ring
43/60 1609203A54 Filter
43/70 1609203A55 Support Frame
47 1609203A44 index turning toolholder
48 1609203N58 Cable Set
50 1609203A49 Sleeve
51 1609203A50 Tapping Screw 5x20 MM
650/20 1609203A77 Fitting Ø 35 MM
650/30 1609203A78 Fitting Ø 45 MM
652 1609203B92 Suction Pipe
690 1609203A56 Dust container
690/10 1609203A67 Container
690/40 1609203A30 Tapping Screw 5x30 MM
690/50 1609203A59 Deflector
690/60 1609203A60 Plate
690/70 1609203A61 Spring
690/80 1609203A62 Sealing Plate
690/90 1609203A63 Push-Button
690/100 1609203A64 Cover Plate
690/110 1609203A65 Corner Protection
690/120 1609203A66 Impeller
743/60 2607432013 Dust Bag
750 2607002149 Air Hose Ø35 MM L= 3 M
750/1 2607002150 Air Hose Ø35 MM L= 5 M
750 2600793009 Air Hose Ø 19 MM, 3/4", L= 3 M
750/1 1610793002 Air Hose Ø19 MM, L=5M, 3/4" BLACK
751 1609390479 Setting Tube Ø 35 MM
752 2607000162 Suction Pipe Ø 35 MM, 0,5 M
753 2607000170 Suction Nozzle Ø 35 MM
754 1609390478 Suction Nozzle Ø 35 MM
754/10 1609390493 Flat Brush
754/20 1609390494 Flat Brush
754/30 1609390495 Strip brush
755 2607000165 Crevice Nozzle Ø 35 MM, L= 250 MM
756 1609201229 Suction Nozzle Ø 35 MM
757 1609201230 Suction Nozzle Ø 35 MM
759 2607000166 Suction Nozzle Ø 35 MM
759/20 1609202534 Brush Insert
761 1609390481 Suction Brush Ø 35 MM
762 2607000168 Suction Nozzle Ø 35 MM
764 1609499005 Fitting
765 2607000748 Adapter Ø 35/Ø19 MM (3/4")
773 2605411150 Dust Bag 5 PIECE
822 1609203N53 Suction Blower 230V
852 1609203D20 O-Ring
853 1609203A46 Cable tie
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
