Bosch

Bosch Spare Parts for Belt Sander PBS 75 A

SKU: Bosch PBS 75 A - 0603270103
€1.77
VAT included

Bosch Spare Parts for Belt Sander PBS 75 A

We have the original BOSCH Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Belt Sander PBS 75 A - 0603270103. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch PBS 75 A - 0603270103
Bosch Spare Parts for Belt Sander PBS 75 A
  • Bosch Spare Parts for Belt Sander PBS 75 A
  • Bosch Spare Parts for Belt Sander PBS 75 A
Bosch

Bosch Spare Parts for Belt Sander PBS 75 A

SKU: Bosch PBS 75 A - 0603270103 Condition: New
€1.77
VAT included

Bosch Spare Parts for Belt Sander PBS 75 A

We have the original BOSCH Parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Belt Sander PBS 75 A - 0603270103. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch PBS 75 A - 0603270103
settings 58 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

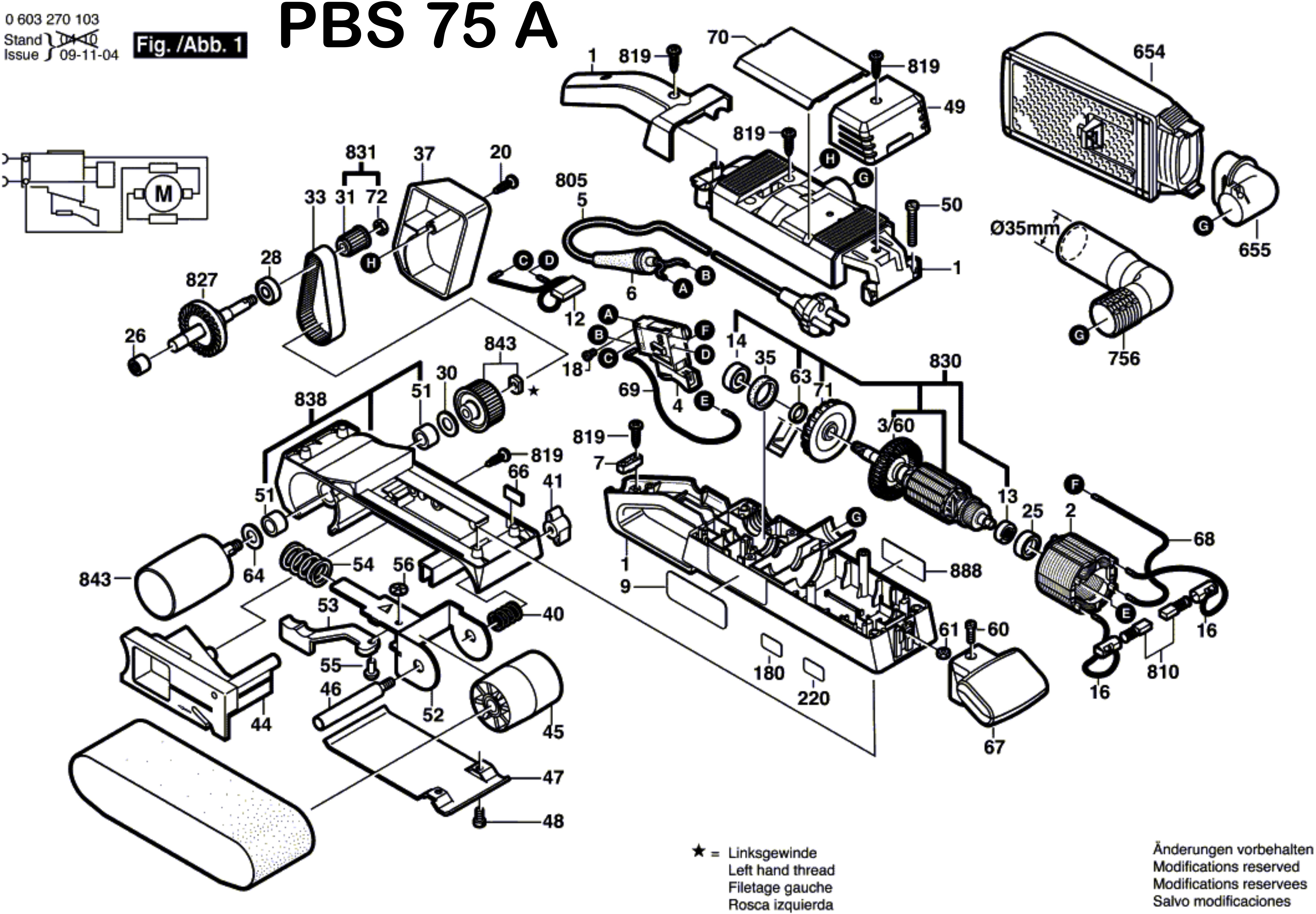

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2605104548 Motor Housing GREEN €37.62
2
 photo_cameraImage coming soon 2604220480 Field 230-240V €26.96
3/60
 photo_cameraImage coming soon 2606610049 Fan €2.22
4
 photo_cameraImage coming soon 2607200084 Switch €8.40
6
 photo_cameraImage coming soon 2600703017 Grommet Ø6,4-Ø7,2x76 MM €2.58
7
 Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
9
 photo_cameraImage coming soon 2601118959 Manufacturer's nameplate PBS 75A SUNNY SIDE €2.02
12
 photo_cameraImage coming soon 1607328028 Suppression Filter €6.13
13
 Flanged Bearing for Jig Saw Bosch GST 75 BE 2605805008 Flanged Bearing for Jig Saw Bosch GST 75 BE €5.96
14
 photo_cameraImage coming soon 1610905011 groove ball bearing 9x24x7 €16.31
16
 photo_cameraImage coming soon 2604449026 Brush Holder €1.59
18
 photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
20
 Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
25
 Intermediate Ring for Circular Saw Bosch PKS 54 1600502011 Intermediate Ring for Circular Saw Bosch PKS 54 €1.53
26
 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 2600910001 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 €5.74
28
 photo_cameraImage coming soon 1900905041 groove ball bearing 8x22x7 €14.47
30
 Shim 1.00 MM for Belt Sander Bosch PBS 75 A 2600100099 Shim 1.00 MM for Belt Sander Bosch PBS 75 A €2.30
31
 Toothed Belt Gear for Bosch Belt Sanders PBS 75A-AE 2606625037 Toothed Belt Gear for Bosch Belt Sanders PBS 75A-AE €5.94
33
 Toothed Belt for Bosch Belt Sanders PBS 75A-AE 2604736010 Toothed Belt for Bosch Belt Sanders PBS 75A-AE €12.80
35
 Armature Bearing Rubber Ring for Belt Sander Bosch GBS 75 AE 1600206024 Armature Bearing Rubber Ring for Belt Sander Bosch GBS 75 AE €1.69
37
 photo_cameraImage coming soon 1605510150 Covering hood BLACK €6.20
40
 Compression Spring for Bosch Belt Sanders PBS 75A-AE 2604630002 Compression Spring for Bosch Belt Sanders PBS 75A-AE €2.89
41
 photo_cameraImage coming soon 2603339005 Wing Nut €2.45
44
 photo_cameraImage coming soon 1608005003 Base GREEN €6.99
45
 Roller for Belt Sander Bosch PBS 75 A 2606625900 Roller for Belt Sander Bosch PBS 75 A €23.52
46
 photo_cameraImage coming soon 1603521027 Axle €9.71
47
 Base Plate for Belt Sanders Bosch PBS 75A-AE 2601098040 Base Plate for Belt Sanders Bosch PBS 75A-AE €8.99
48
 Socket Head Cap Screw M5x10 for Belt Sander Bosch PBS 75 A 2603410045 Socket Head Cap Screw M5x10 for Belt Sander Bosch PBS 75 A €1.76
49
 photo_cameraImage coming soon 1605500122 Brush-Cover BLACK €6.20
50
 photo_cameraImage coming soon 2910011170 Socket head cap screw DIN 84-BM5x40-5.8 €1.47
51
 photo_cameraImage coming soon 2600301089 Sintered-Metal Bushing DIN 1850-J12x18x12 Repl. 1900301018 €14.47
52
 Bearing Bracket for Belt Sander Bosch PBS 75 A 1605807013 Bearing Bracket for Belt Sander Bosch PBS 75 A €10.04
53
 Tensioning Leve for Bosch Belt Sanders GBS 75 AE 1602098006 Tensioning Leve for Bosch Belt Sanders GBS 75 AE €4.42
54
 Compression Spring for Belt Sander Bosch PBS 75 A 1604619017 Compression Spring for Belt Sander Bosch PBS 75 A €2.19
55
 photo_cameraImage coming soon 2917030110 Button-Head Rivet €2.45
56
 Locking Washer for Sanders Bosch PBS 75 A 1600146001 Locking Washer for Sanders Bosch PBS 75 A €1.59
61
 Hex Nut DIN 934-M4 for Belt Sander Bosch PBS 75 A 2915011005 Hex Nut DIN 934-M4 for Belt Sander Bosch PBS 75 A €0.95
63
 Seal Ring for Belt Sander Bosch PBS 75 A 2600290033 Seal Ring for Belt Sander Bosch PBS 75 A €3.90
64
 Shim 0.3 MM for Belt Sander Bosch PBS 75 A 1600101618 Shim 0.3 MM for Belt Sander Bosch PBS 75 A €1.77
66
 photo_cameraImage coming soon 1601010007 Ceramic Plate €2.45
67
 photo_cameraImage coming soon 1605133036 Handle BLACK €7.19
68
 photo_cameraImage coming soon 1604438018 Connecting Cable L=410 MM WHITE  €1.47
69
 photo_cameraImage coming soon 1604448000 Connecting Cable L=373 MM WHITE €2.07
70
 Housing Cover BLACK for Belt Sanders Bosch PBS 75A-AE 1605500120 Housing Cover BLACK for Belt Sanders Bosch PBS 75A-AE €4.64
71
 photo_cameraImage coming soon 1606610120 Fan €2.45
654
 photo_cameraImage coming soon 2605411170 Dust Bag €30.94
800
 photo_cameraImage coming soon 1605133036 Handle BLACK €7.19
805
 photo_cameraImage coming soon 1607000388 Power supply cord EU 2,65m 2 x 1,0mm €15.27
810
 Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE 2604321905 Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE €14.02
819
 photo_cameraImage coming soon 2910611020 Tapping Screw DIN 7981-ST3,9x19-C-H €1.68
827
 photo_cameraImage coming soon 2606333900 Crown Gear Z=45 €25.43
830
 photo_cameraImage coming soon 2604010935 Armature 230-240V €123.04
831
 Toothed Belt Gear for Bosch Belt Sanders GBS 75 AE 2606625907 Toothed Belt Gear for Bosch Belt Sanders GBS 75 AE €5.94
838
 photo_cameraImage coming soon 2605190900 Housing €69.81
843
 photo_cameraImage coming soon 2606625905 Roller €32.53
888
 photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.61

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Belt Sander PBS 75 A

Fix Your Belt Sander PBS 75 A - 0603270103. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Belt Sander and the respective parts of the code.
Bosch PBS 75 A - 0603270103

Belt Sander PBS 75 A/0 603 270 103
# Part Num. Description
1 2605104548 Motor Housing GREEN
2 2604220480 Field 230-240V
3/60 2606610049 Fan
4 2607200084 Switch
6 2600703017 Grommet Ø6,4-Ø7,2x76 MM
7 2601035001 Cable Clip
9 2601118959 Manufacturer's nameplate PBS 75A SUNNY SIDE
12 1607328028 Suppression Filter
13 2605805008 Flanged Bearing
14 1610905011 Deep-Groove Ball Bearing 9x24x7
16 2604449026 Brush Holder
18 2603410001 Socket head cap screw M3x6,5-4.8
20 2603490023 Torx Oval-Head Screw 4x20
25 1600502011 Intermediate Ring
26 2600910001 Needle bearing Ø14 MM
28 1900905041 Deep-Groove Ball Bearing 8x22x7
30 2600100099 Shim
31 2606625037 Toothed Belt Wheel
33 2604736010 Toothed Belt Z=75
35 1600206024 Intermediate Ring
37 1605510150 Covering hood BLACK
40 2604630002 Compression Spring
41 2603339005 Wing Nut
44 1608005003 Base GREEN
45 2606625900 Roller
46 1603521027 Axle
47 2601098040 Base Plate
48 2603410045 Socket head cap screw DIN 84-M5x10-4.8
49 1605500122 Brush-Cover BLACK
50 2910011170 Socket head cap screw DIN 84-BM5x40-5.8
51 2600301089 Sintered-Metal Bushing DIN 1850-J12x18x12 Repl.1900301018
52 1605807013 Bearing Bracket
53 1602098006 Tensioning Lever BLACK
54 1604619017 Compression Spring
55 2917030110 Button-Head Rivet
56 1600146001 Locking Washer
60 2910021126 Socket head cap screw DIN 84-AM4x16-8.8
61 2915011005 Hex Nut DIN 934 -M4-m-8
63 2600290033 Seal ring
64 1600101618 Shim 0,3 MM THICK
66 1601010007 Ceramic Plate
67 1605133036 Handle BLACK
68 1604438018 Connecting Cable L=410 MM WHITE
69 1604448000 Connecting Cable L=373 MM WHITE
70 1605500120 Housing Cover BLACK
71 1606610120 Fan
72 2603300015 Hex Nut
654 2605411170 Dust Bag
800 1605133036 Handle BLACK
805 1607000388 Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F
810 2604321905 Carbon-Brush Set
819 2910611020 Tapping Screw DIN 7981-ST3,9x19-C-H
827 2606333900 Crown Gear Z=45
830 2604010935 Armature 230-240V
831 2606625907 Toothed Belt Wheel
838 2605190900 Housing
843 2606625905 Roller
888 1601106032 Nameplate 26x52 MM
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch PBS 75 A - 0603270103
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch PBS 75 A

Diagram Bosch PBS 75 A

Download (115.66KB)
