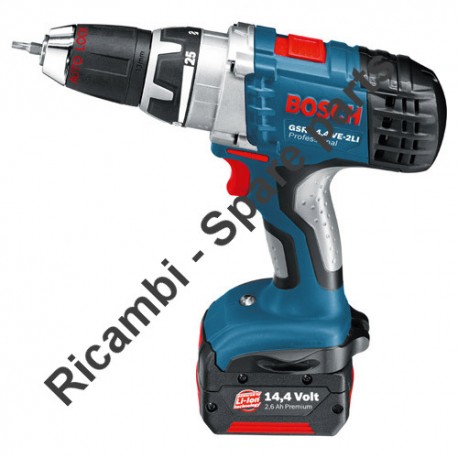

Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2

SKU: Bosch GSR 14,4 VE-2 - 0601912420
€5.06
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2

Bosch genuine spare parts for replacing or repairing Cordless Drill Driver GSR 14,4 VE-2 - 0601912420

Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2
  • Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2
  • Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2

Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2

SKU: Bosch GSR 14,4 VE-2 - 0601912420 Condition: New
€5.06
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2

Bosch genuine spare parts for replacing or repairing Cordless Drill Driver GSR 14,4 VE-2 - 0601912420

settings 26 spare parts

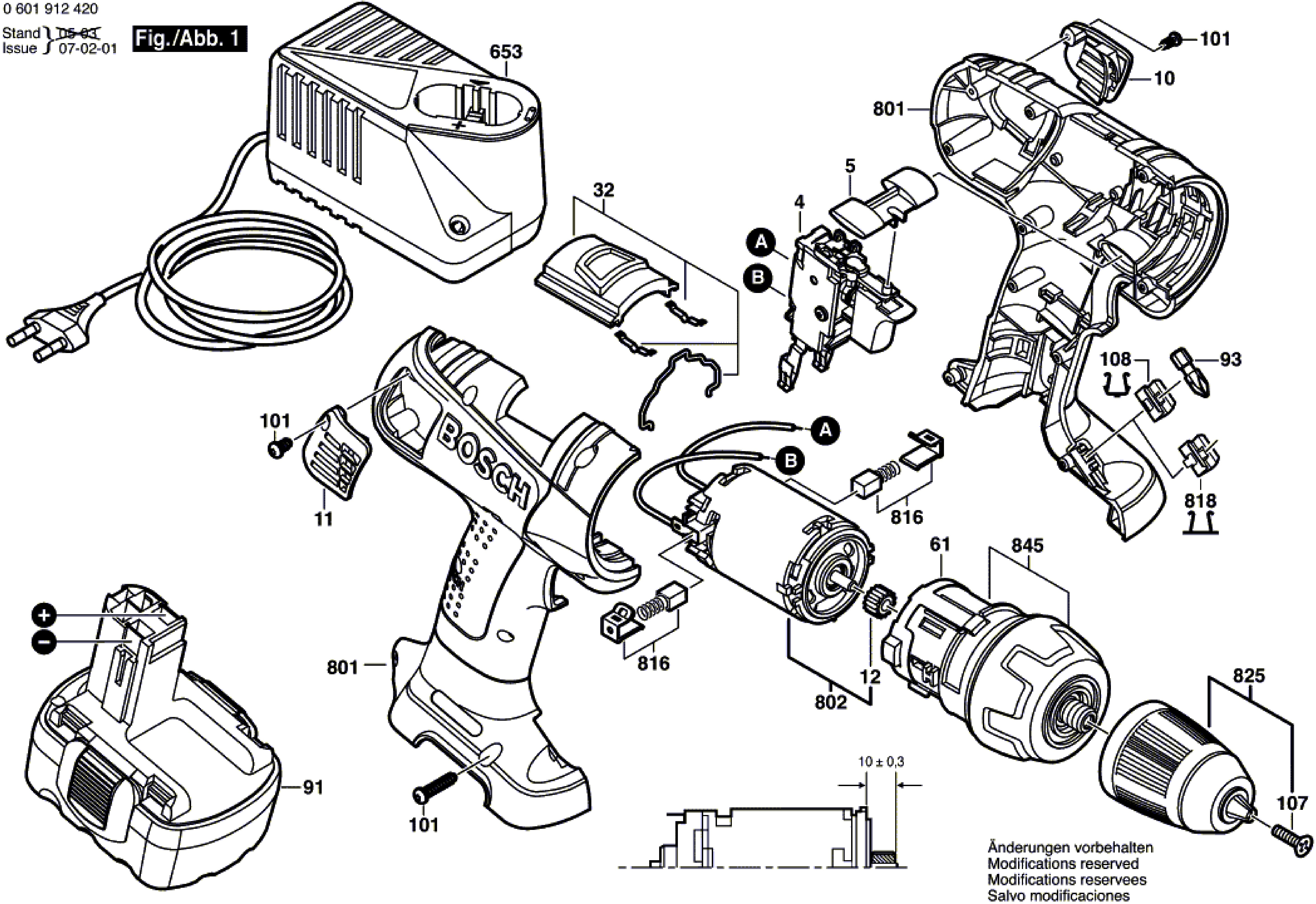

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

25 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 2607224425 Fast Charger EU 230/7,2-24V, 1h €176.29
photo_cameraImage coming soon 2607224427 Fast Charger GB 230/7,2-24V, 1h €137.58
photo_cameraImage coming soon 2607224443 Fast Charger AUS 240/7,2-14,4V, 1h €91.25
photo_cameraImage coming soon 2607224701 Fast Charger EU 230/7,2-14,4V, 30 MIN. €119.04
photo_cameraImage coming soon 2607224703 Fast Charger GB 230/7,2-14,4V, 30 MIN. €153.12
photo_cameraImage coming soon 2607224709 Fast Charger RC 115/7,2-14,4V, 30 MIN. €163.93
photo_cameraImage coming soon 2607335693 Slide-In Accu Package 14,4V,3,0Ah,NiMh €465.26
photo_cameraImage coming soon 2607335699 Slide-In Accu Package 14,4V, 2,0Ah, NiMH €236.07
4
photo_cameraImage coming soon 2607200456 On-Off Switch €63.90
5
Switch Adjusting Slide for Cordless Drill GSR 14,4 VE-2 2601099112 Switch Adjusting Slide for Cordless Drill GSR 14,4 VE-2 €3.79
10
photo_cameraImage coming soon 2600508051 Cover BLACK €3.91
11
photo_cameraImage coming soon 2600508052 Cover BLACK €3.91
12
photo_cameraImage coming soon 2606316222 Pinion €5.37
32
photo_cameraImage coming soon 2601099127 Adjusting Slide €5.72
61
photo_cameraImage coming soon 2608040190 Support €9.26
91
Slide-In Accu Package 14,4V for Cordless Drill GSR 14,4 VE-2 2607335685 Slide-In Accu Package 14,4V for Cordless Drill GSR 14,4 VE-2 €121.60 Not available for order
101
Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch 2603490018 Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch €0.93
107
photo_cameraImage coming soon 2603421229 Countersunk-Head Screw M6x23 €2.13
653
photo_cameraImage coming soon 2607224983 Fast Charger BR 220/7,2-24V, 1h €101.29
801
photo_cameraImage coming soon 2605105908 Housing Section BLUE €63.90
802
photo_cameraImage coming soon 2607022864 DC motor 14,4V €127.03
816
Carbon Brushes for Cordless Drills GSR 12-14-18-24VE2 2607034904 Carbon Brushes for Cordless Drills GSR 12-14-18-24VE2 €24.22
818
photo_cameraImage coming soon 2604690026 Spring Element €1.37
825
photo_cameraImage coming soon 2608572900 Keyless Chuck €75.95
845
photo_cameraImage coming soon 2606200931 Planetary Gear Train €114.92

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2

Bosch genuine spare parts for replacing or repairing Cordless Drill Driver GSR 14,4 VE-2 - 0601912420

In the following table, look for the model of the Cordles Drill and the respective parts of the code.
BOSCH

Cordless Drill GSR 14,4 VE-2/0 601 912 420
4 2607200456 On-Off Switch
5 2601099112 Adjusting Slide RED
10 2600508051 Cover BLACK
11 2600508052 Cover BLACK
12 2606316222 Pinion
32 2601099127 Adjusting Slide
61 2608040190 Support
91 2607335685 Slide-In Accu Package 14,4V, 2,6Ah, NiMH
2607335693 Slide-In Accu Package 14,4V,3,0Ah,NiMh
2607335699 Slide-In Accu Package 14,4V, 2,0Ah, NiMH
2607335699 Slide-In Accu Package 14,4V, 2,0Ah, NiMH
101 2603490018 Torx Oval-Head Screw 3x18
107 2603421229 Countersunk-Head Screw M6x23
108 2604690035 Spring Element
653 2607224983 Fast Charger BR 220/7,2-24V, 1h
2607224701 Fast Charger EU 230/7,2-14,4V, 30 MIN.
2607224427 Fast Charger GB 230/7,2-24V, 1h
2607224703 Fast Charger GB 230/7,2-14,4V, 30 MIN.
2607224443 Fast Charger AUS 240/7,2-14,4V, 1h
2607224425 Fast Charger EU 230/7,2-24V, 1h
2607224709 Fast Charger RC 115/7,2-14,4V, 30 MIN.
801 2605105908 Housing Section BLUE
802 2607022864 DC motor 14,4V
816 2607034904 Carbon-Brush Set
818 2604690026 Spring Element
825 2608572900 Keyless Chuck
845 2606200931 Planetary Gear Train

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GSR 14,4 VE-2 - 0601912420
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GSR 14,4 VE-2

Diagram Bosch GSR 14,4 VE-2

Download (86.62KB)
