Bosch

Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2LI

SKU: Bosch GSR 14,4 VE-2LI 3601H61T00
€3.11
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2LI

Bosch genuine spare parts for replacing or repairing Cordless Drill Driver GSR 14,4 VE-2LI - 3601H61T00.

Bosch GSR 14,4 VE-2LI - 3601H61T00
Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2LI
  • Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2LI
  • Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2LI
Bosch

Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2LI

SKU: Bosch GSR 14,4 VE-2LI 3601H61T00 Condition: New
€3.11
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2LI

Bosch genuine spare parts for replacing or repairing Cordless Drill Driver GSR 14,4 VE-2LI - 3601H61T00.

Bosch GSR 14,4 VE-2LI - 3601H61T00
settings 27 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
27 spare parts

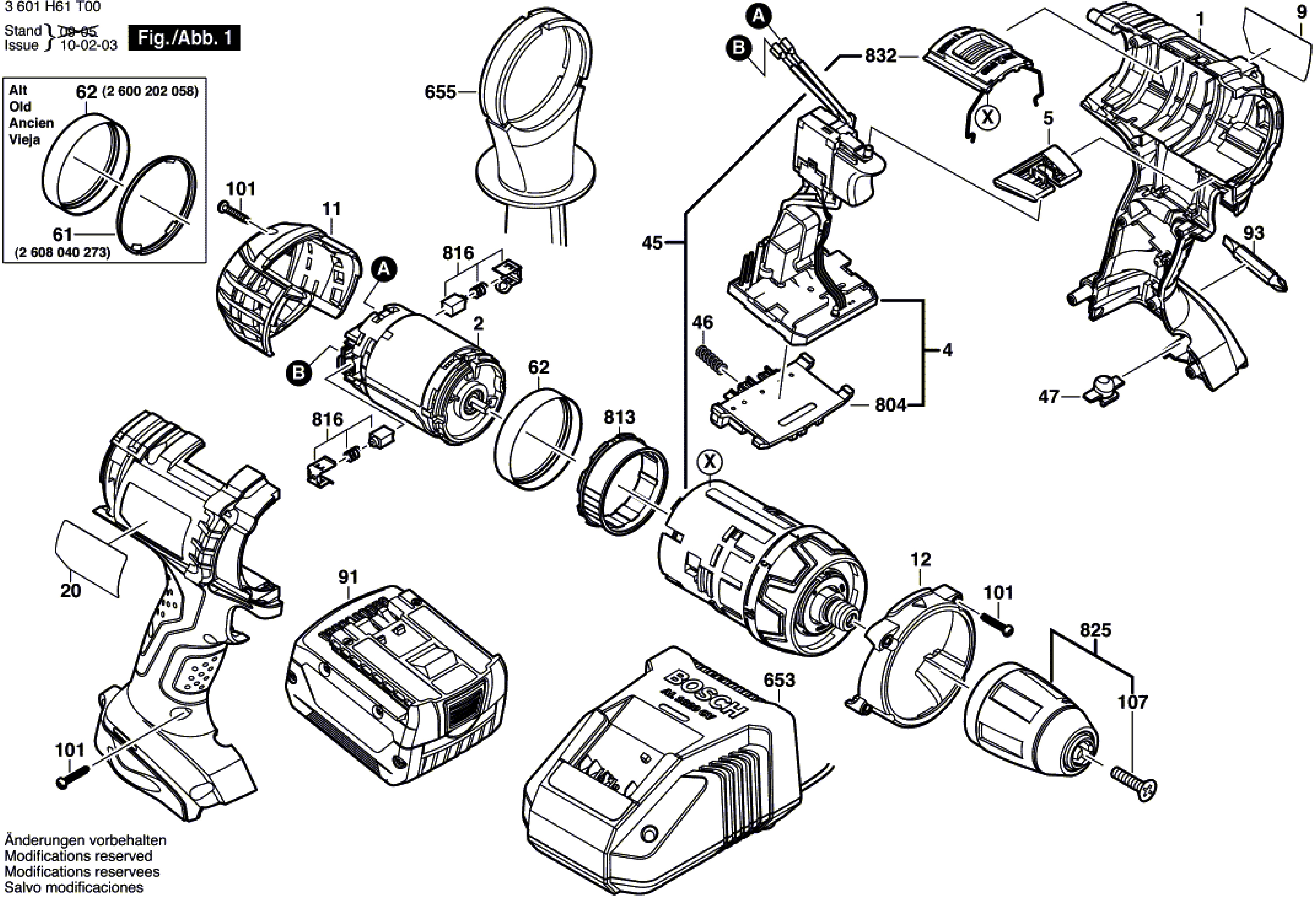

Page 1 zoom_in View exploded
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 1607000488 Carbon-Brush Set 10 x 2 607 034 904 €86.86
photo_cameraImage coming soon 2607225323 Charger GB 230/10,8-18V, 30 MIN €112.85
photo_cameraImage coming soon 2607225325 Fast Charger AUS 240/10,8-18V, 30 MIN €151.00
photo_cameraImage coming soon 2607225333 Fast Charger ROK 220/10,8-18V, 30 MIN €163.29
photo_cameraImage coming soon 2607336223 Slide-In Accu Package BBS-MR XL-PACK 14,4V, LI €268.87
1
 photo_cameraImage coming soon 2605105140 Housing Section BLUE €33.08
2
 photo_cameraImage coming soon 2607022319 DC motor 14,4V €128.39
4
 photo_cameraImage coming soon 1607233331 Electronics Module €101.29
5
 photo_cameraImage coming soon 2601099196 Adjusting lever RED €1.31
9
 photo_cameraImage coming soon 2601115736 Manufacturer's nameplate GSR 14,4 VE-2LI €2.00
11
 photo_cameraImage coming soon 2600508066 End cap BLACK €5.94
12
 photo_cameraImage coming soon 2600510011 Front Cap €5.37
20
 photo_cameraImage coming soon 2601115737 Nameplate €2.00
45
 photo_cameraImage coming soon 2606200256 Planetary Gear Train €163.93
46
 photo_cameraImage coming soon 1609280477 Compression Spring €2.44
62
 photo_cameraImage coming soon 2600202067 Retaining snap ring €9.46
91
 photo_cameraImage coming soon 2607336077 Slide-In Accu Package 14,4V, 2,6Ah, LI, MS €285.52
93
 photo_cameraImage coming soon 1609200147 Screwdriver Blade 6 MM €2.47
101
 Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch 2603490018 Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch €0.93
107
 photo_cameraImage coming soon 2603421229 Countersunk-Head Screw M6x23 €2.13
653
 photo_cameraImage coming soon 2607225321 Charger EU 230/10,8-18V, 30 MIN €93.69
655
 photo_cameraImage coming soon 2602025158 Auxiliary Handle €15.37
804
 photo_cameraImage coming soon 1609280474 Contact retainer €12.96
813
 photo_cameraImage coming soon 2600510012 Locating ring €5.37
816
 Carbon Brushes for Cordless Drills GSR 12-14-18-24VE2 2607034904 Carbon Brushes for Cordless Drills GSR 12-14-18-24VE2 €24.22
825
 photo_cameraImage coming soon 2608572901 Keyless Chuck €75.96
832
 photo_cameraImage coming soon 2601099213 Adjusting lever €6.42

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Cordless Drill Driver GSR 14,4 VE-2LI

Bosch genuine spare parts for replacing or repairing Cordless Drill Driver GSR 14,4 VE-2LI - 3601H61T00.

In the following table, look for the model of the Cordles Drill and the respective parts of the code.
Bosch GSR 14,4 VE-2LI - 3601H61T00

Cordless Drill GSR 14,4 VE-2LI/3 601 H61 T00
# Part Num. Description
1 2605105140 Housing Section BLUE
2 2607022319 DC motor 14,4V
4 1607233331 Electronics Module
5 2601099196 Adjusting lever RED
9 2601115736 Manufacturer's nameplate GSR 14,4 VE-2LI
11 2600508066 End cap BLACK
12 2600510011 Front Cap
20 2601115737 Nameplate
45 2606200256 Planetary Gear Train
46 1609280477 Compression Spring
47 2605190895 Lens
62 2600202067 Retaining snap ring
91 2607336077 Slide-In Accu Package 14,4V, 2,6Ah, LI, MS
2607336223 Slide-In Accu Package BBS-MR XL-PACK 14,4V, LI
93 1609200147 Screwdriver Blade 6 MM
101 2603490018 Torx Oval-Head Screw 3x18
107 2603421229 Countersunk-Head Screw M6x23
653 2607225321 Charger EU 230/10,8-18V, 30 MIN
2607225323 Charger GB 230/10,8-18V, 30 MIN
2607225325 Fast Charger AUS 240/10,8-18V, 30 MIN
2607225333 Fast Charger ROK 220/10,8-18V, 30 MIN
655 2602025158 Auxiliary Handle
804 1609280474 Contact retainer
813 2600510012 Locating ring
816 2607034904 Carbon-Brush Set
1607000488 Carbon-Brush Set 10 x 2 607 034 904
825 2608572901 Keyless Chuck
832 2601099213 Adjusting lever
