Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2LI

SKU: Bosch GSR 18 VE-2LI 3601H61S00
€113.26
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2LI

BOSCH service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Drill Driver GSR 18 VE-2LI - 3601H61S00.

Bosch GSR 18 VE-2LI 3601H61S00
Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2LI
  • Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2LI

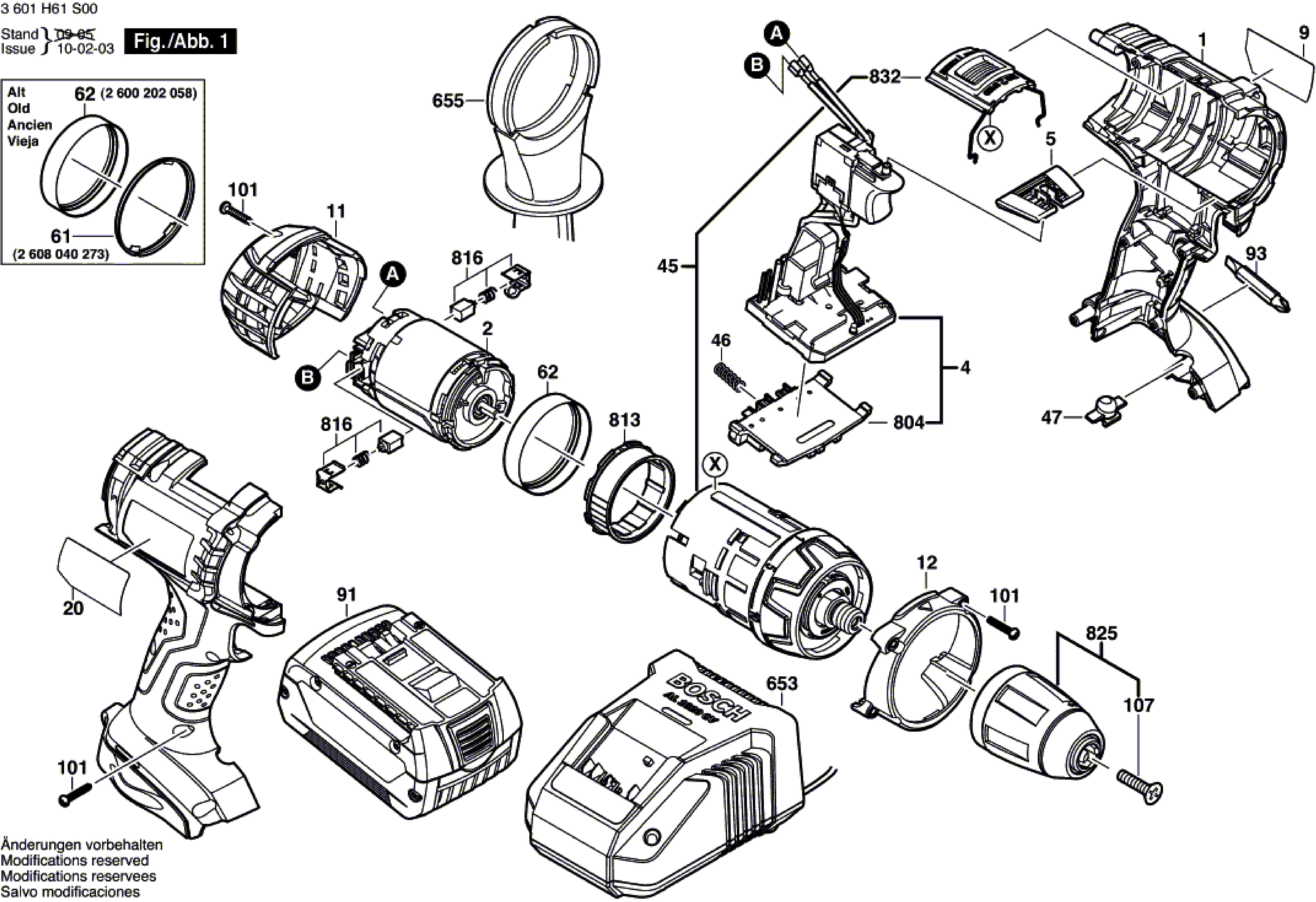

  • Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2LI - Exploded Diagram

Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2LI

SKU: Bosch GSR 18 VE-2LI 3601H61S00 Condition: New
€113.26
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2LI

BOSCH service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Drill Driver GSR 18 VE-2LI - 3601H61S00.

Bosch GSR 18 VE-2LI 3601H61S00
settings 28 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

26 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 1607000488 Carbon-Brush Set 10 x 2 607 034 904 €86.86
photo_cameraImage coming soon 2607225323 Charger GB 230/10,8-18V, 30 MIN €112.85
photo_cameraImage coming soon 2607225325 Fast Charger AUS 240/10,8-18V, 30 MIN €151.00
photo_cameraImage coming soon 2607225333 Fast Charger ROK 220/10,8-18V, 30 MIN €163.29
photo_cameraImage coming soon 2607336235 Slide-In Accu Package BBS MR 18V, 3,0Ah, LI €187.16
1
photo_cameraImage coming soon 2605105140 Housing Section BLUE €33.08
4
photo_cameraImage coming soon 1607233332 Electronics Module €147.53
5
photo_cameraImage coming soon 2601099196 Adjusting lever RED €1.31
9
photo_cameraImage coming soon 2601115738 Manufacturer's nameplate GSR 18 VE-2LI €2.00
11
photo_cameraImage coming soon 2600508066 End cap BLACK €5.94
12
photo_cameraImage coming soon 2600510011 Front Cap €5.37
20
photo_cameraImage coming soon 2601115739 Nameplate €2.00
45
photo_cameraImage coming soon 2606200256 Planetary Gear Train €163.93
46
photo_cameraImage coming soon 1609280477 Compression Spring €2.44
62
photo_cameraImage coming soon 2600202067 Retaining snap ring €9.46
91
photo_cameraImage coming soon 2607336091 Slide-In Accu Package 18V, 2,6Ah, LI, MS €375.73
93
photo_cameraImage coming soon 1609200147 Screwdriver Blade 6 MM €2.47
101
Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch 2603490018 Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch €0.93
107
photo_cameraImage coming soon 2603421229 Countersunk-Head Screw M6x23 €2.13
653
photo_cameraImage coming soon 2607225321 Charger EU 230/10,8-18V, 30 MIN €93.69
655
photo_cameraImage coming soon 2602025158 Auxiliary Handle €15.37
804
photo_cameraImage coming soon 1609280478 Contact retainer €17.09
813
photo_cameraImage coming soon 2600510012 Locating ring €5.37
816
Carbon Brushes for Cordless Drills GSR 12-14-18-24VE2 2607034904 Carbon Brushes for Cordless Drills GSR 12-14-18-24VE2 €24.22
825
photo_cameraImage coming soon 2608572901 Keyless Chuck €75.96
832
photo_cameraImage coming soon 2601099213 Adjusting lever €6.42

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Cordless Drill Driver GSR 18 VE-2LI

BOSCH service center and original spare parts Worldwide Distributor

. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Drill Driver GSR 18 VE-2LI - 3601H61S00.

In the following table, look for the model of the Cordles Drill and the respective parts of the code.
Bosch GSR 18 VE-2LI 3601H61S00

Cordless Drill GSR 18 VE-2LI/3 601 H61 S00
# Part Num. Description
1 2605105140 Housing Section BLUE
2 2607022320 DC motor 18V
4 1607233332 Electronics Module
5 2601099196 Adjusting lever RED
9 2601115738 Manufacturer's nameplate GSR 18 VE-2LI
11 2600508066 End cap BLACK
12 2600510011 Front Cap
20 2601115739 Nameplate
45 2606200256 Planetary Gear Train
46 1609280477 Compression Spring
47 2605190895 Lens
62 2600202067 Retaining snap ring
91 2607336091 Slide-In Accu Package 18V, 2,6Ah, LI, MS
2607336235 Slide-In Accu Package BBS MR 18V, 3,0Ah, LI
93 1609200147 Screwdriver Blade 6 MM
101 2603490018 Torx Oval-Head Screw 3x18
107 2603421229 Countersunk-Head Screw M6x23
653 2607225321 Charger EU 230/10,8-18V, 30 MIN
2607225323 Charger GB 230/10,8-18V, 30 MIN
2607225325 Fast Charger AUS 240/10,8-18V, 30 MIN
2607225333 Fast Charger ROK 220/10,8-18V, 30 MIN
655 2602025158 Auxiliary Handle
804 1609280478 Contact retainer
813 2600510012 Locating ring
816 2607034904 Carbon-Brush Set
1607000488 Carbon-Brush Set 10 x 2 607 034 904
825 2608572901 Keyless Chuck
832 2601099213 Adjusting lever

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GSR 18 VE-2LI 3601H61S00
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GSR 18 VE-2LI

Diagram Bosch GSR 18 VE-2LI

Download (91.84KB)
