Bosch

Bosch Chainsaw UniversalChain 18 Parts

SKU: Universal Chain 18 3600HB8000
€7.53
VAT included

Bosch Cordless Chainsaw UniversalChain18 Spare Parts

Bosch original spare parts for to replace broken parts for to fix UniversalChain18 Cordless Chainsaw - 3600HB8000.

Bosch UniversalChain18 Cordless Chainsaw
Bosch Chainsaw UniversalChain18 Parts
  • Online only
  • Bosch Chainsaw UniversalChain18 Parts
  • Bosch Chainsaw UniversalChain18 Parts - Drawing
  • Bosch Chainsaw UniversalChain18 Parts - Drawing 1
Bosch

Bosch Chainsaw UniversalChain 18 Parts

SKU: Universal Chain 18 3600HB8000 Condition: New
€7.53
VAT included

Bosch Cordless Chainsaw UniversalChain18 Spare Parts

Bosch original spare parts for to replace broken parts for to fix UniversalChain18 Cordless Chainsaw - 3600HB8000.

Bosch UniversalChain18 Cordless Chainsaw
settings 34 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
34 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

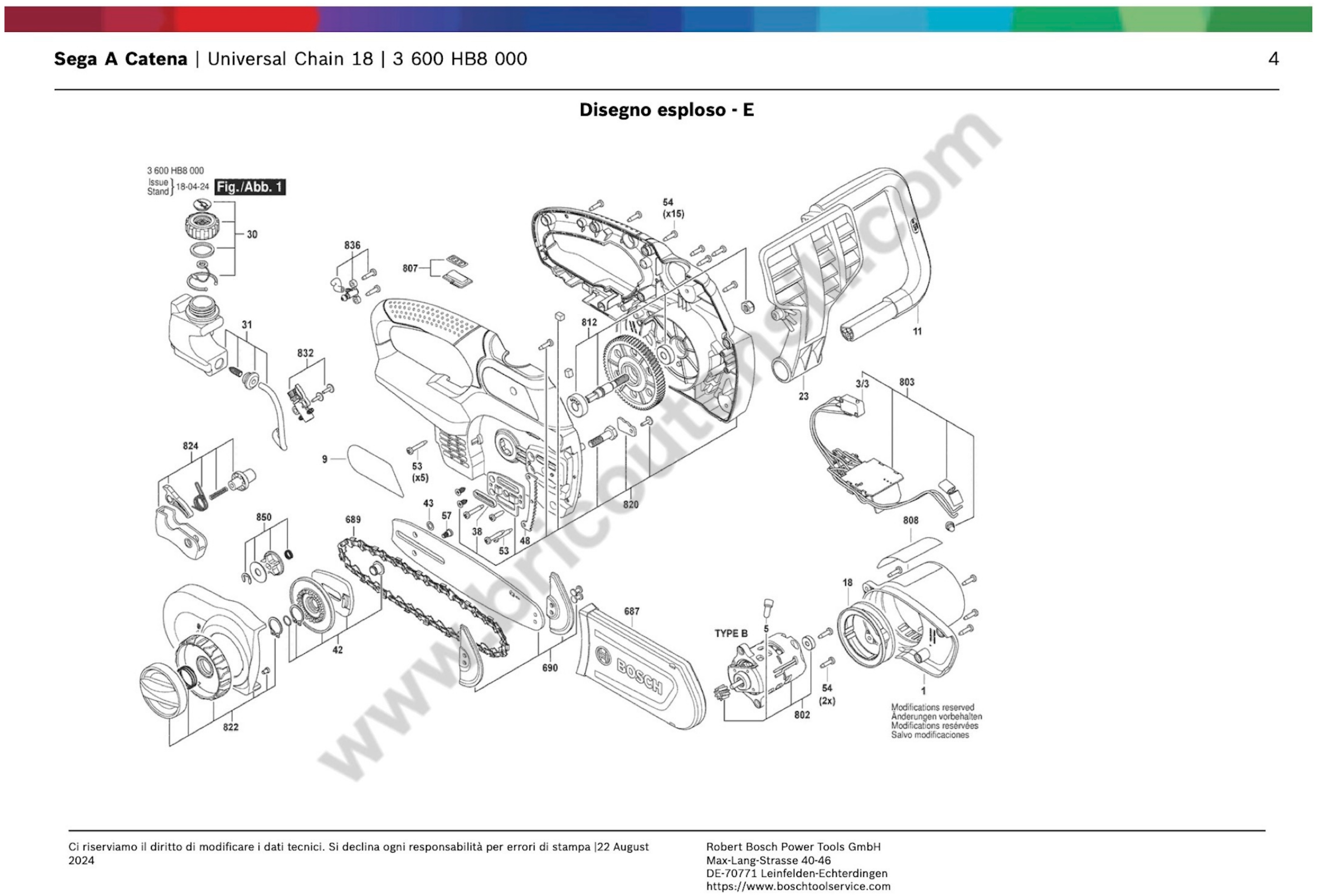

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon F016L74178 Motor Housing €7.11
3/3
 photo_cameraImage coming soon 2607202375 Switch €10.27
5
 photo_cameraImage coming soon F016L72733 connecting terminal €1.33
9
 photo_cameraImage coming soon F016L74296 Manufacturer's nameplate €3.17
11
 photo_cameraImage coming soon F016L74181 Handle €7.11
18
 photo_cameraImage coming soon F016L74179 Air-Deflector Ring €1.33
23
 photo_cameraImage coming soon F016L74182 Protective Shield €6.78
30
 photo_cameraImage coming soon F016F05161 Cap €3.17
31
 photo_cameraImage coming soon F016F05162 Tank €6.78
38
 photo_cameraImage coming soon F016L74457 Sealing Rubber €1.33
42
 photo_cameraImage coming soon F016F05168 Tensioner Parts Set €12.35
43
 photo_cameraImage coming soon F016L74462 Sealing washer €1.33
48
 photo_cameraImage coming soon F016L74194 Bumper €2.70
53
 photo_cameraImage coming soon F016L74468 Screw €1.33
54
 photo_cameraImage coming soon F016L74469 Screw €1.33
57
 photo_cameraImage coming soon F016L74467 Screw €1.33
651
 photo_cameraImage coming soon 2607337199 Battery Pack PBA 18V 2,5 AH W-B €127.35
653
 photo_cameraImage coming soon 2607225965 Fast Charger EU AL1830CV 14,4-18V 3,0A  €76.92
653
 photo_cameraImage coming soon 2607225967 Charger GB AL 1830 CV 230/14,4-18V 1H €105.00
653
 photo_cameraImage coming soon 2607225969 Charger AUS AL 1830 CV 230/14,4-18V 1H €105.00
687
 photo_cameraImage coming soon F016L74192 Guide Cover €3.73
689
 photo_cameraImage coming soon F016F05190 Chain €42.72
690
 photo_cameraImage coming soon F016F05169 Guide Rail €7.11
802
 photo_cameraImage coming soon F016F05154 DC motor €105.00
803
 photo_cameraImage coming soon F016F05155 Electronic Module €102.11
807
 photo_cameraImage coming soon F016F05158 plastic covering €1.33
808
 photo_cameraImage coming soon F016F05156 Nameplate €3.17
812
 photo_cameraImage coming soon F016F05167 Output Shaft €25.35
820
 photo_cameraImage coming soon F016F05159 Set Of Handles €48.38
822
 photo_cameraImage coming soon F016F05166 Protective Cover €12.35
824
 photo_cameraImage coming soon F016F05160 Trigger €3.17
832
 photo_cameraImage coming soon F016F05163 Pump €5.90
836
 photo_cameraImage coming soon F016F05164 feeding device €1.33
850
 photo_cameraImage coming soon F016F05165 Sprocket wheel €2.09
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

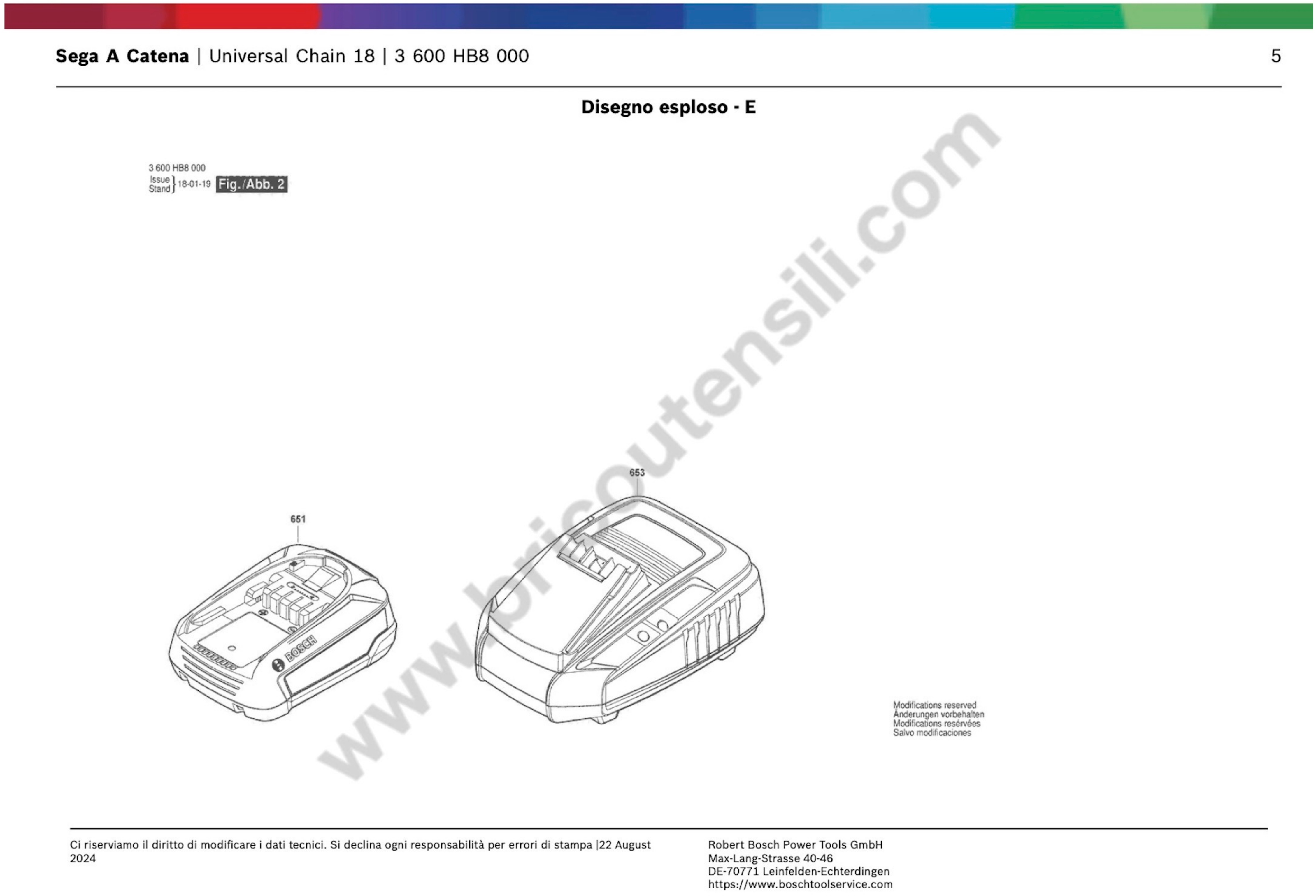

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
651
 photo_cameraImage coming soon 2607337199 Battery Pack PBA 18V 2,5 AH W-B €127.35
653
 photo_cameraImage coming soon 2607225965 Fast Charger EU AL1830CV 14,4-18V 3,0A  €76.92
653
 photo_cameraImage coming soon 2607225967 Charger GB AL 1830 CV 230/14,4-18V 1H €105.00
653
 photo_cameraImage coming soon 2607225969 Charger AUS AL 1830 CV 230/14,4-18V 1H €105.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Cordless Chainsaw UniversalChain18 Spare Parts

Bosch original spare parts for to replace broken parts for to fix UniversalChain18 Cordless Chainsaw - 3600HB8000.

In the following table, look for the model of the Electric Chain Saw and the respective parts of the code.
Bosch UniversalChain18 Cordless Chainsaw
Bosch UniversalChain18 Cordless Chainsaw - 3600HB8000 Spare Parts
# Part Num. Description
1 F016L74178 Motor Housing
3/3 2607202375 Switch
5 F016L72733 connecting terminal
9 F016L74296 Manufacturer's nameplate
11 F016L74181 Handle
18 F016L74179 Air-Deflector Ring
23 F016L74182 Protective Shield
30 F016F05161 Cap
31 F016F05162 Tank
38 F016L74457 Sealing Rubber
42 F016F05168 Tensioner Parts Set
43 F016L74462 Sealing washer
48 F016L74194 Bumper
53 F016L74468 Screw
54 F016L74469 Screw
57 F016L74467 Screw
687 F016L74192 Guide Cover
689 F016F05190 Chain
690 F016F05169 Guide Rail
802 F016F05154 DC motor
803 F016F05155 Electronic Module
807 F016F05158 plastic covering
808 F016F05156 Nameplate
812 F016F05167 Output Shaft
820 F016F05159 Set Of Handles
822 F016F05166 Protective Cover
824 F016F05160 Trigger
832 F016F05163 Pump
836 F016F05164 feeding device
850 F016F05165 Sprocket wheel
651 2607337199 Battery Pack PBA 18V 2,5 AH W-B
653 2607225965 Fast Charger EU AL 1830 CV 230/14,4-18V 1H
653 2607225967 Charger GB AL 1830 CV 230/14,4-18V 1H
653 2607225969 Charger AUS AL 1830 CV 230/14,4-18V 1H
